New
Shank Type: 19mm Weldon
Magnet Type: Electric
Made in Germany
2 Year Warranty

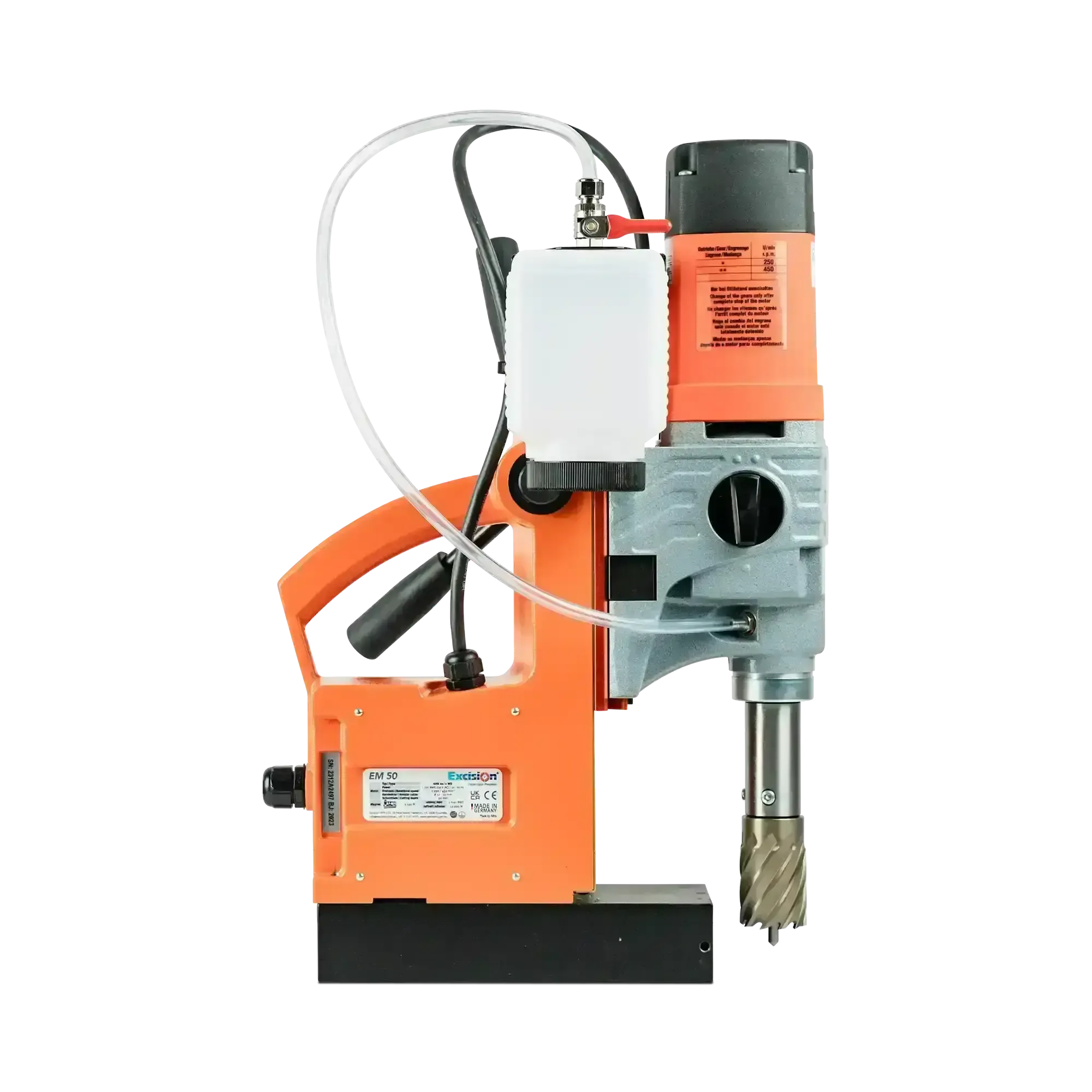

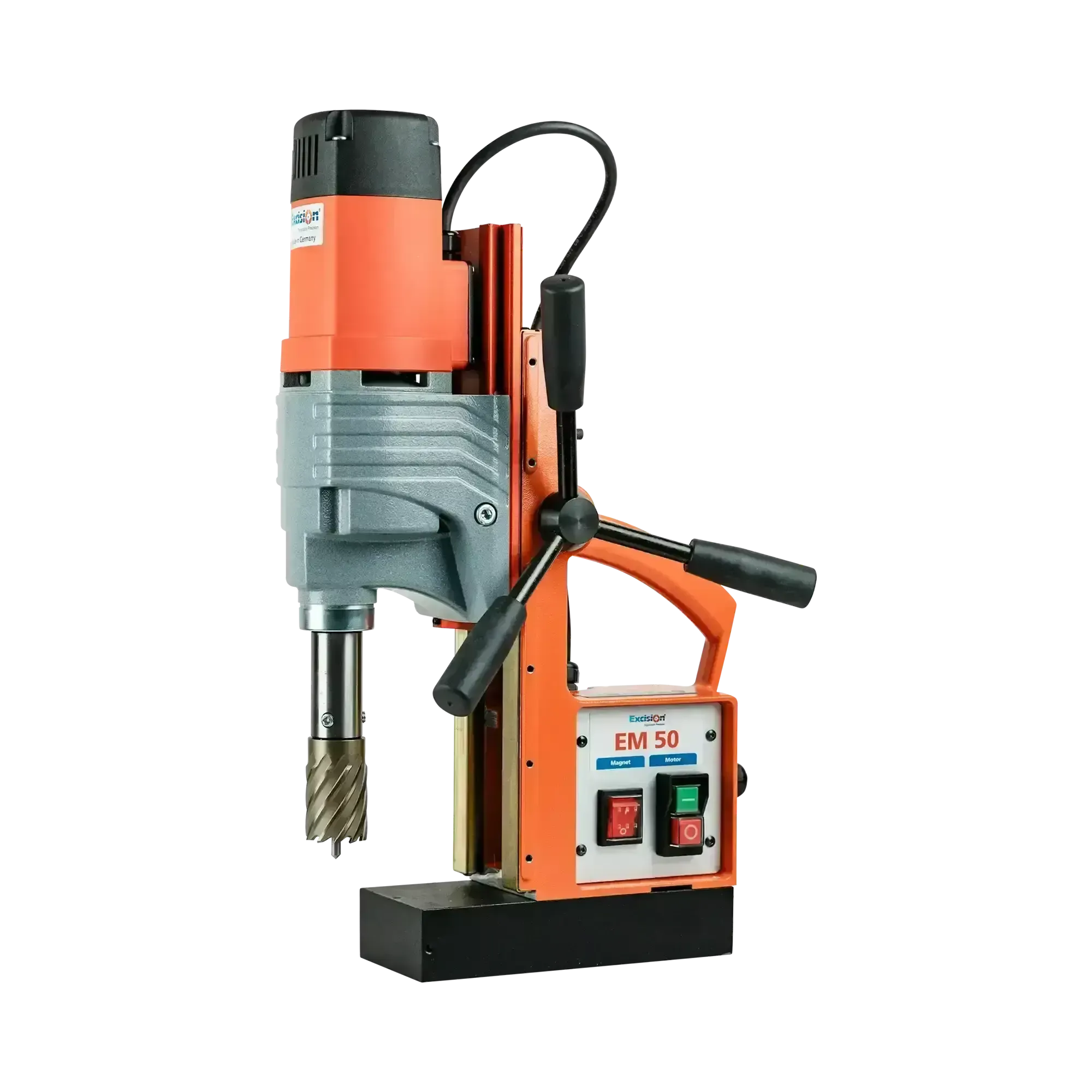

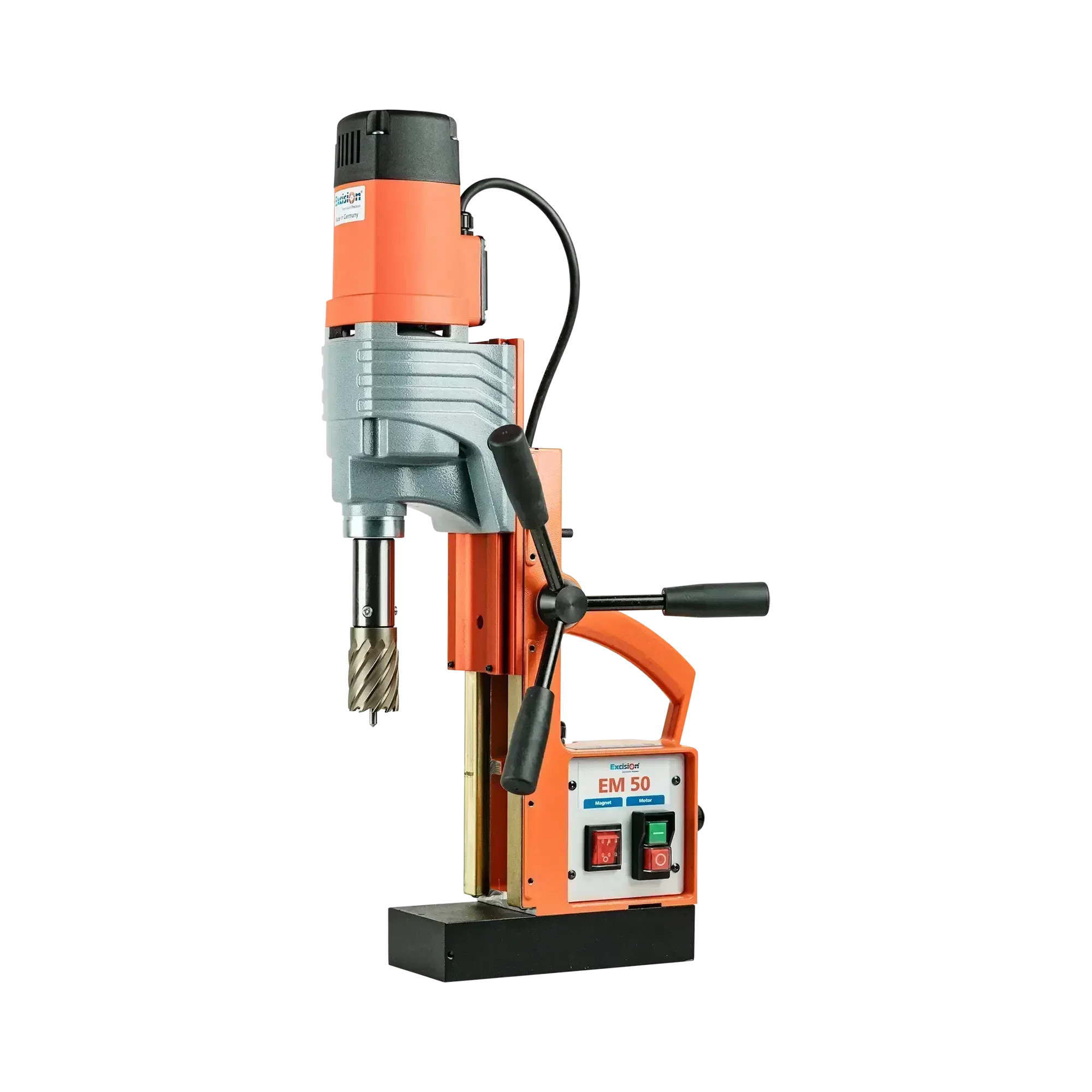

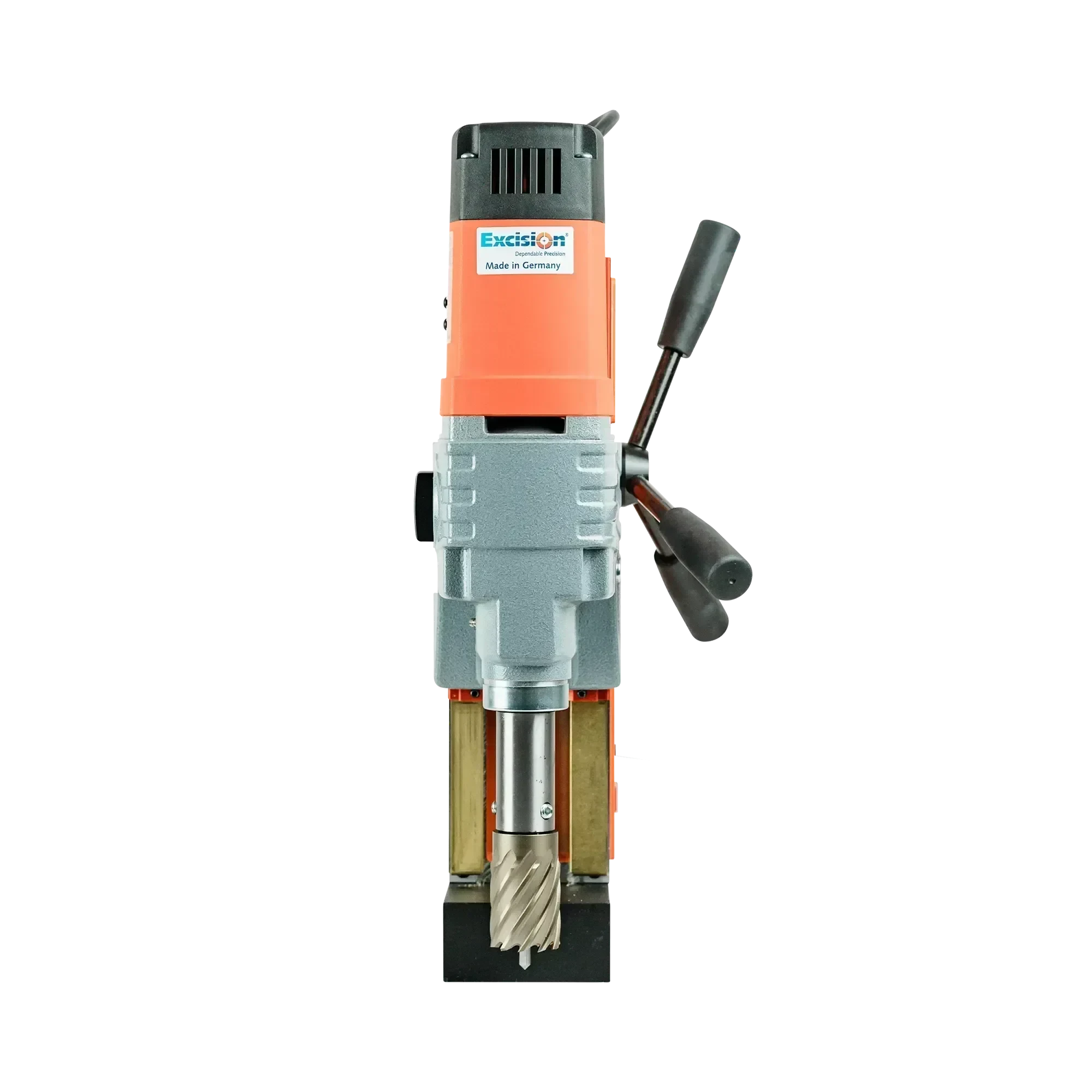

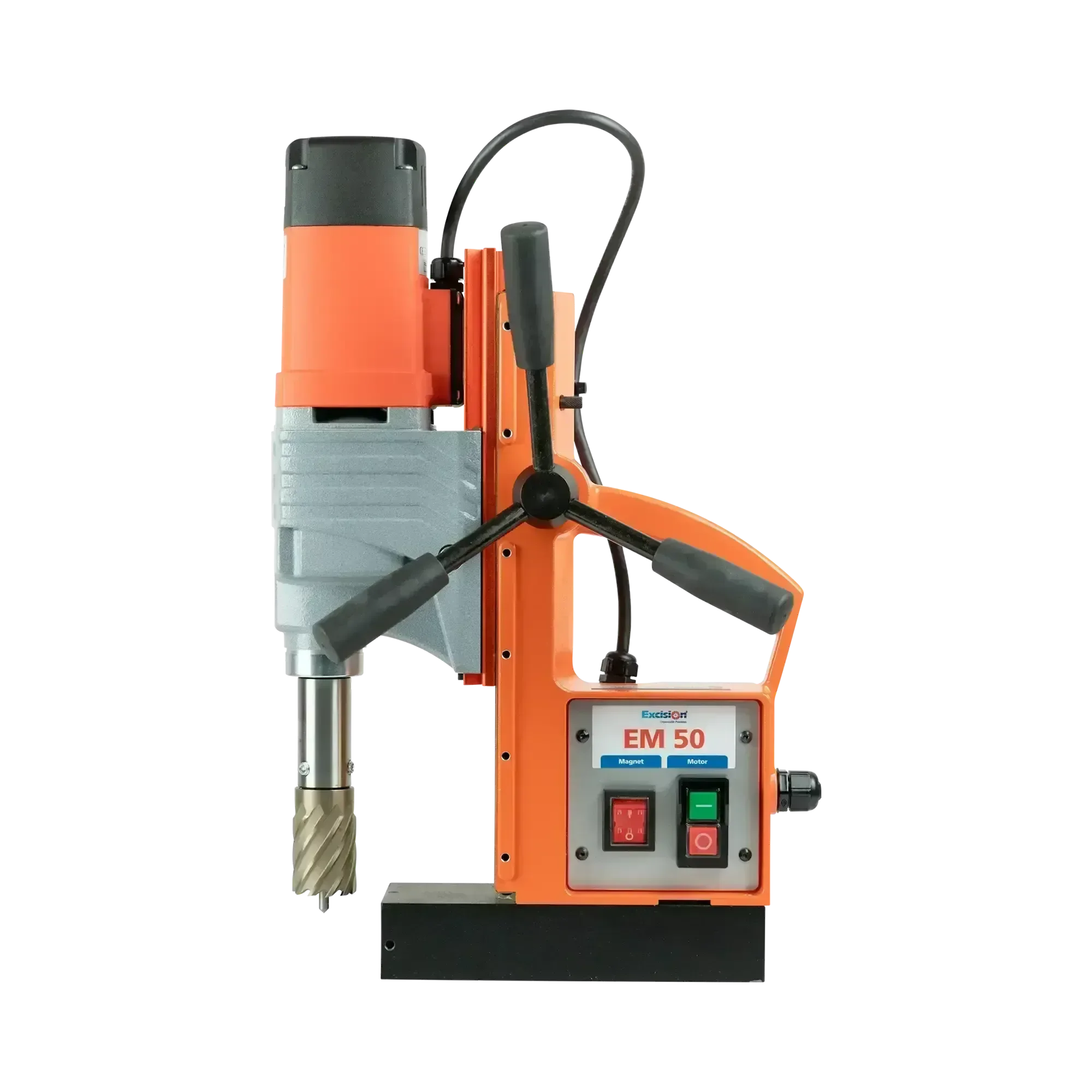

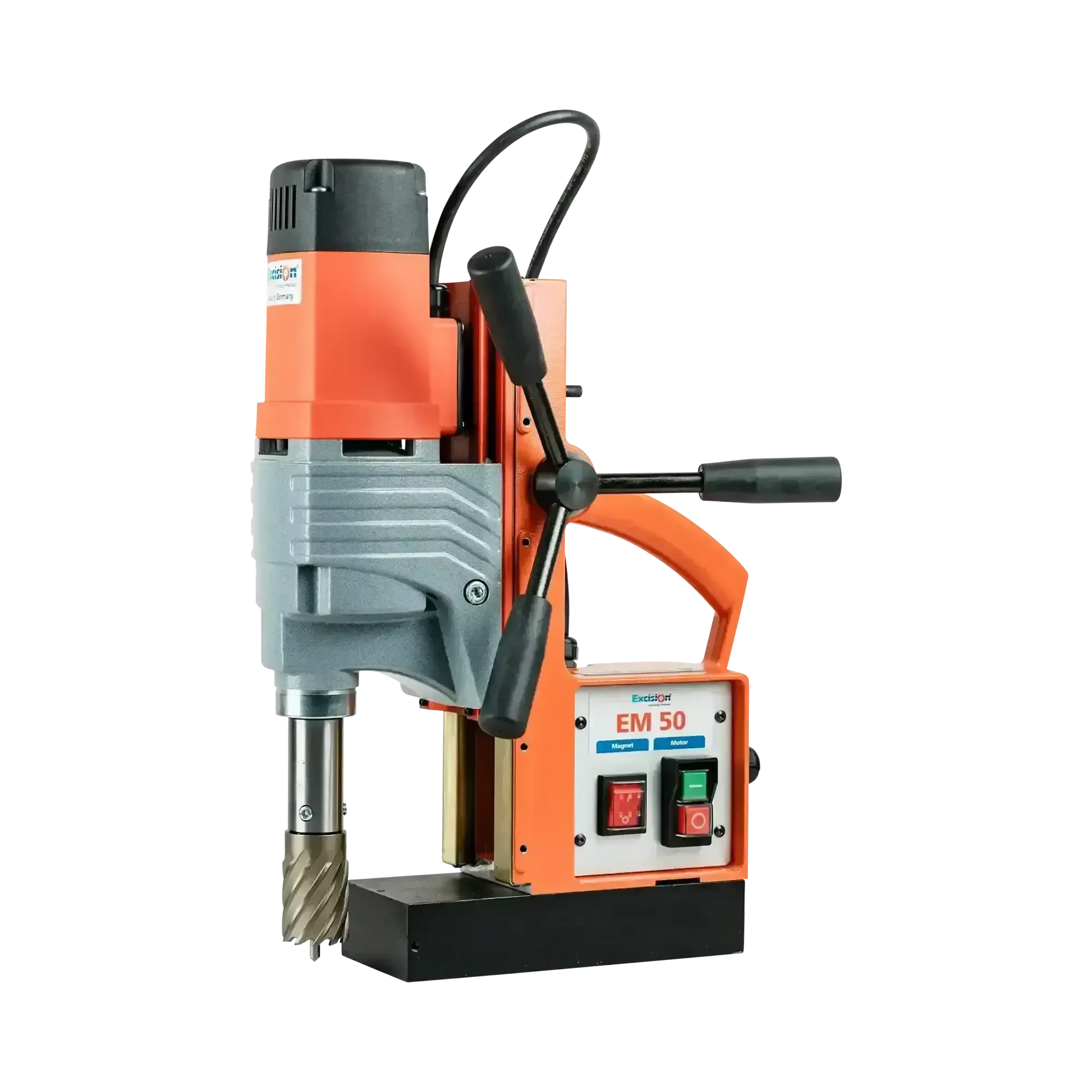

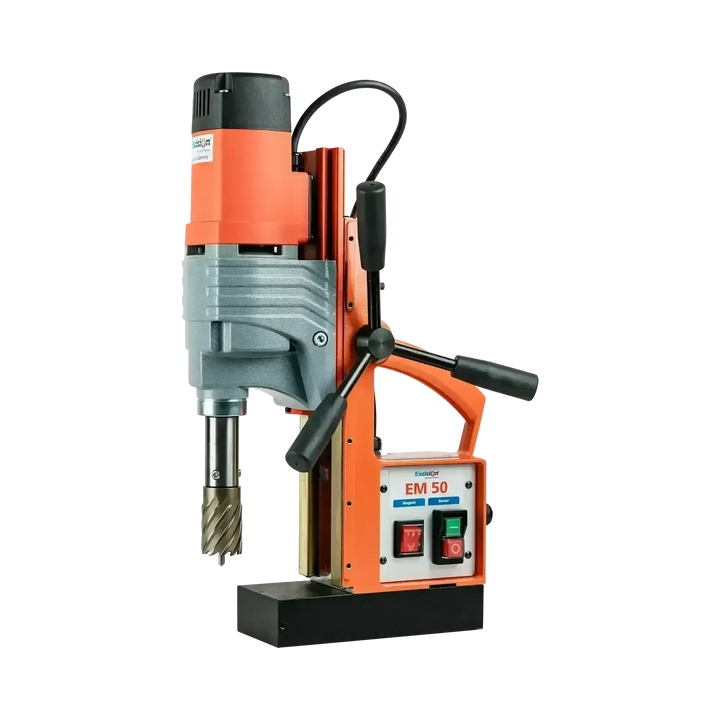

EM50 Magnetic Drill
Product Code: 18510
Shank Type: 19mm Weldon
Magnet Type: Electric
The New & Updated EM50 is a true 2-speed workhorse. Its powerful gearbox easily handles different hole diameters, while the double-dove-tailed design provides extra height for keyless chucks. A Weldon shank makes it compatible with both core and twist drills. With solid brass guides for smooth, vibration-free operation and 12,000N magnetic adhesion, the EM50 is built for tough, industrial jobs.
- Solid brass guides with spring loading for rigid gliding and no vibration

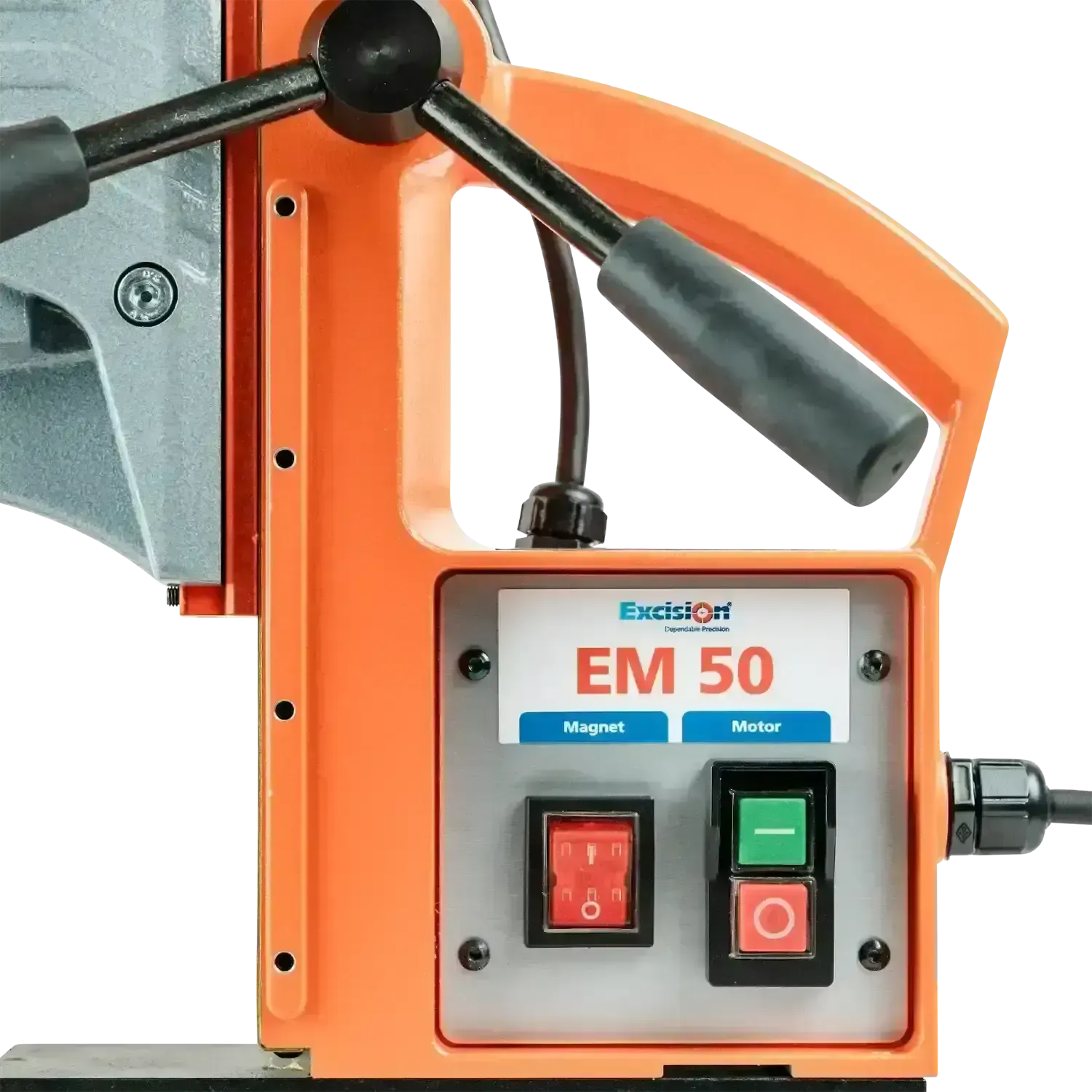

- Durable switches for long lasting use
- Direct Weldon arbor type spindle for use with all 19mm shank core drills
- Height adjustable slide enables an increased range of applications including standard twist drills
- 2 coil 12,000N magnetic adhesion for industrial use
Specifications
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions | 12.0-50.0mm |
| Cutting Depth | 50.omm |
| Twist Drill |
1.0-16.0mm with quick-release chuck |
| Counter-Boring |
10.0-40.0mm |
| Tapping |
With tapping attachment: Up to M3-M20 |
| Arbors |
19mm Weldon |
| Stroke |
190mm |
| Height Adjustment |
100mm |
| 2-Speed Gearbox |
1. Step 250rpm 2. Step 450rpm |
| Power Consumption |
1,500W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
3,500N/12,000N |
| Magnetic Base |
92×220mm |
| Weight |
15.0Kg |
Product Data
| Adhesion Force | 12000 N |
| Core Drill Diameter | 50mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| Ecom | Section |
| Gearbox Speed | 250 & 450 RPM |
| Height Adjustment | 100mm |
| Magnet Type | Electric |
| Shank Type | 19mm Weldon |
| Stroke | 190mm |
| Twist Drill Diameter | 13mm |
| Weight | 15.0 kg |
Made in Germany
2 Year Warranty
Add EM50 Magnetic Drill to comparison
View ComparisonFile Download

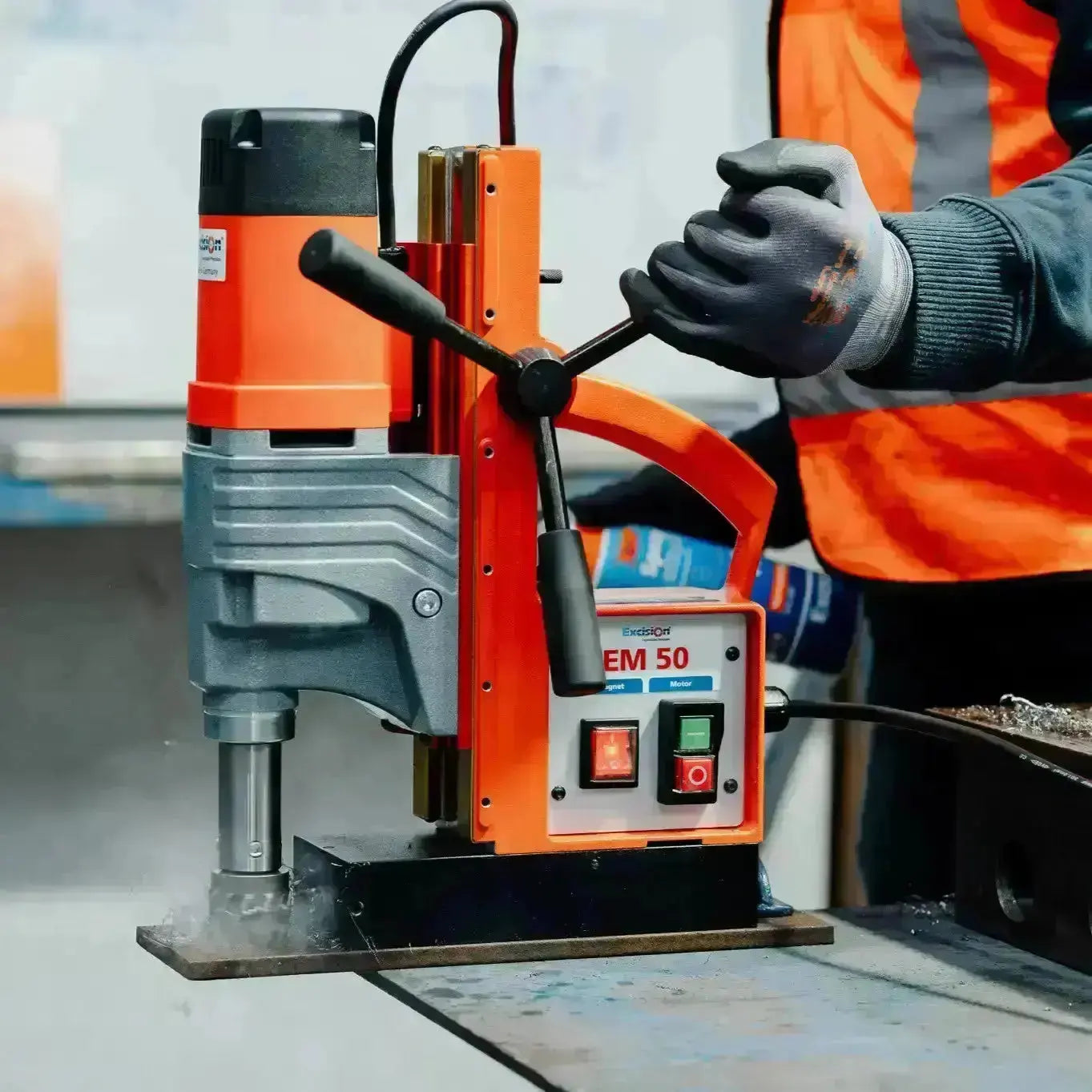

The 2-Speed Workhorse.

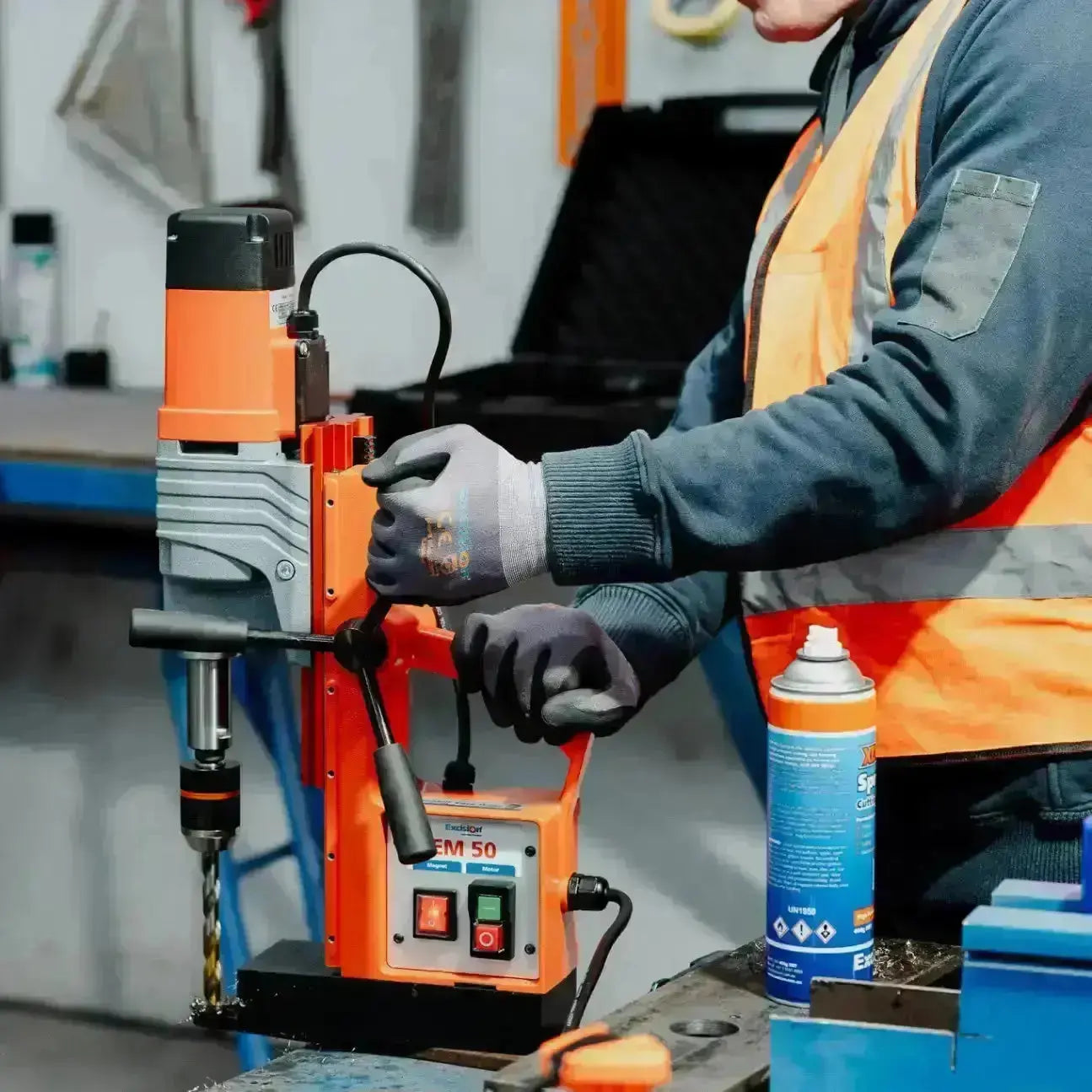

The EM50 Drill is a 2-speed workhorse with the power to handle any job. Extra height for keyless chucks, a durable Weldon shank, and smooth, vibration-free operation make it perfect for use on-site or in the workshop.

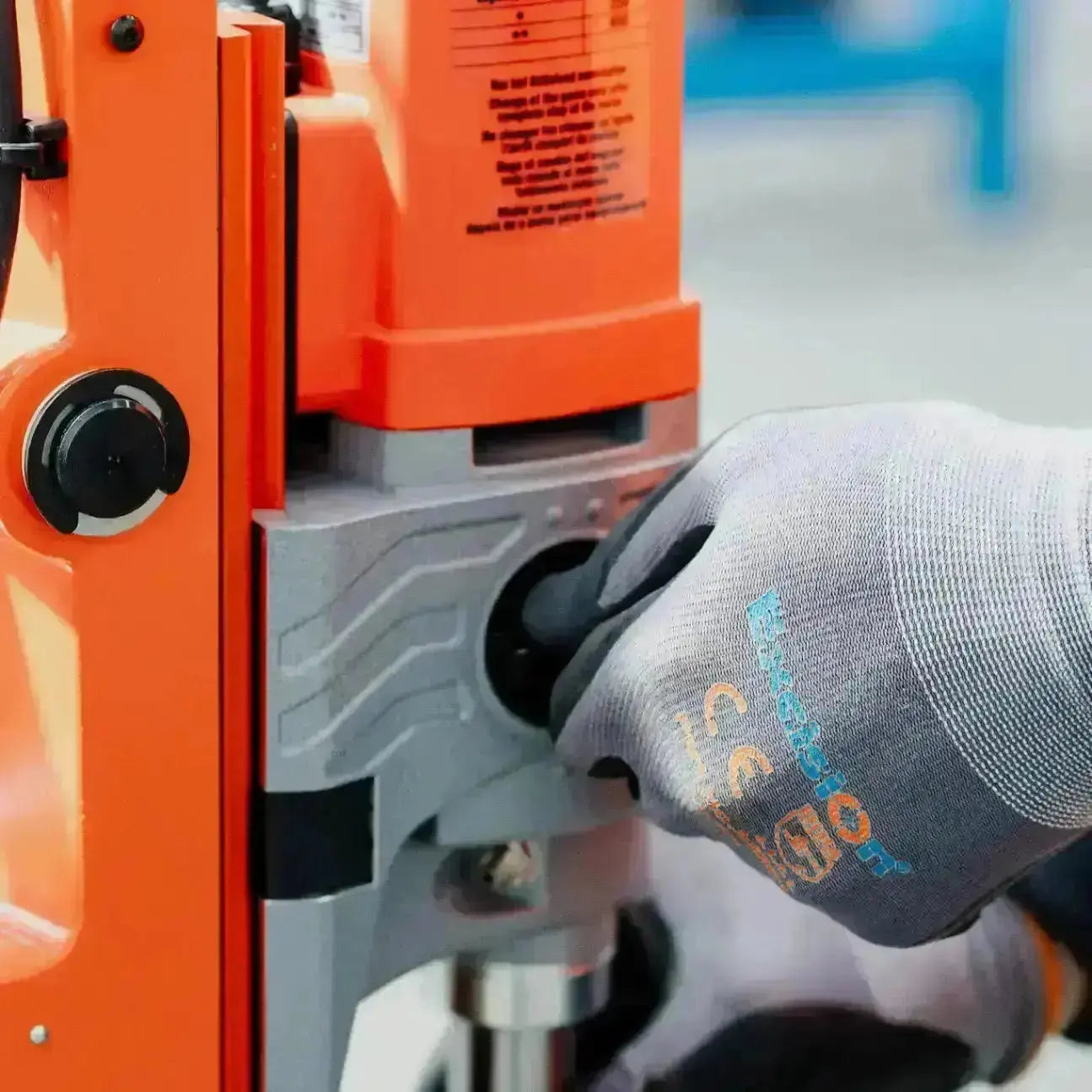

2 Speed Gearbox
EM50 has a powerful 2 speed gearbox so you can drill different diameter holes with ease.

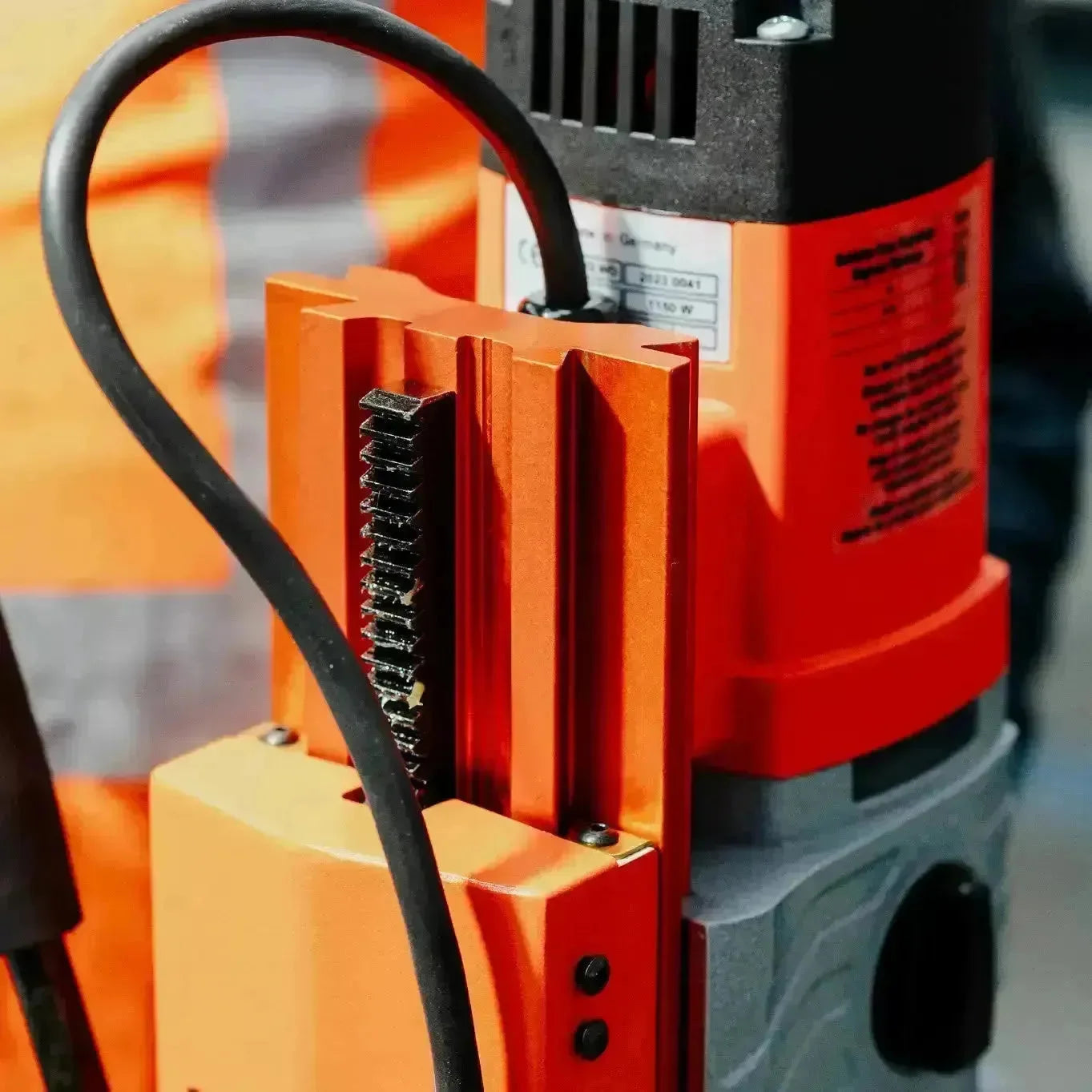

Extra Height for Drill Chucks
EM50 features a double-dove-tailed design for extra height capacity so you can use a keyless drill chuck with ease.

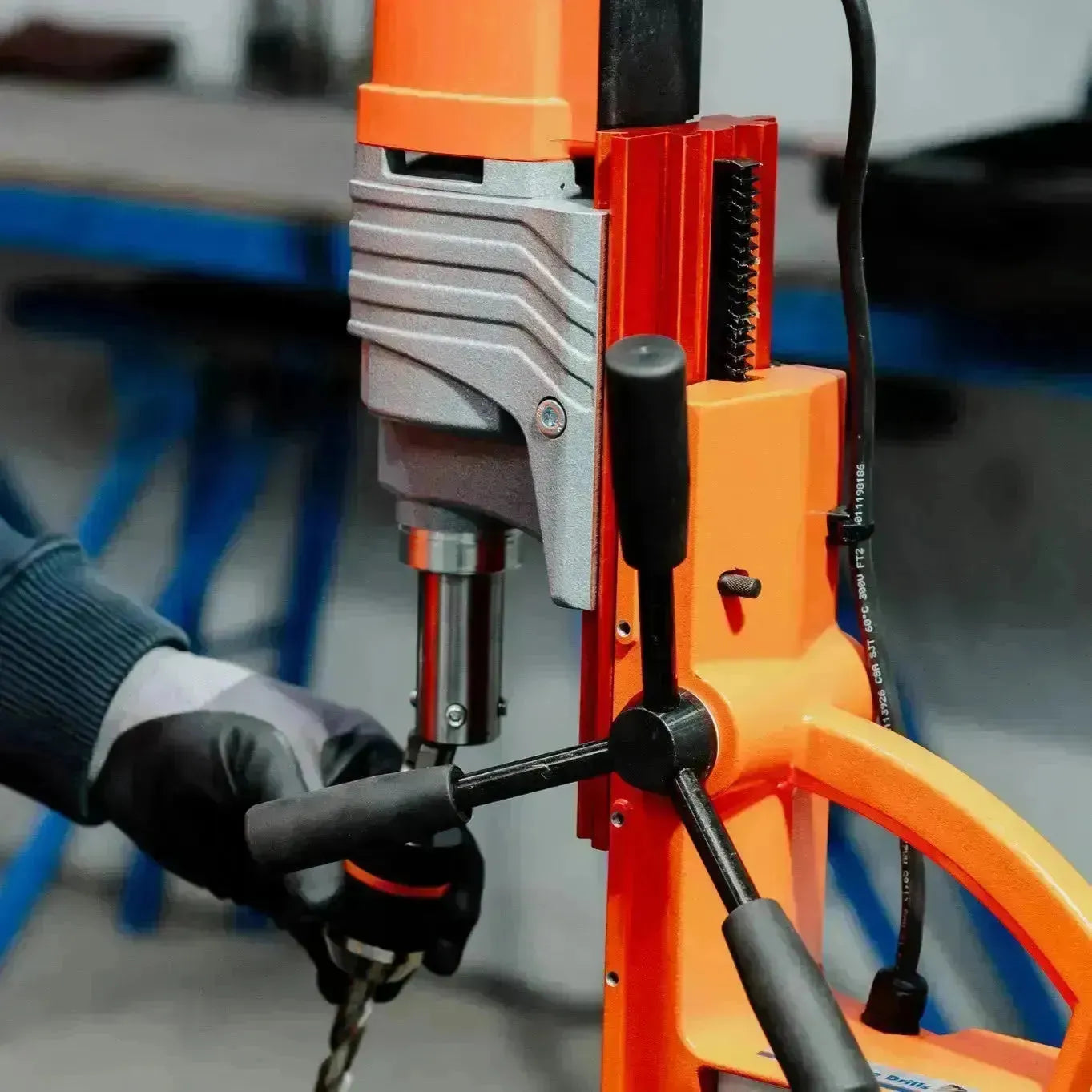

Weldon Shank
The EM50 is equipped with a handy Weldon shank for easy use with core drills and twist drills.
