200% Weld Guarantee
Bi-Alfa M42 Profile Bandsaw Blade
Structural & Pack CuttingCode: 62513811
Made in Germany
Add Bi-Alfa M42 Profile Bandsaw Blade to comparison
View Comparison- Overview
- Work Material
- Tooth Selection
- Reviews
Product Description

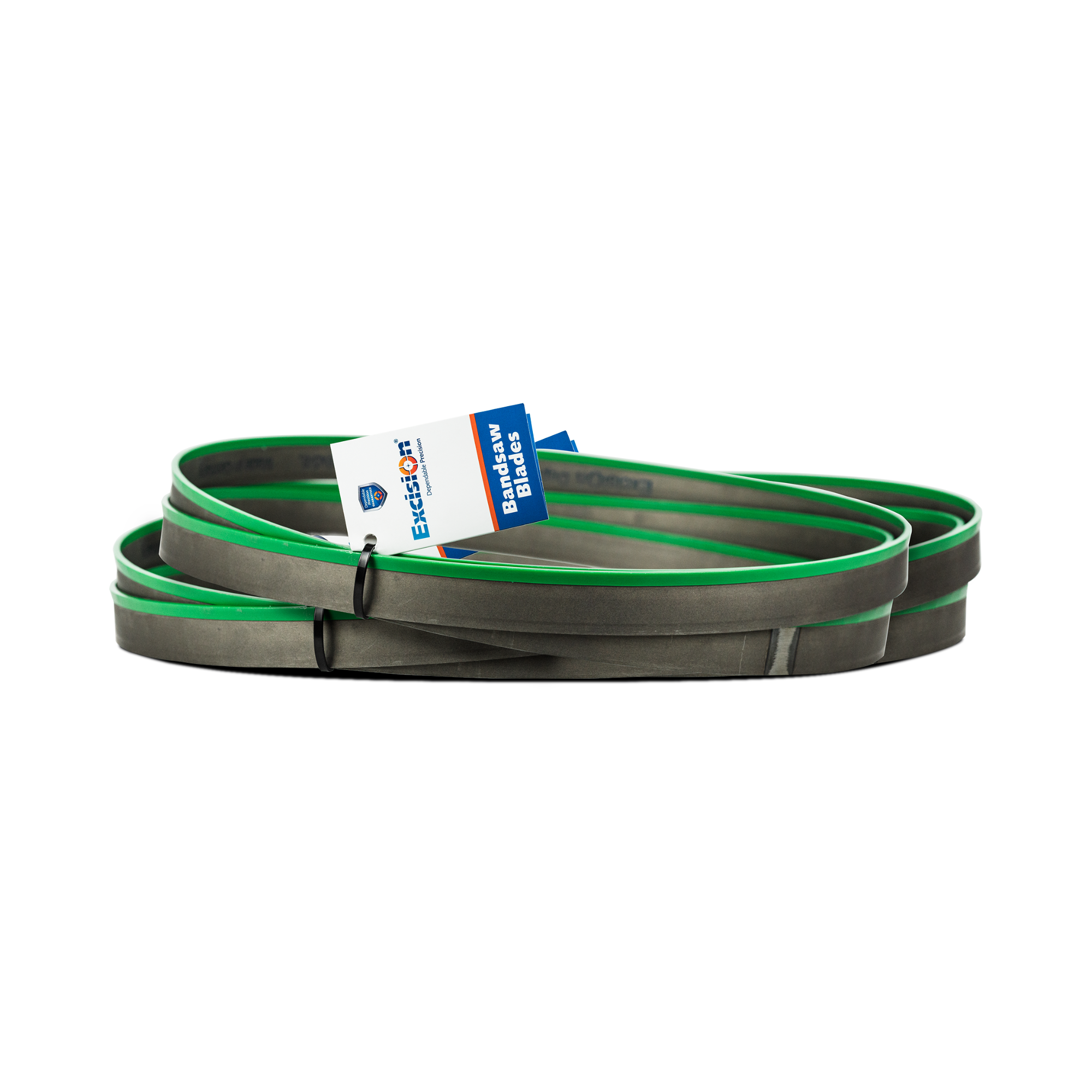

The Excision Bi-alfa Profile bandsaw blade provides outstanding performance on vibration-susceptible cuts. Vibration during cutting of tubes, beams and profiles is often damaging to a bandsaw blade, which lowers blade life and cut area considerably. The reinforced back edge of the Excision Profile increases the overall strength of the tooth to withstand vibrations during interrupted cutting and protects the bandsaw blade against tooth strippage. Bi-alfa Profile gives the best results when cutting round and square tubes as well as beams.
|
Material Type |
Bandsaw Blade Bimetal M42 Profile |
|
Hardness |
70HRc |
|
Tooth Form |
Profile Tooth 6° |
|
Set Pattern |
Combi Set |
Product Data
| Workpiece Material | M N |
Stainless Steels
Good
Good
Great
Excellent
Aluminium
Excellent
Good
Great
Excellent
| Solids | |||
| Vari-Pitch Toothing | TCT Toothing (Materials over 50 HRC) | ||
| Material Diameter (D) MM | Teeth Per Inch | Material Diameter (D) MM | Teeth Per Inch |
| 0-5 | 18 | 50-120 | 3/4 |
| 4-8 | 14 | 100-250 | 2/3 |
| 2-15 | 10/14 | 150-400 | 1.5/2 |
| 8-20 | 8/12 | 350-600 | 1.1/1.6 |
| 16-30 | 6/10 | 500+ | 0.85/1.15 |
| 25-40 | 5/8 | ||
| 35-70 | 4/6 | ||
| 60-120 | 3/4 | ||
| 80-200 | 2/3 | ||
| 120-400 | 1.5/2 | ||
| 250+ | 1.1/1.6 | ||
| 400+ | 0.75/1.25 | ||
| Tubes and RHS | ||||||||||||||||
| Width (W) | Wall Thickness (T) | |||||||||||||||
| 1 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 20 | 50 | |
| 10 | 14 | 10/14 | 10/14 | |||||||||||||
| 20 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | |||||||||||
| 25 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | ||||||||||
| 30 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | |||||||||
| 40 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 50 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 60-120 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | |
| 130-150 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | |
| 150-180 | 10/14 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | ||
| 190-300 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 2/3 | ||||
| 350-400 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
| 450-500 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
