200% Weld Guarantee

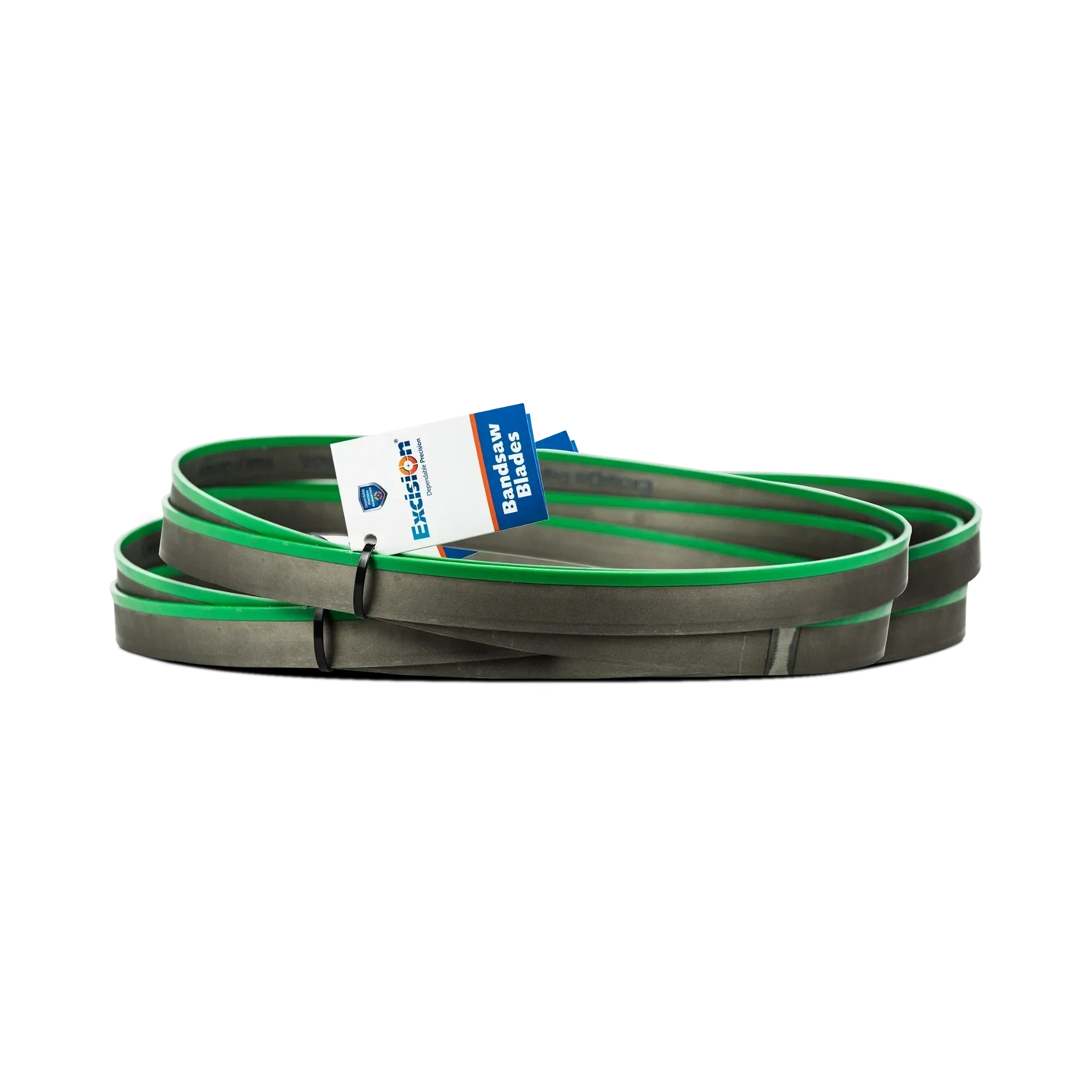

Bi-Alfa Cobalt M51 Extreme Bandsaw Blade
More Cobalt for Harder MaterialsCode: 64527203
Made in Germany
Add Bi-Alfa Cobalt M51 Extreme Bandsaw Blade to comparison
View Comparison- Overview
- Profiles
- Work Material
- Tooth Selection
Product Description
The Excision Bi-alfa cobalt extreme bandsaw M51 bandsaw blade has an alloyed steel backing with high chromium content together with a HSSCo-M51 (contains 12% cobalt) cutting edge. Due to the cobalt and tungsten content of the cutting tips, the blade has high thermal and mechanical wear resistance.
Product Data
| Workpiece Material | P M N H |
| Hardened Steels(HRc40~45) | Great |
| Solids Profile | Excellent |
| Structural Profile | Good |
| Tubes Profile | Good |
Solids
Excellent
Good
Great
Excellent
Tubes
Good
Good
Great
Excellent
Structural
Good
Good
Great
Excellent
Carbon Steels
Great
Good
Great
Excellent
Stainless Steels
Excellent
Good
Great
Excellent
Aluminium
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Great
Good
Great
Excellent
Hardened Steels (HRc45~55)
Great
Good
Great
Excellent
| Solids | |||
| Vari-Pitch Toothing | TCT Toothing (Materials over 50 HRC) | ||
| Material Diameter (D) MM | Teeth Per Inch | Material Diameter (D) MM | Teeth Per Inch |
| 0-5 | 18 | 50-120 | 3/4 |
| 4-8 | 14 | 100-250 | 2/3 |
| 2-15 | 10/14 | 150-400 | 1.5/2 |
| 8-20 | 8/12 | 350-600 | 1.1/1.6 |
| 16-30 | 6/10 | 500+ | 0.85/1.15 |
| 25-40 | 5/8 | ||
| 35-70 | 4/6 | ||
| 60-120 | 3/4 | ||
| 80-200 | 2/3 | ||
| 120-400 | 1.5/2 | ||
| 250+ | 1.1/1.6 | ||
| 400+ | 0.75/1.25 | ||
| Tubes and RHS | ||||||||||||||||
| Width (W) | Wall Thickness (T) | |||||||||||||||
| 1 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 20 | 50 | |
| 10 | 14 | 10/14 | 10/14 | |||||||||||||
| 20 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | |||||||||||
| 25 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | ||||||||||
| 30 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | |||||||||
| 40 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 50 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 60-120 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | |
| 130-150 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | |
| 150-180 | 10/14 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | ||
| 190-300 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 2/3 | ||||
| 350-400 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
| 450-500 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
Not sure what bandsaw blade you need?
Based on decades of industry knowledge and experience, we created a Bandsaw Blade selector to help you easily find the blade that best suits you.
Find your bandsaw blade
