200% Weld Guarantee

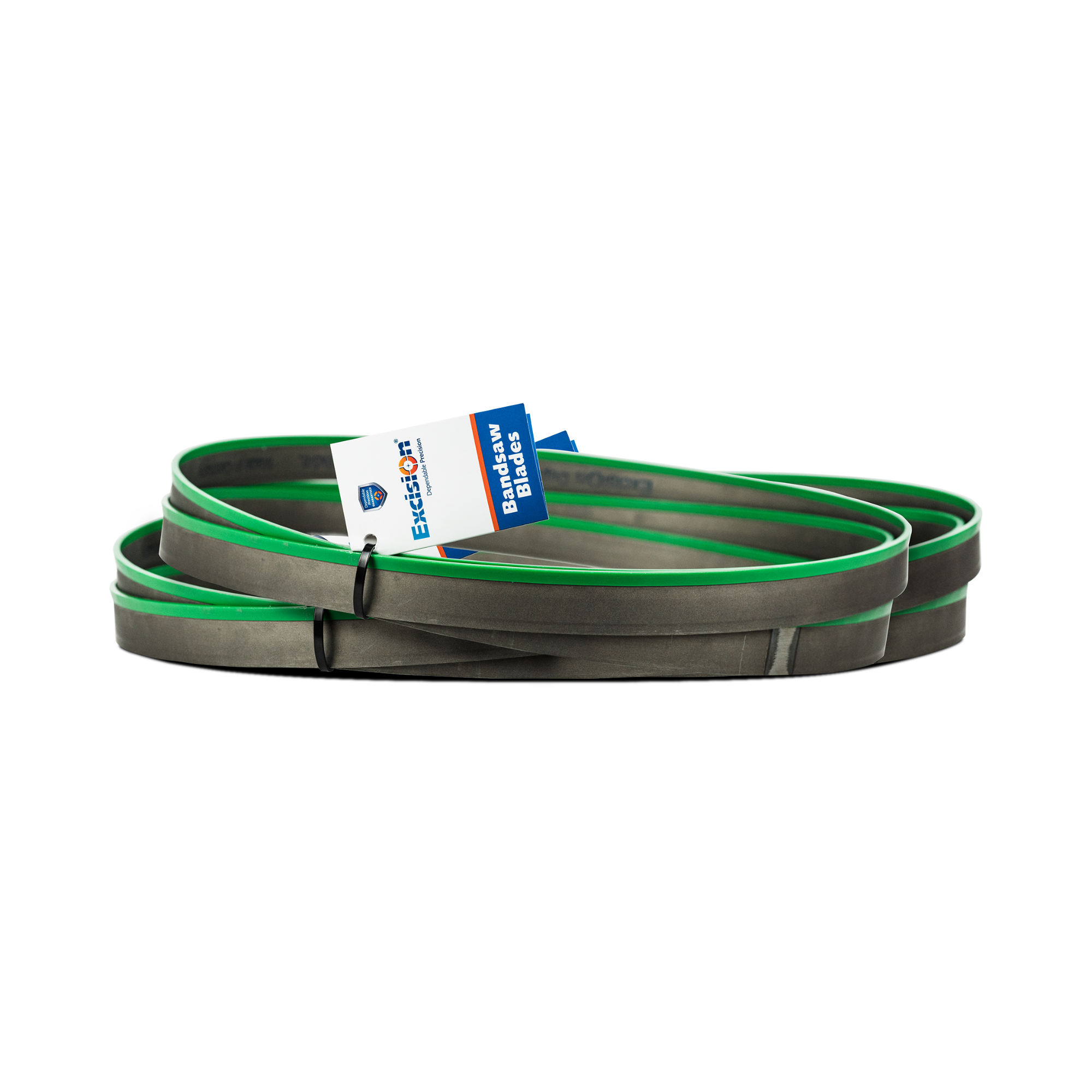

Bi-Alfa Cobalt M51 Master Supreme Bandsaw Blade
Premium for Special AlloysCode: 65034203
Made in Germany
Add Bi-Alfa Cobalt M51 Master Supreme Bandsaw Blade to comparison
View Comparison- Overview
- Tooth Selection
- Reviews
Product Description
The Most Premium Bimetal Blade
High-alloyed materials are extremely demanding on all cutting tools. The Excision Master Supreme provides a cost effective solution for these difficult applications. With a special tooth geometry, M51 cutting tips provide the perfect solution for high
alloyed and exotic materials. Master Supreme is especially suited to cutting large cross sections making it the ideal solution for steel service centers and forges.
Master Supreme has a precise perpendicular cut with excellent surface finish on the most difficult-to-cut-materials. The doubled-sided chamfered pre-cutter ensures absolutely straight cutting, while a pair of lower set finishing teeth keep the cutting
channel open, resulting in a clean and smooth finished surface.
High Efficiency
HSS-Co-M51 tips allow the cutting of materials with a hardness of up to 50 HRC (1600 N/MM²). Paired with an aggressive cutting angle of 16°, Master Supreme is the ideal blade for cutting high alloyed and exotic materials on larger cross sections.
Longer Blade Life
The high heat and mechanical wear resistance of HSS-Co-M51 cutting tips ensure excellent blade life, when cutting high alloyed and exotic materials.
|
Material Type |
M51 Bimetal |
|
Hardness |
70HRc |
|
Tooth Form |
Hook Tooth 10° |
|
Set Pattern |
Combi Set |
Product Data
No specifications available.
| Solids | |||
| Vari-Pitch Toothing | TCT Toothing (Materials over 50 HRC) | ||
| Material Diameter (D) MM | Teeth Per Inch | Material Diameter (D) MM | Teeth Per Inch |
| 0-5 | 18 | 50-120 | 3/4 |
| 4-8 | 14 | 100-250 | 2/3 |
| 2-15 | 10/14 | 150-400 | 1.5/2 |
| 8-20 | 8/12 | 350-600 | 1.1/1.6 |
| 16-30 | 6/10 | 500+ | 0.85/1.15 |
| 25-40 | 5/8 | ||
| 35-70 | 4/6 | ||
| 60-120 | 3/4 | ||
| 80-200 | 2/3 | ||
| 120-400 | 1.5/2 | ||
| 250+ | 1.1/1.6 | ||
| 400+ | 0.75/1.25 | ||
| Tubes and RHS | ||||||||||||||||
| Width (W) | Wall Thickness (T) | |||||||||||||||
| 1 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 20 | 50 | |
| 10 | 14 | 10/14 | 10/14 | |||||||||||||
| 20 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | |||||||||||
| 25 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | ||||||||||
| 30 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | |||||||||
| 40 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 50 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 60-120 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | |
| 130-150 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | |
| 150-180 | 10/14 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | ||
| 190-300 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 2/3 | ||||
| 350-400 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
| 450-500 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
Not sure what bandsaw blade you need?
Based on decades of industry knowledge and experience, we created a Bandsaw Blade selector to help you easily find the blade that best suits you.
Find your bandsaw blade
