200% Weld Guarantee

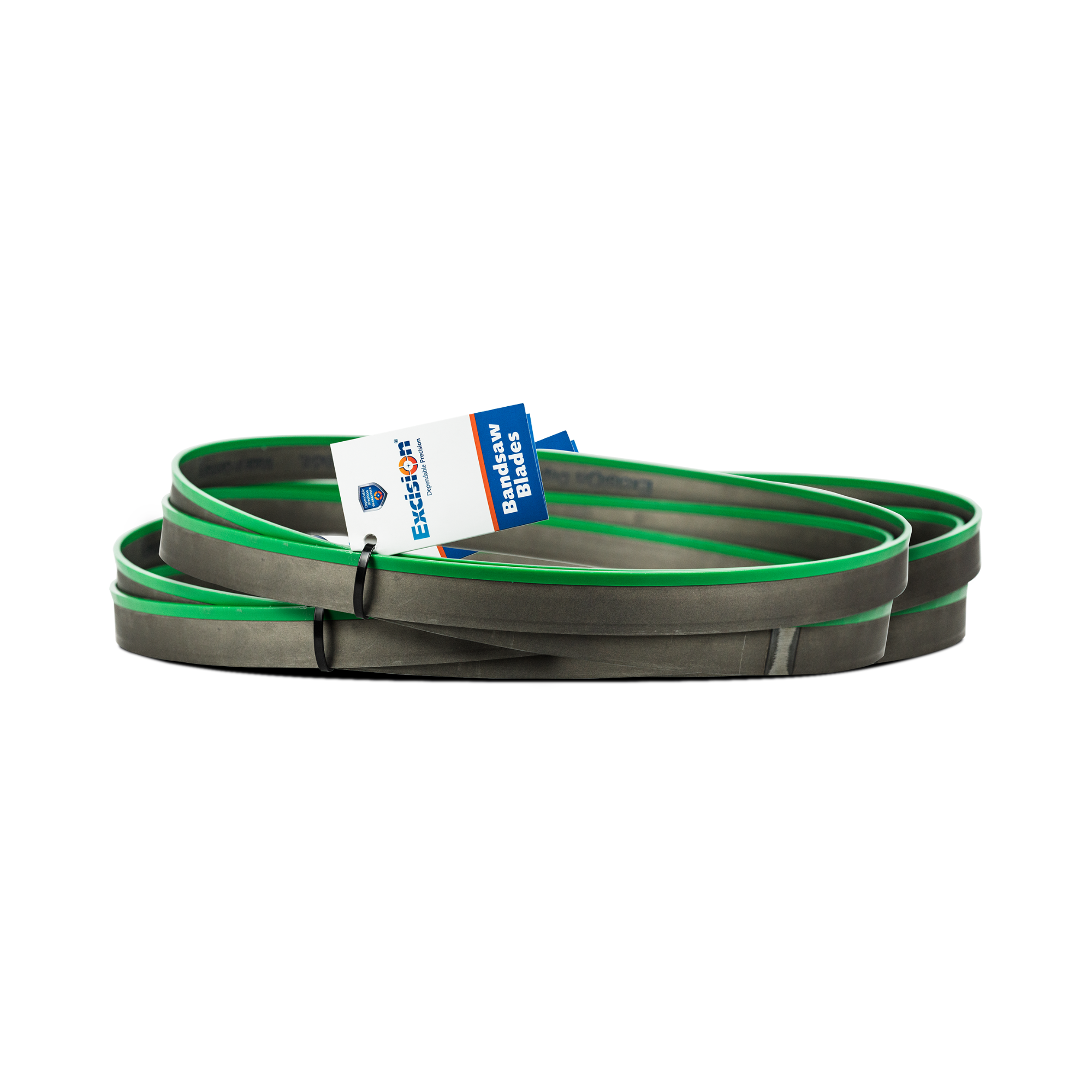

Bi-Alfa M42 Profile Wide-Set Bandsaw Blade
Extra Set for Large StructuralCode: 62634304
Made in Germany
Add Bi-Alfa M42 Profile Wide-Set Bandsaw Blade to comparison
View Comparison- Overview
- Tooth Selection
- Reviews
Product Description
Bi-alfa Profile WS (Wide Set) has been specially developed for cutting profiles and beams which are under tension. During the cutting operation this stress is relieved and thus requires a particularly large kerf in order to prevent the blade from binding in the cutting channel.
Product Data
No specifications available.
| Solids | |||
| Vari-Pitch Toothing | TCT Toothing (Materials over 50 HRC) | ||
| Material Diameter (D) MM | Teeth Per Inch | Material Diameter (D) MM | Teeth Per Inch |
| 0-5 | 18 | 50-120 | 3/4 |
| 4-8 | 14 | 100-250 | 2/3 |
| 2-15 | 10/14 | 150-400 | 1.5/2 |
| 8-20 | 8/12 | 350-600 | 1.1/1.6 |
| 16-30 | 6/10 | 500+ | 0.85/1.15 |
| 25-40 | 5/8 | ||
| 35-70 | 4/6 | ||
| 60-120 | 3/4 | ||
| 80-200 | 2/3 | ||
| 120-400 | 1.5/2 | ||
| 250+ | 1.1/1.6 | ||
| 400+ | 0.75/1.25 | ||
| Tubes and RHS | ||||||||||||||||
| Width (W) | Wall Thickness (T) | |||||||||||||||
| 1 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 20 | 50 | |
| 10 | 14 | 10/14 | 10/14 | |||||||||||||
| 20 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | |||||||||||
| 25 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | ||||||||||
| 30 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | |||||||||
| 40 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 50 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 60-120 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | |
| 130-150 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | |
| 150-180 | 10/14 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | ||
| 190-300 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 2/3 | ||||
| 350-400 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
| 450-500 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
Not sure what bandsaw blade you need?
Based on decades of industry knowledge and experience, we created a Bandsaw Blade selector to help you easily find the blade that best suits you.
Find your bandsaw blade
