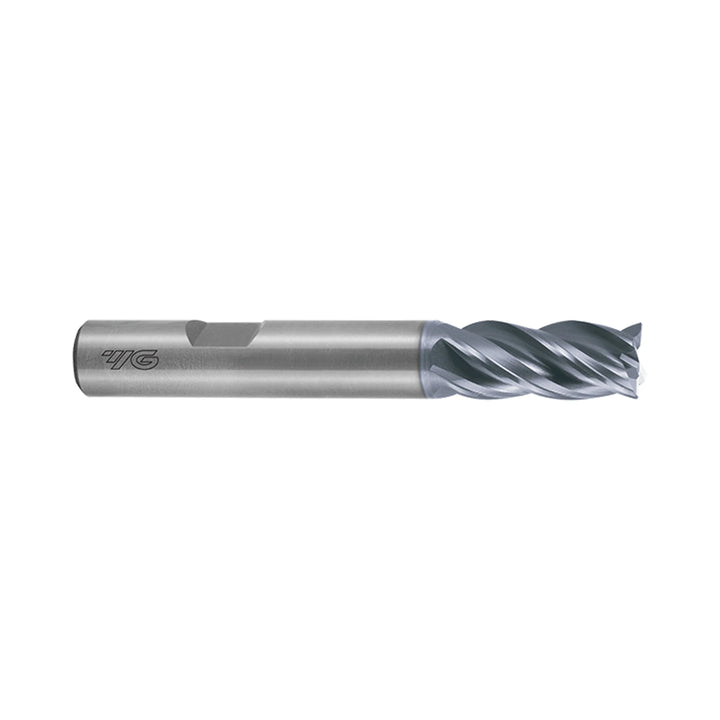

(GMF60) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Plain Shank

Carbide 4-Flute Extended-Neck End Mill
  • $61.38INC GST $55.80 EX GST
(GMF60) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Plain Shank
(GMF60) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Plain Shank

(GMF60) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Plain Shank

Carbide 4-Flute Extended-Neck End Mill
  • $61.38INC GST $55.80 EX GST

Code: GMF60030

    Key Features
  • Carbide four-flute extended-neck end mill
  • Plain shank configuration
  • 35°/37° multiple helix
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Vibration-focused geometry

Special flute geometry and a 35°/37° multiple helix are designed to eliminate vibrations during machining.

Extended-neck configuration

Reduced neck diameters provide the specified extended-neck tool form behind the cutting section.

Broad material suitability

Specified for stainless steels, mild steels, cast iron and low-to-medium hardness materials under HRc40.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)Stock Price Qty Add
GMF600303R0.1054.06.07.012.02.7 5 days $55.80
GMF600404R0.1557.06.08.015.03.7 5 days $55.80
GMF600505R0.1557.06.010.017.04.7 5 days $55.80
GMF600606R0.2057.06.010.015.05.5 5 days $55.80
GMF600808R0.2063.08.012.020.07.5 5 days $86.90
GMF6010010R0.3072.010.014.025.09.2 5 days $125.90
GMF6012012R0.3583.012.016.030.011.0 Low stock $171.90
GMF6016016R0.4092.016.022.038.015.0 5 days $301.90
GMF6020020R0.50104.020.026.050.019.0 5 days $397.30

Add (GMF60) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Product Description

YG-1 GMF60 V7 Plus is a carbide four-flute extended-neck end mill with a plain shank for professional metal milling. It combines special flute geometry with a 35°/37° multiple helix designed to eliminate vibrations during machining. Designed for milling, it delivers excellent performance in stainless steels, mild steels, cast iron, and low-to-medium hardness materials under HRc40.

The extended-neck design includes a neck diameter smaller than the listed cutter diameter on selected variants. The selected SKU range spans 3 to 20 mm cutter diameters and 0.10 to 0.50 mm chamfers. Corresponding product dimensions include shank diameter, length of cut, length below shank and overall length.

  • Carbide four-flute extended-neck end mill
  • Plain shank configuration
  • 35°/37° multiple helix
  • Special flute geometry designed to eliminate vibrations
  • For stainless steels mild steels cast iron and materials under HRc40
  • Selected diameters from 3 to 20 mm with 0.10 to 0.50 mm chamfers
Product Data

No specifications available.

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMF60030 3 6 7 12 54 0~-0.02 h5 4 GMF60030 3 6 7 12 54 0~-0.030 h5 4 GMF60040 4 6 8 15 57 0~-0.02 h5 4 GMF60040 4 6 8 15 57 0~-0.030 h5 4 GMF60050 5 6 10 17 57 0~-0.02 h5 4 GMF60050 5 6 10 17 57 0~-0.030 h5 4 GMF60060 6 6 10 15 57 0~-0.02 h5 4 GMF60060 6 6 10 15 57 0~-0.030 h5 4 GMF60080 8 8 12 20 63 0~-0.02 h5 4 GMF60080 8 8 12 20 63 0~-0.030 h5 4 GMF60100 10 10 14 25 72 0~-0.02 h5 4 GMF60100 10 10 14 25 72 0~-0.030 h5 4 GMF60120 12 12 16 30 83 0~-0.02 h6 4 GMF60120 12 12 16 30 83 0~-0.030 h6 4 GMF60160 16 16 22 38 92 0~-0.030 h6 4 GMF60200 20 20 26 50 104 0~-0.030 h6 4 GMF60901 3 6 7 17 57 0~-0.02 h5 4 GMF60901 3 6 7 17 57 0~-0.030 h5 4 GMF60902 3 6 8 14 57 0~-0.02 h5 4 GMF60902 3 6 8 14 57 0~-0.030 h5 4 GMF60903 4 6 8 22 63 0~-0.02 h5 4 GMF60903 4 6 8 22 63 0~-0.030 h5 4 GMF60904 4 6 11 16 57 0~-0.02 h5 4 GMF60904 4 6 11 16 57 0~-0.030 h5 4 GMF60905 5 6 10 27 67 0~-0.02 h5 4 GMF60905 5 6 10 27 67 0~-0.030 h5 4 GMF60906 5 6 13 18 57 0~-0.02 h5 4 GMF60906 5 6 13 18 57 0~-0.030 h5 4 GMF60907 6 6 10 20 62 0~-0.02 h5 4 GMF60907 6 6 10 20 62 0~-0.030 h5 4 GMF60908 6 6 10 32 74 0~-0.02 h5 4 GMF60908 6 6 10 32 74 0~-0.030 h5 4 GMF60909 6 6 13 21 57 0~-0.02 h5 4 GMF60909 6 6 13 21 57 0~-0.030 h5 4 GMF60910 8 8 12 30 73 0~-0.02 h5 4 GMF60910 8 8 12 30 73 0~-0.030 h5 4 GMF60911 8 8 12 46 90 0~-0.02 h5 4 GMF60911 8 8 12 46 90 0~-0.030 h5 4 GMF60912 8 8 19 27 63 0~-0.02 h5 4 GMF60912 8 8 19 27 63 0~-0.030 h5 4 GMF60913 10 10 14 35 82 0~-0.02 h5 4 GMF60913 10 10 14 35 82 0~-0.030 h5 4 GMF60914 10 10 14 55 102 0~-0.02 h5 4 GMF60914 10 10 14 55 102 0~-0.030 h5 4 GMF60915 10 10 22 32 72 0~-0.02 h5 4 GMF60915 10 10 22 32 72 0~-0.030 h5 4 GMF60916 12 12 16 40 93 0~-0.02 h6 4 GMF60916 12 12 16 40 93 0~-0.030 h6 4 GMF60917 12 12 16 64 117 0~-0.02 h6 4 GMF60917 12 12 16 64 117 0~-0.030 h6 4 GMF60918 12 12 26 38 83 0~-0.02 h6 4 GMF60918 12 12 26 38 83 0~-0.030 h6 4 GMF60919 16 16 22 55 109 0~-0.030 h6 4 GMF60920 16 16 22 87 141 0~-0.030 h6 4 GMF60921 16 16 32 44 92 0~-0.030 h6 4 GMF60922 20 20 26 70 124 0~-0.030 h6 4 GMF60923 20 20 26 110 164 0~-0.030 h6 4 GMF60924 20 20 38 54 104 0~-0.030 h6 4

Speeds & Feeds

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMF60030 3 6 7 12 54 0~-0.02 h5 4 GMF60030 3 6 7 12 54 0~-0.030 h5 4 GMF60040 4 6 8 15 57 0~-0.02 h5 4 GMF60040 4 6 8 15 57 0~-0.030 h5 4 GMF60050 5 6 10 17 57 0~-0.02 h5 4 GMF60050 5 6 10 17 57 0~-0.030 h5 4 GMF60060 6 6 10 15 57 0~-0.02 h5 4 GMF60060 6 6 10 15 57 0~-0.030 h5 4 GMF60080 8 8 12 20 63 0~-0.02 h5 4 GMF60080 8 8 12 20 63 0~-0.030 h5 4 GMF60100 10 10 14 25 72 0~-0.02 h5 4 GMF60100 10 10 14 25 72 0~-0.030 h5 4 GMF60120 12 12 16 30 83 0~-0.02 h6 4 GMF60120 12 12 16 30 83 0~-0.030 h6 4 GMF60160 16 16 22 38 92 0~-0.030 h6 4 GMF60200 20 20 26 50 104 0~-0.030 h6 4 GMF60901 3 6 7 17 57 0~-0.02 h5 4 GMF60901 3 6 7 17 57 0~-0.030 h5 4 GMF60902 3 6 8 14 57 0~-0.02 h5 4 GMF60902 3 6 8 14 57 0~-0.030 h5 4 GMF60903 4 6 8 22 63 0~-0.02 h5 4 GMF60903 4 6 8 22 63 0~-0.030 h5 4 GMF60904 4 6 11 16 57 0~-0.02 h5 4 GMF60904 4 6 11 16 57 0~-0.030 h5 4 GMF60905 5 6 10 27 67 0~-0.02 h5 4 GMF60905 5 6 10 27 67 0~-0.030 h5 4 GMF60906 5 6 13 18 57 0~-0.02 h5 4 GMF60906 5 6 13 18 57 0~-0.030 h5 4 GMF60907 6 6 10 20 62 0~-0.02 h5 4 GMF60907 6 6 10 20 62 0~-0.030 h5 4 GMF60908 6 6 10 32 74 0~-0.02 h5 4 GMF60908 6 6 10 32 74 0~-0.030 h5 4 GMF60909 6 6 13 21 57 0~-0.02 h5 4 GMF60909 6 6 13 21 57 0~-0.030 h5 4 GMF60910 8 8 12 30 73 0~-0.02 h5 4 GMF60910 8 8 12 30 73 0~-0.030 h5 4 GMF60911 8 8 12 46 90 0~-0.02 h5 4 GMF60911 8 8 12 46 90 0~-0.030 h5 4 GMF60912 8 8 19 27 63 0~-0.02 h5 4 GMF60912 8 8 19 27 63 0~-0.030 h5 4 GMF60913 10 10 14 35 82 0~-0.02 h5 4 GMF60913 10 10 14 35 82 0~-0.030 h5 4 GMF60914 10 10 14 55 102 0~-0.02 h5 4 GMF60914 10 10 14 55 102 0~-0.030 h5 4 GMF60915 10 10 22 32 72 0~-0.02 h5 4 GMF60915 10 10 22 32 72 0~-0.030 h5 4 GMF60916 12 12 16 40 93 0~-0.02 h6 4 GMF60916 12 12 16 40 93 0~-0.030 h6 4 GMF60917 12 12 16 64 117 0~-0.02 h6 4 GMF60917 12 12 16 64 117 0~-0.030 h6 4 GMF60918 12 12 26 38 83 0~-0.02 h6 4 GMF60918 12 12 26 38 83 0~-0.030 h6 4 GMF60919 16 16 22 55 109 0~-0.030 h6 4 GMF60920 16 16 22 87 141 0~-0.030 h6 4 GMF60921 16 16 32 44 92 0~-0.030 h6 4 GMF60922 20 20 26 70 124 0~-0.030 h6 4 GMF60923 20 20 26 110 164 0~-0.030 h6 4 GMF60924 20 20 38 54 104 0~-0.030 h6 4

Video

V7 Plus Endmills
