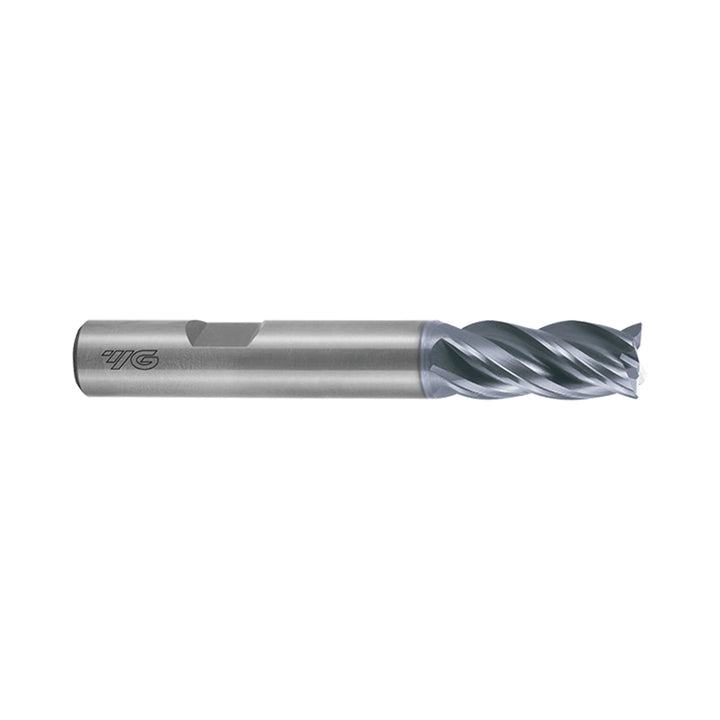

(GMF61) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Flat Shank
Four-Flute Extended-Neck Carbide End MillsCode: GMF61030
-
Key Features
- Solid carbide four-flute end mills with extended necks
- Flat shank GMF61 series with Y coating
- 35°/37° multiple helix and special flute geometry
Made in South Korea
Vibration-Controlled Geometry
Multiple helix angles and special flute geometry are designed to reduce vibration in milling operations.
Extended-Neck Access
The relieved neck profile provides additional clearance for machining beyond the shank line.
Ferrous Material Capability
Recommended for stainless steels, mild steels, cast iron and low to medium hardness materials under 40 HRc.
| SKU | Mill Diameter (mm) | Chamfer | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GMF61030 | 3 | 0.1 | 54.0 | 6.0 | 7.0 | 12.0 | 2.7 | 5 days | - | ||
| GMF61040 | 4 | 0.15 | 57.0 | 6.0 | 8.0 | 15.0 | 3.7 | 5 days | - | ||
| GMF61050 | 5 | 0.15 | 57.0 | 6.0 | 10.0 | 17.0 | 4.7 | 5 days | - | ||
| GMF61060 | 6 | 0.2 | 57.0 | 6.0 | 10.0 | 15.0 | 5.5 | 5 days | - | ||
| GMF61080 | 8 | 0.2 | 63.0 | 8.0 | 12.0 | 20.0 | 7.5 | 5 days | - | ||
| GMF61100 | 10 | 0.3 | 72.0 | 10.0 | 14.0 | 25.0 | 9.2 | 5 days | - | ||
| GMF61120 | 12 | 0.35 | 83.0 | 12.0 | 16.0 | 30.0 | 11.0 | 5 days | - | ||
| GMF61160 | 16 | 0.4 | 92.0 | 16.0 | 22.0 | 38.0 | 15.0 | 5 days | - | ||
| GMF61200 | 20 | 0.5 | 104.0 | 20.0 | 26.0 | 50.0 | 19.0 | 5 days | - |
Add (GMF61) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Flat Shank to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 GMF61 V7 Plus carbide end mills are four-flute, flat-shank cutters with extended necks. Their 35°/37° multiple helix and special flute geometry are designed to eliminate vibration. Y coating supports milling stainless steels, mild steels, cast iron and materials under 40 HRc. The extended-neck profile provides clearance for machining features beyond the shank line.
GMF61 options cover 3 to 20 mm mill diameters with 0.10 to 0.50 mm chamfers. Every listed GMF61 variant combines solid carbide construction, Y coating and a flat shank. This series is recommended for ISO P, M and K workpiece groups. Choose the suitable diameter and chamfer for the required milling feature.
- Solid carbide four-flute end mills with extended necks
- Flat shank GMF61 series with Y coating
- 35°/37° multiple helix and special flute geometry
- Designed to eliminate vibration during milling
- Recommended for stainless steels mild steels cast iron and materials under 40 HRc
- 3 to 20 mm diameters with 0.10 to 0.50 mm chamfers
