V7 PLUS 4 Flute Multiple Helix Short End Mill Plain Shank (GMF52)
Product Code: GMF52
No. Flutes: 4
Chamfer Angle: 45°
Surface Treatment: YG-1 Y Coating
Tool Material: Carbide
Helix Angle: Square Multi 35°-37°
Shank Type: Plain

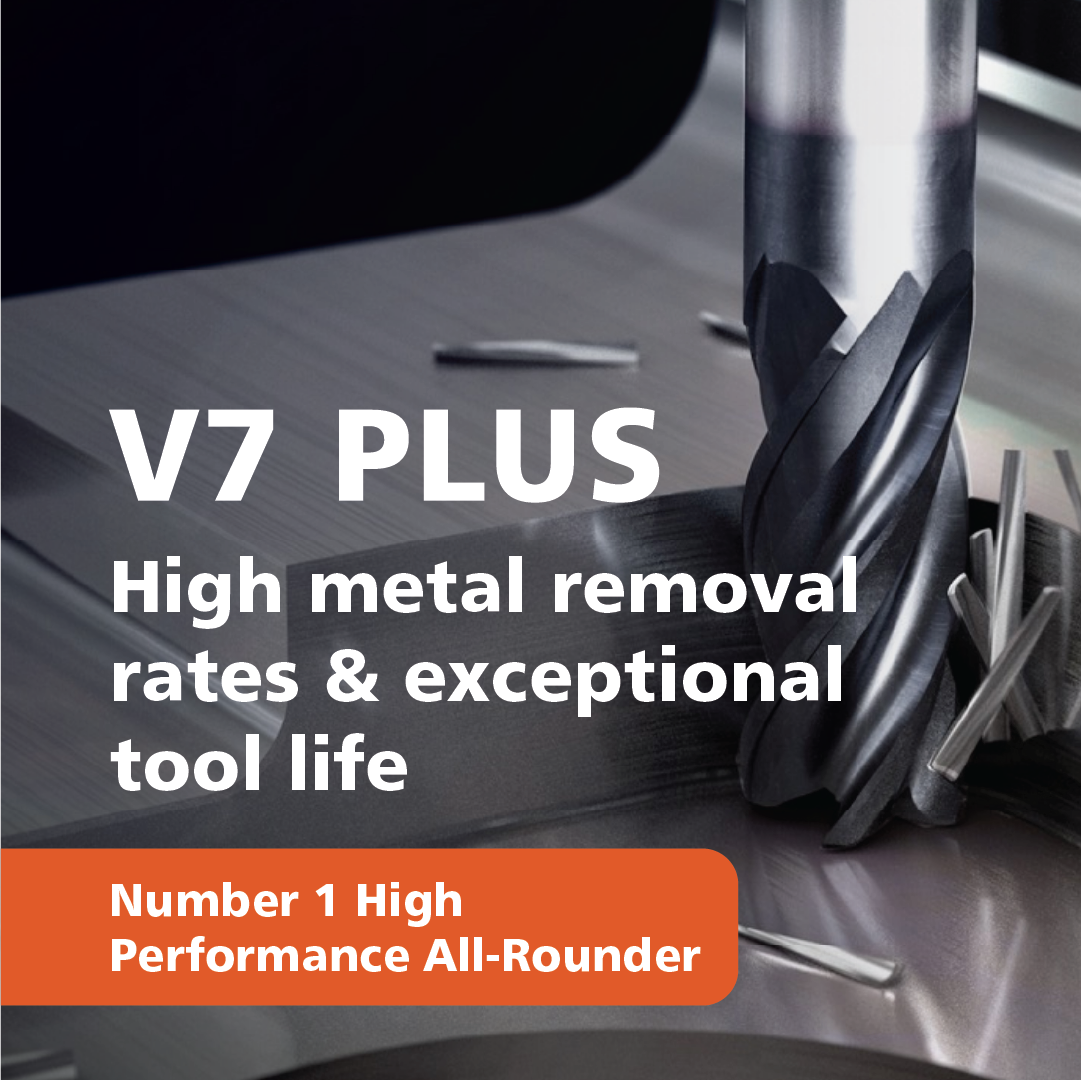

GMF52/GMF56 series CHAMFER EDGE PREP end mills are available from 3-20mm diameter with a plain shank. The V7 plus range from YG-1 offer the highest metal removal rates and silent machining of steels, stainless steels, heat resistant super alloys such as inconel & cast iron. The special multiple helix design eliminates vibration when employing large cuts and high feed rates. The results are exceptional tool life, excellent surface finish and the shortest cycle times. For the best results use in a hydraulic chuck or high-performance tool holder with excellent clamping torque.
- Y1200 coated ultrafine micrograin carbide
- HPC (High performance cutting)

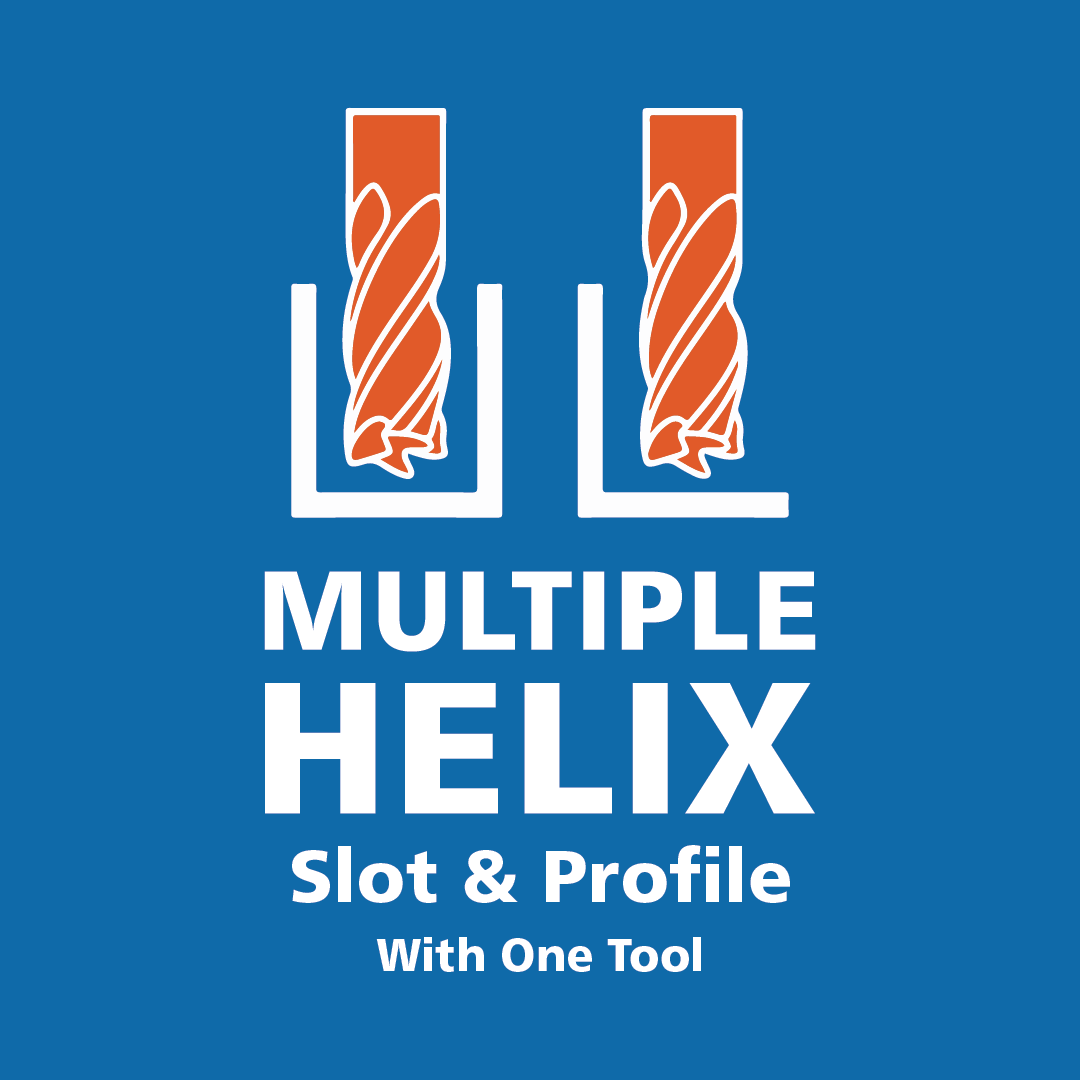

- Multiple helix geometries and unequal flute spacing enable higher feed rates and larger cut depths

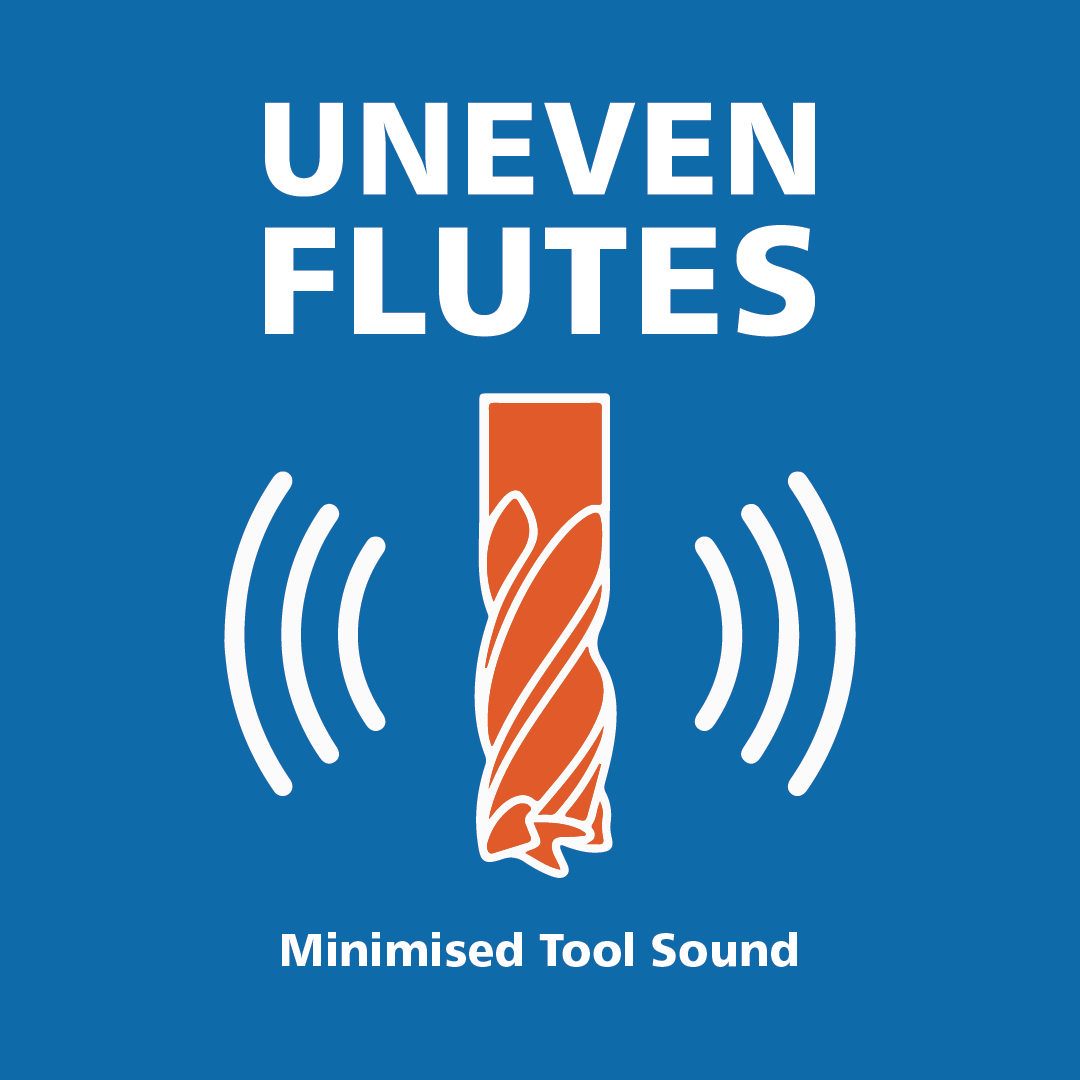

- Helix & unequal flute spacing reduces vibration
- High heat resistance of Y1200 coating ensures exceptional tool life in stainless steel, titanium and HRSA machining

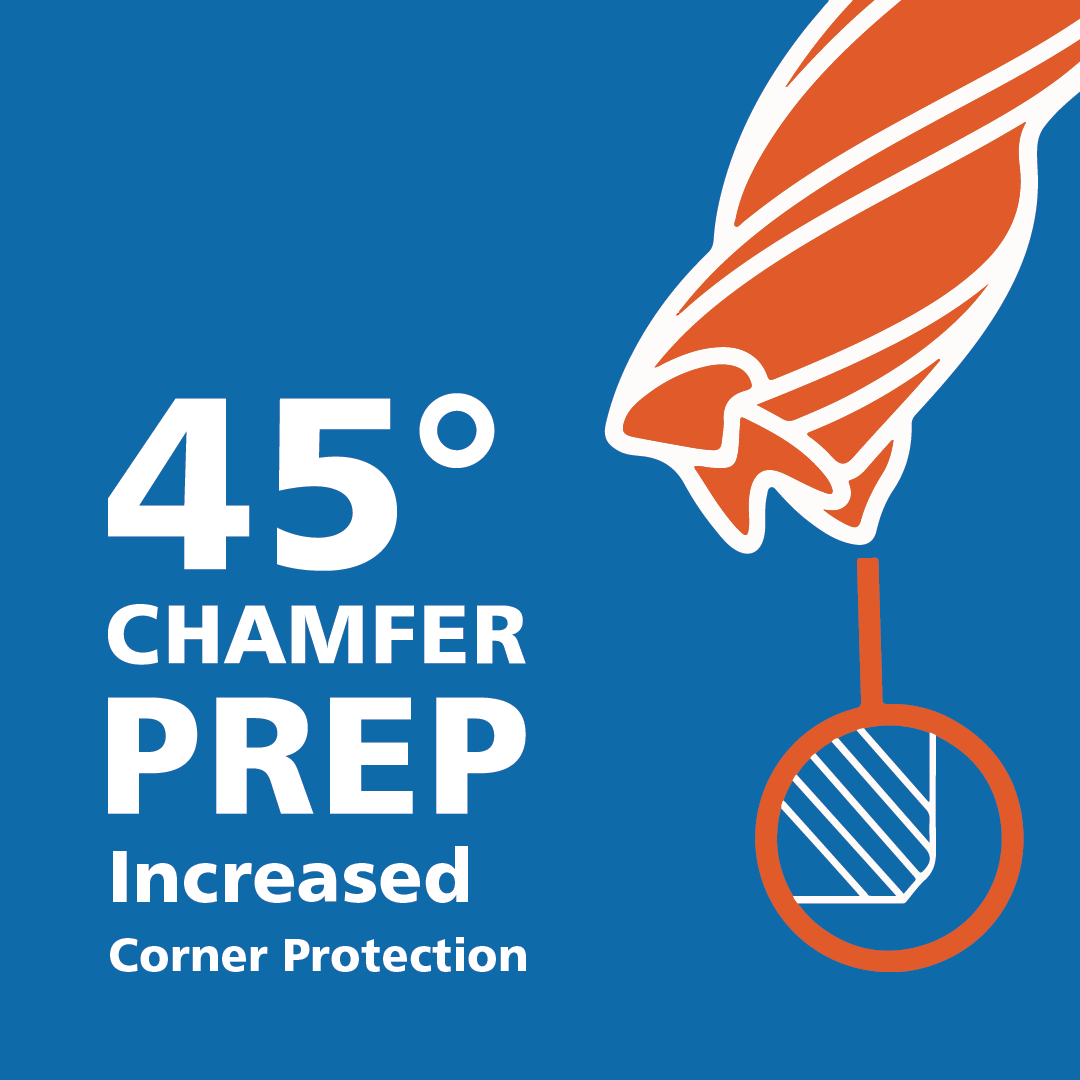

- Chamfer corner protection to prevent against tool chipping
Specifications
| Flutes | 4 |
| Helix Angle | 35°/37° (Multiple Helix) |
| Cutting Edge Shape | Square |
| Size Min | D3.0 |
| Size Max | D20.0 |

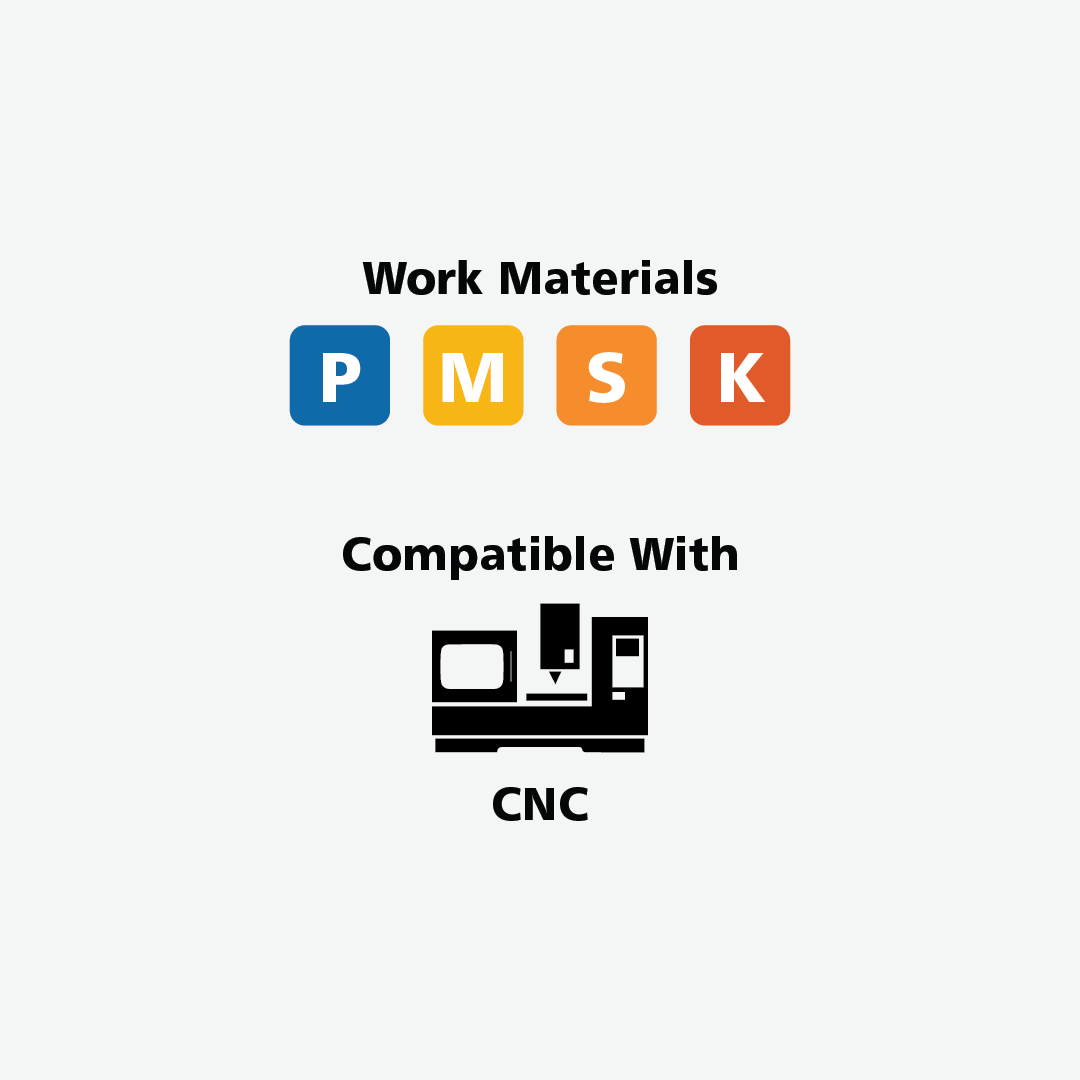

| Workpiece Material | P M K S H |
| Chamfer Angle | 45 |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Multiple Helix 35/37 |
| No. Flutes | 4 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
Made in South Korea
Add V7 PLUS 4 Flute Multiple Helix Short End Mill Plain Shank (GMF52) to comparison
View ComparisonSpeeds & Feeds
Operation
Work Material
Excellent
Excellent
Excellent
Excellent
Excellent
Great
Great
Great
Great
