V7 PLUS 4 Flute Multiple Helix Short Corner Radius End Mill (GMF54)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: GMF54

P M K S H
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add V7 PLUS 4 Flute Multiple Helix Short Corner Radius End Mill (GMF54) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Product Description

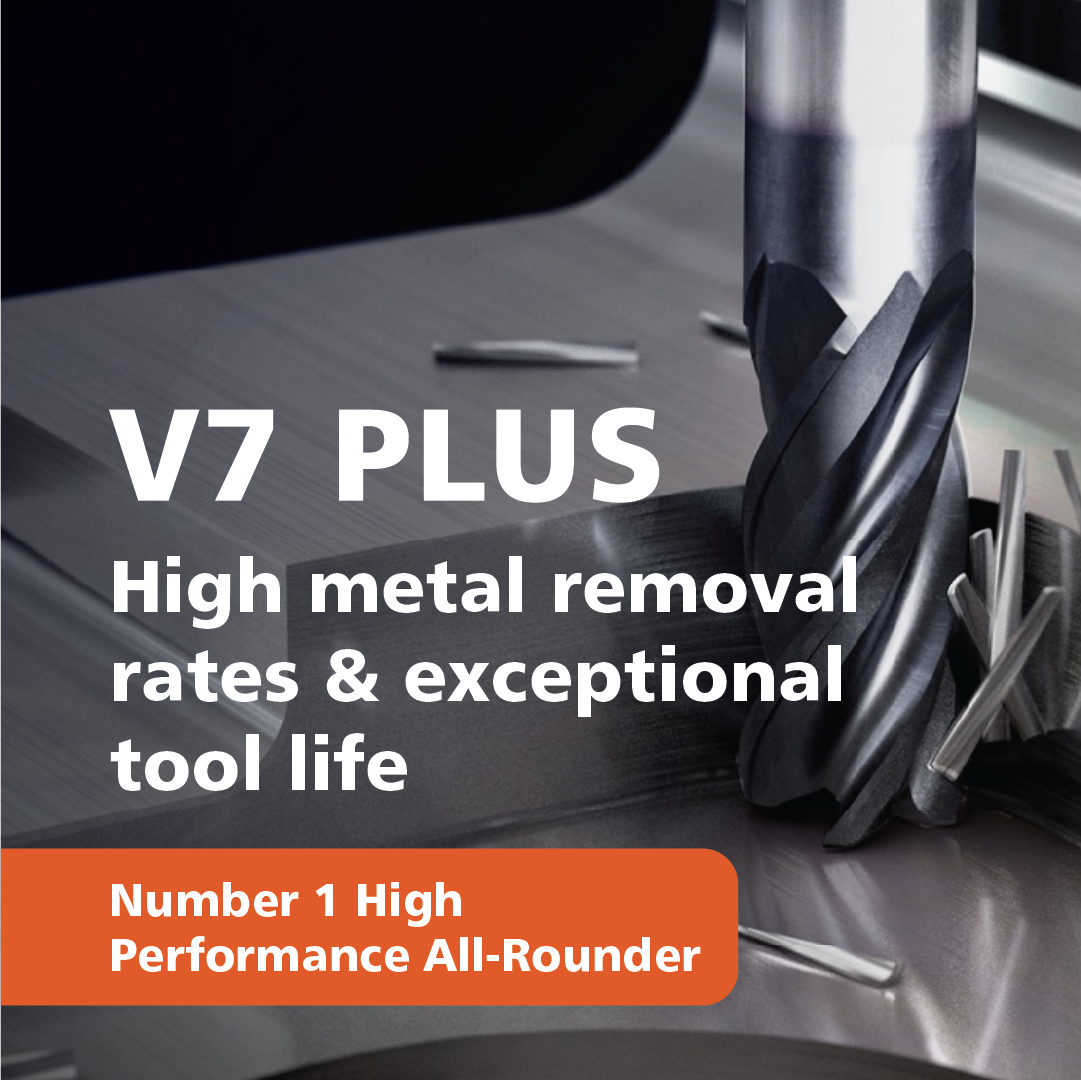

GMF54/GMF58 series CORNER RADIUS end mills are available from 3-20mm diameter with a plain shank. The V7 plus range from YG-1 offer the highest metal removal rates and silent machining of steels, stainless steels, heat resistant super alloys such as inconel & cast iron. The special multiple helix design eliminates vibration when employing large cuts and high feed rates. The results are exceptional tool life, excellent surface finish and the shortest cycle times. For the best results use in a hydraulic chuck or high-performance tool holder with excellent clamping torque.

  • Y1200 coated ultrafine micrograin carbide
  • HPC (High performance cutting)

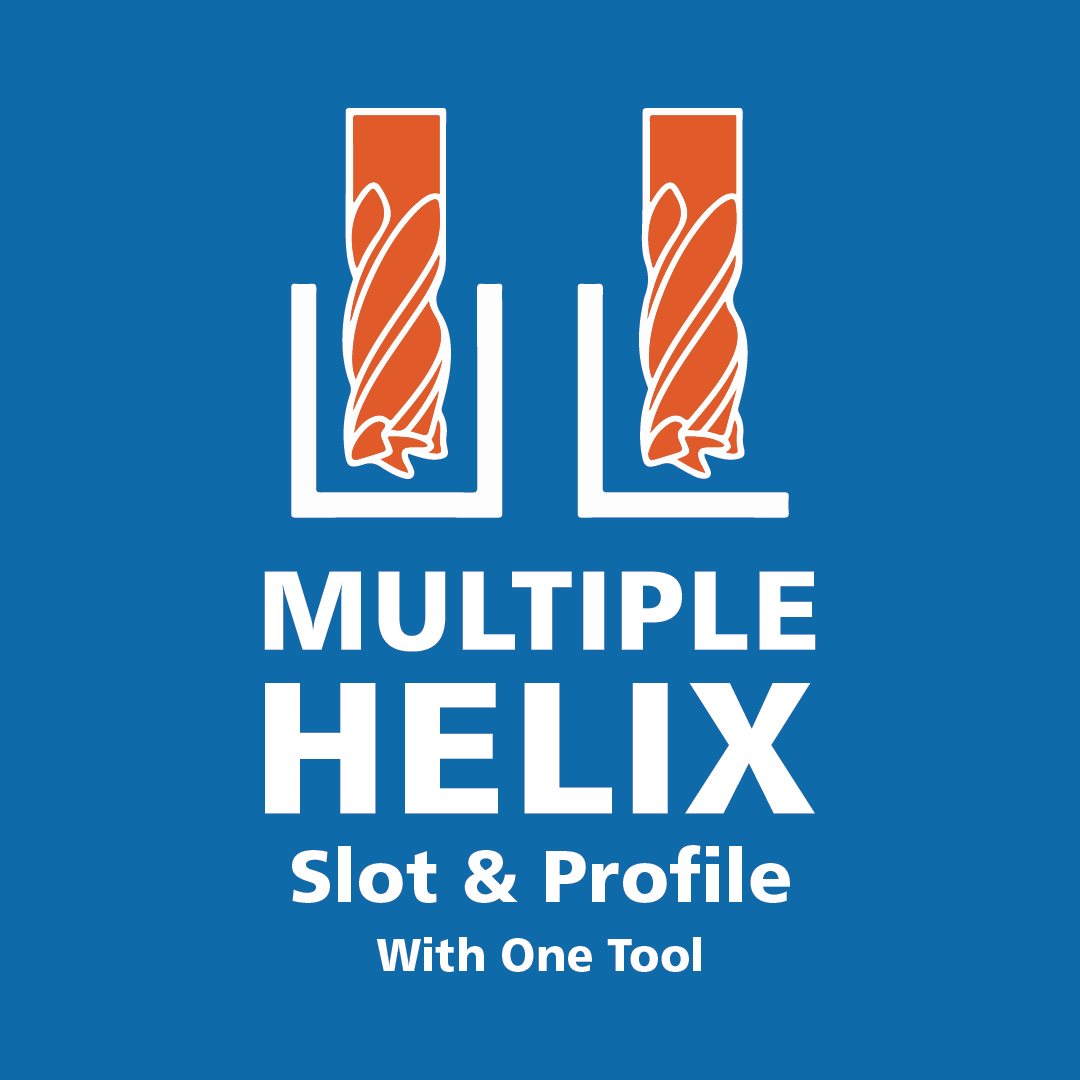

  • Multiple helix geometries and unequal flute spacing enable higher feed rates and larger cut depths

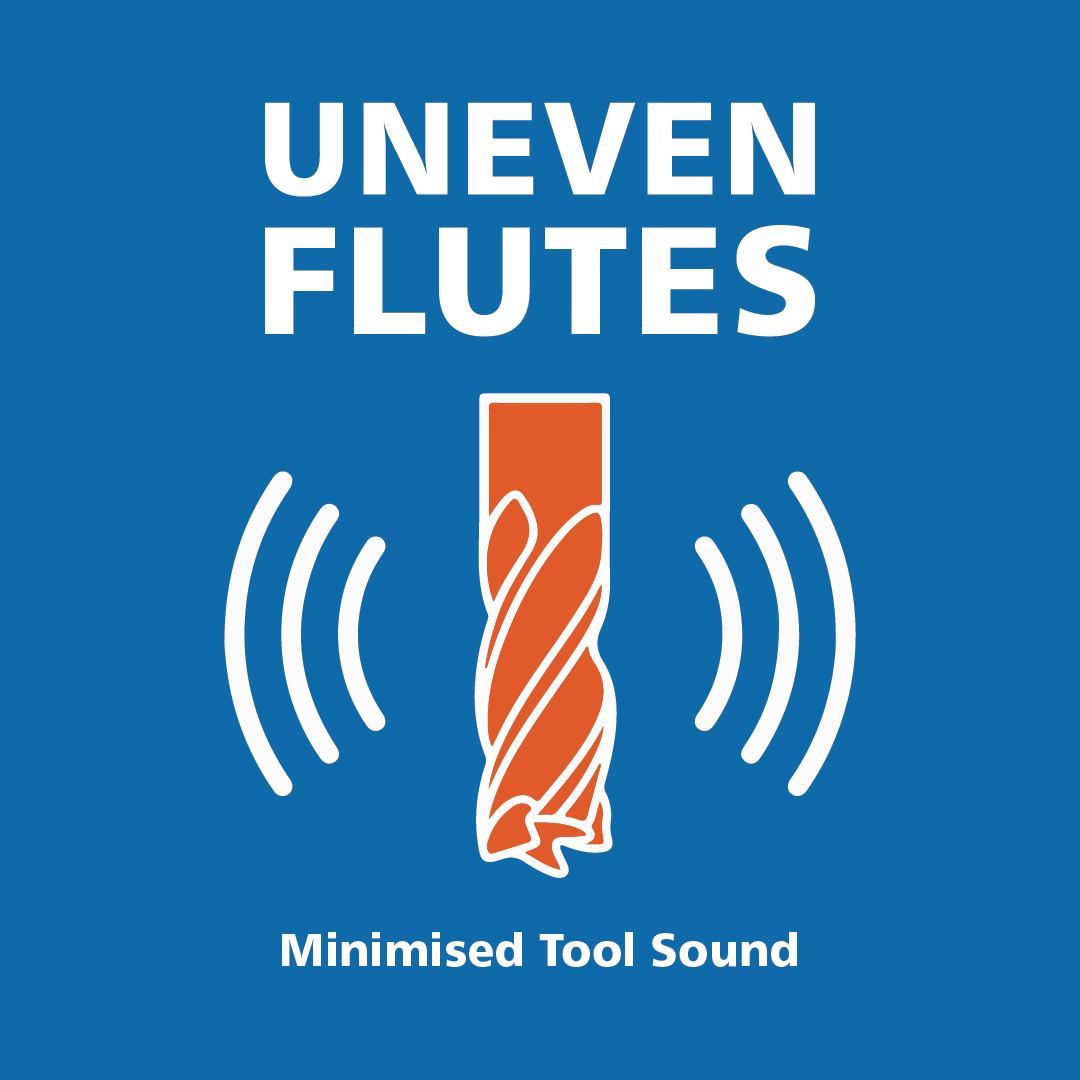

  • Helix & unequal flute spacing reduces vibration
  • High heat resistance of Y1200 coating ensures exceptional tool life in stainless steel, titanium and HRSA machining
Product Data
Workpiece Material P M K S H
Cutting Shape Corner Radius
Hardened Steels(HRc40~45) Great
Helix Angle Multiple Helix 35/37
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 4
Helix Angle 35°/37° (Multiple Helix)
Cutting Edge Shape Corner Radius
Size Min D3.0
Size Max D20.0
Length Long Length
Coating Y-Coating



EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMF54030 R0.30 3 6 7 54 0~-0.02 h5 4 GMF54030 R0.30 3 6 7 54 0~-0.030 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.02 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.030 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.02 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.030 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.02 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.030 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.02 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.030 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.02 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.030 h5 4 GMF54120 R0.50 12 12 16 73 0~-0.02 h6 4 GMF54120 R0.50 12 12 16 73 0~-0.030 h6 4 GMF54140 R0.50 14 14 18 75 0~-0.030 h6 4 GMF54200 R1.0 20 20 26 92 0~-0.030 h6 4 GMF54901 R0.50 3 6 7 54 0~-0.02 h5 4 GMF54901 R0.50 3 6 7 54 0~-0.030 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.02 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.030 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.02 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.030 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.02 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.030 h5 4 GMF54909 R2.0 12 12 16 73 0~-0.02 h6 4 GMF54909 R2.0 12 12 16 73 0~-0.030 h6 4 GMF54912 R2.0 16 16 22 82 0~-0.030 h6 4 GMF54913 R3.0 16 16 22 82 0~-0.030 h6 4 GMF54916 R2.0 20 20 26 92 0~-0.030 h6 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
S Inconel

Great

Good Great Excellent
S Titanium

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent

Speeds & Feeds

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMF54030 R0.30 3 6 7 54 0~-0.02 h5 4 GMF54030 R0.30 3 6 7 54 0~-0.030 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.02 h5 4 GMF54040 R0.30 4 6 8 54 0~-0.030 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.02 h5 4 GMF54050 R0.30 5 6 10 54 0~-0.030 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.02 h5 4 GMF54060 R0.30 6 6 10 54 0~-0.030 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.02 h5 4 GMF54080 R0.50 8 8 12 58 0~-0.030 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.02 h5 4 GMF54100 R0.50 10 10 14 66 0~-0.030 h5 4 GMF54120 R0.50 12 12 16 73 0~-0.02 h6 4 GMF54120 R0.50 12 12 16 73 0~-0.030 h6 4 GMF54140 R0.50 14 14 18 75 0~-0.030 h6 4 GMF54200 R1.0 20 20 26 92 0~-0.030 h6 4 GMF54901 R0.50 3 6 7 54 0~-0.02 h5 4 GMF54901 R0.50 3 6 7 54 0~-0.030 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.02 h5 4 GMF54902 R0.50 4 6 8 54 0~-0.030 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.02 h5 4 GMF54904 R0.50 6 6 10 54 0~-0.030 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.02 h5 4 GMF54906 R1.0 8 8 12 58 0~-0.030 h5 4 GMF54909 R2.0 12 12 16 73 0~-0.02 h6 4 GMF54909 R2.0 12 12 16 73 0~-0.030 h6 4 GMF54912 R2.0 16 16 22 82 0~-0.030 h6 4 GMF54913 R3.0 16 16 22 82 0~-0.030 h6 4 GMF54916 R2.0 20 20 26 92 0~-0.030 h6 4
