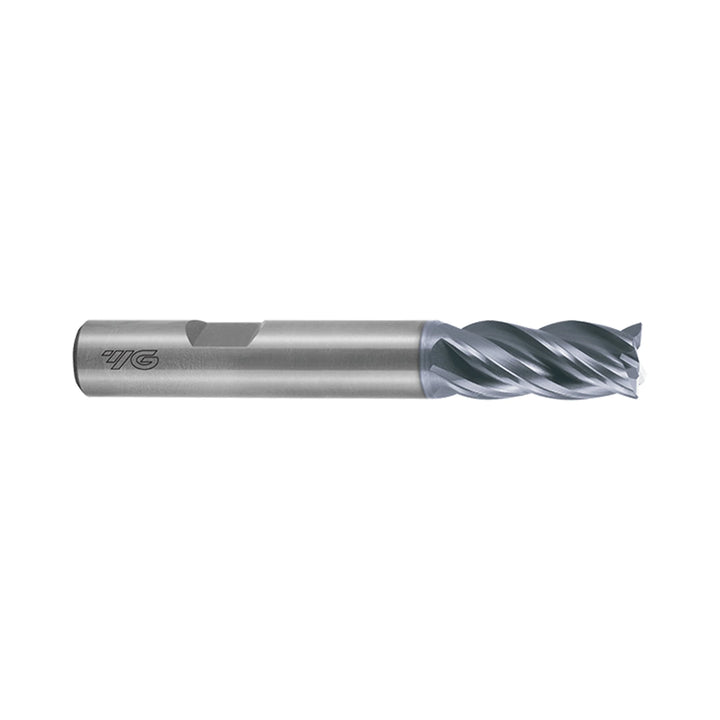

(GMF59) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Long length, Flat Shank

Long-length 4-flute corner radius carbide end mill

(GMF59) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Long length, Flat Shank
$0.00 INC GST $0.00 EX GST Price available on request
SKU
GMF59030
Work materials
PMKS

Key features

  • Solid carbide end mill with Y-Coating
  • Four flutes with 35°/37° multiple helix
  • Long-length corner radius cutting profile
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Reduced Vibration

Special flute geometry and multiple helix design are intended to eliminate vibration during milling.

Long-Reach Geometry

Long-length construction supports milling tasks requiring reach beyond shorter end mill designs.

Versatile Material Use

Designed for machining steels, cast iron and stainless steels with a Y-Coated carbide cutting tool.

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GMF590303.0R0.357.06.08.0 1-2 Weeks -
GMF590404.0R0.357.06.011.0 1-2 Weeks -
GMF590505.0R0.357.06.013.0 1-2 Weeks -
GMF590606.0R0.357.06.013.0 1-2 Weeks -
GMF590808.0R0.563.08.019.0 In stock $74.20
GMF5910010.0R0.572.010.022.0 Low stock $103.90
GMF5912012.0R0.583.012.026.0 1-2 Weeks $183.00
GMF5914014.0R0.5--- 1-2 Weeks -
GMF5916016.0R1.0--- 1-2 Weeks -
GMF5918018.0R1.0--- 1-2 Weeks -
GMF5920020.0R1.0--- 1-2 Weeks -
GMF5925025.0R1.0--- 1-2 Weeks -

Add (GMF59) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Long length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 V7 Plus GMF59 is a long-length, four-flute corner radius solid carbide end mill with a flat shank. Its 35°/37° multiple helix and Y-Coating support milling steels, cast iron and stainless steels. Special flute geometry and a multiple helix design are intended to eliminate vibration during milling. The corner radius profile supports radiused corners and blended transitions in machined components. The GMF59 family covers 3 to 25 mm milling diameters with R0.3 to R1.0 corners. Each tool combines four flutes with a flat shank for long-length milling configurations. It is suited to practical machining programs requiring a radiused end-mill cutting profile.

  • Solid carbide end mill with Y-Coating
  • Four flutes with 35°/37° multiple helix
  • Long-length corner radius cutting profile
  • Flat shank GMF59 series
  • Suitable for steels cast iron and stainless steels
  • 3 to 25 mm milling diameter family
Product Data
Cutting Shape Corner Radius
EDP No. Corner Radius Mill Diameter Shank Diameter Length of Cut Overall Length GMF59030 R0.3 3.0 6 8 57 GMF59901 R0.5 3.0 6 8 57 GMF59040 R0.3 4.0 6 11 57 GMF59902 R0.5 4.0 6 11 57 GMF59050 R0.3 5.0 6 13 57 GMF59903 R0.5 5.0 6 13 57 GMF59060 R0.3 6.0 6 13 57 GMF59904 R0.5 6.0 6 13 57 GMF59905 R1.0 6.0 6 13 57 GMF59080 R0.5 8.0 8 19 63 GMF59906 R1.0 8.0 8 19 63 GMF59100 R0.5 10.0 10 22 72 GMF59907 R1.0 10.0 10 22 72 GMF59120 R0.5 12.0 12 26 83 GMF59909 R2.0 12.0 12 26 83 GMF59140 R0.5 14.0 14 26 83 GMF59160 R1.0 16.0 16 32 92 GMF59912 R2.0 16.0 16 32 92 GMF59913 R3.0 16.0 16 32 92 GMF59180 R1.0 18.0 18 32 92 GMF59200 R1.0 20.0 20 38 104 GMF59916 R2.0 20.0 20 38 104 GMF59917 R3.0 20.0 20 38 104 GMF59250 R1.0 25.0 25 38 104

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
ExcellentVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
GoodVDI 36–37
VDI grade reference27 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysGood--
37STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (GMF59) V7 Plus Carbide, 4Flute Multi Helix Corner Radius End Mill, Long length, Flat Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Corner Radius Mill Diameter Shank Diameter Length of Cut Overall Length GMF59030 R0.3 3.0 6 8 57 GMF59901 R0.5 3.0 6 8 57 GMF59040 R0.3 4.0 6 11 57 GMF59902 R0.5 4.0 6 11 57 GMF59050 R0.3 5.0 6 13 57 GMF59903 R0.5 5.0 6 13 57 GMF59060 R0.3 6.0 6 13 57 GMF59904 R0.5 6.0 6 13 57 GMF59905 R1.0 6.0 6 13 57 GMF59080 R0.5 8.0 8 19 63 GMF59906 R1.0 8.0 8 19 63 GMF59100 R0.5 10.0 10 22 72 GMF59907 R1.0 10.0 10 22 72 GMF59120 R0.5 12.0 12 26 83 GMF59909 R2.0 12.0 12 26 83 GMF59140 R0.5 14.0 14 26 83 GMF59160 R1.0 16.0 16 32 92 GMF59912 R2.0 16.0 16 32 92 GMF59913 R3.0 16.0 16 32 92 GMF59180 R1.0 18.0 18 32 92 GMF59200 R1.0 20.0 20 38 104 GMF59916 R2.0 20.0 20 38 104 GMF59917 R3.0 20.0 20 38 104 GMF59250 R1.0 25.0 25 38 104
