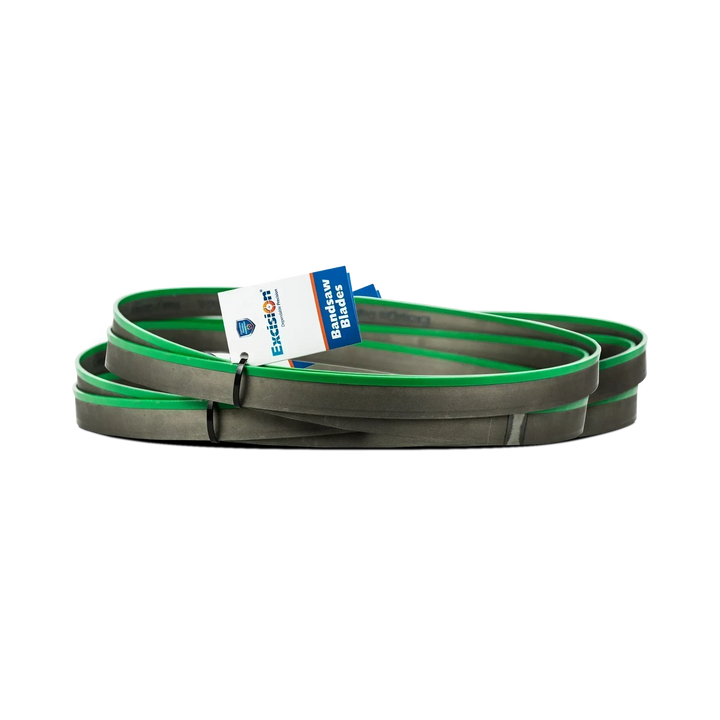

Bi-Alfa M42 Profile Bandsaw Blade
Structural & Pack Cutting
$0.00
INC GST
$0.00
EX GST
Confirm your blade specifications to see the price
Unit price per
- SKU
- 62513811
- Product type
- Bandsaw Blades
Made in Germany
Free standard delivery on orders over
$500.
Add Bi-Alfa M42 Profile Bandsaw Blade to comparison
View Comparison- Overview
- Work Material
- Tooth Selection
- Reviews
Product Description
The Excision Bi-alfa Profile bandsaw blade provides outstanding performance on vibration-susceptible cuts. Vibration during cutting of tubes, beams and profiles is often damaging to a bandsaw blade, which lowers blade life and cut area considerably. The reinforced back edge of the Excision Profile increases the overall strength of the tooth to withstand vibrations during interrupted cutting and protects the bandsaw blade against tooth strippage. Bi-alfa Profile gives the best results when cutting round and square tubes as well as beams.
|
Material Type |
Bandsaw Blade Bimetal M42 Profile |
|
Hardness |
70HRc |
|
Tooth Form |
Profile Tooth 6° |
|
Set Pattern |
Combi Set |
Product Data
| Workpiece Material | M N |
Stainless Steels
Good
Good
Great
Excellent
Aluminium
Excellent
Good
Great
Excellent
No VDI recommendations set for this product.
| Solids | |||
| Vari-Pitch Toothing | TCT Toothing (Materials over 50 HRC) | ||
| Material Diameter (D) MM | Teeth Per Inch | Material Diameter (D) MM | Teeth Per Inch |
| 0-5 | 18 | 50-120 | 3/4 |
| 4-8 | 14 | 100-250 | 2/3 |
| 2-15 | 10/14 | 150-400 | 1.5/2 |
| 8-20 | 8/12 | 350-600 | 1.1/1.6 |
| 16-30 | 6/10 | 500+ | 0.85/1.15 |
| 25-40 | 5/8 | ||
| 35-70 | 4/6 | ||
| 60-120 | 3/4 | ||
| 80-200 | 2/3 | ||
| 120-400 | 1.5/2 | ||
| 250+ | 1.1/1.6 | ||
| 400+ | 0.75/1.25 | ||
| Tubes and RHS | ||||||||||||||||
| Width (W) | Wall Thickness (T) | |||||||||||||||
| 1 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | 20 | 50 | |
| 10 | 14 | 10/14 | 10/14 | |||||||||||||
| 20 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | |||||||||||
| 25 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | ||||||||||
| 30 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | |||||||||
| 40 | 14 | 10/14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 50 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 5/8 | ||||||
| 60-120 | 14 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | |
| 130-150 | 10/14 | 10/14 | 8/12 | 8/12 | 6/10 | 6/10 | 5/8 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | |
| 150-180 | 10/14 | 8/12 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | ||
| 190-300 | 6/10 | 6/10 | 5/8 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 3/4 | 3/4 | 2/3 | ||||
| 350-400 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
| 450-500 | 4/6 | 4/6 | 3/4 | 3/4 | 3/4 | 3/4 | 2/3 | |||||||||
Not sure what bandsaw blade you need?
Based on decades of industry knowledge and experience, we created a Bandsaw Blade selector to help you easily find the blade that best suits you.
Find your bandsaw blade
We guarantee the quality of our welds
We stand by our welds.
So, if the weld fails on your Excision bandsaw blade, we’ll replace it and send you an extra, despatched same-day.
200% Weld Guarantee
