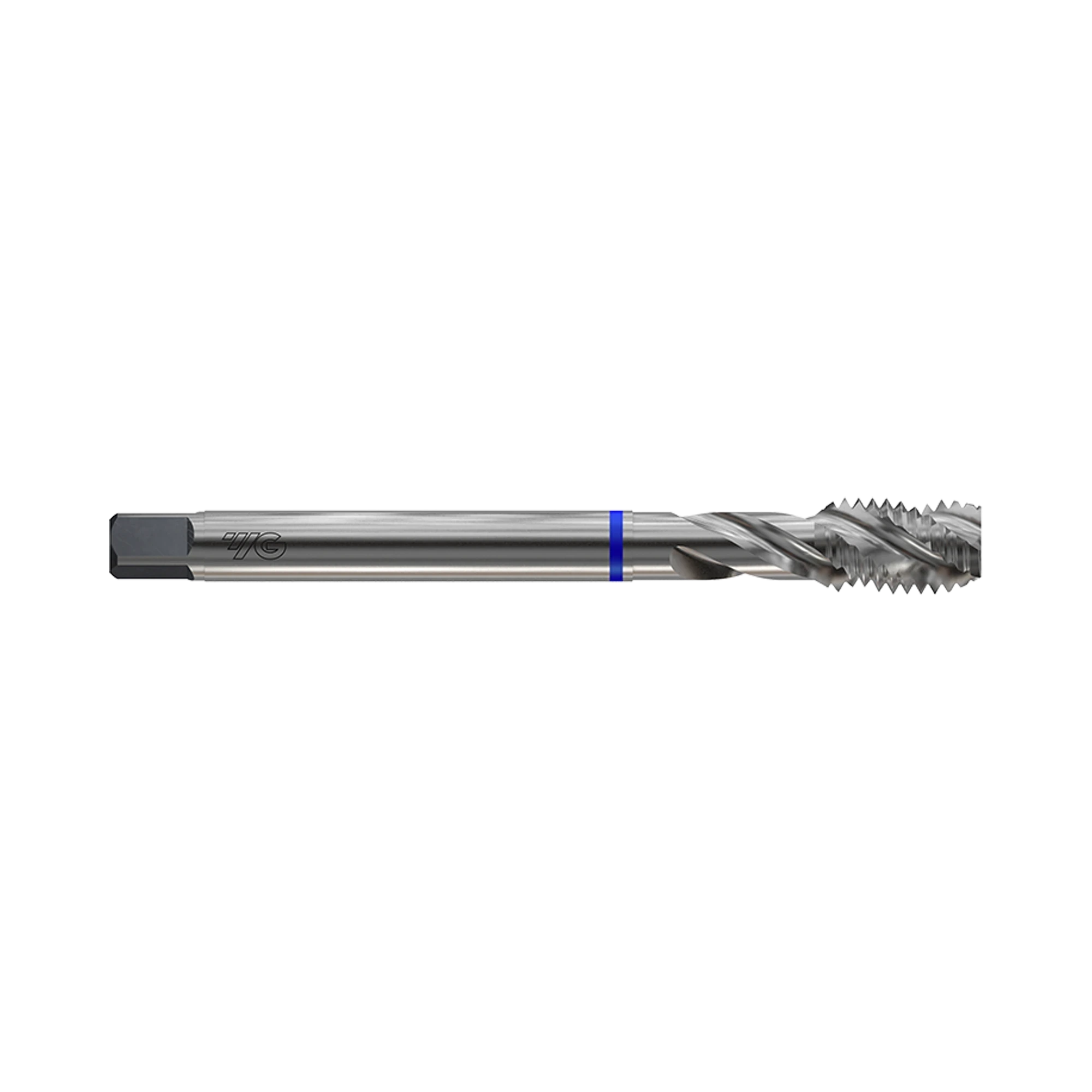

DIN371/DIN376 Spiral Flute Bright (TC163)

Product Code: TC163

YG-1 LEGEND 6H Thread Class: 6H YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND M Thread Shape: M YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND BRIGHT Surface Treatment: Bright YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376 YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45°
Buy Local
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P N S
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 Spiral Flute Bright (TC163) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC163136 M2 0.4 8 45 13 2.8 2.1 5 2 TC163156 M2.2 0.45 8 45 13 2.8 2.1 5 2 TC163176 M2.5 0.45 9 50 15 2.8 2.1 5 2 TC163196 M2.3 0.4 8 45 13 2.8 2.1 5 2 TC163206 M3 0.5 6 56 18 3.5 2.7 6 2 TC163226 M3.5 0.6 7 56 20 4 3 6 2 TC163246 M4 0.7 7 63 21 4.5 3.4 6 2 TC163266 M4.5 0.75 8 70 25 6 4.9 8 2 TC163286 M5 0.8 8 70 25 6 4.9 8 2 TC163316 M6 1 10 80 30 6 4.9 8 2 TC163346 M7 1 10 80 30 7 5.5 8 2 TC163366 M8 1.25 13 90 35 8 6.2 9 2 TC163396 M9 1.25 13 90 35 9 7 10 2 TC163426 M10 1.5 15 100 39 10 8 11 2 TC163466 M11 1.5 17 100 40 8 6.2 9 2 TC163496 M2.6 0.45 9 50 15 2.8 2.1 5 2 TC163506 M12 1.75 18 110 44 9 7 10 2 TC163546 M14 2 20 110 44 11 9 12 3 TC163606 M16 2 20 110 44 12 9 12 3 TC163656 M18 2.5 25 125 50 14 11 14 3 TC163706 M20 2.5 25 140 54 16 12 15 3 TC163746 M22 2.5 25 140 54 18 14.5 17 3 TC163786 M24 3 30 160 60 18 14.5 17 3 TC163866 M27 3 30 160 60 20 16 19 3 TC163946 M30 3.5 35 180 70 22 18 21 3

Operation

Blind Drilling

Work Material

P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Great

Good Great Excellent
N Copper

Great

Good Great Excellent
N Plastic

Great

Good Great Excellent
S Titanium

Excellent

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
