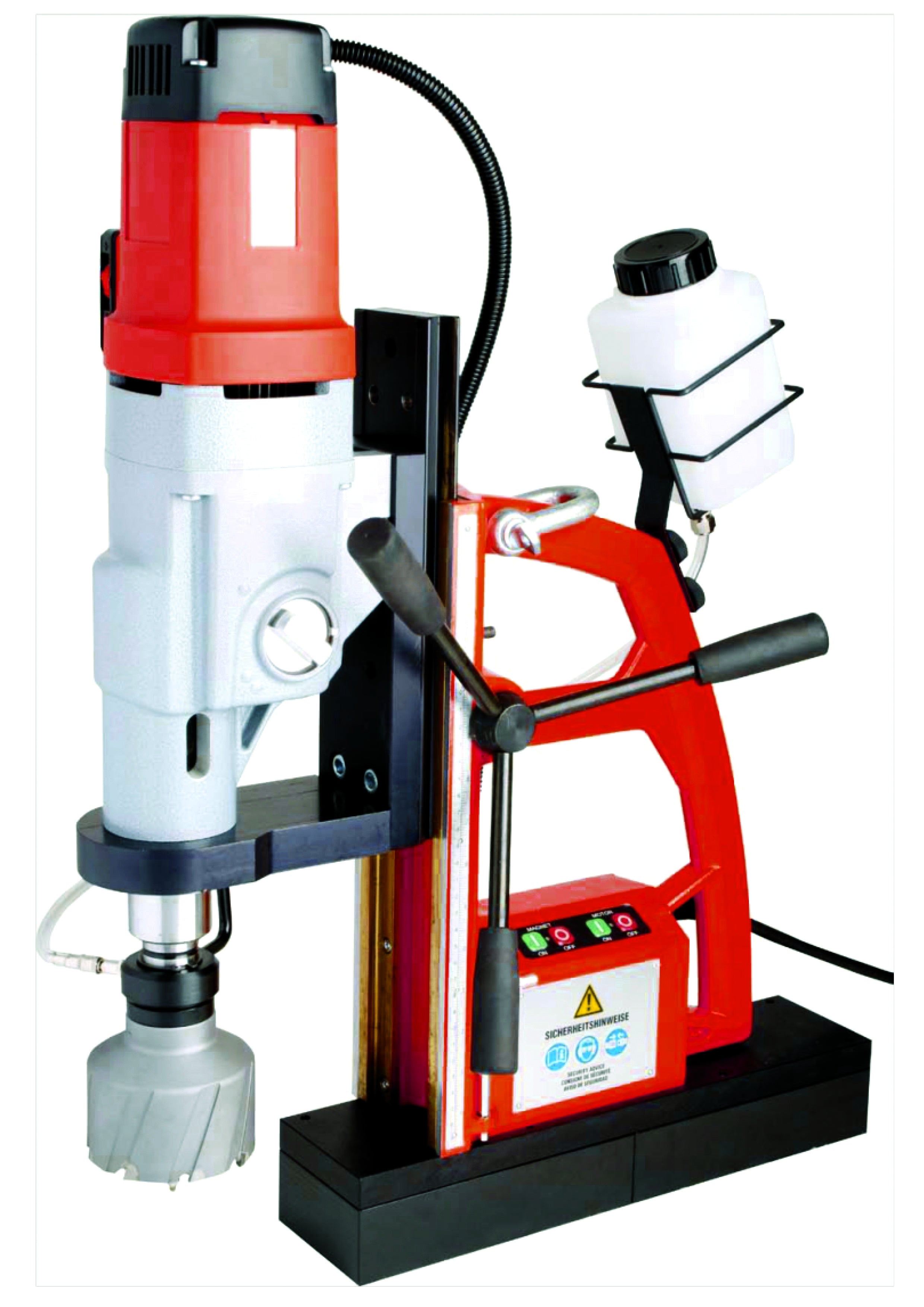

EM150 Magnetic Drill
Product Code: 18645
Shank Type: Morse Taper 4
Magnet Type: Electric
Tapping Capacity: M42
The EM150 is the beast of drills. It has a massive 150mm drilling capacity, a variable 4-speed gearbox for any hole size, and a powerful 6-coil magnet for maximum stability. Built with a Morse Taper 4 spindle and a tough ergonomic touch pad, it's ready for the toughest jobs.
- 4 speed variable oil bath gearbox
- 6 coil 32,000N magnet
- Durable touch pad for ergonomic use
- Tapping capacity up to M42
- Morse Taper 4 spindle
Specifications
| Drill Features and Specifications | |
| Core Drill Dimensions |
12.0-130.0mm/20.0-50.0mm (extra long 110mm) |
| Cutting Depth | 50.0mm/110.0mm |
| Twist Drill |
Up to 45.0mm with MT4 DIN 345 direct |
| Counter-Boring |
10.0-80.0mm |
| Tapping |
With Tapping Attachment: Up to M42 |
| Arbors |
MT4 |
| Stroke |
230mm |
| Height Adjustment |
100mm |
| 4-Speed Gearbox |
1. Step 50-150rpm 2. Step 75-239rpm 3. Step 100-310rpm 4. Step 160-490rpm |
| Power Consumption |
2,500W (230V) |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
5,000N/33,000N |
| Magnetic Base |
92×400mm |
| Weight |
34.0Kg |
Product Data
| Adhesion Force | 33000 N |
| Core Drill Diameter | 130mm |
| Counter Boring Diameter | 80mm |
| Cutting Depth | 110mm |
| Gearbox Speed | Variable 50-490 RPM |
| Height Adjustment | 100mm |
| Magnet Type | Electric |
| Shank Type | Morse Taper 4 |
| Stroke | 230mm |
| Tapping Capacity | M42 |
| Twist Drill Diameter | 45mm |
| Weight | 34 kg |
Made in Germany
2 Year Warranty
