New
Shank Type: 19mm Weldon
Magnet Type: Electric
Made in Germany
2 Year Warranty
EMB35 Fabricator's Kit
Product Code: 18405
Shank Type: 19mm Weldon
Magnet Type: Electric

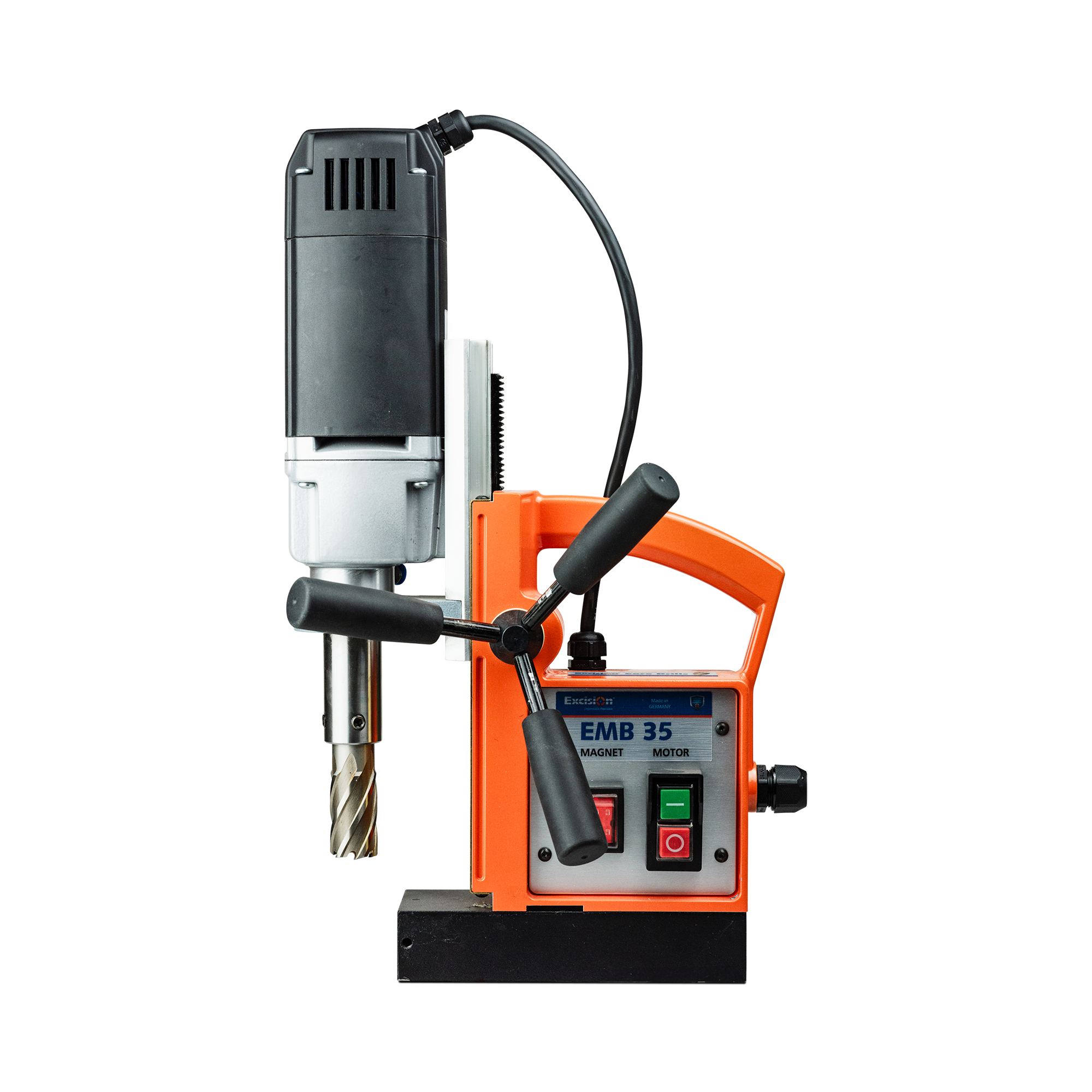

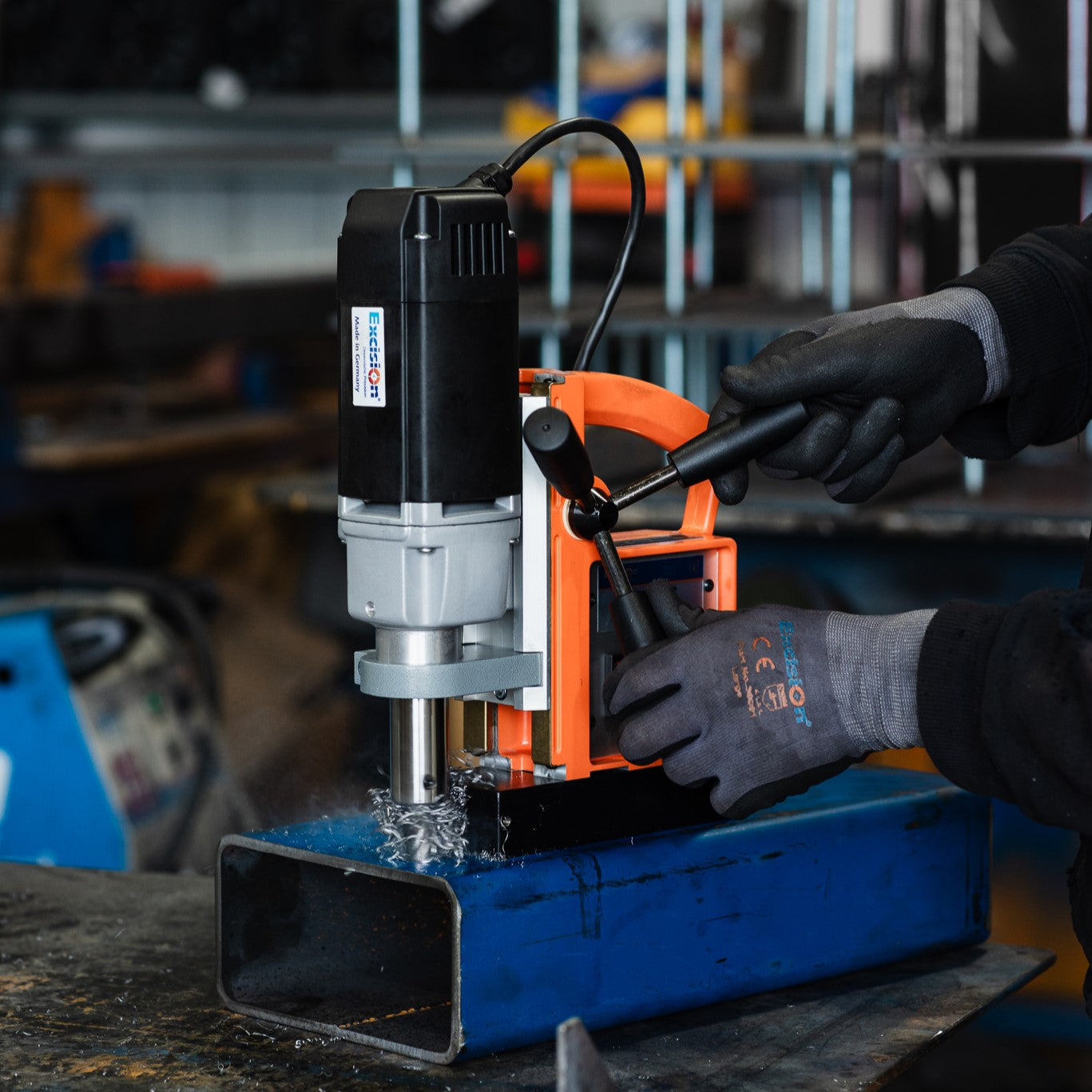

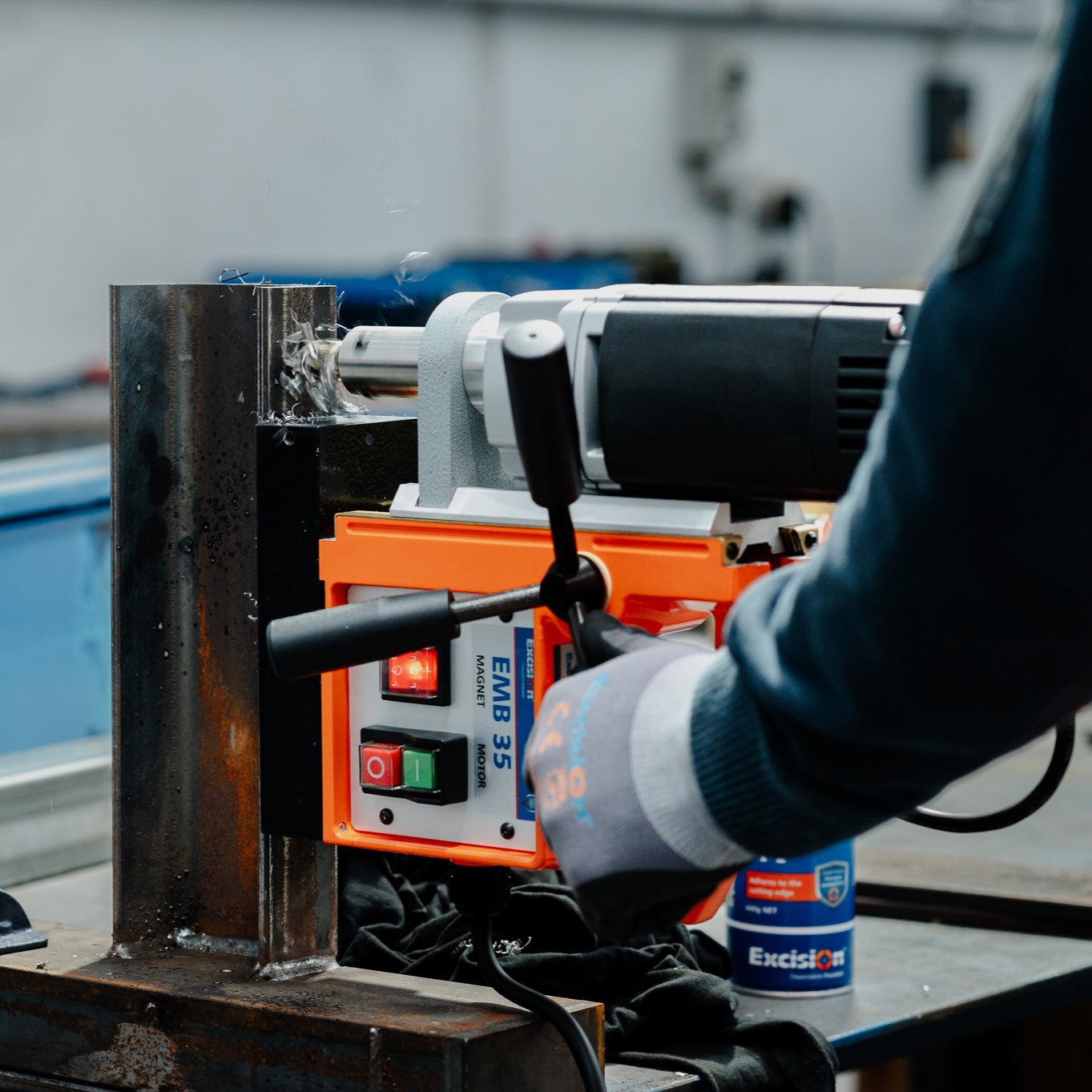

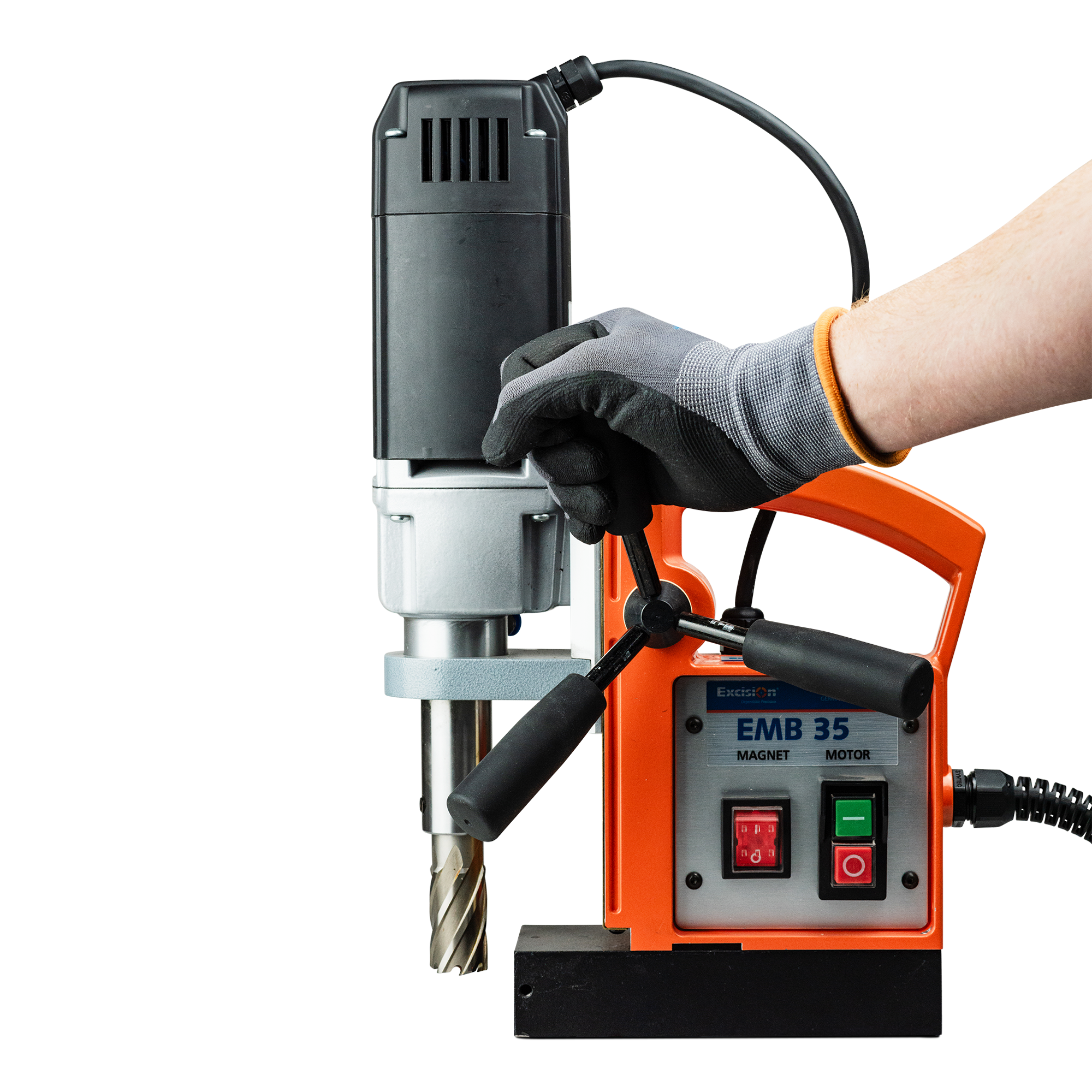

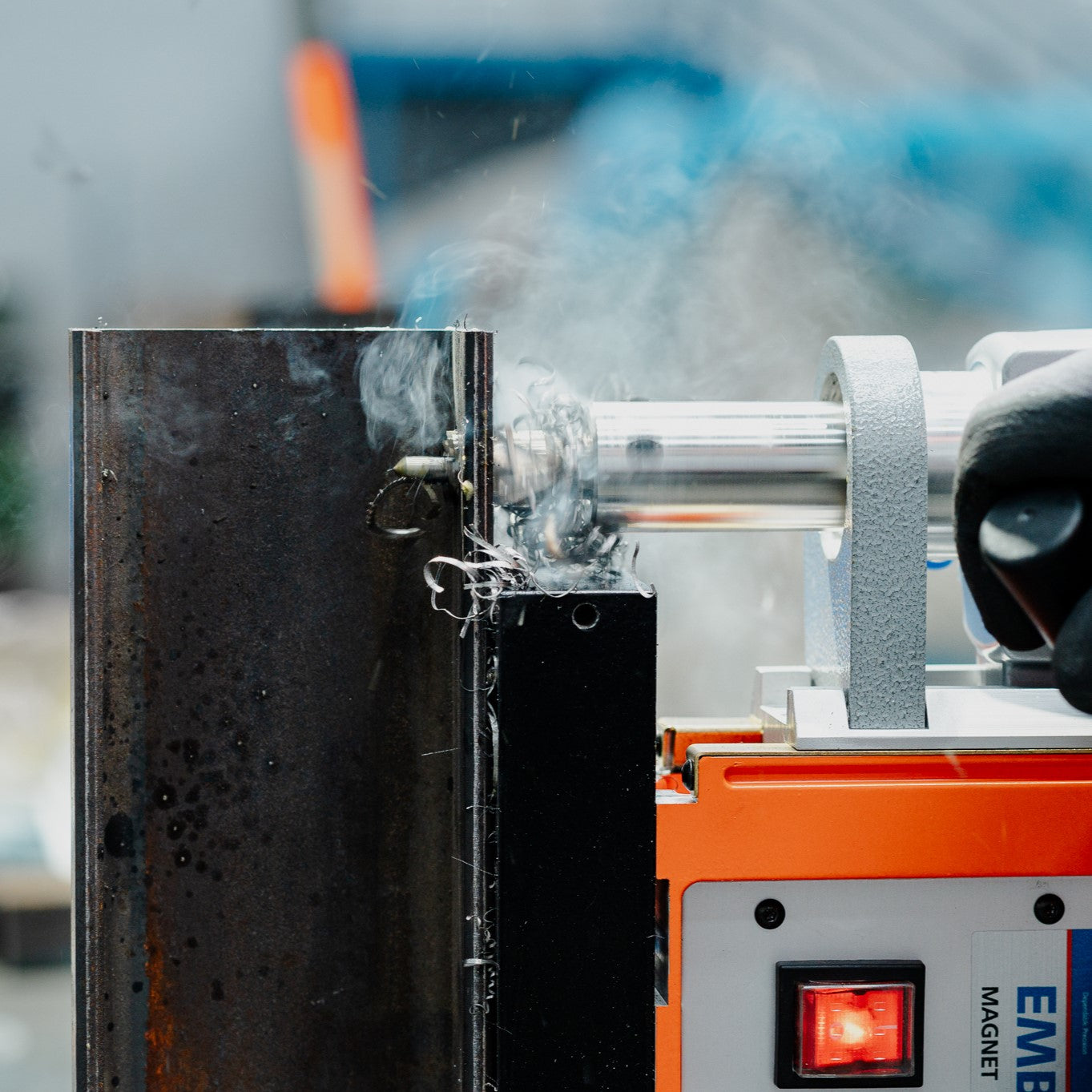

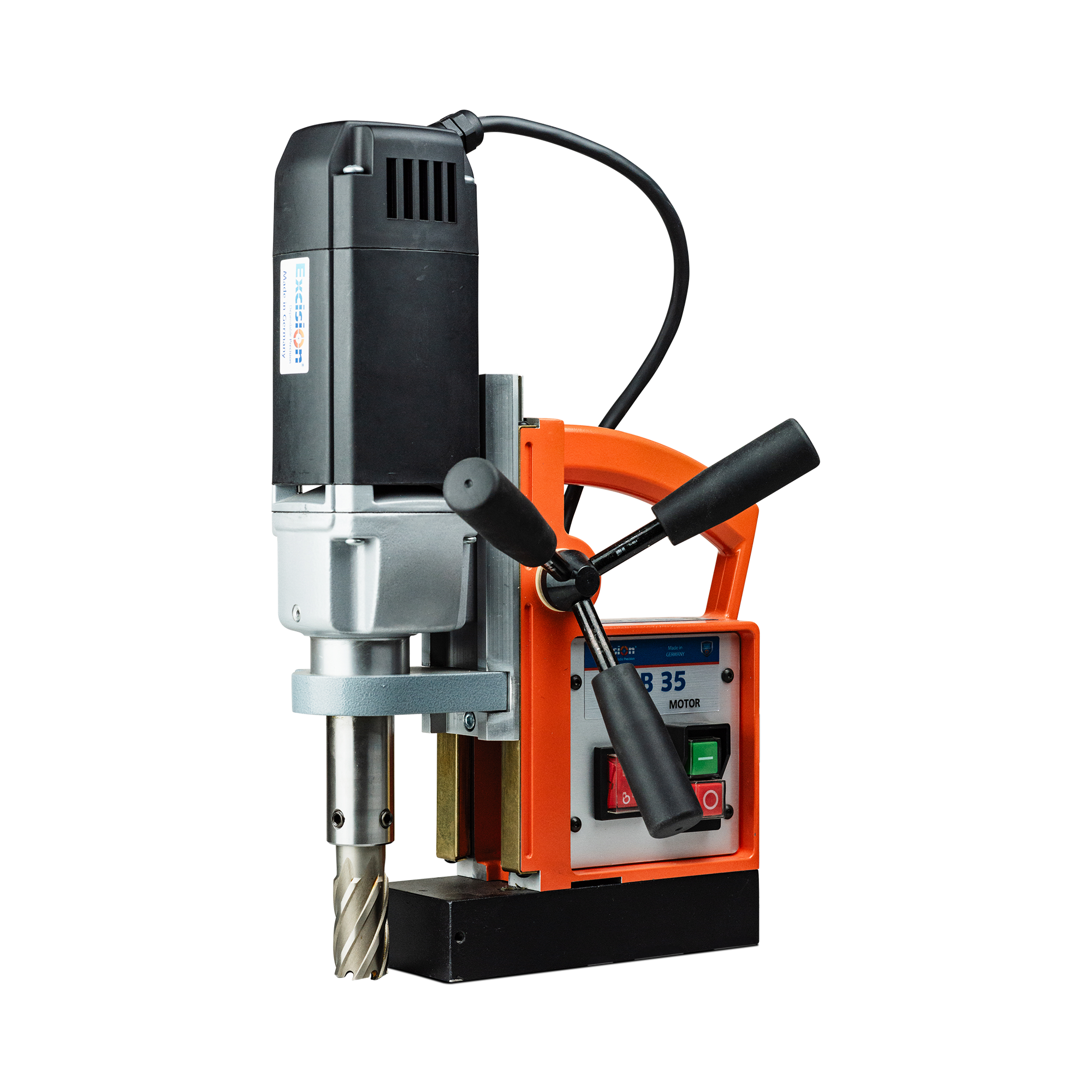

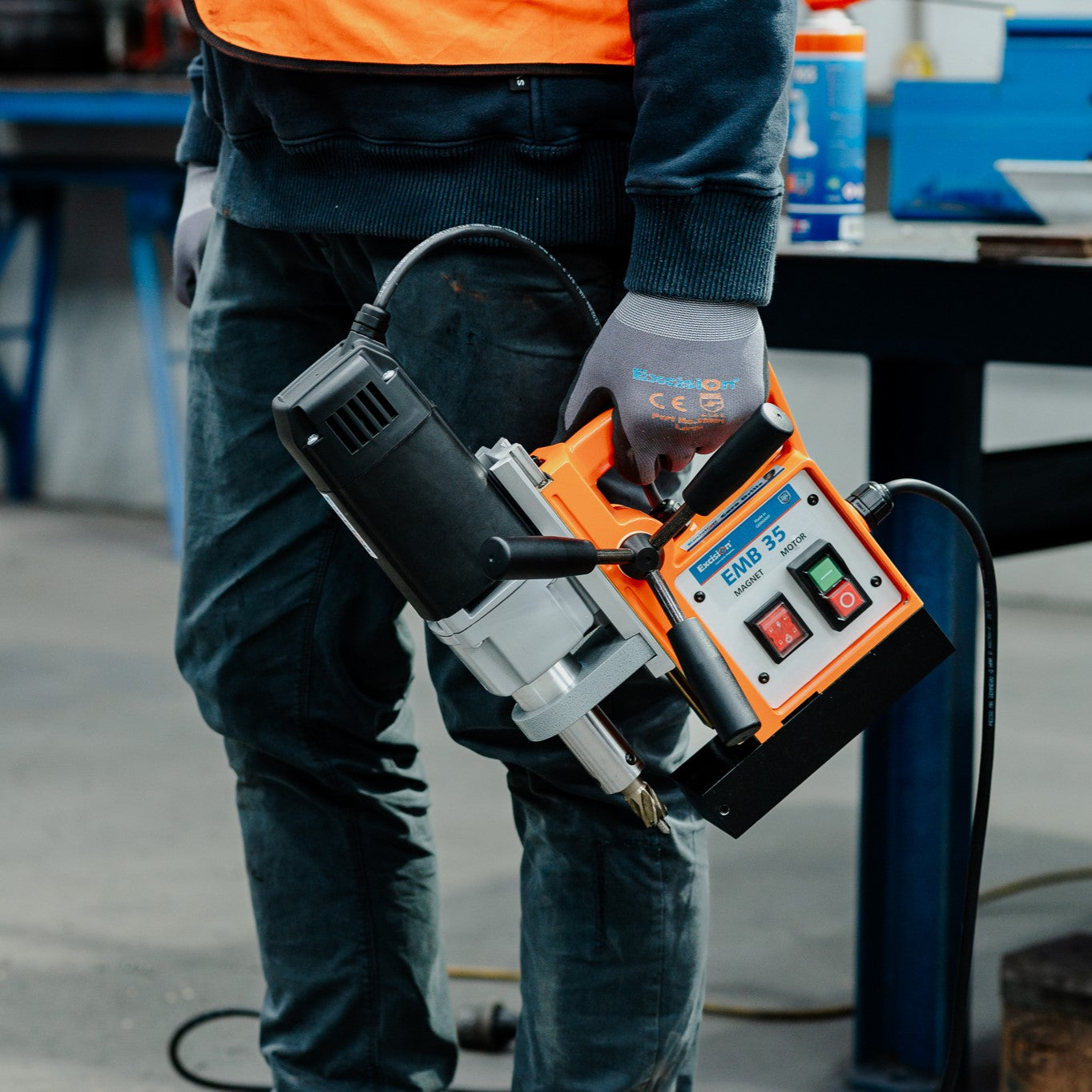

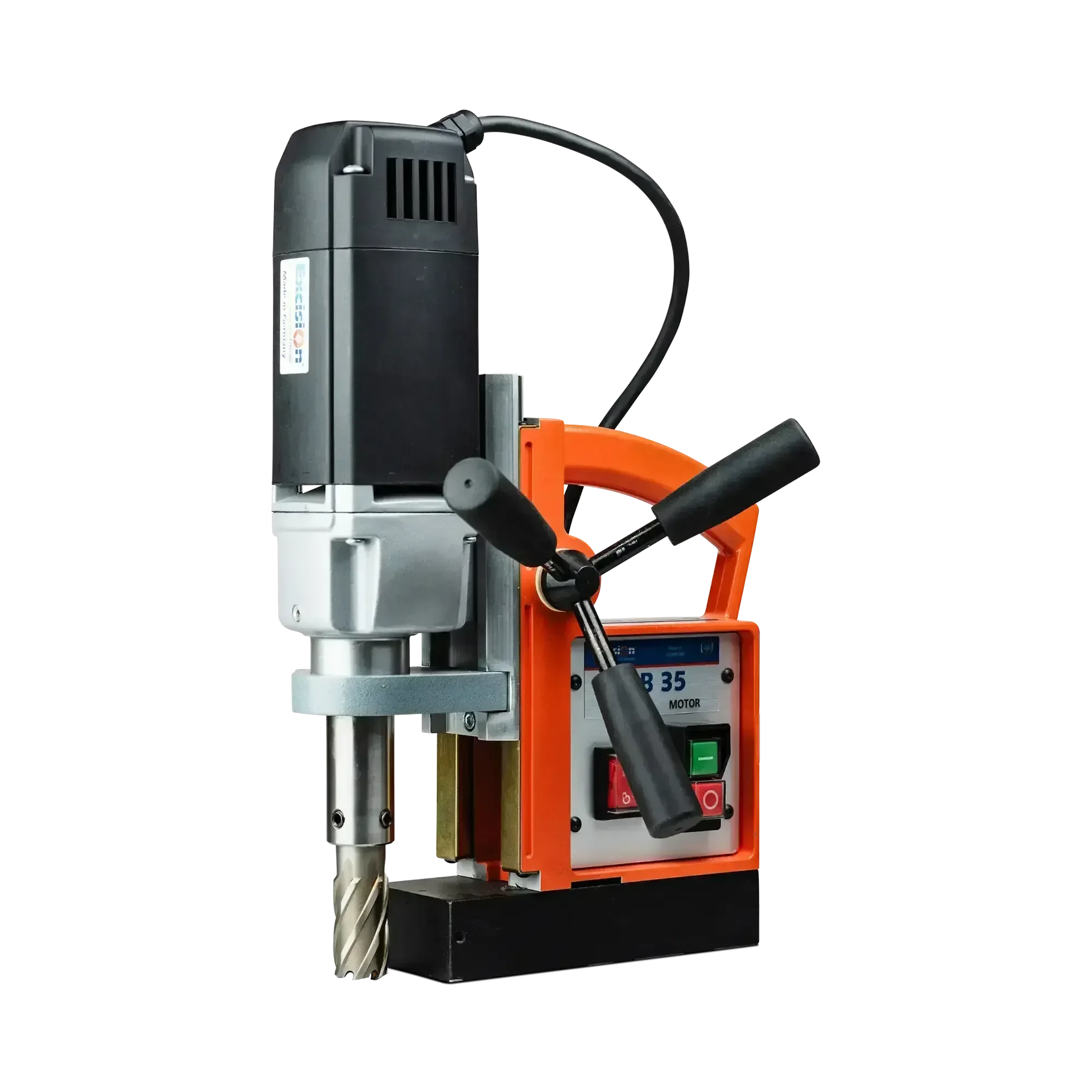

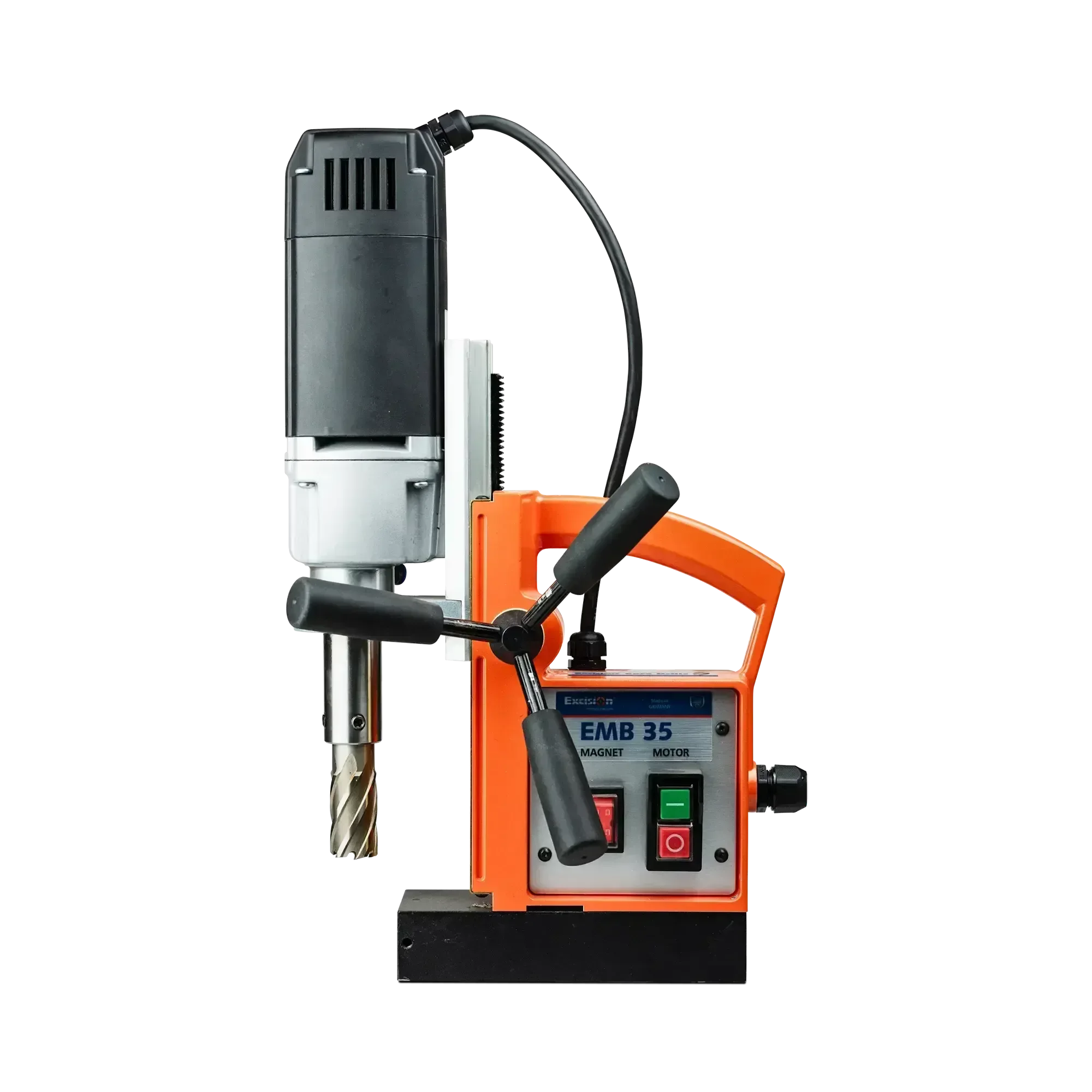

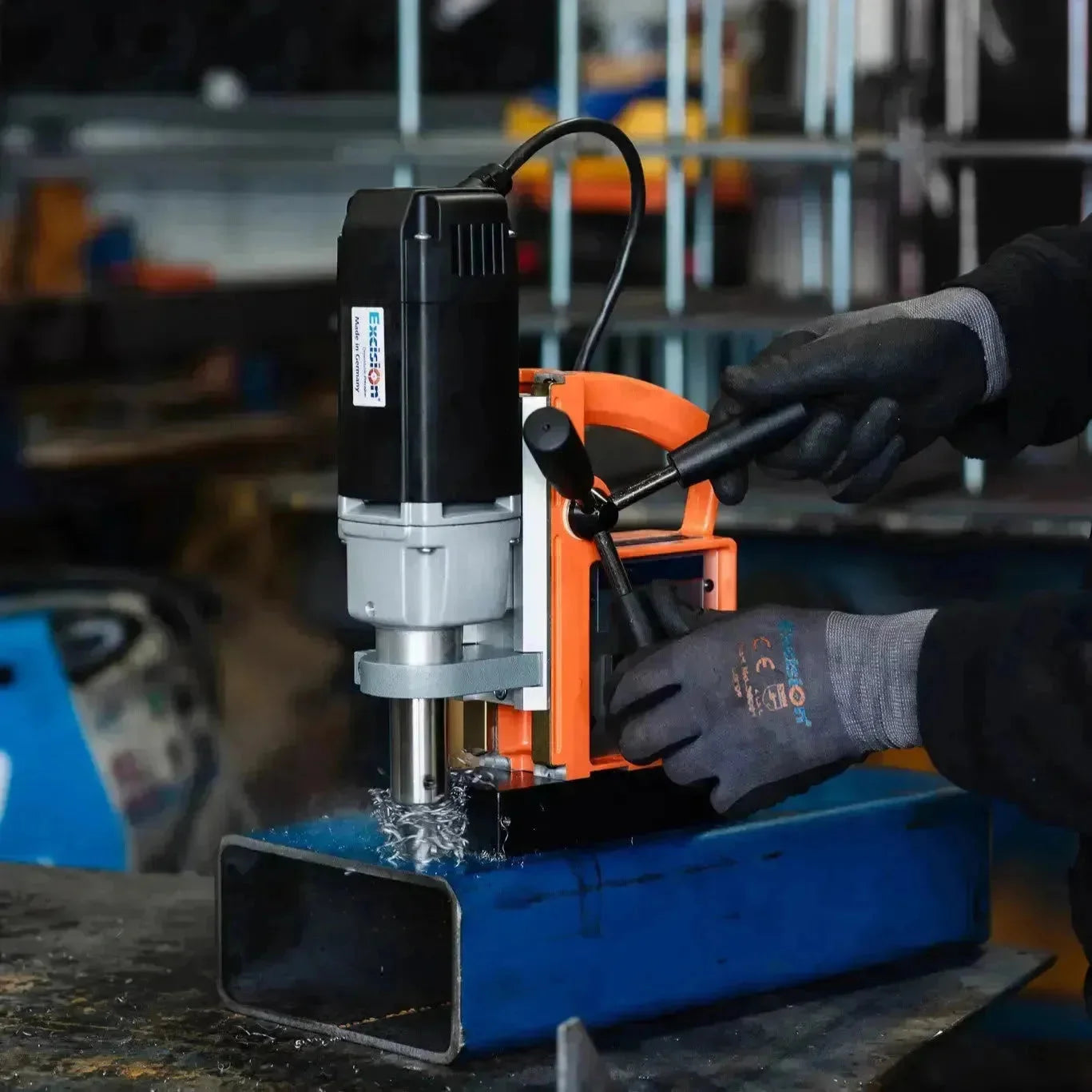

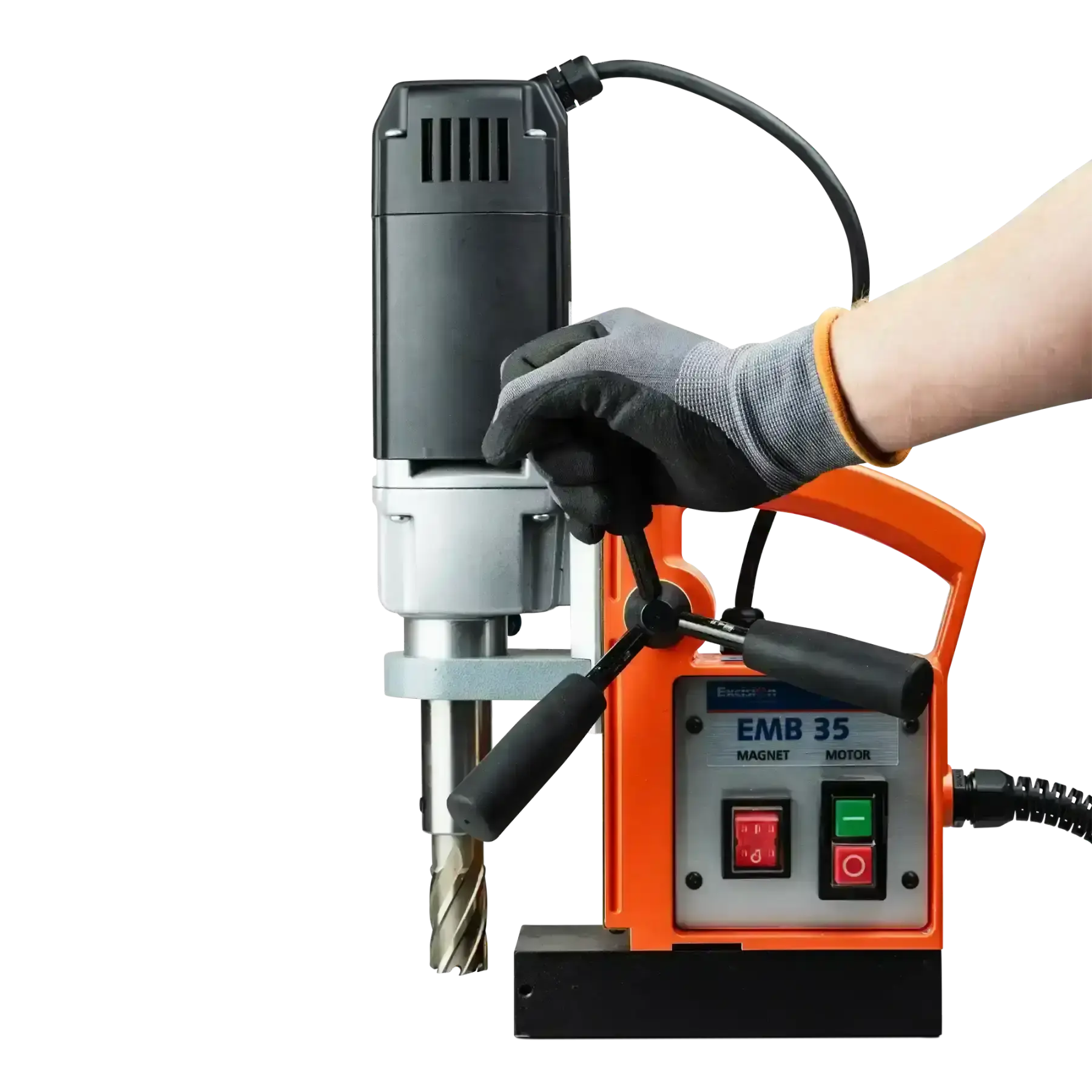

The Excision EMB 35 magnetic based drill is the machine for the efficient drilling of holes under 35mm. Weighing only 10.6kg, this German made drill is durable for any small engineering application. The direct Weldon arbor type spindle is capable of handling all 19mm shank core drills.
- Spring loaded guides for rigid gliding and reduced vibration
- Direct Weldon arbor type spindle for use with all 19mm shank core drills

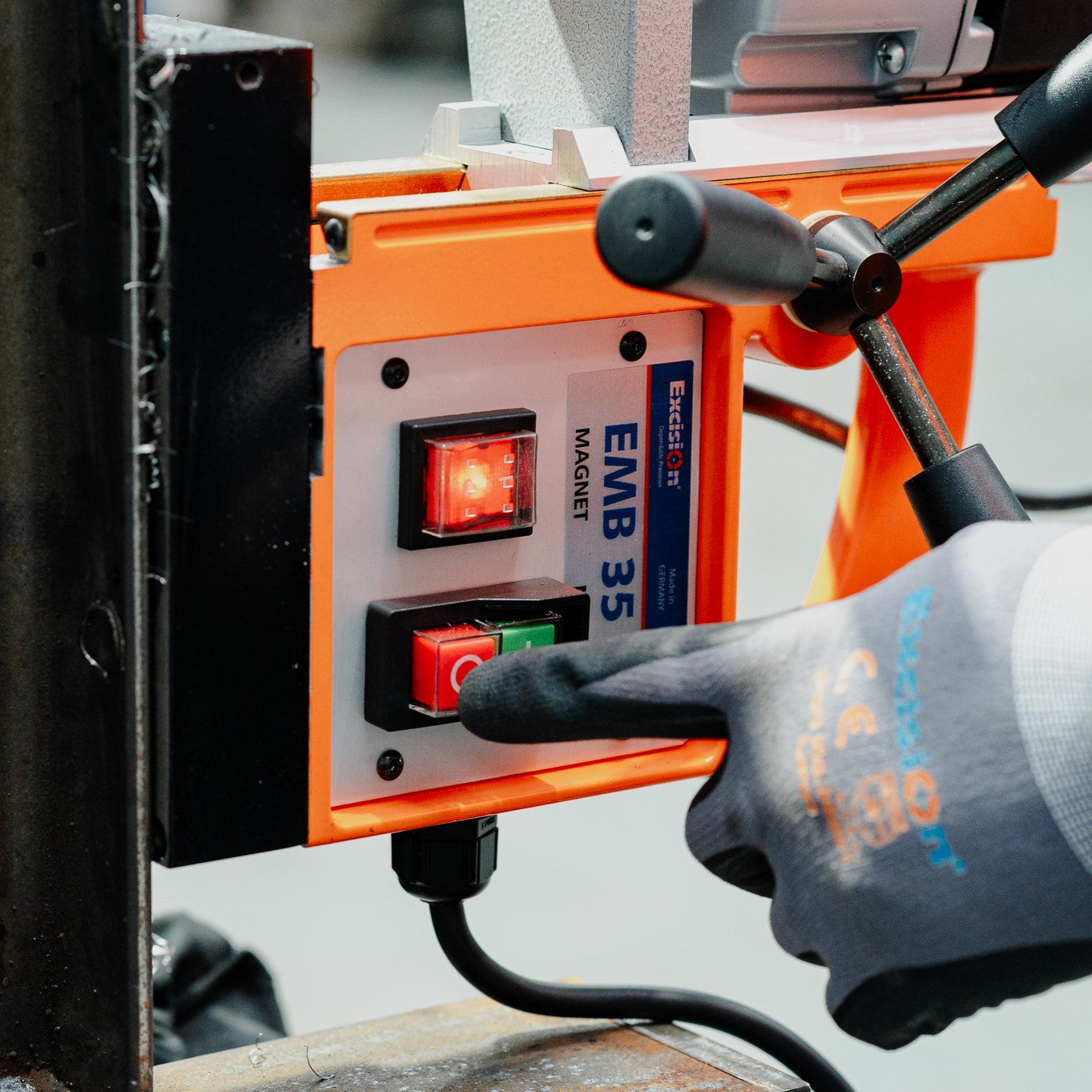

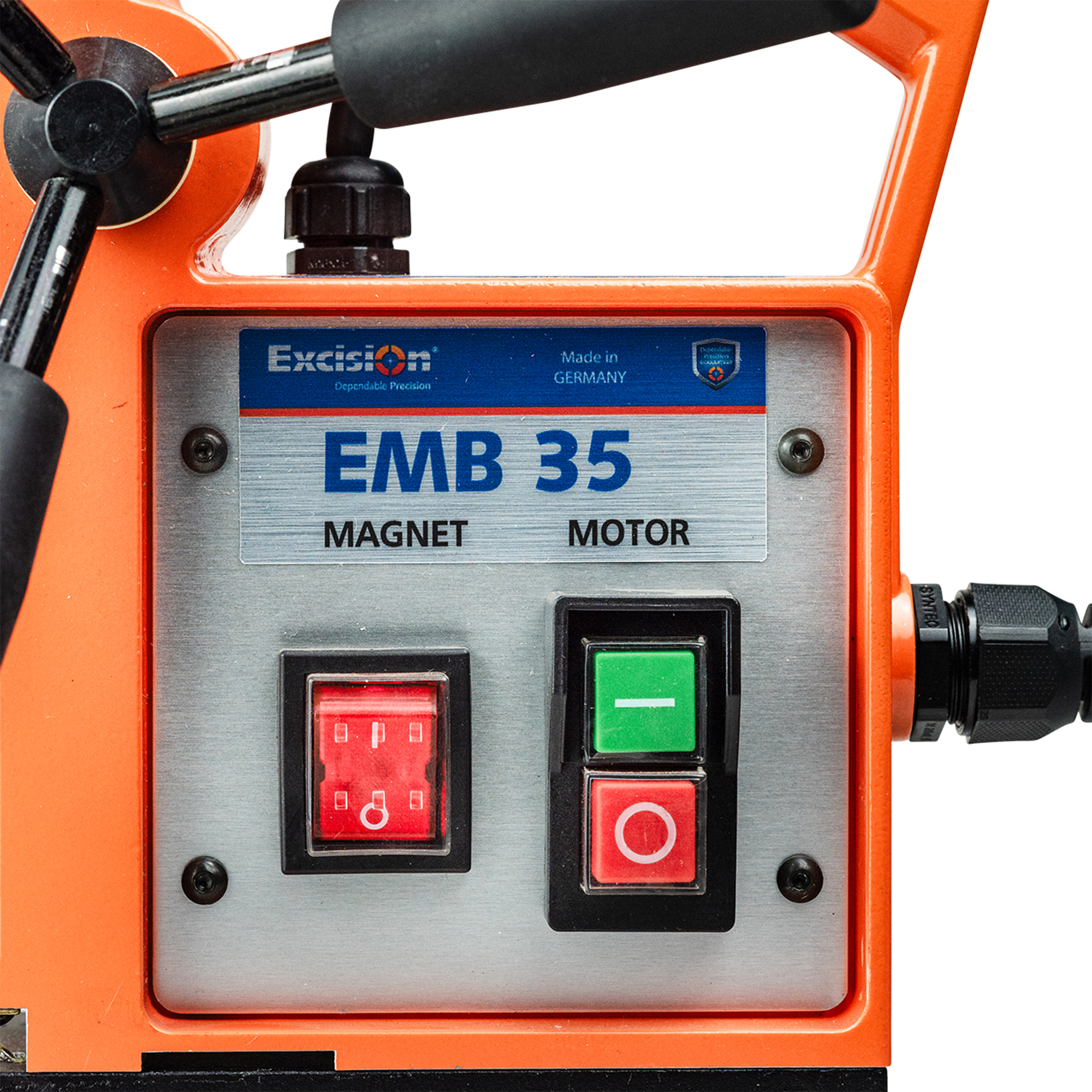

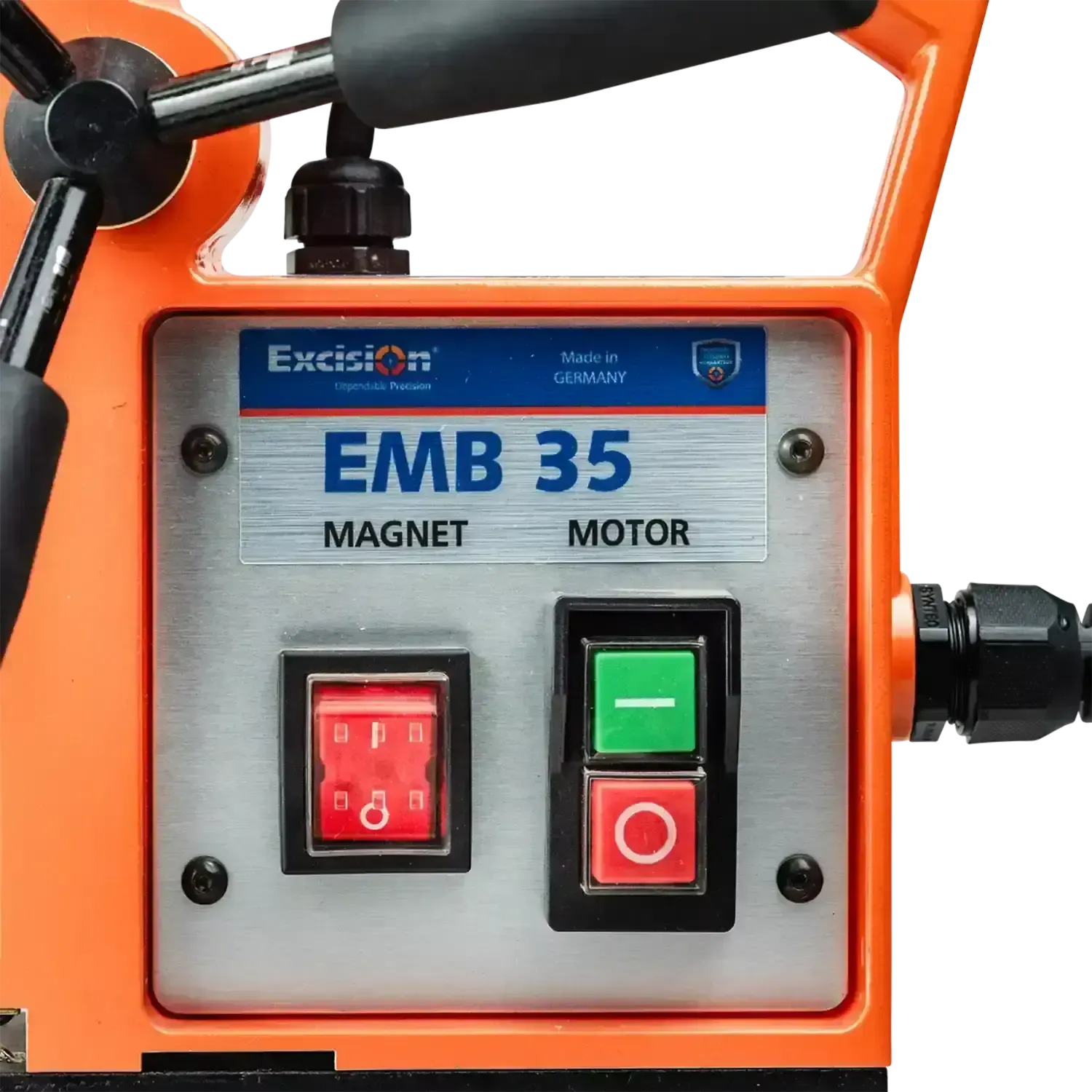

- Durable switches for long lasting use
- 2 Coil 9,000N Magnetic adhesion for industrial use

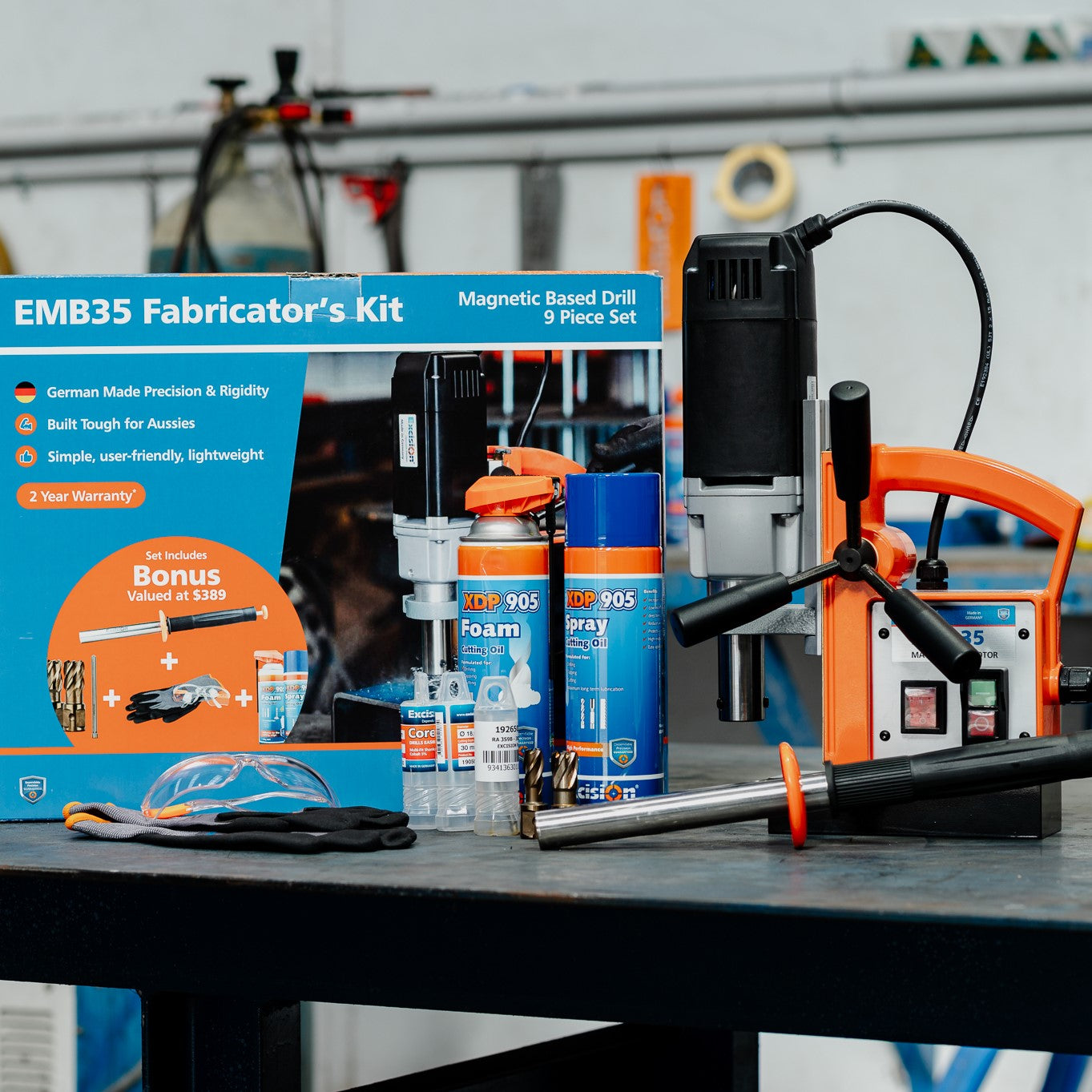

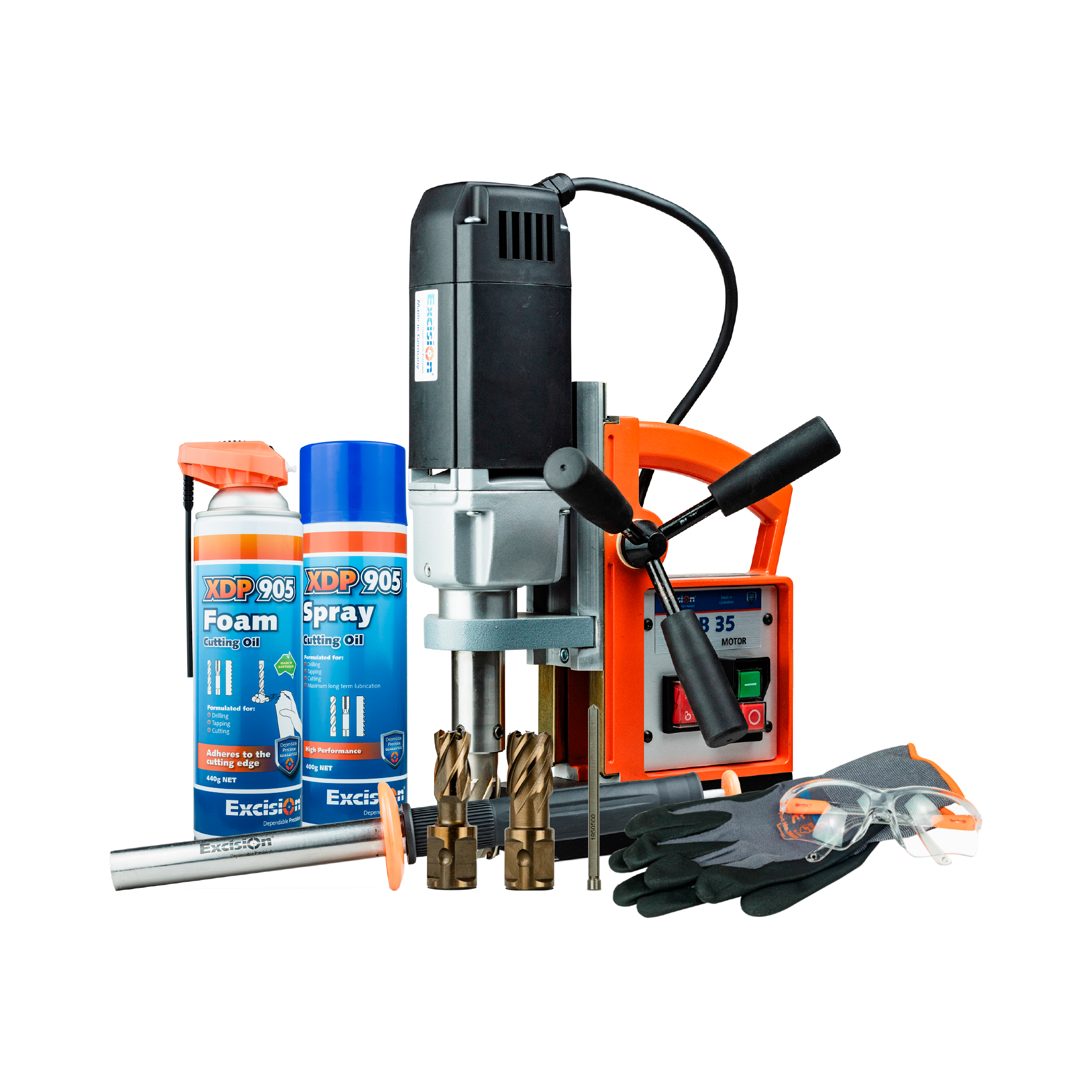

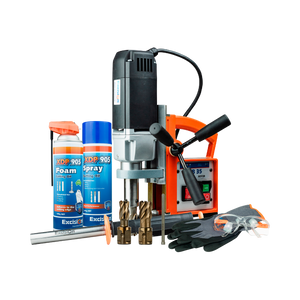

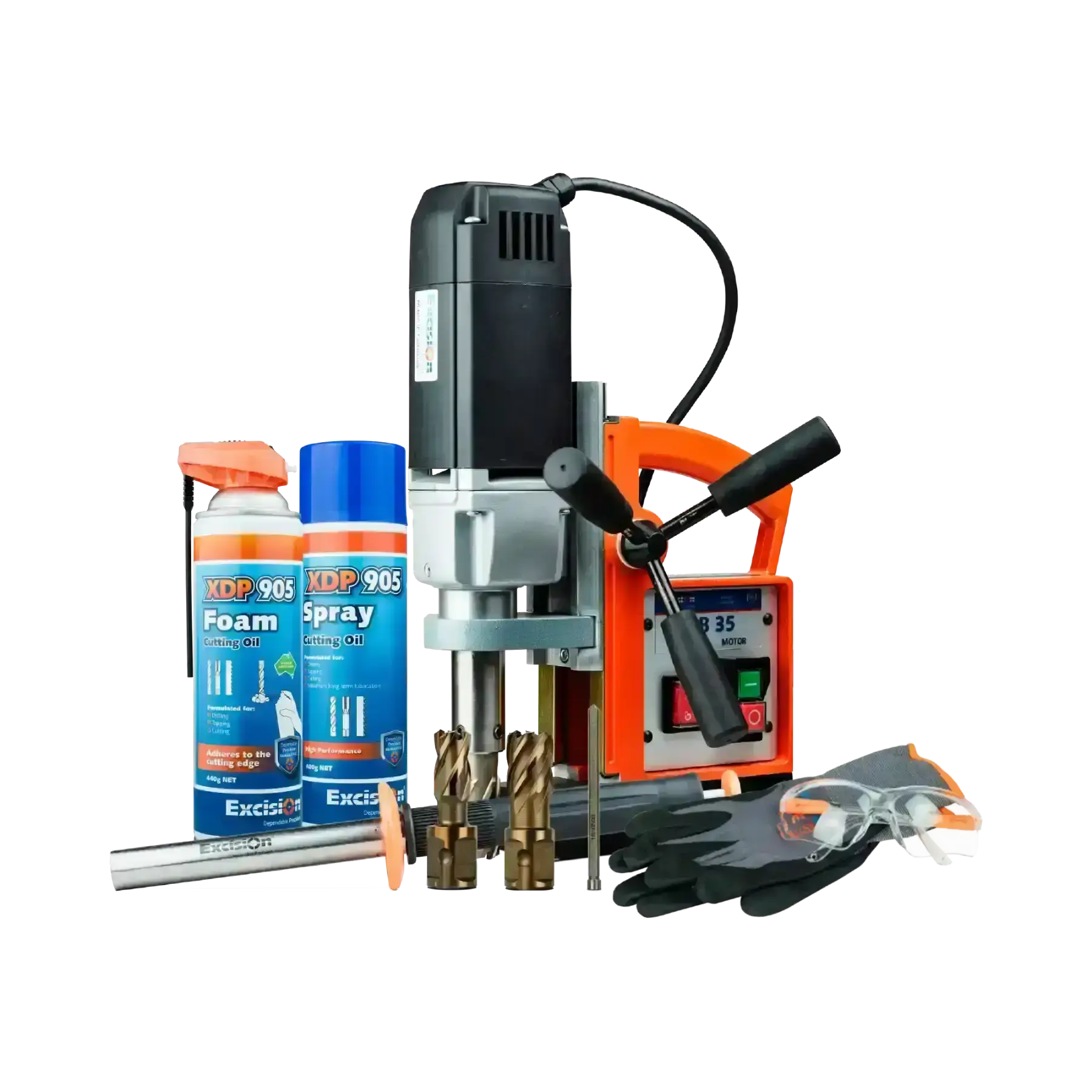

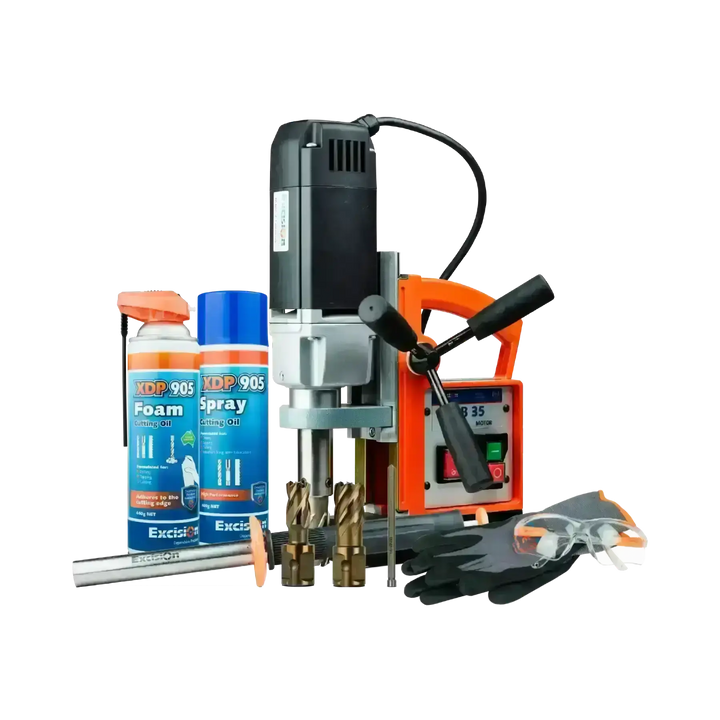

Kit includes as bonus:
+ 14mm Core Drill
+ 18mm Core Drill
+ Short Series Ejector Pin
+ 400mm Magnetic Swarf Remover
+ Heavy Duty Gloves & Glasses
+ XDP905 Heavy Duty Foam
+ XDP905 Heavy Duty Spray
| Product Specifications | |
 |
|
| Core Drill Dimensions | 12.0-35.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm with MT3 DIN 1897 short |
| Arbors |
19mm Weldon Shank |
| Stroke |
120mm |
| Gearbox-On-load speed |
450rpm |
| Power Consumption |
1,100 W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion |
2,100N/10,000N |
| Magnetic Base |
70×185mm |
| Weight |
10.6kg |
| Scope of Delivery | |
| EMB35 Magnetic Drill |
⚫ |
| Carrying Case |
⚫ |
| Safety Strap |
⚫ |
| Coolant Device |
⚫ |
| Operating Instructions |
⚫ |
Product Data
| Adhesion Force | 9000 N |
| Core Drill Diameter | 35mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| ecom | section |
| Gearbox Speed | 450 RPM |
| Magnet Type | Electric |
| Shank Type | 19mm Weldon |
| Stroke | 120mm |
| Twist Drill Diameter | 13mm |
| Weight | 10.6 kg |
Made in Germany
2 Year Warranty
