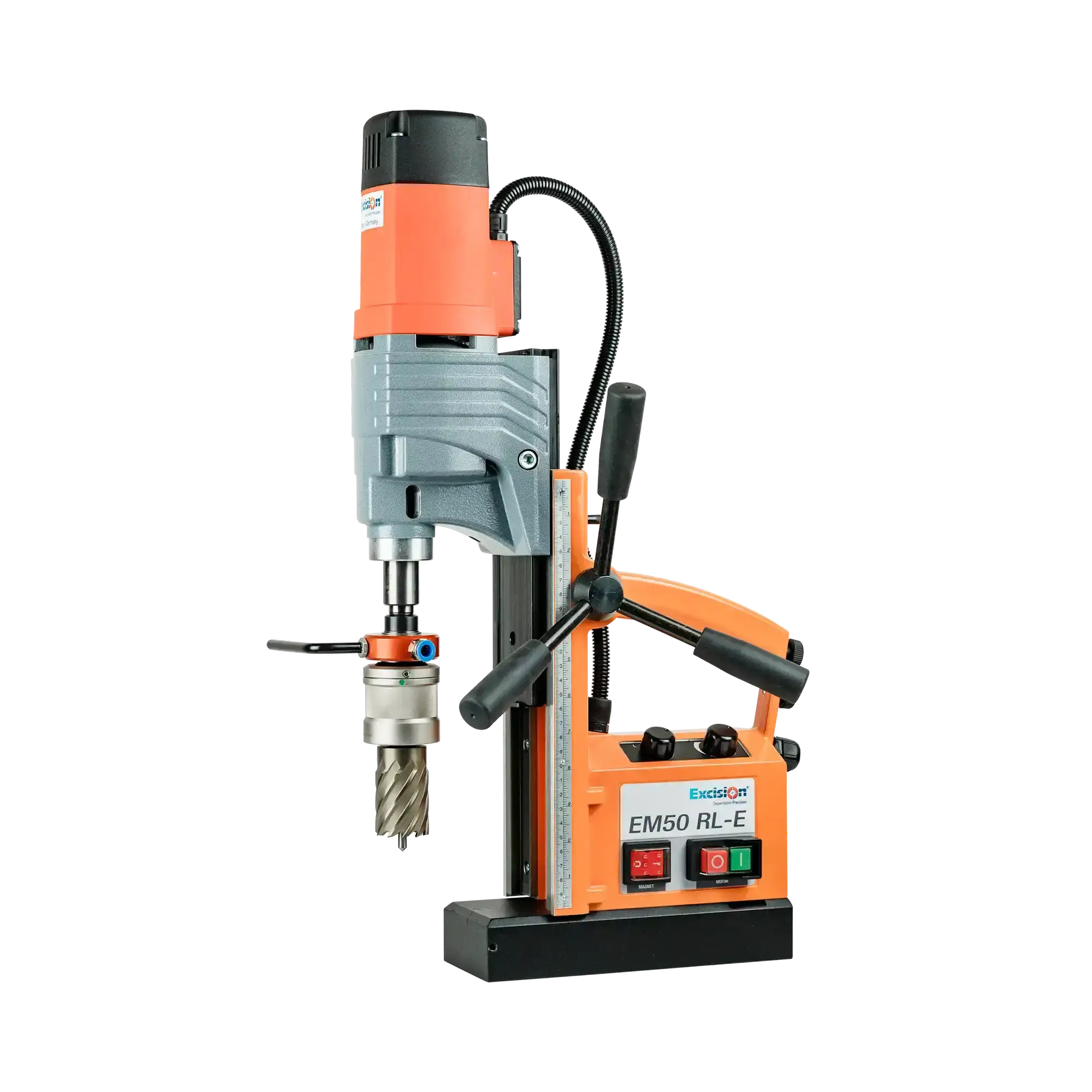

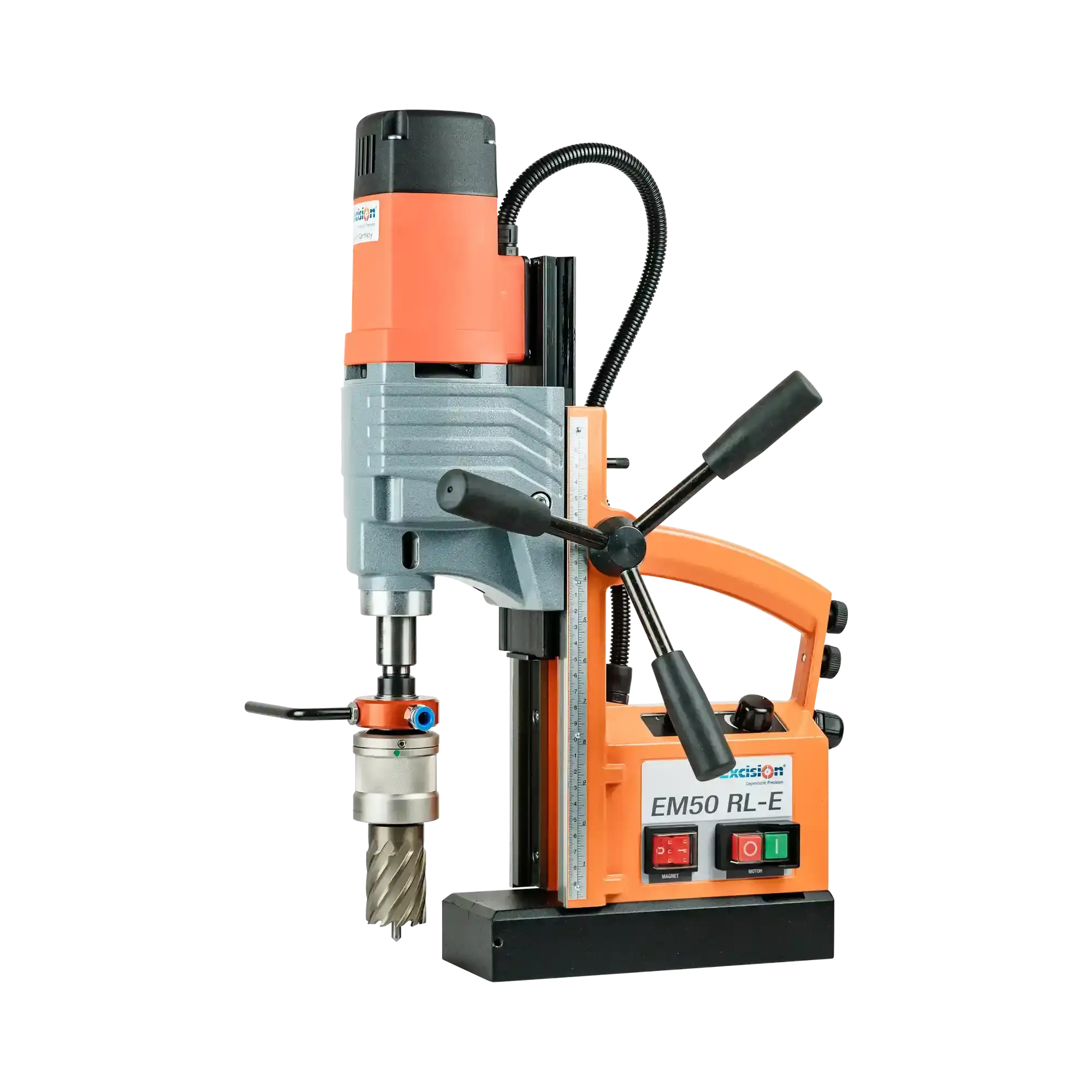

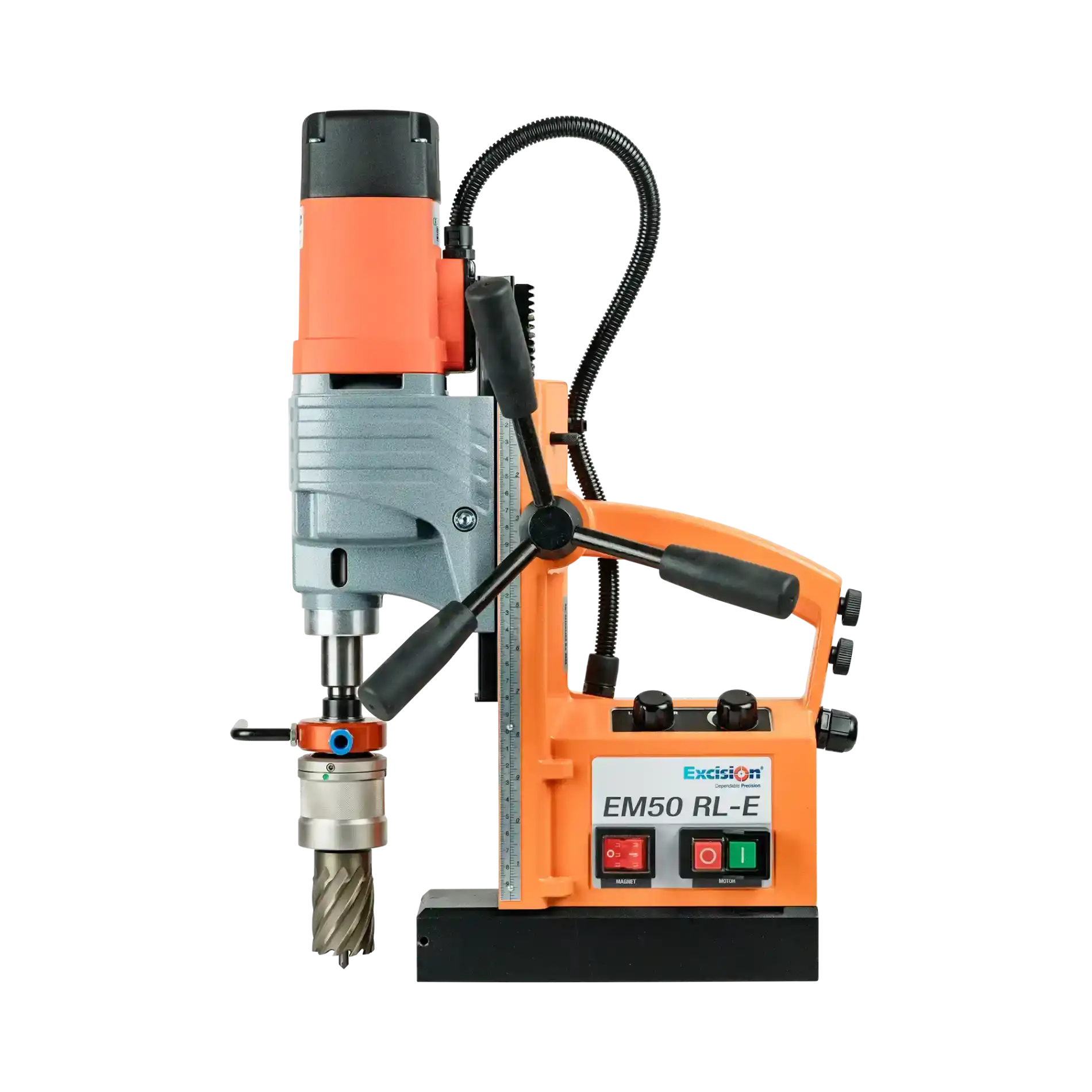

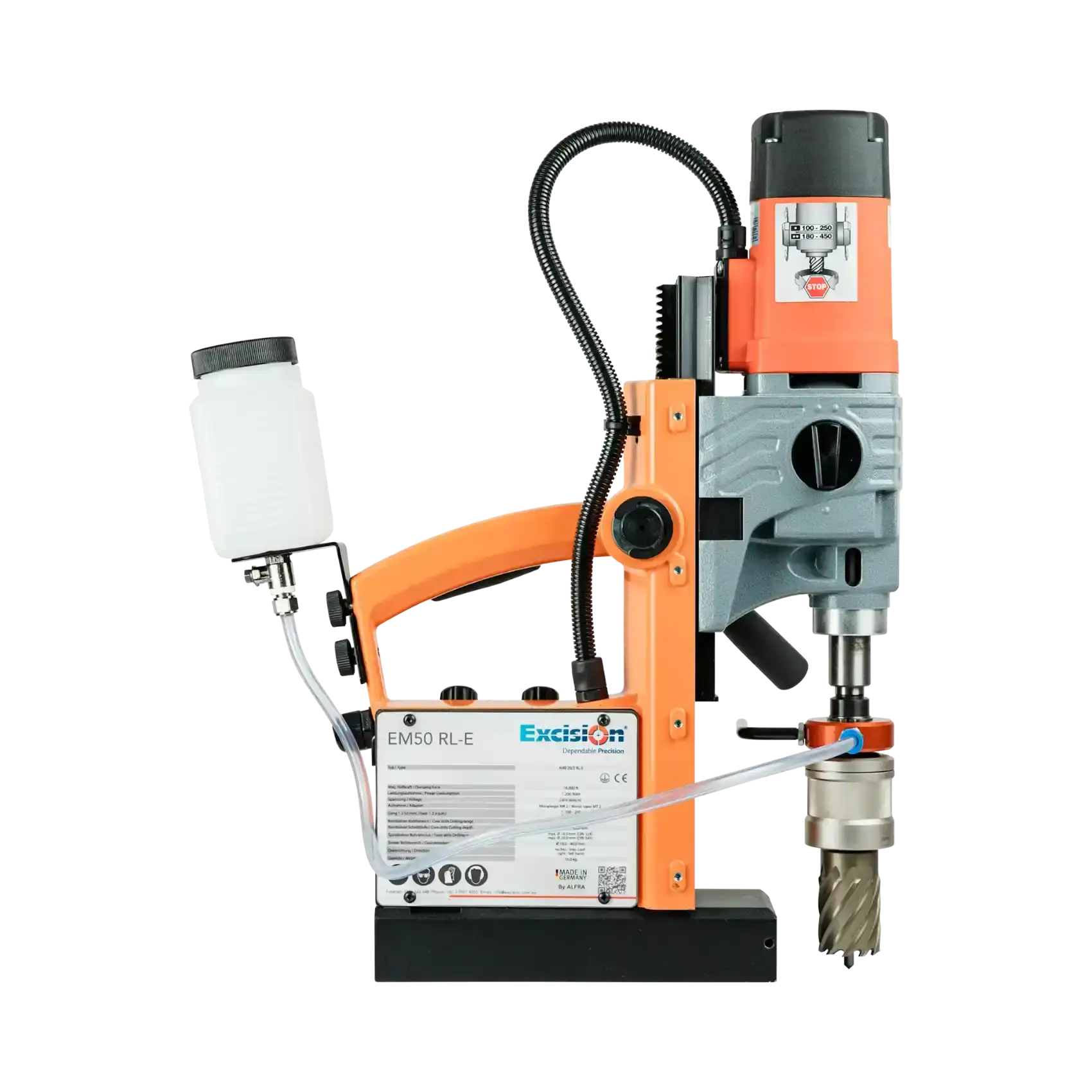

EM50 RL-E Magnetic Drill
Code: 18612
Made in Germany
2
2 Year Warranty
Add EM50 RL-E Magnetic Drill to comparison
View Comparison- Overview
- Reviews
Product Description
The EM50 RL-E is all about versatility. Its forward-reversible gearbox makes tapping easy, while the variable 2-speed gearbox provides precise control for different hole diameters. Equipped with a Morse Taper 2 spindle and a solid 16,000N magnetic adhesion, itās built for a range of tough drilling tasks.
- 2 speed variable oil bath gearbox
- Forward-reversible drive, ideal for tapping
- 3 coil 16,000N magnetic adhesion
- Solid brass guides with spring loading for rigid gliding and no vibration
- Morse Taper 2 spindle
Specifications
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions | 12.0-50.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
With quick-release chuck up to 20.0mm with MT3 DIN 345 direct |
| Counter-BoringĀ |
10.0-40.0mm |
| Tapping |
Tapping Chucks: M3-M14 with tapping attachment: M3-M20 |
| Arbors |
MT2 |
| Stroke |
170mm |
| Height Adjustment |
100mm |
| 2-Speed Gearbox |
Right/Left 1. Step 100-250rpm 2. Step 180-450rpm |
| Power ConsumptionĀ |
1,200W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
3,800N/16,000N |
| Magnetic Base |
92Ć238mm |
| Weight |
16.0Kg |
Product Data
| Adhesion Force | 16000 N |
| Core Drill Diameter | 50mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| Gearbox Direction | Forward-Reverse |
| Gearbox Speed | Variable 100-450 RPM |
| Height Adjustment | 100mm |
| Magnet Type | Electric |
| Shank Type | Morse Taper 2 |
| Stroke | 170mm |
| Tapping Capacity | M20 |
| Twist Drill Diameter | 20mm |
| Weight | 16.0 kg |
