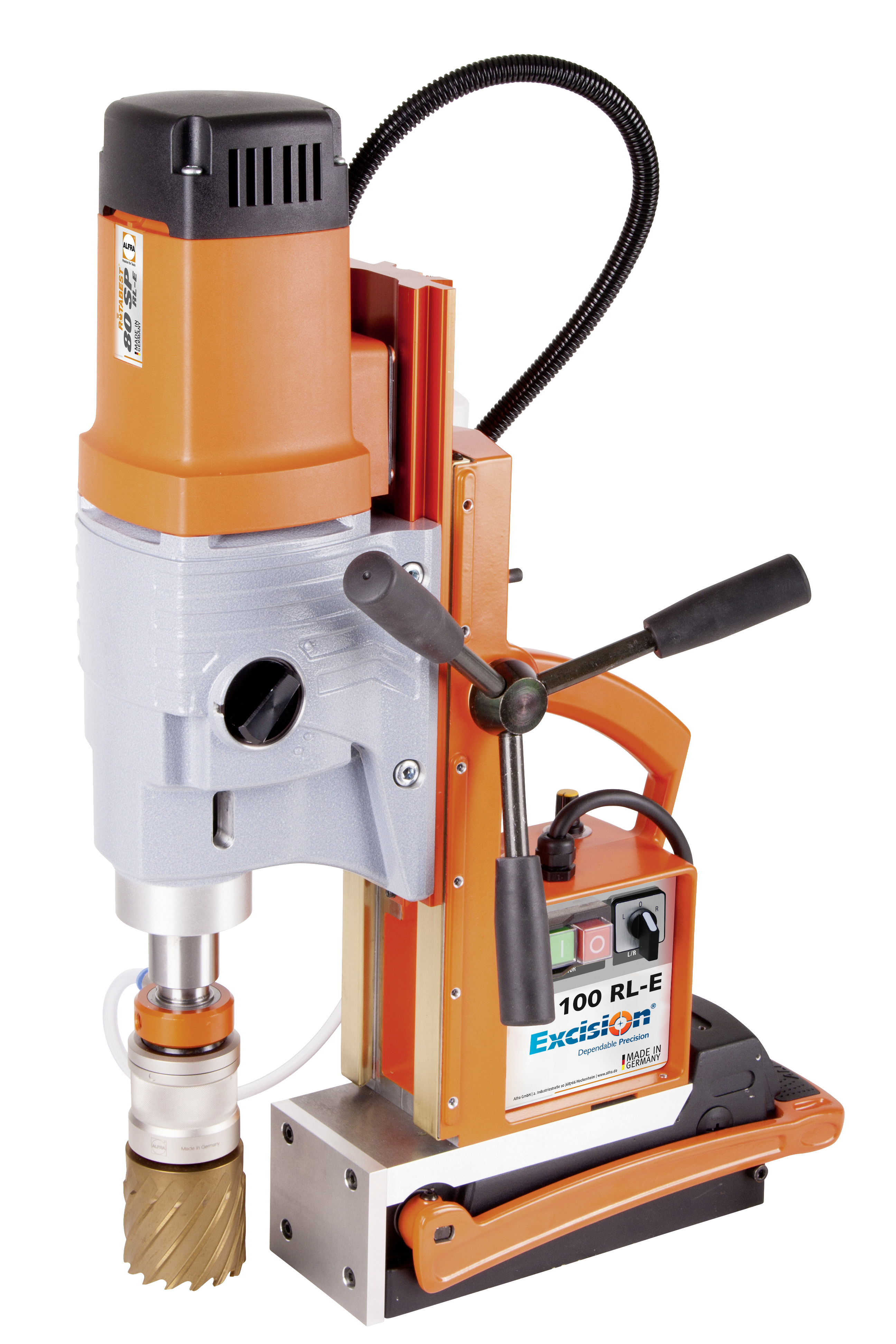

Magnex Drill 100 RL-E
$5,038.00
INC GST
$4,580.00
EX GST
Price available on request
Unit price per
Save $789.10
- SKU
- 18628
- Product type
- Magnetic Based Drills
Made in Germany
Free standard delivery on orders over
$500.
2
2 Year Warranty
Add Magnex Drill 100 RL-E to comparison
View Comparison- Overview
- Reviews
Product Description
Magnex 100 RL-E packs big capabilities in a compact package. Its Magnex magnet doesn’t need a power supply, and the forward-reversible gearbox makes tapping a breeze. With a variable 4-speed gearbox and Morse Taper 3 spindle, it's built for precision and versatility.
- Powerful permanent magnet - doesn't need a power supply
- 4 speed variable oil bath gearbox
- Forward-reversible drive, ideal for tapping
- Solid brass guides with spring loading for rigid gliding and no vibration
- Morse Taper 3 spindle
Specifications
| Drill Features and Specifications | |
| Core Drill Dimensions | 12.0-100.0mm |
| Cutting Depth | 110.0mm |
| Twist Drill |
1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN 345 |
| Counter-Boring |
10.0-55.0mm |
| Tapping |
With Tapping Chucks: Up to M30 With Tapping Attachment: Up to M30 |
| Arbors |
MT3 |
| Stroke |
190mm |
| Height Adjustment |
60mm |
| 4-Speed Gearbox |
Right/Left 1. Step 50-110rpm 2. Step 75-175rpm 3. Step 105-245rpm 4. Step 165-385rpm |
| Power Consumption |
1,800W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm) |
2,500N |
| Magnetic Base |
94×255mm |
| Weight |
22.6Kg |
Product Data
| Core Drill Diameter | 100mm |
| Counter Boring Diameter | 55mm |
| Cutting Depth | 110mm |
| Gearbox Direction | Forward-Reverse |
| Gearbox Speed | Variable 50-385 RPM |
| Height Adjustment | 60mm |
| Magnet Type | Permanent |
| Shank Type | Morse Taper 3 |
| Stroke | 190mm |
| Tapping Capacity | M30 |
| Twist Drill Diameter | 32mm |
| Weight | 22.6 kg |
