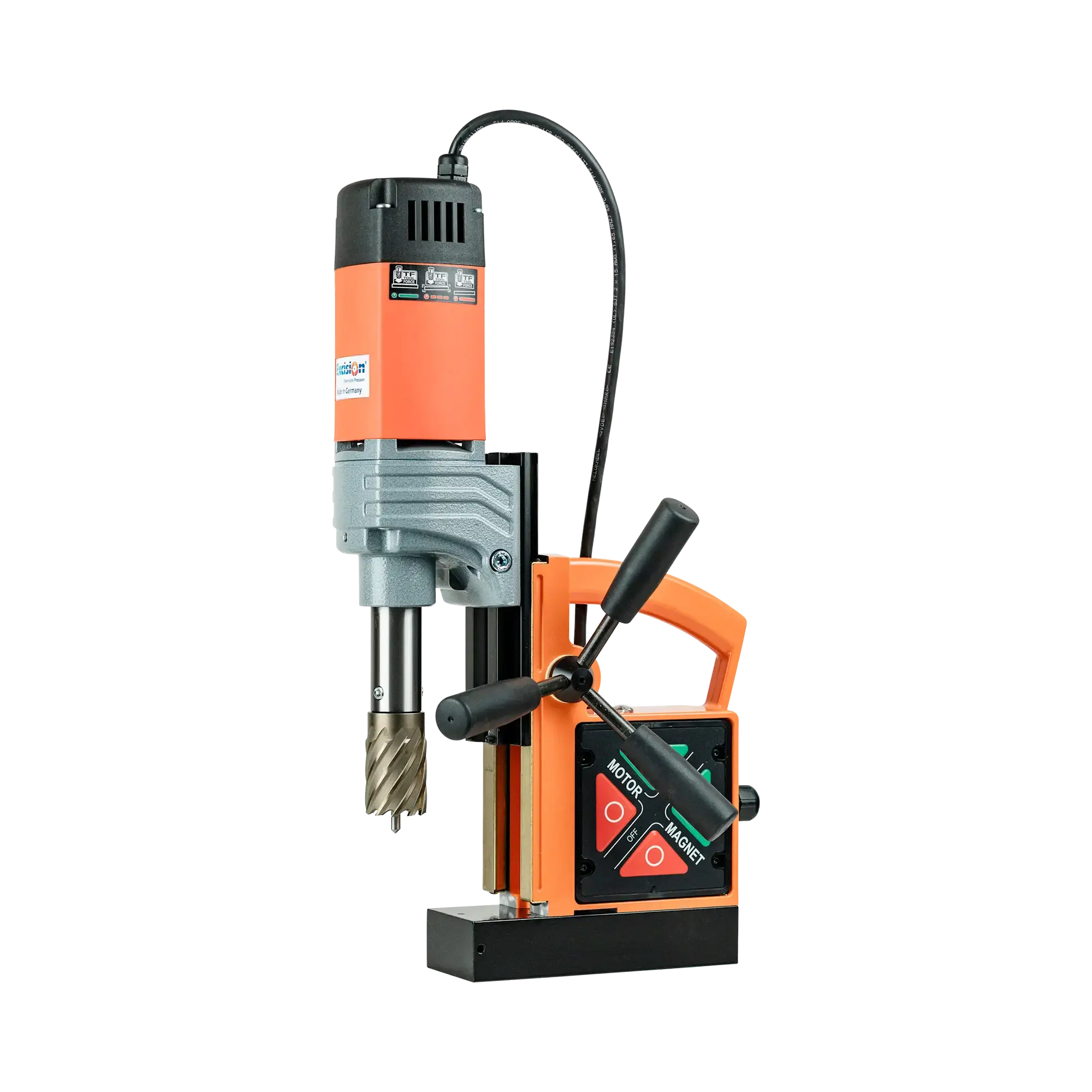

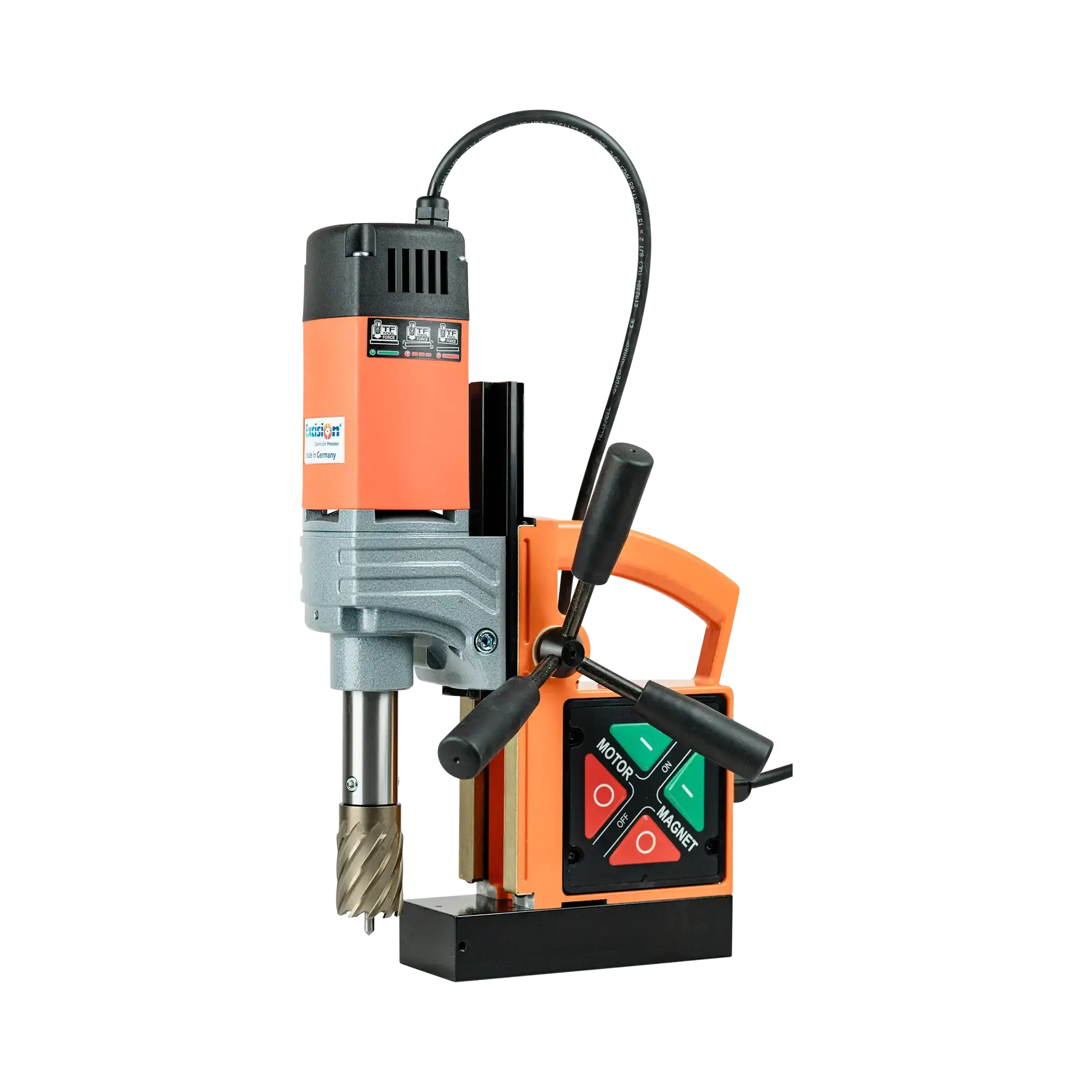

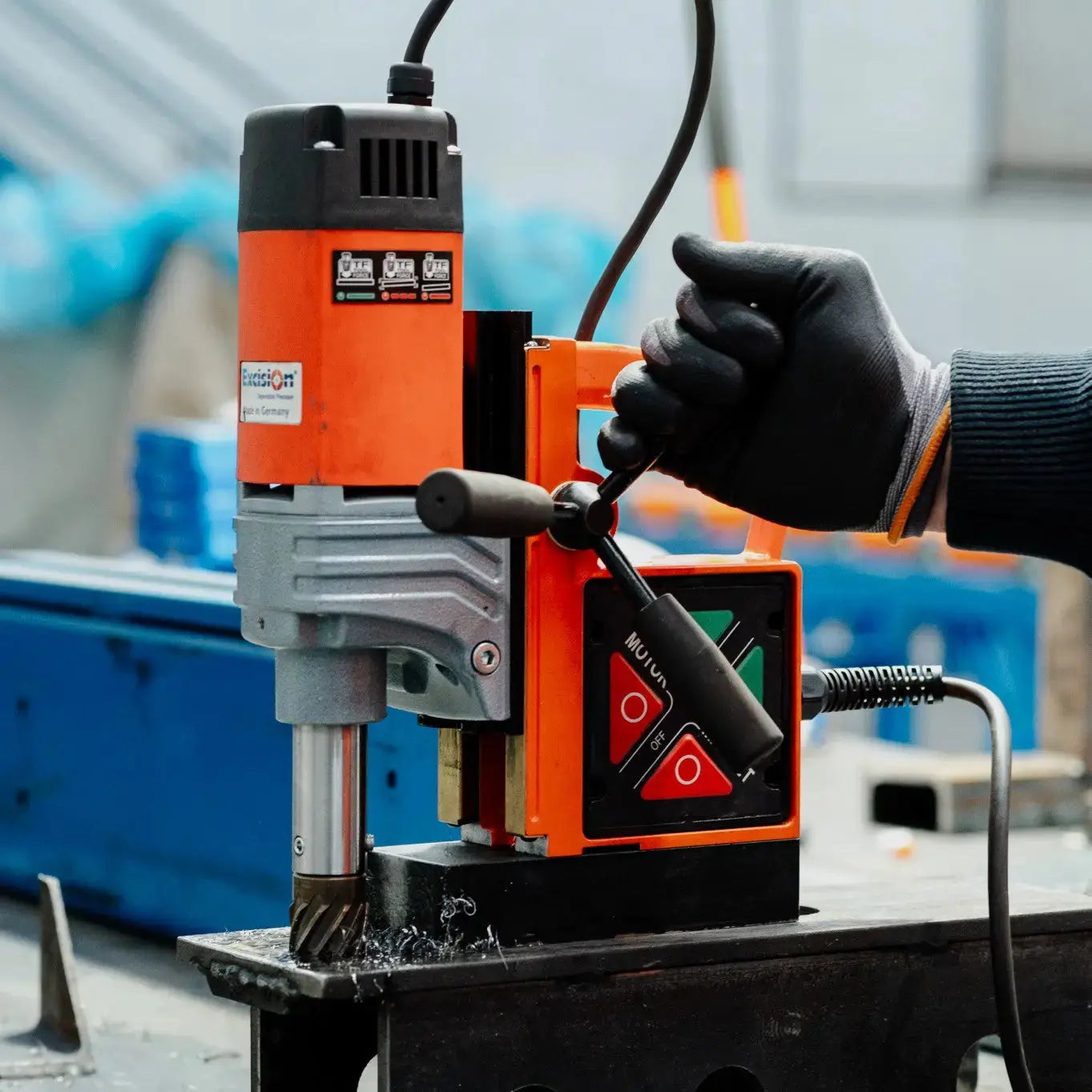

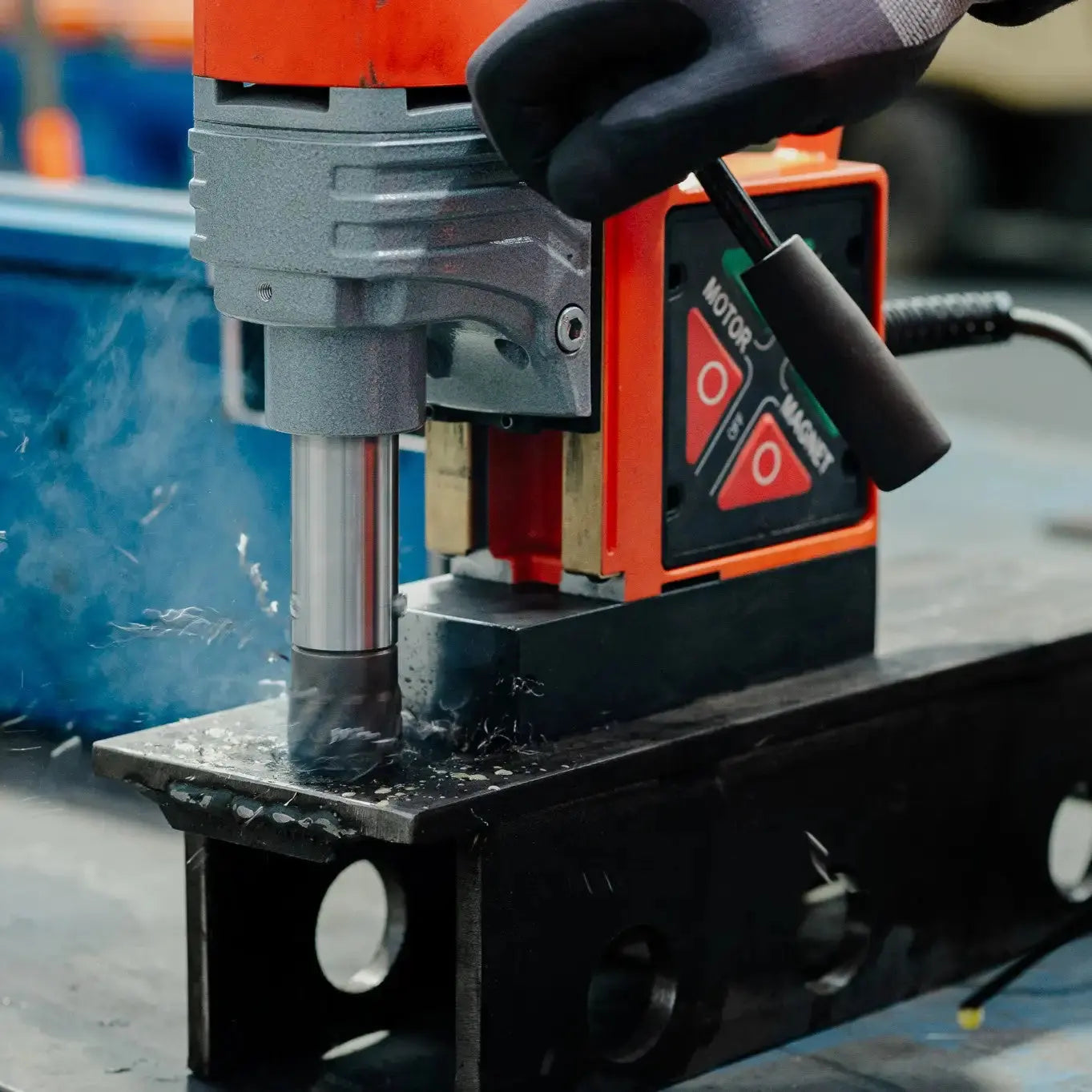

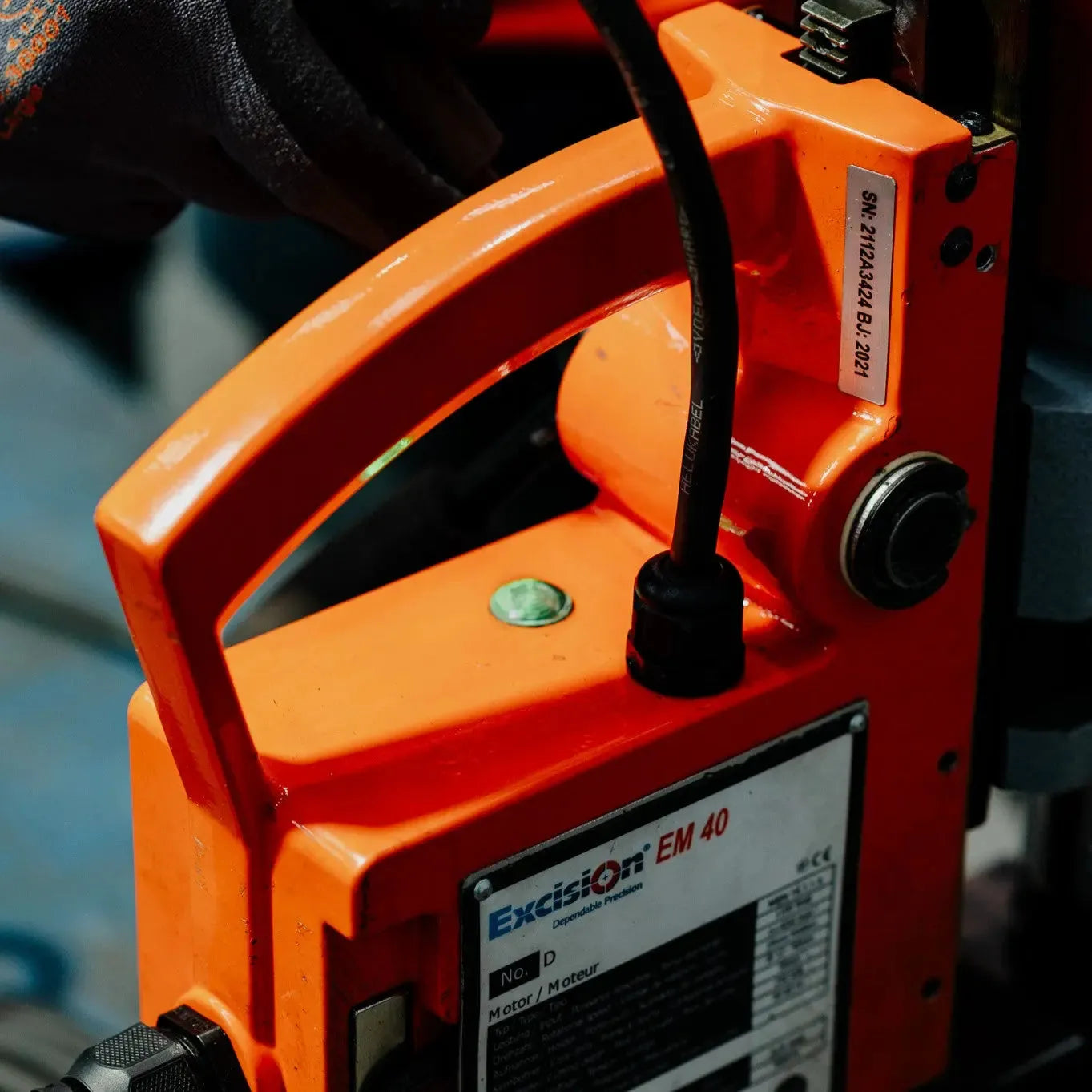

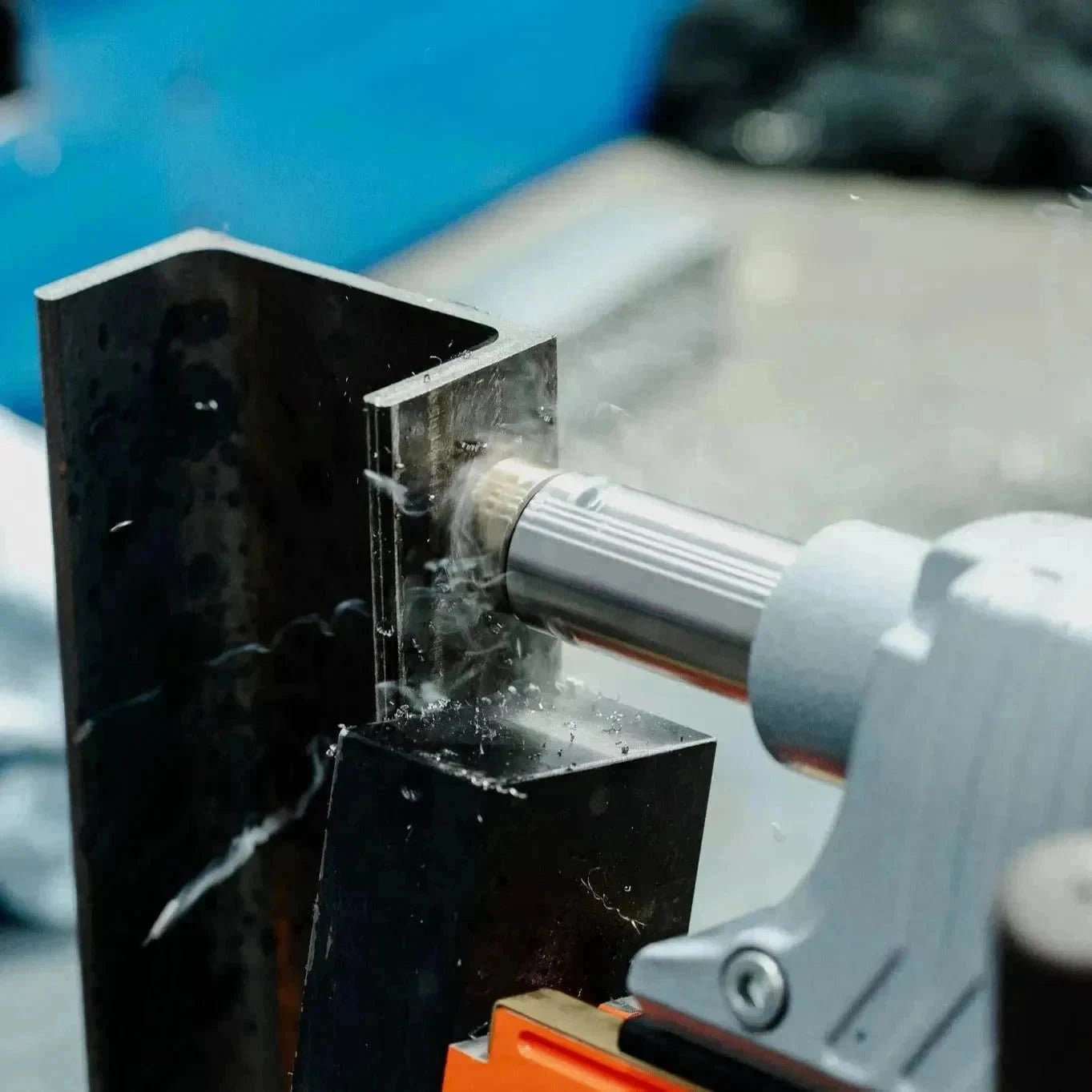

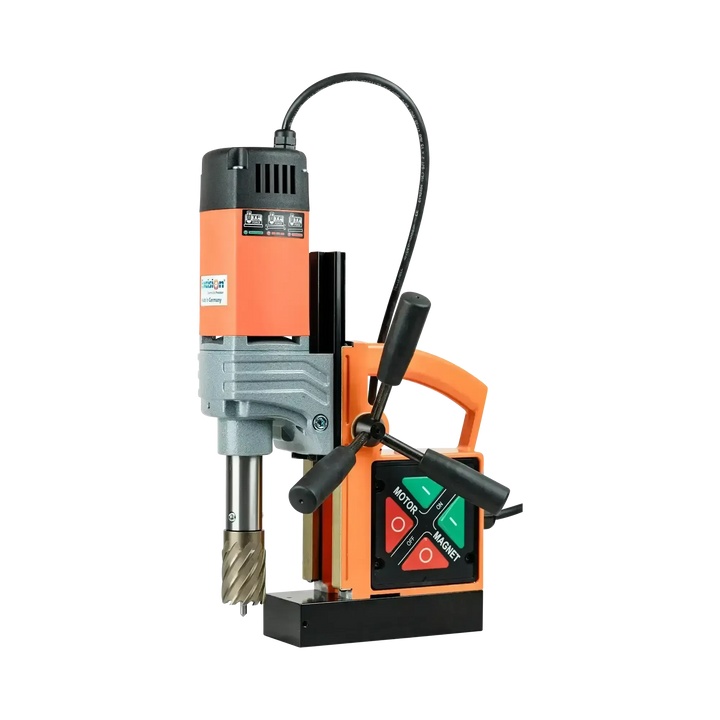

EM40 Magnetic Drill
Product Code: 18500
The EM40 is compact but loaded with premium features. Its double-dove-tailed design adds height, letting you use a keyless drill chuck on a smaller drill. Built-in magnetic adhesion sensor and solid brass guides ensure safe, smooth operation with no vibration. With 9,000N magnetic adhesion and an integrated coolant system, it's perfect for industrial use and versatile applications.
- 2 coil 9,000N magnetic adhesion for industrial use
- Solid brass guides with spring loading for rigid gliding and no vibration

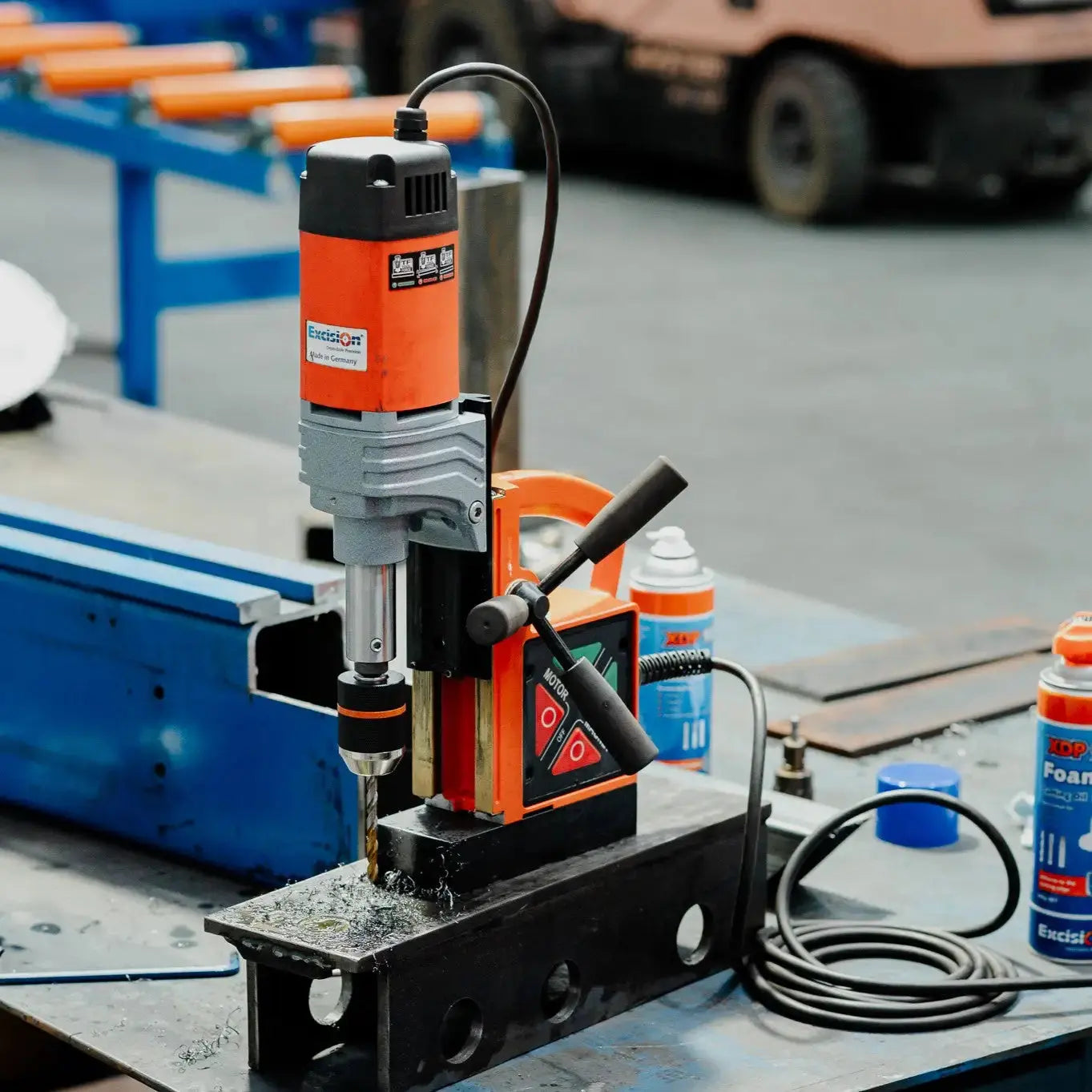

- Height adjustable slide enables an increased range of applications including standard twist drills
- Direct Weldon arbor type spindle for use with all 19mm shank core drills

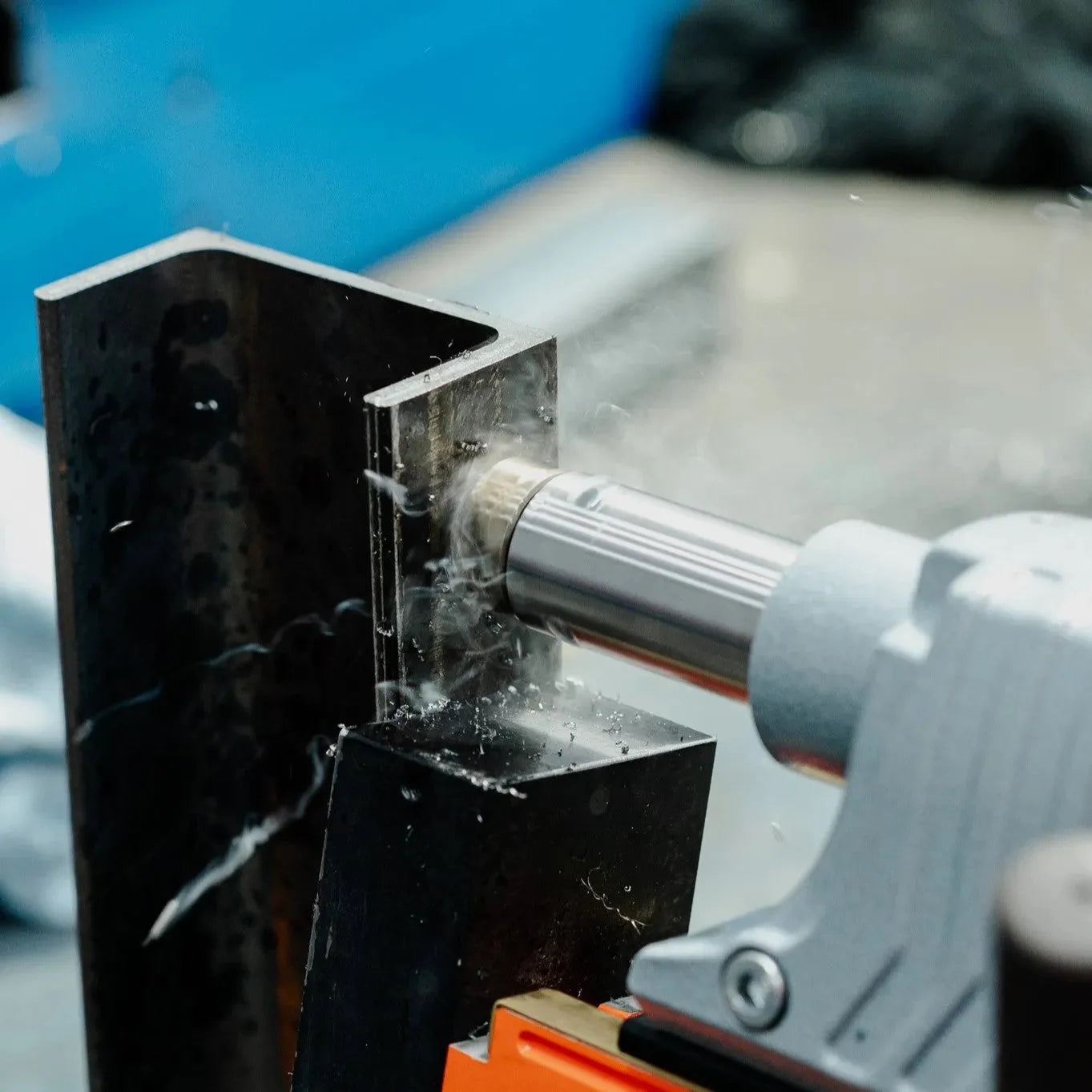

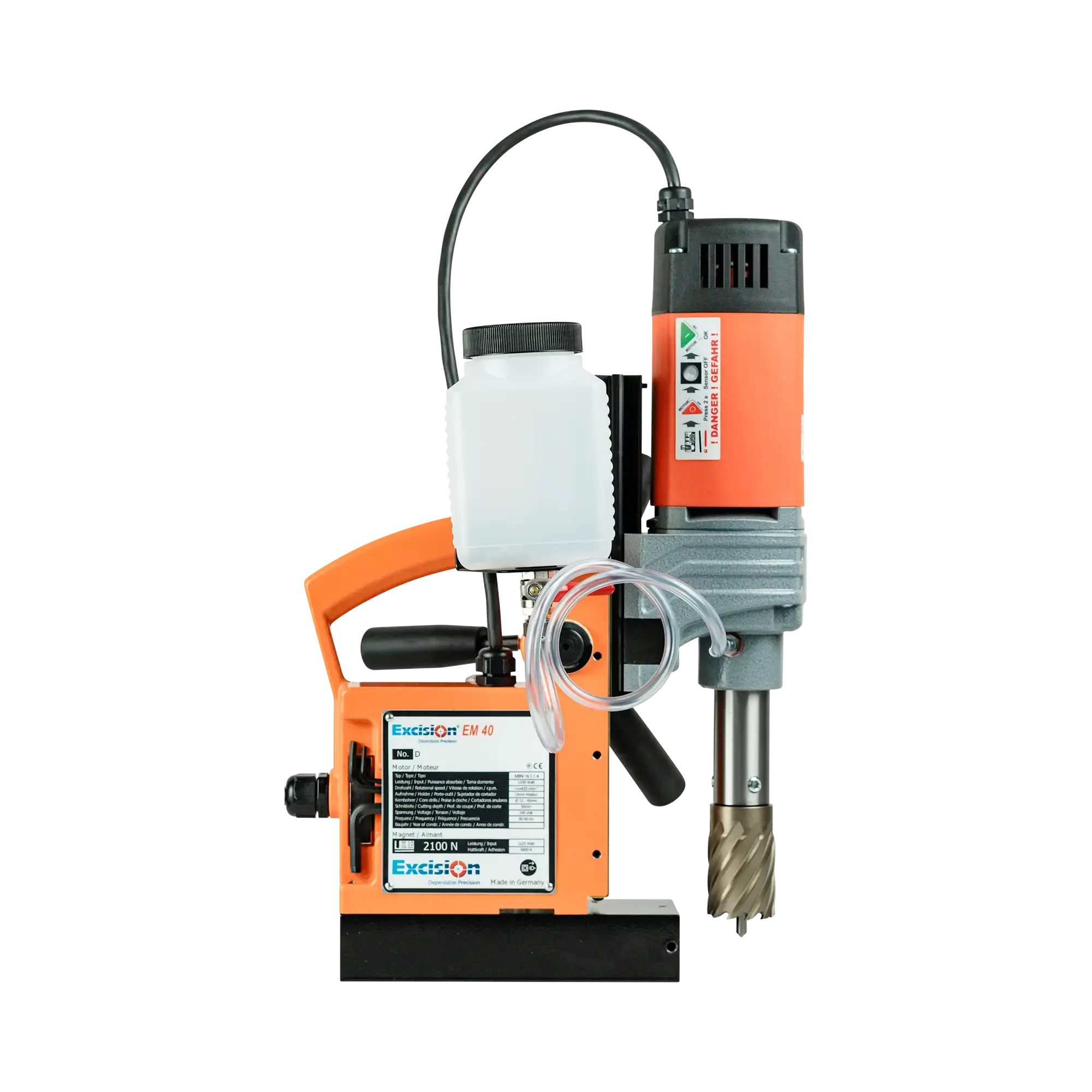

- Integrated coolant system to increase the life of your core drills
Specifications
| Product Specifications | |
 |
|
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
Quick-Release Chuck |
| Stroke |
129mm |
| Height Adjustment |
86mm |
| Gearbox-On-load Speed |
450rpm |
| Power Consumption |
1,100W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,100N/9,000N |
| Magnetic Base |
70×185mm |
| Weight |
11.5Kg |

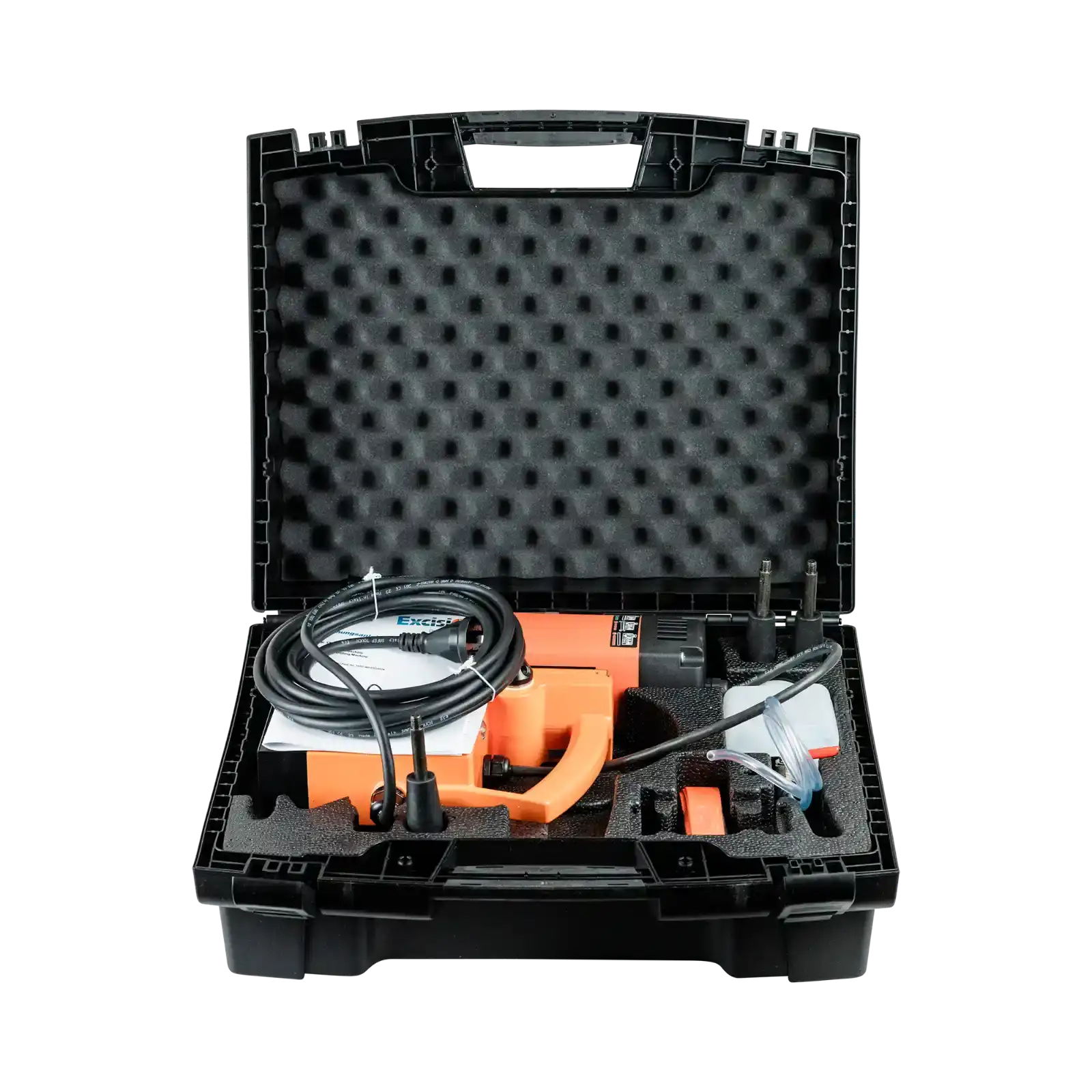

| Scope of Delivery | |
| EM40 Magnetic Drill |
⚫ |
| Carrying Case |
⚫ |
| Safety Strap |
⚫ |
| Coolant Device |
⚫ |
| Operating Instructions |
⚫ |
Made in Germany
2 Year Warranty
Compact Size. Premium Performance.
The EM40 drill is compact in size with premium features. Extra height for keyless chucks, built-in safety sensors, and solid brass guides for smooth, vibration-free drilling.

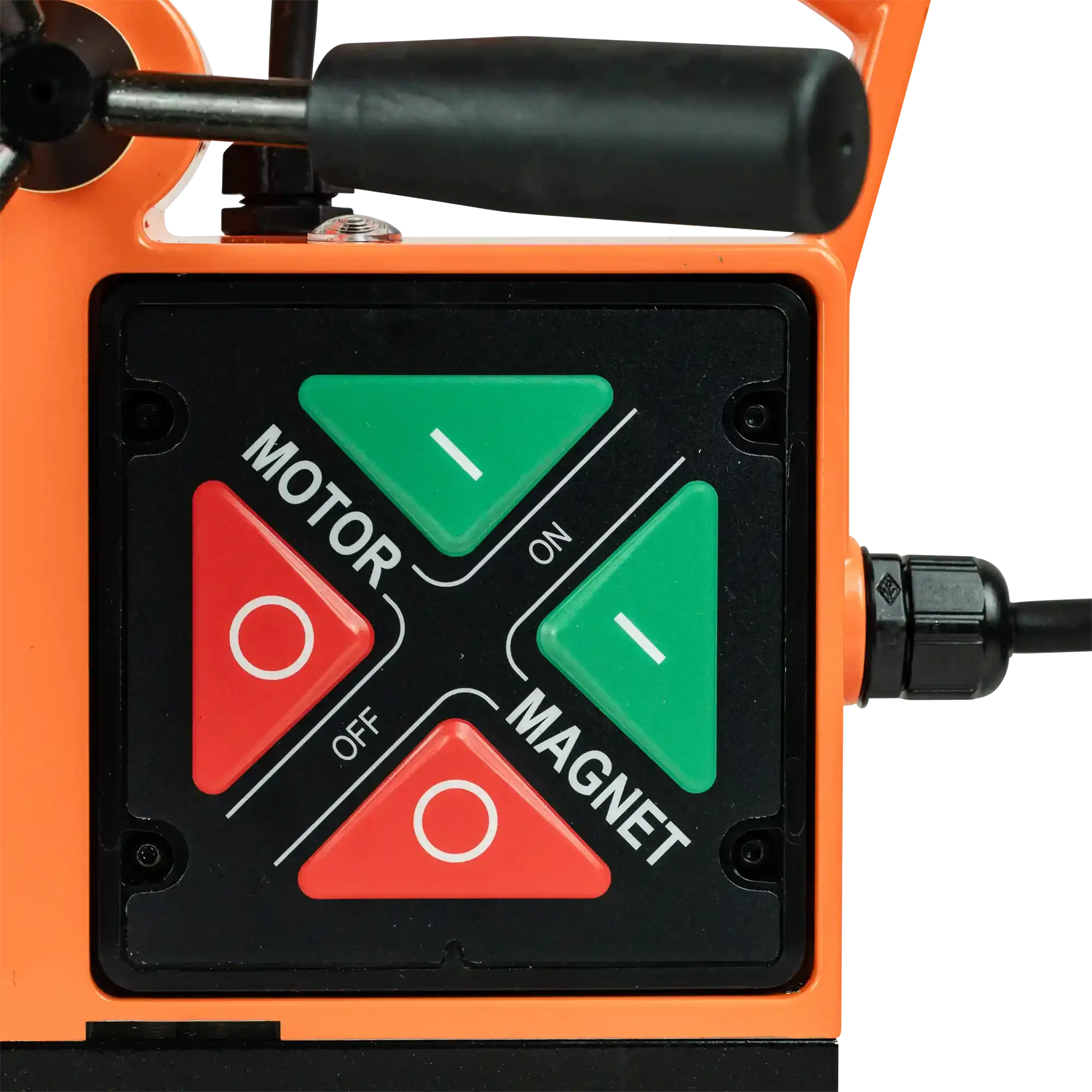

In-Built Safety
The EM40 is equipped with a magnetic adhesion sensor to prevent mishaps and keep you safe.

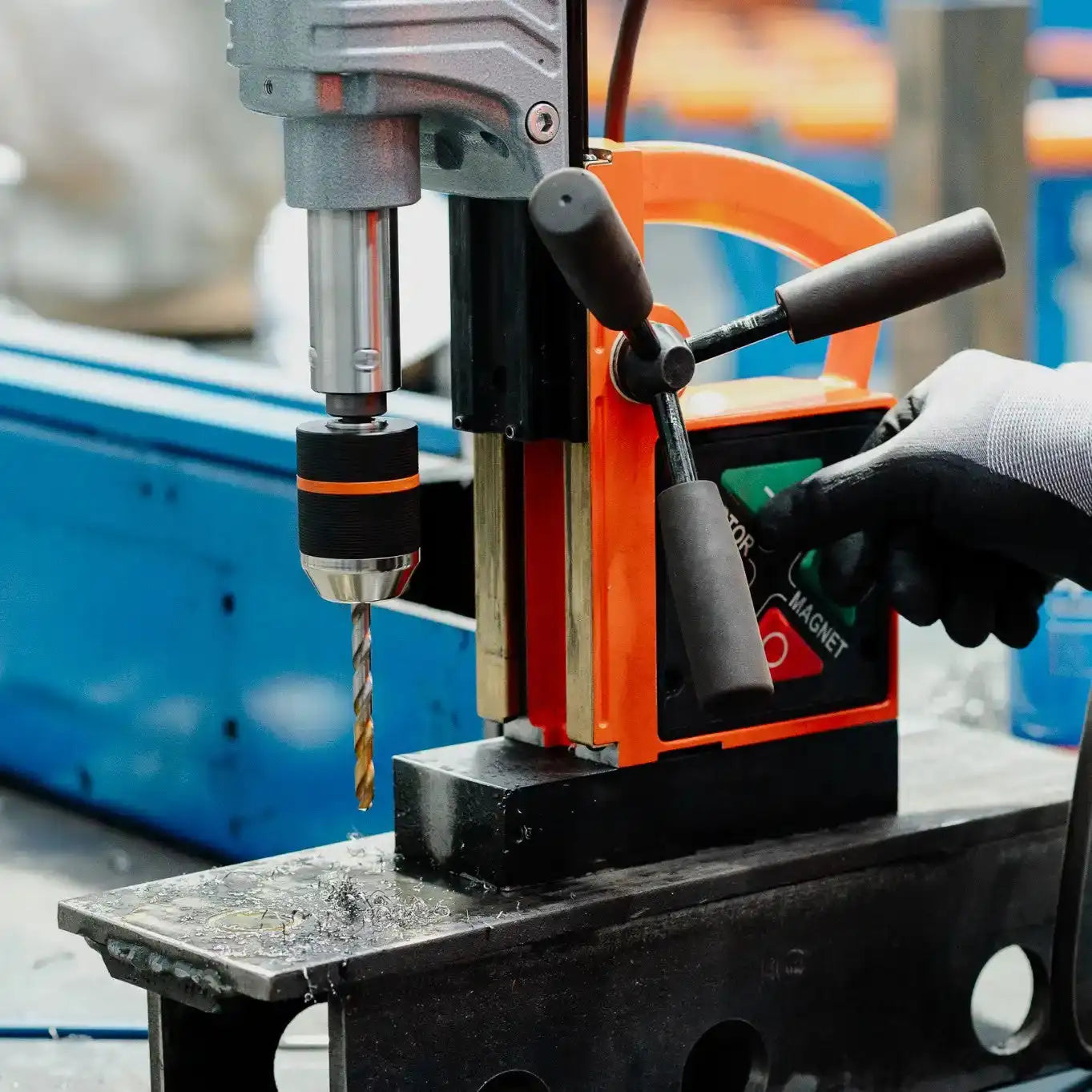

Extra Height for Drill Chucks
EM40 features a double-dove-tailed design for extra height on a compact drill, so you can use a keyless drill chuck.

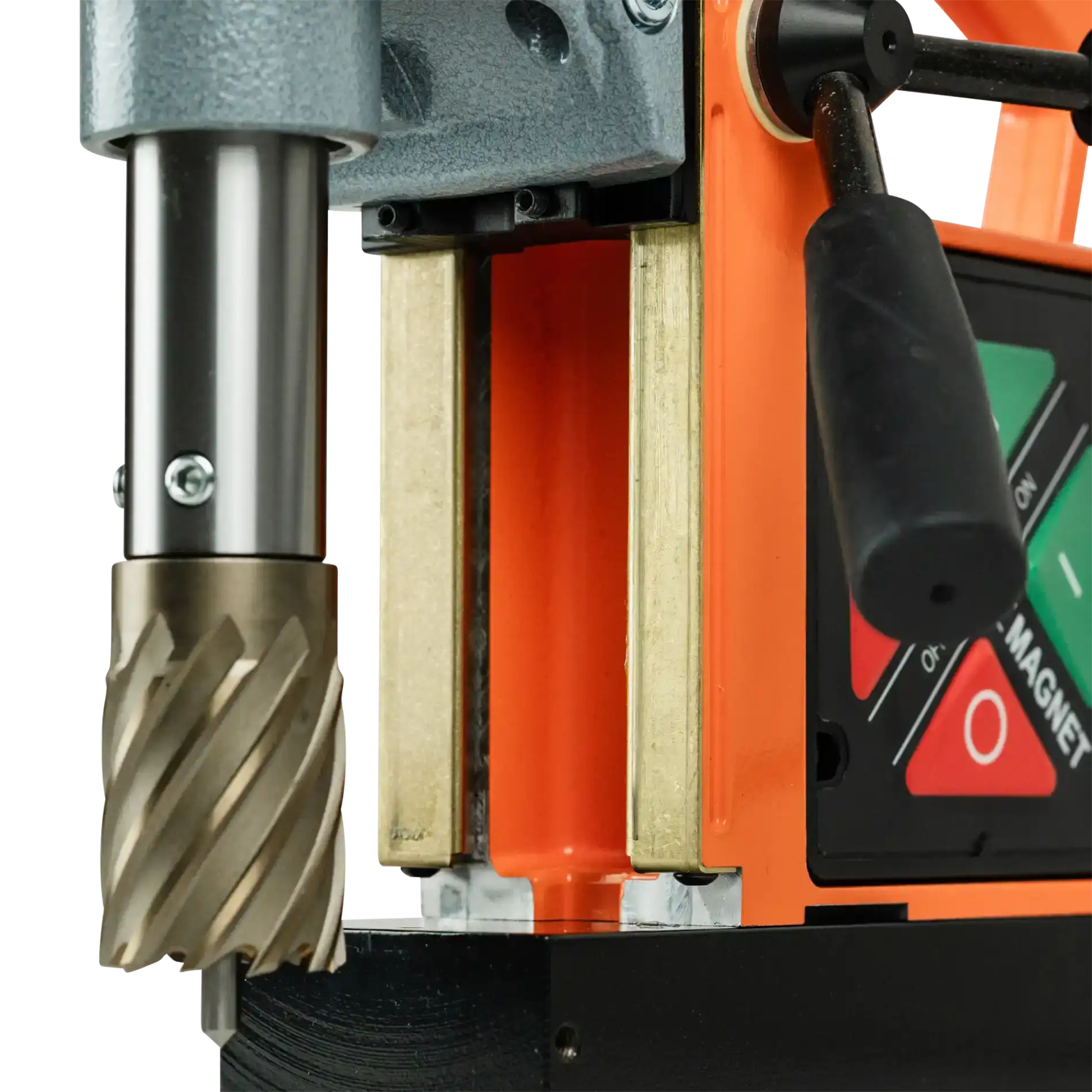

Solid Brass Guides
The EM40 features solid brass guides for rigid gliding and long-lasting use.
