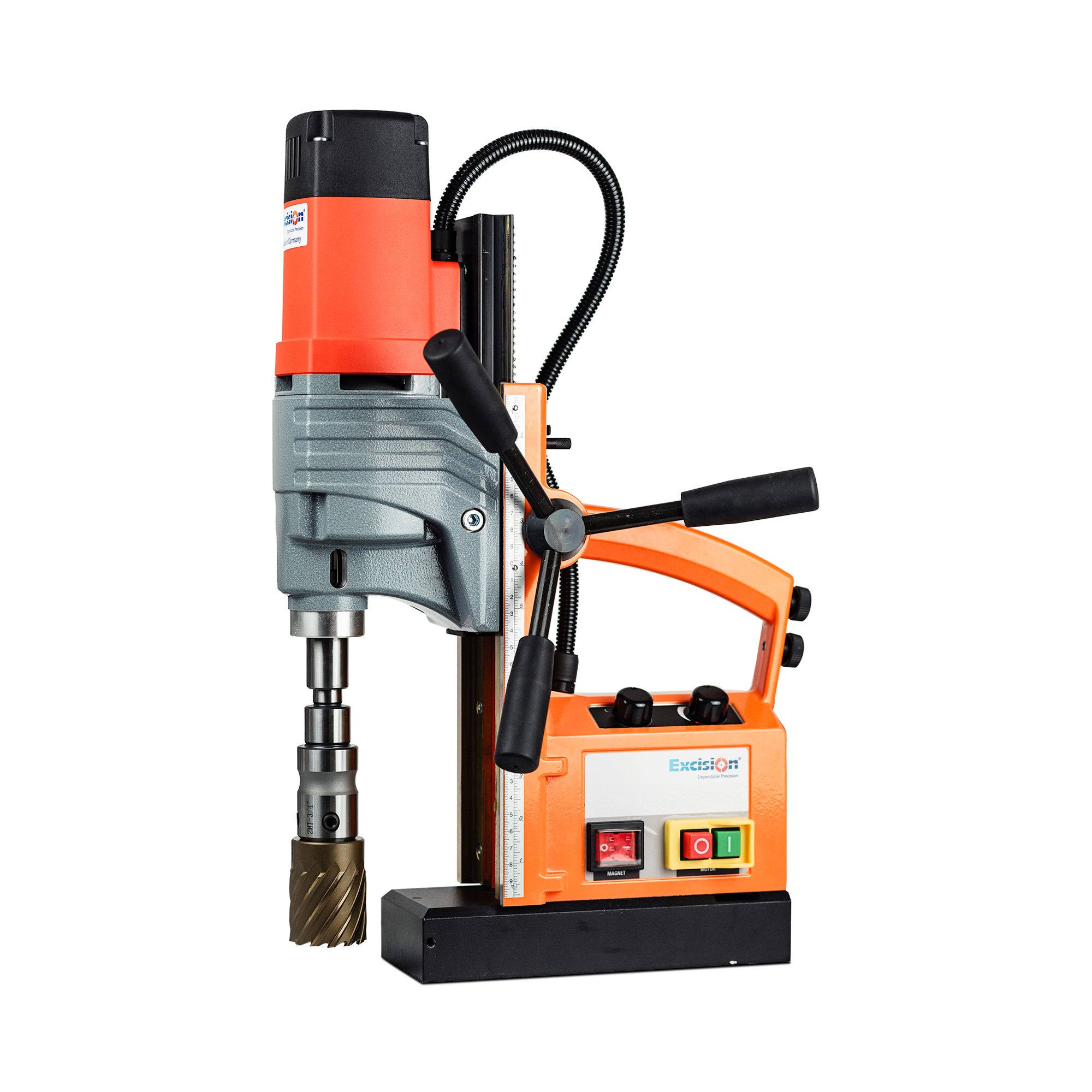

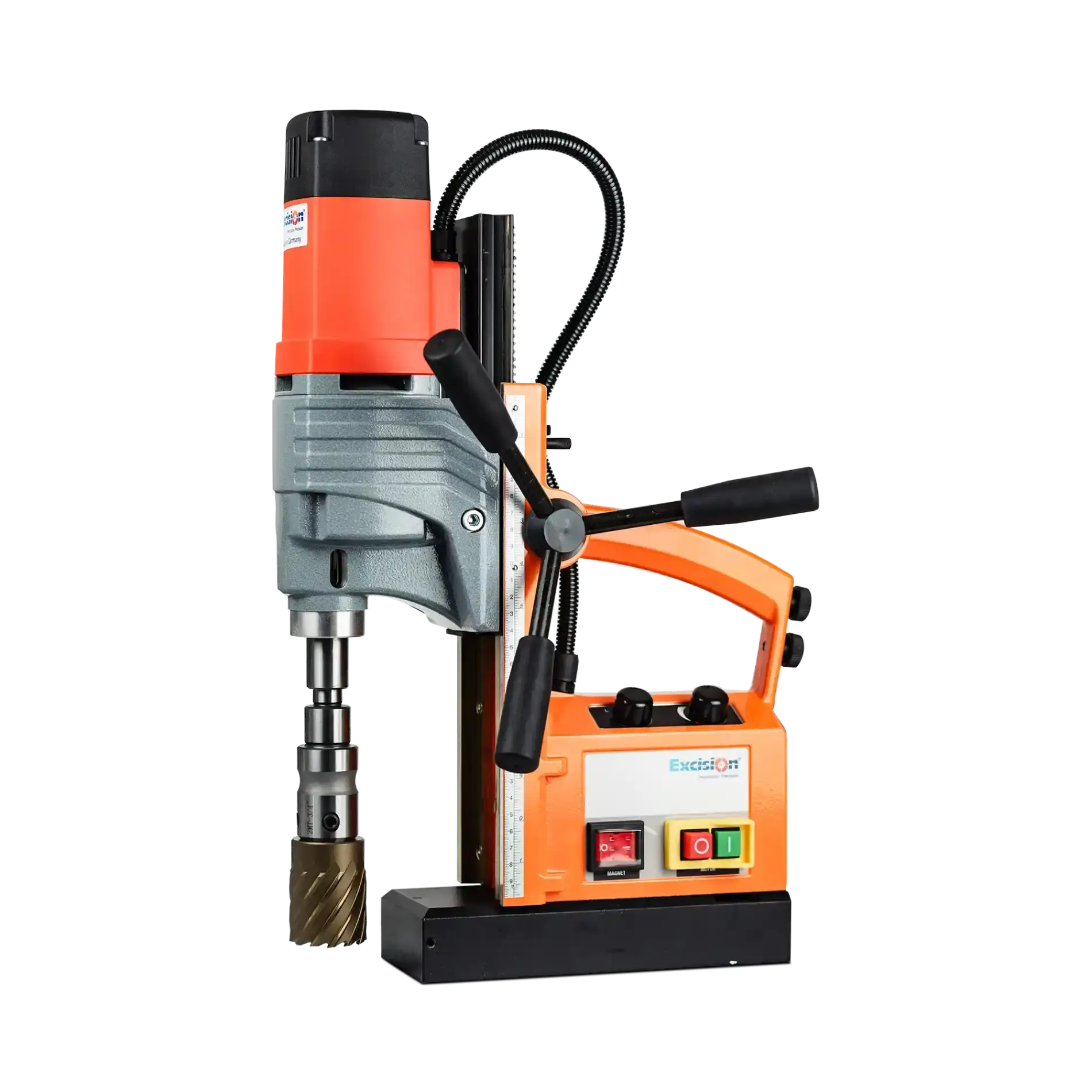

EM80 RL-E Magnetic Drill
Code: 18629
Made in Germany
2
2 Year Warranty
Add EM80 RL-E Magnetic Drill to comparison
View Comparison- Overview
- Reviews
Product Description
The EM80 RL-E is built big and tough. It features a forward-reversible gearbox for tapping, a variable 4-speed gearbox for precise drilling, and a Morse Taper 3 spindle for versatility. With a 30mm tapping capacity and solid brass guides, it's ready for the heaviest jobs.
- 4 speed variable oil bath gearbox
- Forward-reversible drive, ideal for tapping
- Solid brass guides with spring loading for rigid gliding and no vibration
- Tapping capacity up to M30
- Morse Taper 3 spindle
Specifications
| Drill Features and Specifications | |
| Core Drill Dimensions | 80.0mm |
| Cutting Depth | 80.0 / 110.0mm |
| Twist Drill |
1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN |
| Counter-Boring |
10.0-55.0mm |
| Tapping |
Tapping Chucks: Up to M30 with Tapping Attachment: Up to M30 |
| Arbors |
MT3 |
| Stroke |
190mm |
| Height Adjustment |
60mm |
| 4-Speed Gearbox |
1. Step 50-110rpm 2. Step 75-175rpm 3. Step 105-245rpm 4. Step 165-385rpm |
| Power Consumption |
1,800W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
4,000N/20,000N |
| Magnetic Base |
92×238mm, 30° adjustable right and left, 10mm front and back |
| Weight |
22.0Kg |
Product Data
| Adhesion Force | 20000 N |
| Core Drill Diameter | 80mm |
| Counter Boring Diameter | 55mm |
| Cutting Depth | 110mm |
| Gearbox Direction | Forward-Reverse |
| Gearbox Speed | Variable 50-385 RPM |
| Height Adjustment | 60mm |
| Magnet Type | Electric |
| Shank Type | Morse Taper 3 |
| Stroke | 190mm |
| Tapping Capacity | M30 |
| Twist Drill Diameter | 32mm |
| Weight | 22.0 kg |
