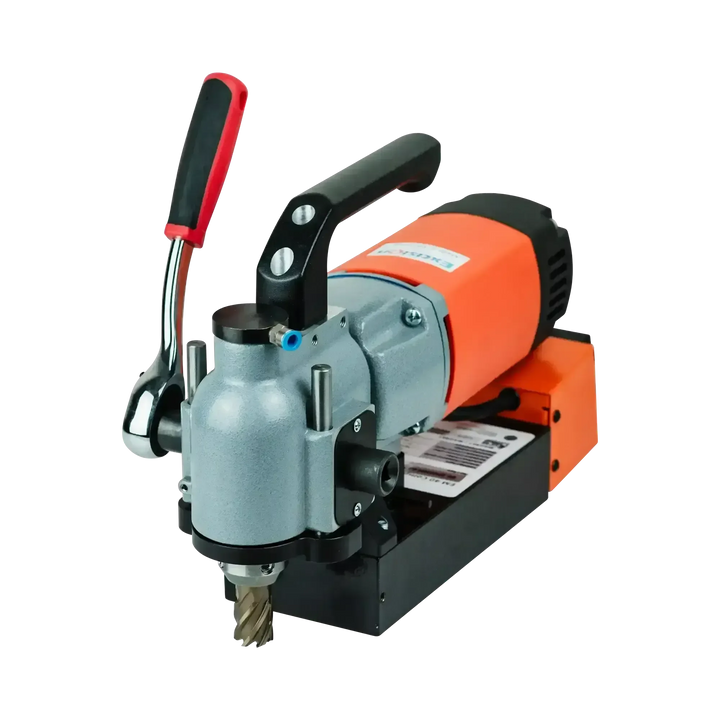

V40 Compact Magnetic Drill

V40 Compact Magnetic Drill
$2,978.14 INC GST $2,707.40 EX GST
SKU
18710
Product type
Magnetic Based Drills
Loading stock…
Germany Made in Germany
Free standard delivery on orders over $500.
2 2 Year Warranty
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add V40 Compact Magnetic Drill to comparison

View Comparison
  • Overview
  • Reviews
Product Description

The V40 is an ultra-compact magnetic drill with a minimum height of just 185mm, making it ideal for drilling in tight spaces like inside beams. It uses standard core drills, eliminating the hassle of special bits, and features a versatile handle that can be mounted on either side for easy operation in awkward positions. With a powerful 16,000N magnet and a 19mm Weldon shank, the V40 is both small and mighty, ready to tackle tough jobs with precision.

  • Minimum height of 185mm
  • 2 coil 16,000N magnetic adhesion
  • 19mm Weldon shank - takes standard 30mm depth cutters
  • Dual left & right hand side handle mounting
  • Complete with 18mm cutter and pin
Drill Features and Specifications
Core Drill Dimensions

Ø 12.0 - 40.0 MM
Cutting Depth

30 mm
Counter-Boring

10.0-32.0mm
Arbors

19mm Weldon Shank
Stroke

45mm
1-Speed Gearbox

450rpm
Power Consumption

900W
Voltage

230V 50/60Hz
Magnet Holding Force

22.000N
Tool Force (10mm)/Magnetic Adhesion Strength

2,100N/16,000N
Magnetic Base

95×200mm
Weight

12.5Kg


Product Data
Adhesion Force 16000 N
Core Drill Diameter 40mm
Counter Boring Diameter 32mm
Cutting Depth 30mm
Gearbox Speed 450 RPM
Magnet Type Electric
Shank Type 19mm Weldon
Stroke 45mm
Twist Drill Diameter 13mm
Weight 12.5 kg
