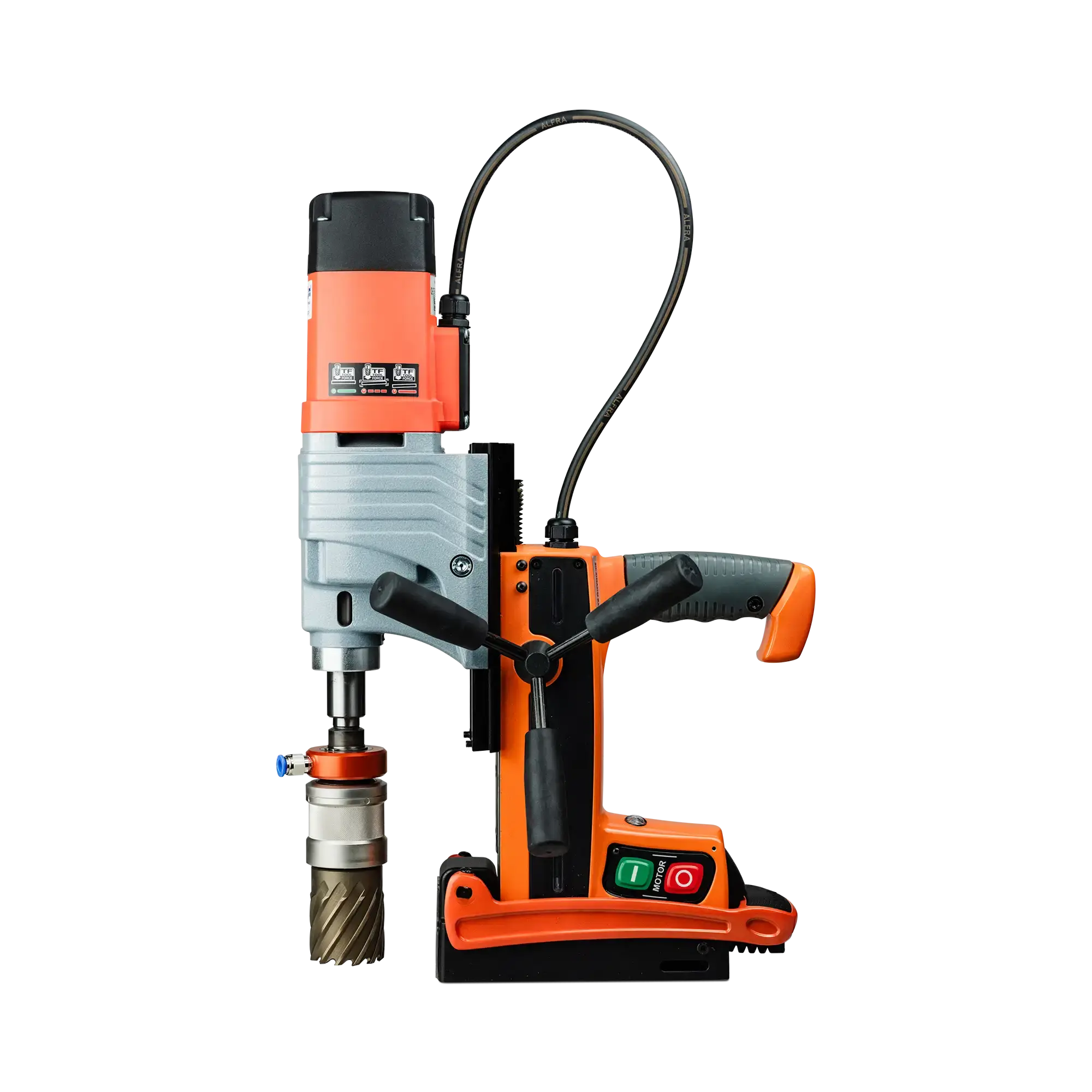

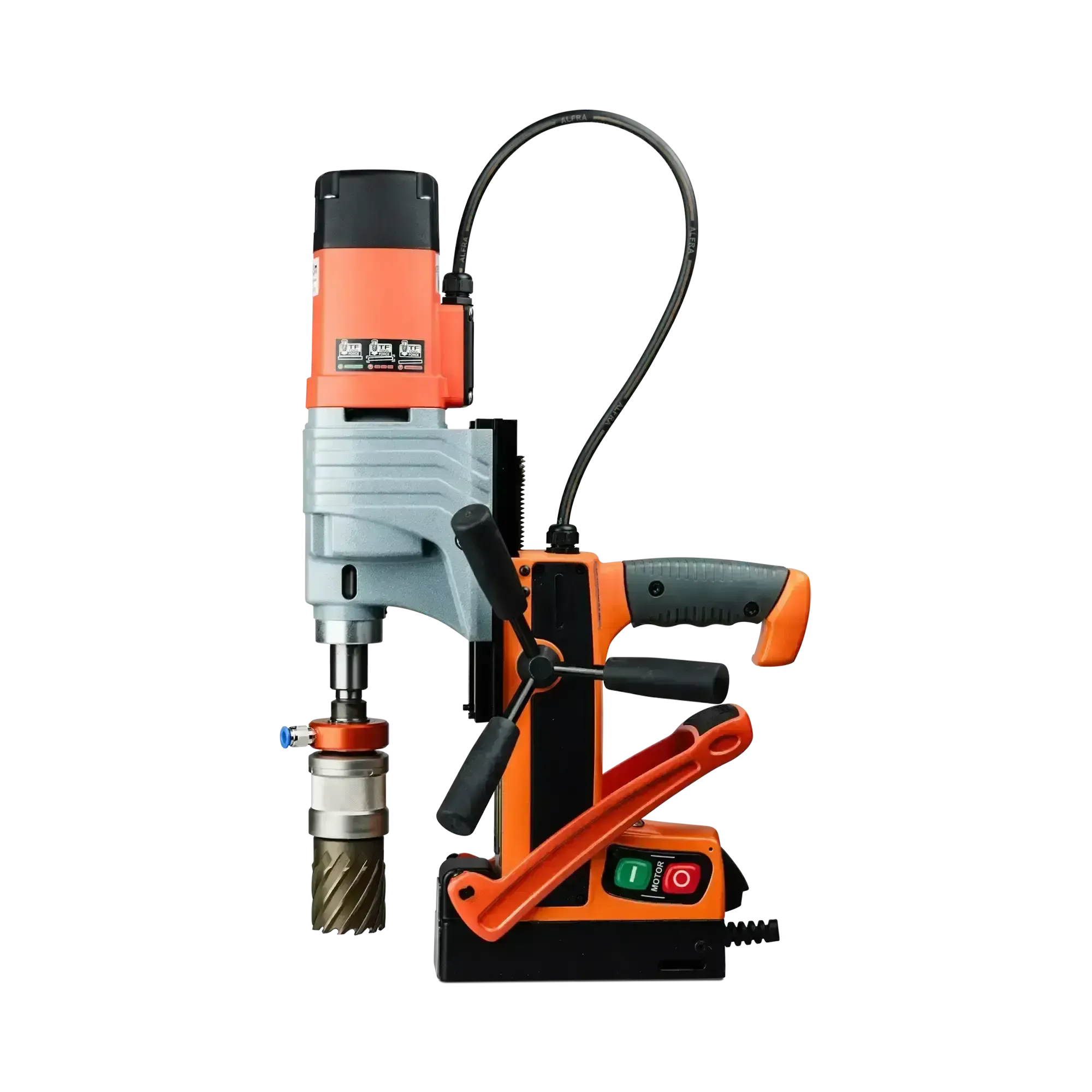

Magnex Drill 50

Magnex Drill 50
$2,998.16 INC GST $2,725.60 EX GST
SKU
18850
Product type
Magnetic Based Drills
Loading stock…
Germany Made in Germany
Free standard delivery on orders over $500.
2 2 Year Warranty
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add Magnex Drill 50 to comparison

View Comparison
  • Overview
  • Reviews
Product Description

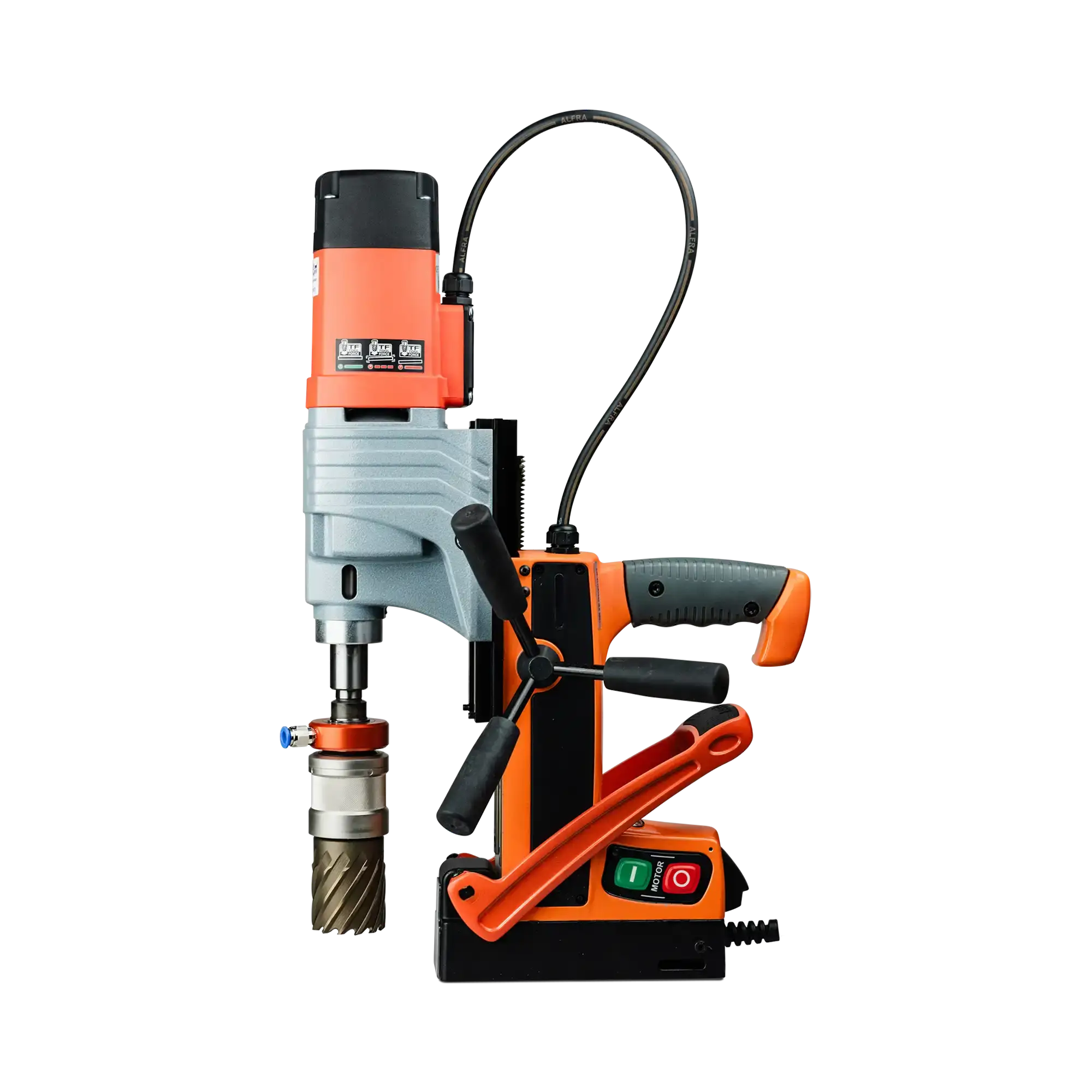

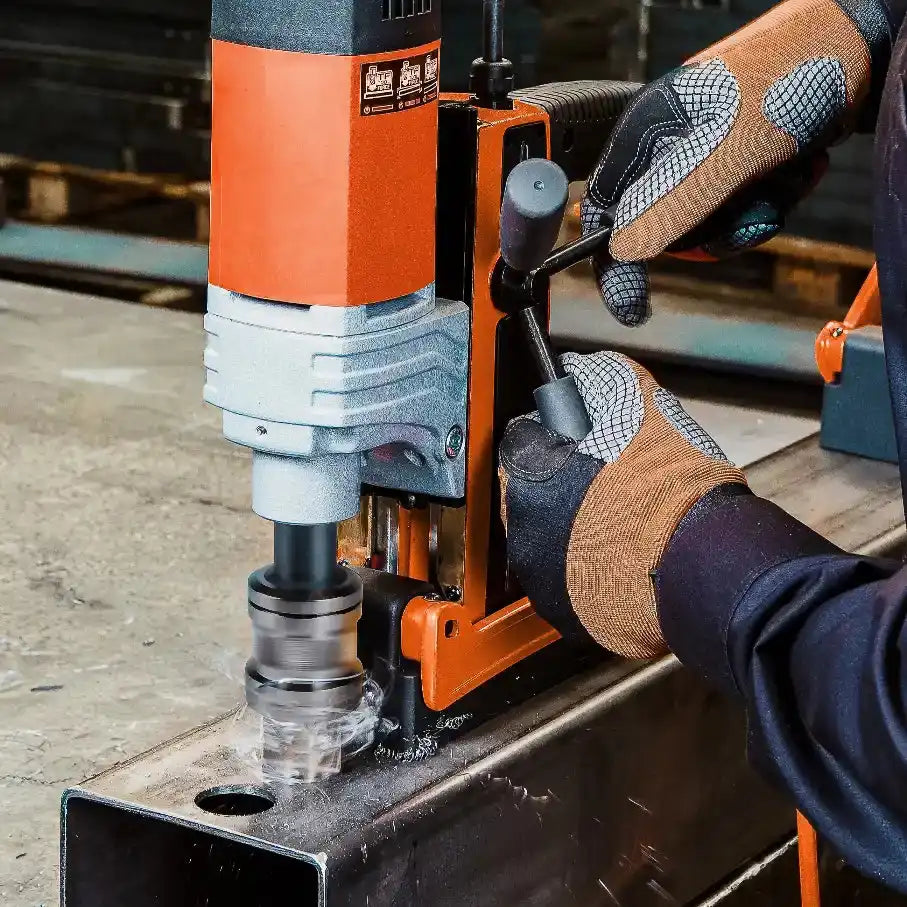

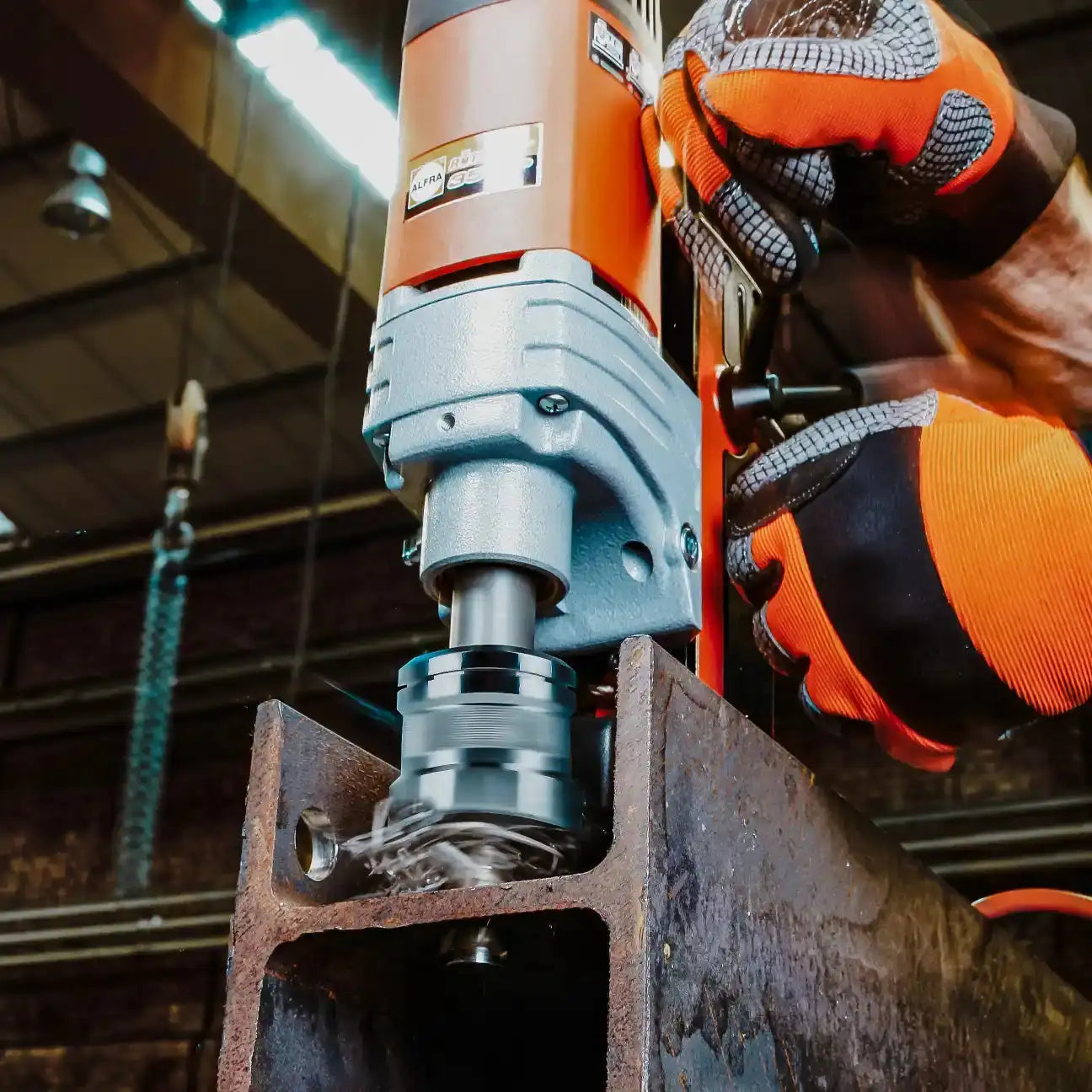

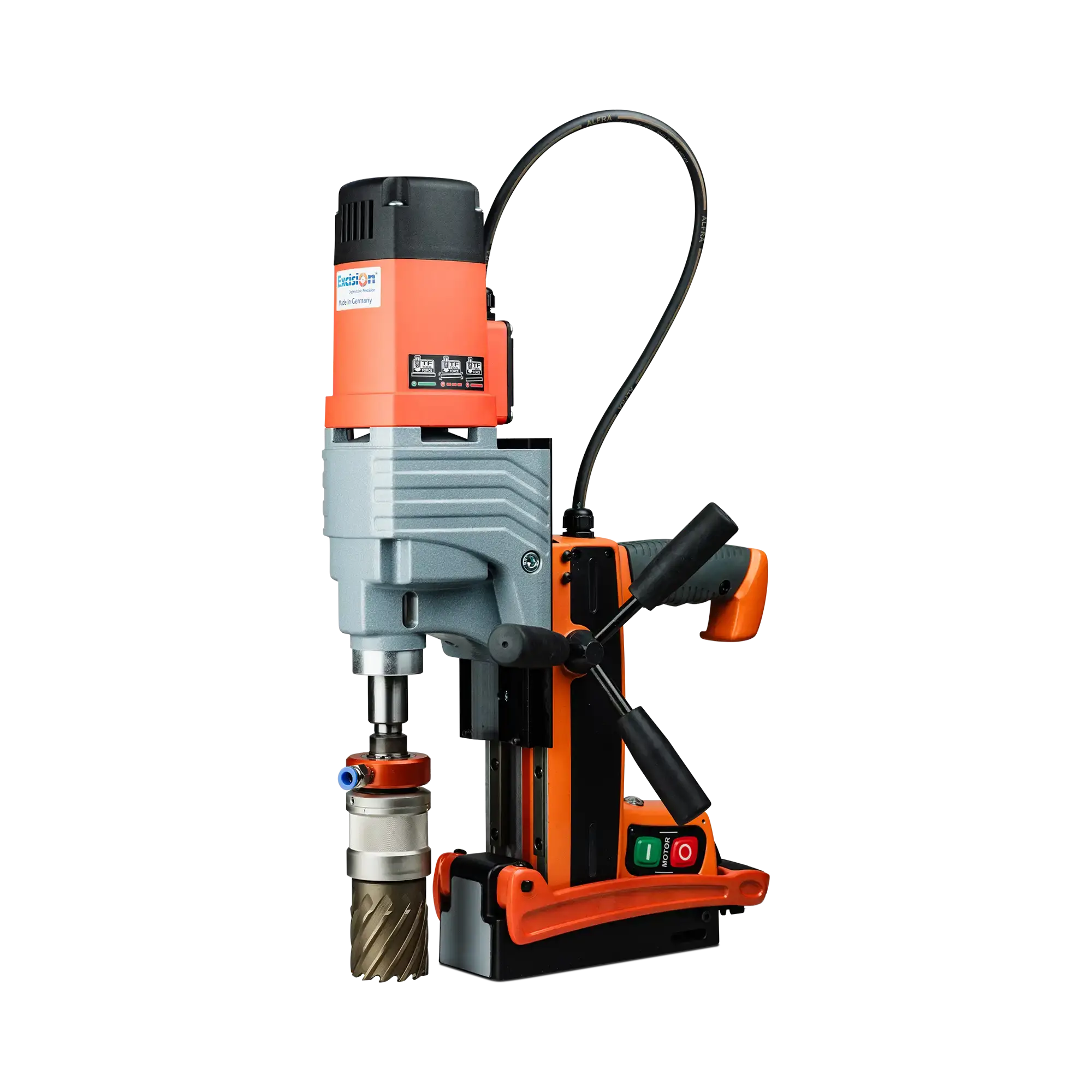

Magnex 50 is the lightweight champion. With its powerful Magnex magnet and 2-speed gearbox, this 11.5kg drill handles a range of tasks without needing a power supply. Built for versatility, it includes a Morse Taper 2 spindle and solid brass guides for smooth operation.

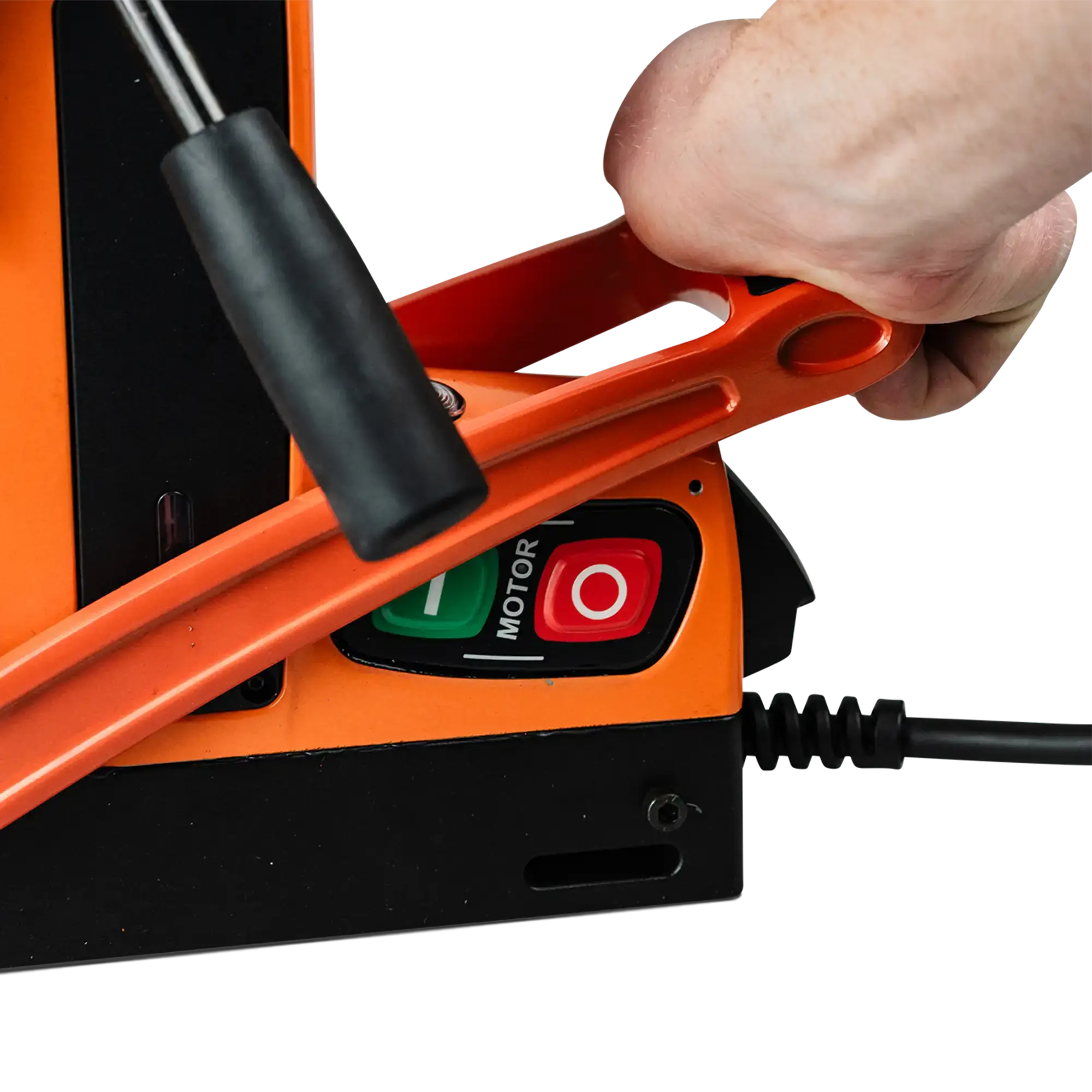

  • Powerful permanent magnet - doesn't need a power supply
  • Very light and compact at only 11.5kg
  • Height adjustable slide enables an increased range of applications including standard twist drills

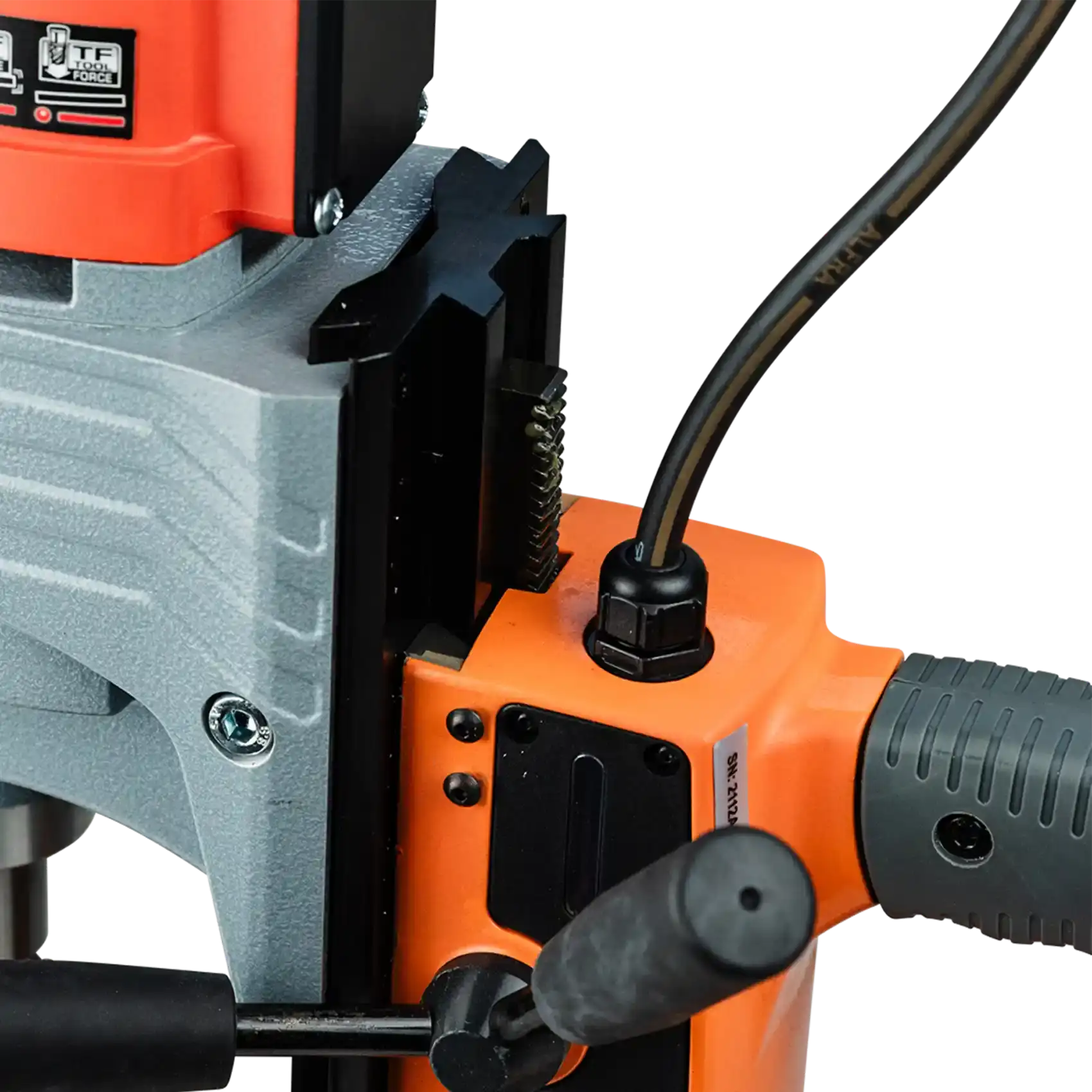

  • Solid brass guides with spring loading for rigid gliding and no vibration

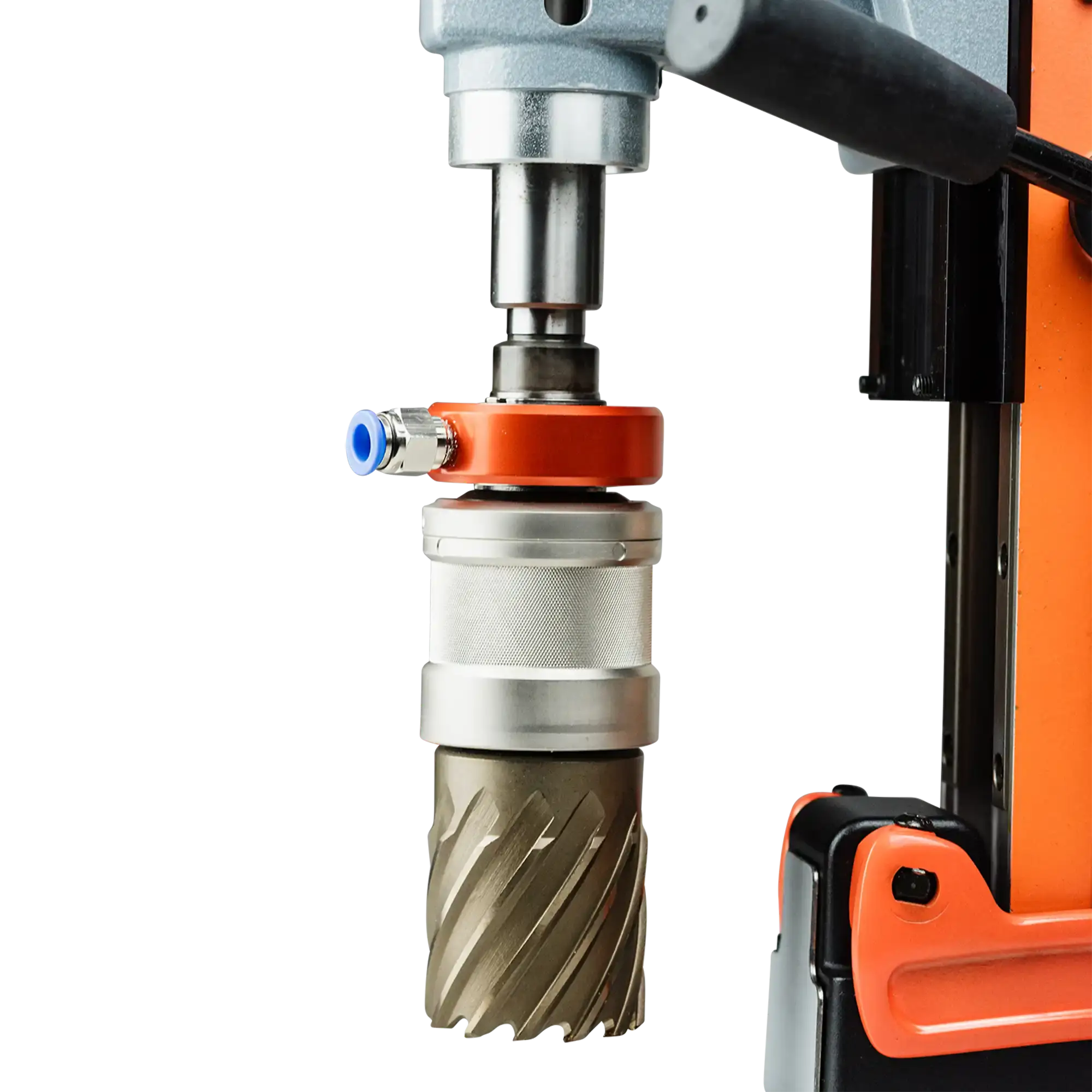

  • Morse Taper 2 spindle

Download Brochure

Specifications

Drill Features and Specifications
Core Drill Dimensions 12.0-50.0mm
Cutting Depth 50.0mm
Twist Drill

1.0-20.0mm
Counter-Boring

10.0-40.0mm
Arbors

MT2
Stroke

100mm
Height Adjustment

47mm
4-Speed Gearbox-On-Load Speed

1. Step 250rpm

2. Step 450rpm
Power Consumption

1,200W
Voltage

230V 50/60Hz
Tool Force (10mm)

2,800N
Magnetic Base

72×190mm
Weight

11.5Kg


Product Data
Core Drill Diameter 50mm
Counter Boring Diameter 40mm
Cutting Depth 50mm
Gearbox Speed 250 & 450 RPM
Height Adjustment 47mm
Magnet Type Permanent
Shank Type Morse Taper 2
Stroke 100mm
Twist Drill Diameter 20mm
Weight 11.5 kg
