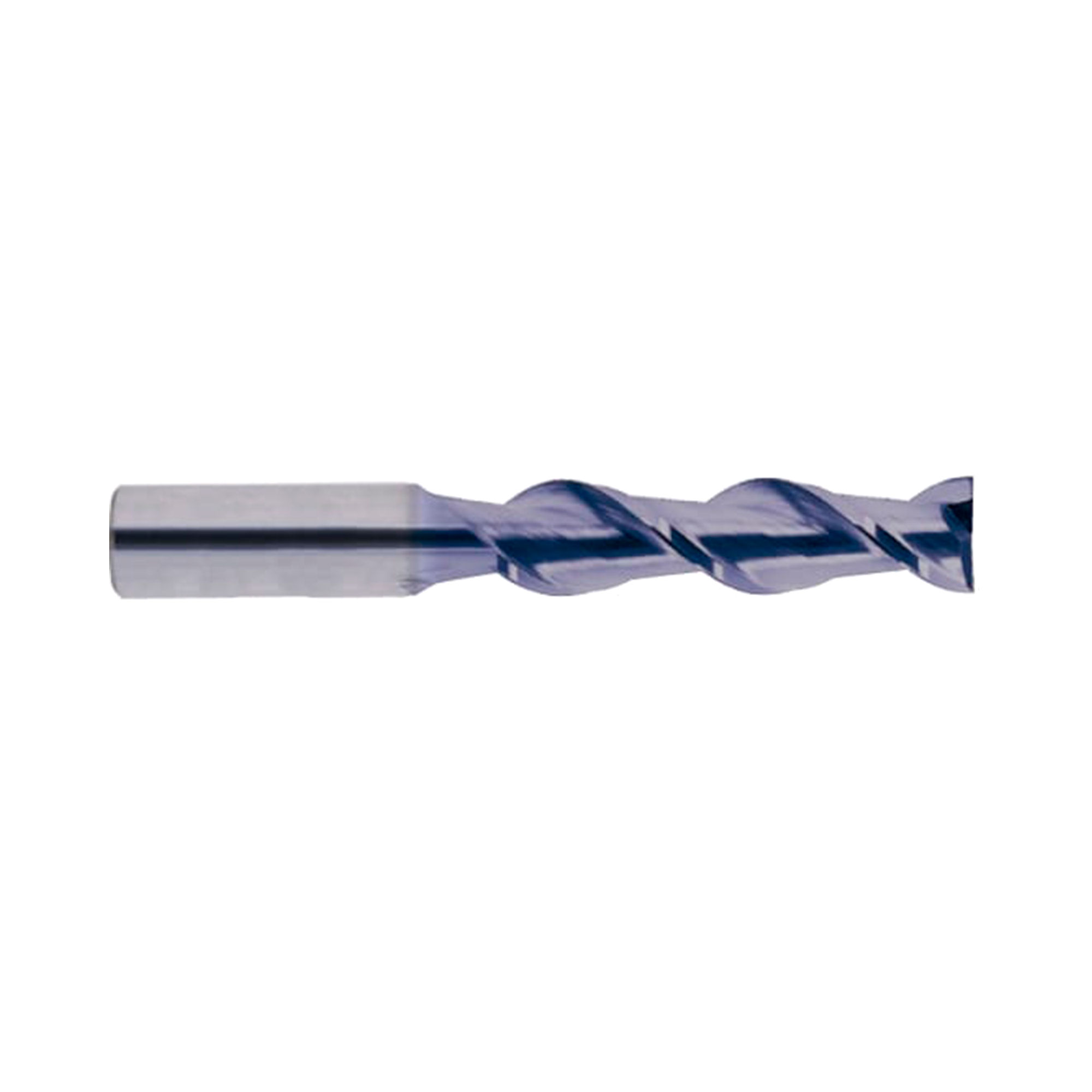

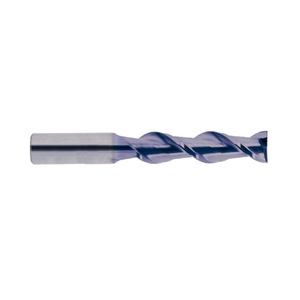

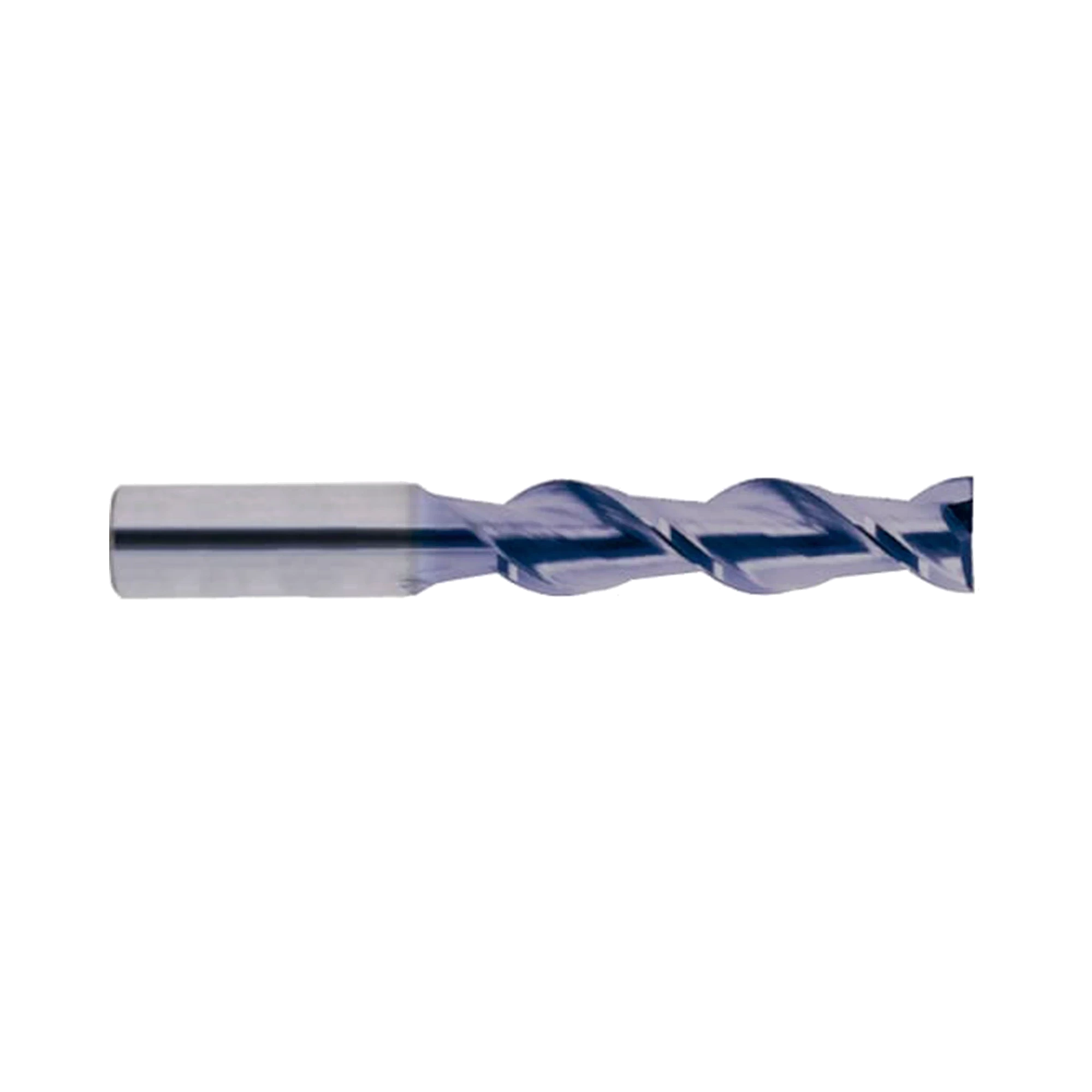

CARBIDE, 2 FLUTE 45° HELIX LONG LENGTH - TiCN Coated (EG522)

  • $0.00INC GST $0.00 EX GST
CARBIDE, 2 FLUTE 45° HELIX LONG LENGTH - TiCN Coated (EG522)
New

CARBIDE, 2 FLUTE 45° HELIX LONG LENGTH - TiCN Coated (EG522)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: EG522

N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add CARBIDE, 2 FLUTE 45° HELIX LONG LENGTH - TiCN Coated (EG522) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Excellent cutting qualities on stainless steel, aluminum, copper.
  • Increased tool life and higher cutting accuracy.
  • Mirror face - excellent surface finish.
Product Data
Workpiece Material N
Cutting Shape Square
Helix Angle Square 45
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Titanium Carbon Nitride Coating
Tool Material Carbide
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG522030 3 6 8 57 0~-.0.03 h5 2 EG522040 4 6 11 57 0~-.0.03 h5 2 EG522050 5 6 13 57 0~-.0.03 h5 2 EG522060 6 6 13 57 0~-.0.03 h5 2 EG522080 8 8 19 63 0~-.0.03 h5 2 EG522100 10 10 22 72 0~-.0.03 h5 2 EG522120 12 12 26 83 0~-.0.03 h5 2 EG522140 14 14 26 83 0~-.0.03 h5 2 EG522160 16 16 32 92 0~-.0.03 h5 2 EG522180 18 18 32 92 0~-.0.03 h5 2 EG522200 20 20 38 104 0~-.0.03 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
N Aluminium

Excellent

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG522030 3 6 8 57 0~-.0.03 h5 2 EG522040 4 6 11 57 0~-.0.03 h5 2 EG522050 5 6 13 57 0~-.0.03 h5 2 EG522060 6 6 13 57 0~-.0.03 h5 2 EG522080 8 8 19 63 0~-.0.03 h5 2 EG522100 10 10 22 72 0~-.0.03 h5 2 EG522120 12 12 26 83 0~-.0.03 h5 2 EG522140 14 14 26 83 0~-.0.03 h5 2 EG522160 16 16 32 92 0~-.0.03 h5 2 EG522180 18 18 32 92 0~-.0.03 h5 2 EG522200 20 20 38 104 0~-.0.03 h5 2
