New

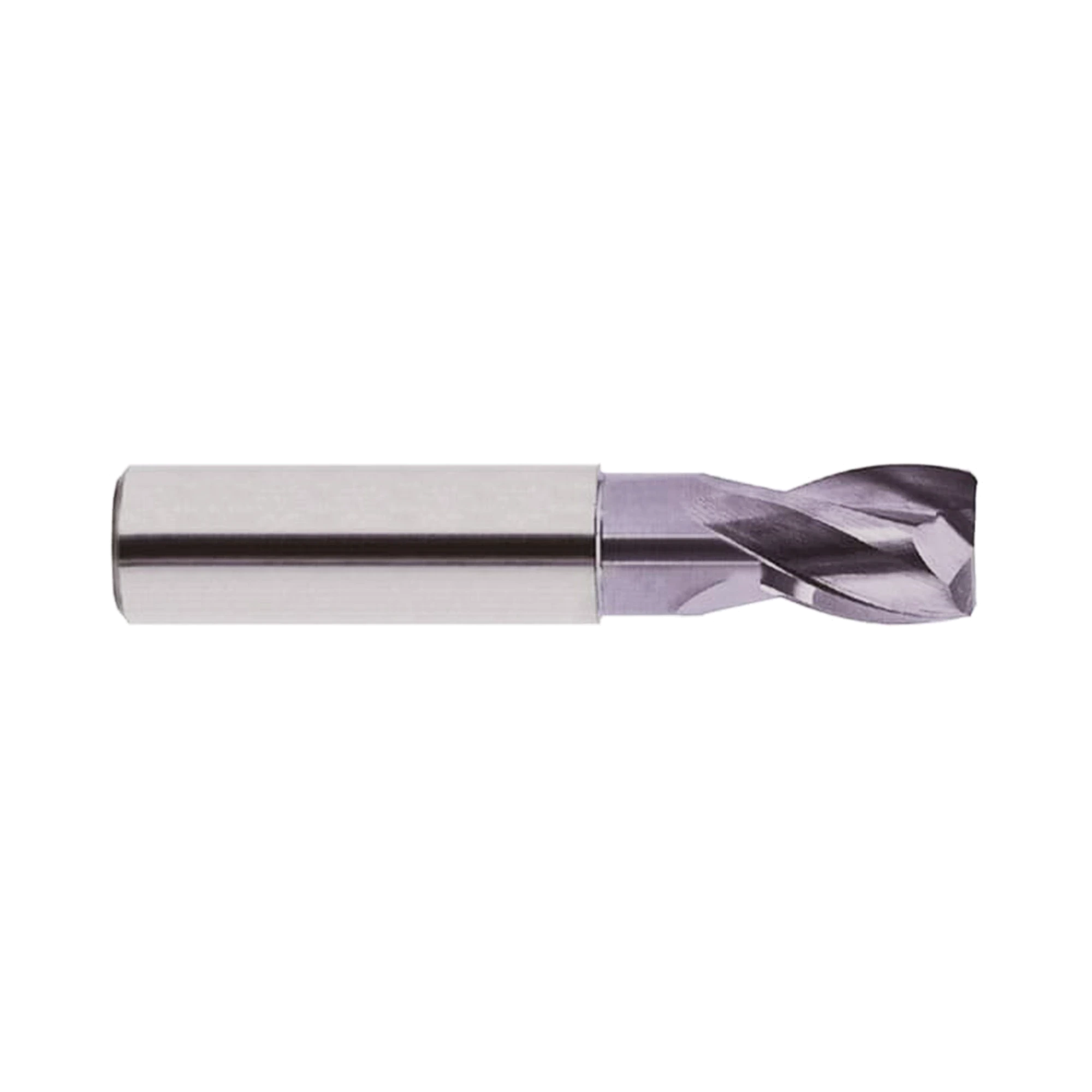

ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (EG909)

  • $0.00INC GST $0.00 EX GST
ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (EG909)
ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (EG909)
New

ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (EG909)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: EG909

N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER 2 Flute 30°Helix Corner Radius End Mill (EG909) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Excellent cutting qualities on stainless steel, aluminum, copper.
  • Increased tool life and higher cutting accuracy.
  • Mirror face - excellent surface finish.
Product Data
Workpiece Material N
Cutting Shape Corner Radius
Helix Angle Square 30
No. Flutes 2
Operation Corner, Die Sinking, Helical-Interpol, Profiling, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Titanium Carbon Nitride Coating
Tool Material Carbide

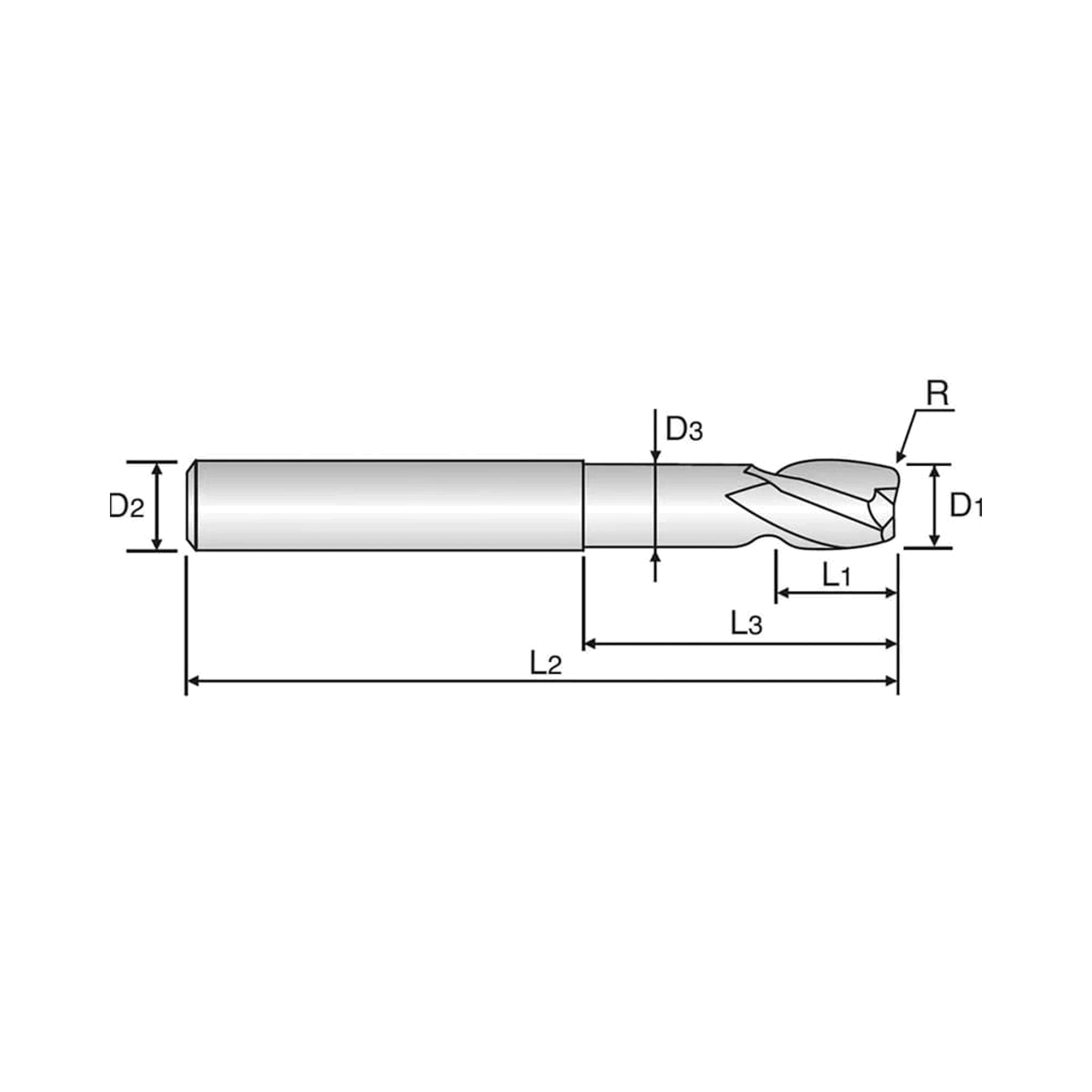

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG909040 4 6 5 50 0~-0.030 h5 2 EG909060 6 6 8 60 0~-0.030 h5 2 EG909080 8 8 10 70 0~-0.030 h5 2 EG909100 10 10 12 80 0~-0.030 h5 2 EG909120 12 12 14 90 0~-0.030 h5 2 EG909160 16 16 18 100 0~-0.030 h5 2 EG909200 20 20 24 100 0~-0.030 h5 2
Profiling
Side Milling
Small Part
Slotting
Die Sinking
Corner
Helical Interpol
N Aluminium

Excellent

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG909040 4 6 5 50 0~-0.030 h5 2 EG909060 6 6 8 60 0~-0.030 h5 2 EG909080 8 8 10 70 0~-0.030 h5 2 EG909100 10 10 12 80 0~-0.030 h5 2 EG909120 12 12 14 90 0~-0.030 h5 2 EG909160 16 16 18 100 0~-0.030 h5 2 EG909200 20 20 24 100 0~-0.030 h5 2
