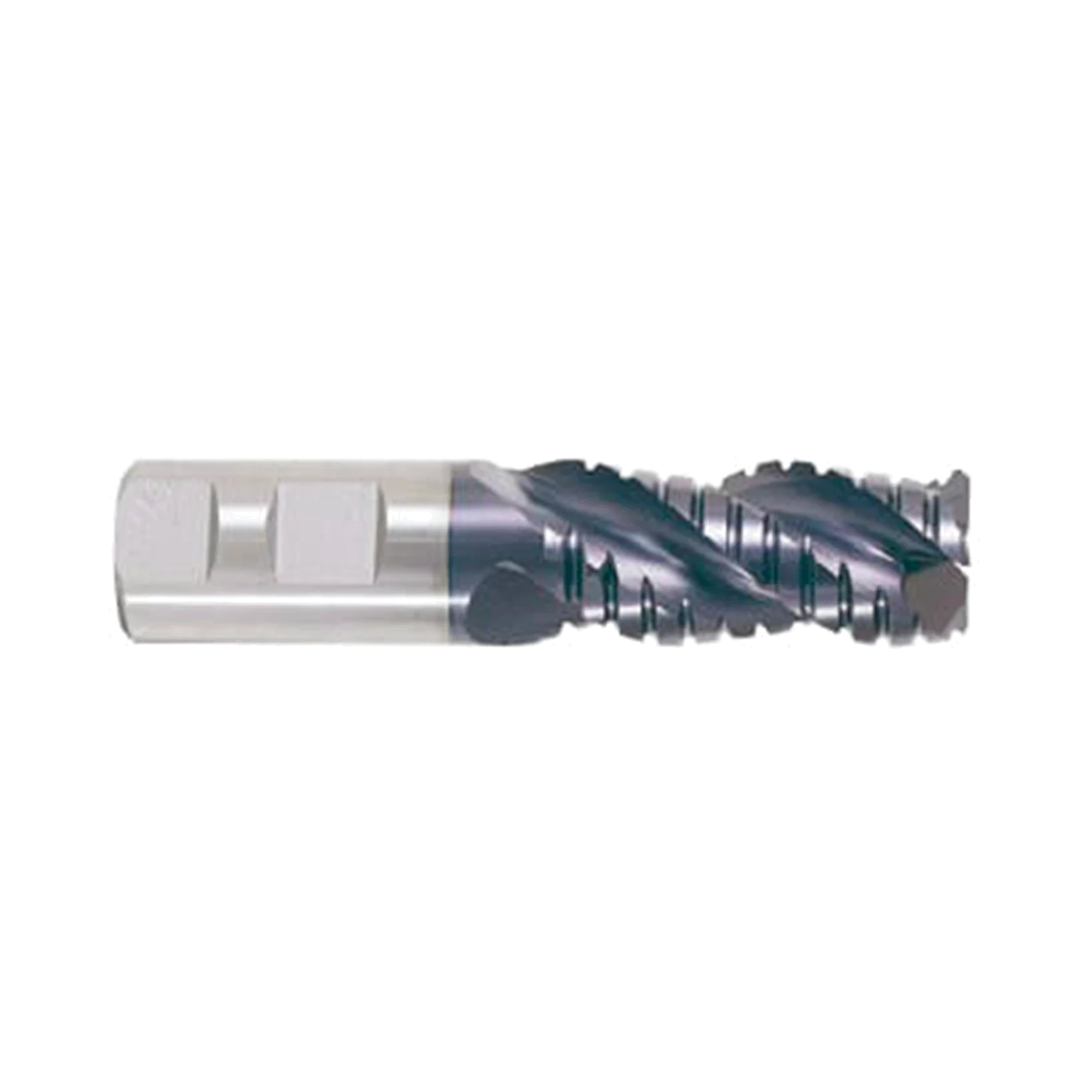

ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP923)
Code: EP923
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
Add ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP923) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Speeds & Feeds
- Reviews
Product Description
- Maximum metal removal rate at High Speed Condition
- Reduces vibrations and improves surface roughness
- Reduces chipping of corner edges
Product Data
| Workpiece Material | N |
| Cutting Shape | Roughing |
| Finish Type | Alu |
| Helix Angle | Square 42 |
| No. Flutes | 3 |
| Operation | Die Sinking, Facing, Side Milling, Slotting |
| Shank Type | Flat |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | HSS PM |
| Flutes | 3 |
| Helix Angle | 42° |
| Cutting Edge Shape | Roughing |
| Size Min | D12.0 |
| Size Max | D28.0 |
| Length | Short Length |
| Coated | TiAIN |
Side Milling
Slotting
Die Sinking
Facing
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 12.0 | 105 | 0.065 | 2800 | 550 |
| 14.0 | 110 | 0.080 | 2500 | 600 |
| 16.0 | 110 | 0.095 | 2200 | 625 |
| 18.0 | 110 | 0.116 | 1950 | 680 |
| 20.0 | 105 | 0.137 | 1700 | 700 |
| 22.0 | 110 | 0.143 | 1600 | 685 |
| 25.0 | 110 | 0.149 | 1400 | 625 |
| 28.0 | 110 | 0.180 | 1250 | 675 |
| 32.0 | 110 | 0.212 | 1100 | 700 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 12.0 | 105 | 0.049 | 2800 | 410 |
| 14.0 | 110 | 0.060 | 2500 | 450 |
| 16.0 | 110 | 0.070 | 2200 | 465 |
| 18.0 | 110 | 0.087 | 1950 | 510 |
| 20.0 | 105 | 0.103 | 1700 | 525 |
| 22.0 | 110 | 0.107 | 1600 | 515 |
| 25.0 | 110 | 0.111 | 1400 | 465 |
| 28.0 | 110 | 0.135 | 1250 | 505 |
| 32.0 | 110 | 0.159 | 1100 | 525 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
