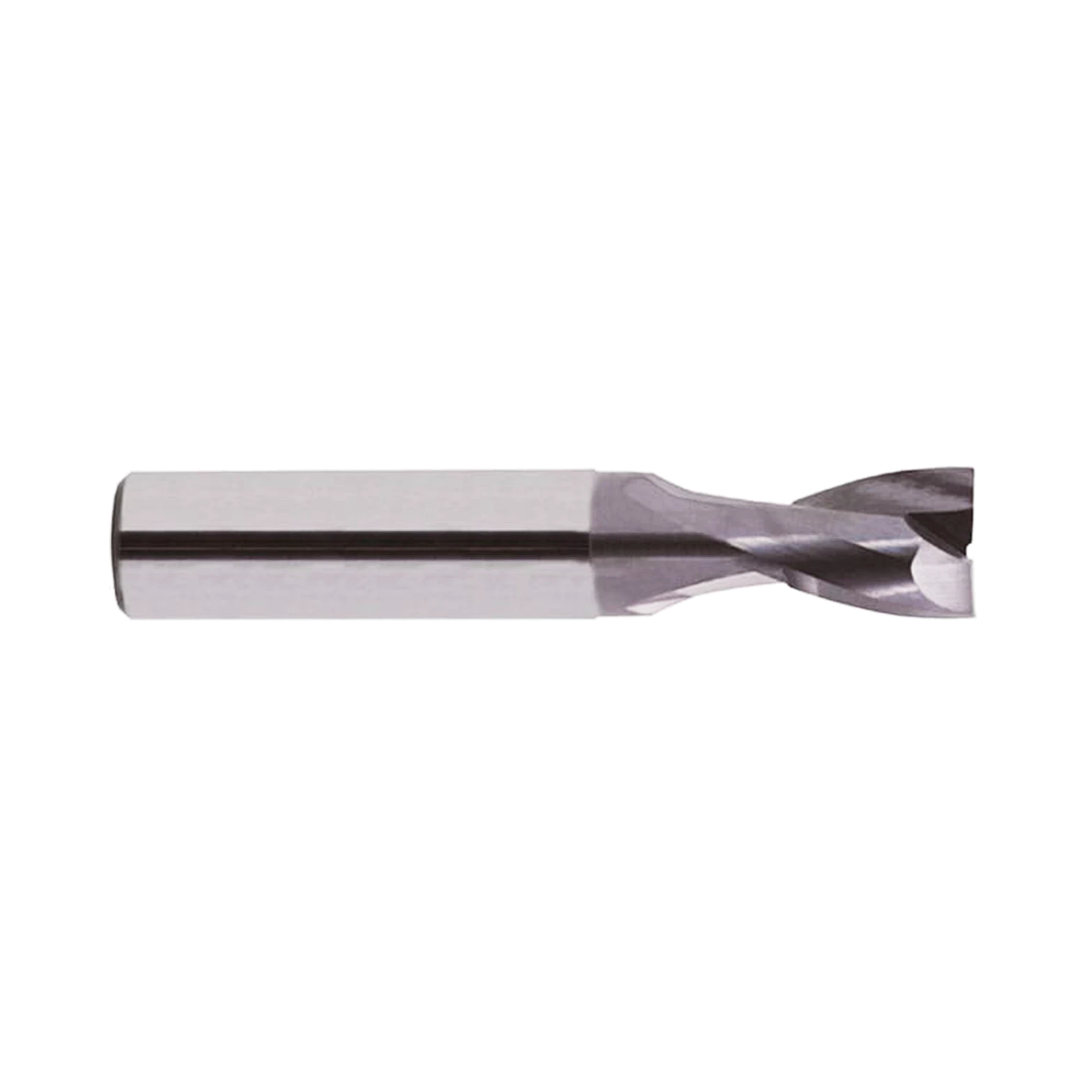

ALU-POWER 2 Flute 25°Helix Corner Radius End Mill (EG930)

  • $0.00INC GST $0.00 EX GST
ALU-POWER 2 Flute 25°Helix Corner Radius End Mill (EG930)
ALU-POWER 2 Flute 25°Helix Corner Radius End Mill (EG930)
New

ALU-POWER 2 Flute 25°Helix Corner Radius End Mill (EG930)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: EG930

N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER 2 Flute 25°Helix Corner Radius End Mill (EG930) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Designed for the machining aluminum and its alloys, non
    -ferrous materials.
  • Increased tool life and higher cutting accuracy.
  • Maximum
    -stock removal, chip ejection, stability.
  • Corner Radius for avoiding the chipping.
  • Mirror face
    -excellent surface finish.
Product Data
Workpiece Material N
Cutting Shape Corner Radius
No. Flutes 2
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Titanium Carbon Nitride Coating
Tool Material Carbide

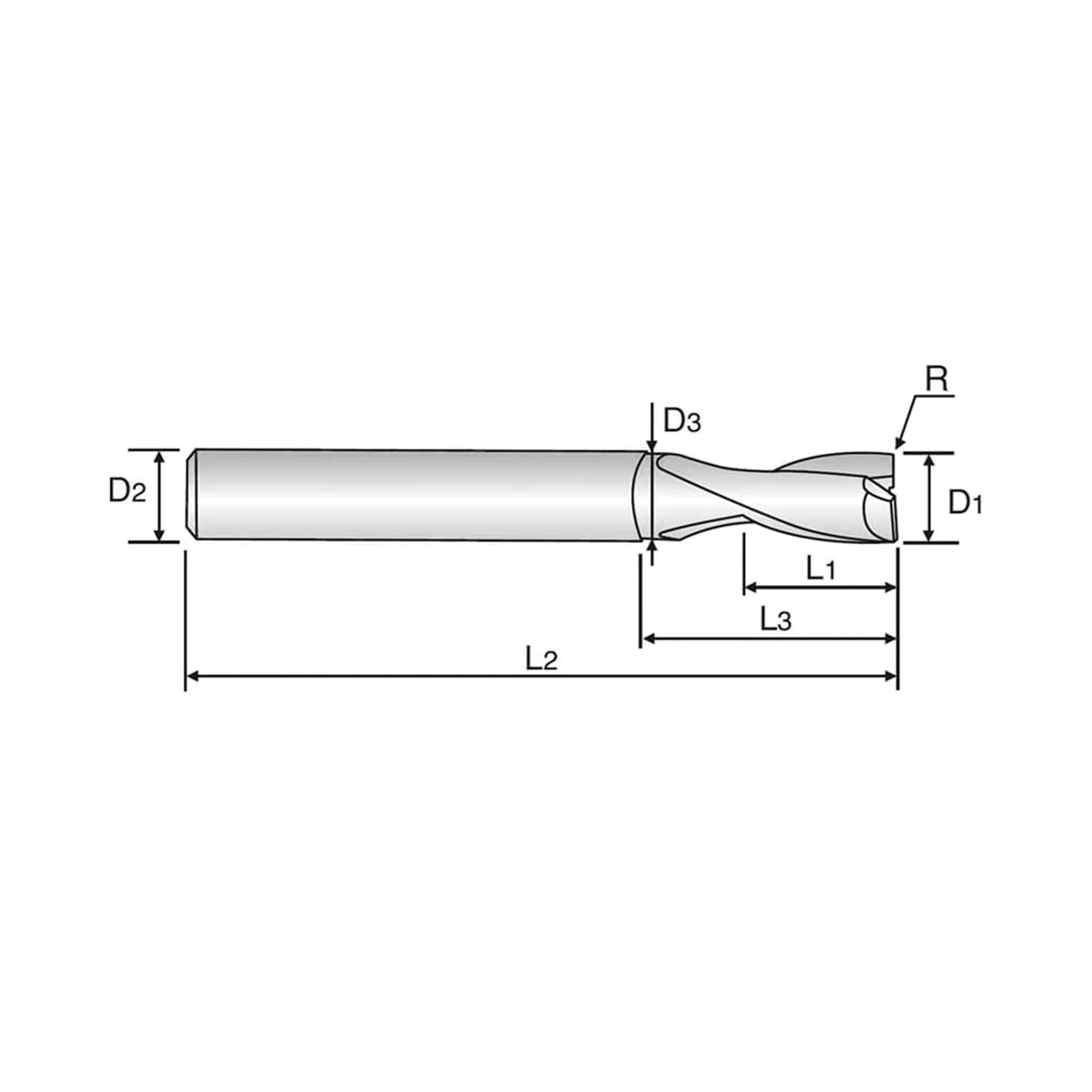

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG930020 2 3 3 40 0~-0.030 h5 2 EG930030 3 3 4 40 0~-0.030 h5 2 EG930040 4 4 5 50 0~-0.030 h5 2 EG930050 5 5 8 50 0~-0.030 h5 2 EG930060 6 6 8 65 0~-0.030 h5 2 EG930080 8 8 10 70 0~-0.030 h5 2 EG930100 10 10 14 80 0~-0.030 h5 2 EG930120 12 12 16 90 0~-0.030 h5 2 EG930160 16 16 20 90 0~-0.030 h5 2 EG930200 20 20 25 100 0~-0.030 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
N Aluminium

Excellent

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG930020 2 3 3 40 0~-0.030 h5 2 EG930030 3 3 4 40 0~-0.030 h5 2 EG930040 4 4 5 50 0~-0.030 h5 2 EG930050 5 5 8 50 0~-0.030 h5 2 EG930060 6 6 8 65 0~-0.030 h5 2 EG930080 8 8 10 70 0~-0.030 h5 2 EG930100 10 10 14 80 0~-0.030 h5 2 EG930120 12 12 16 90 0~-0.030 h5 2 EG930160 16 16 20 90 0~-0.030 h5 2 EG930200 20 20 25 100 0~-0.030 h5 2

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
