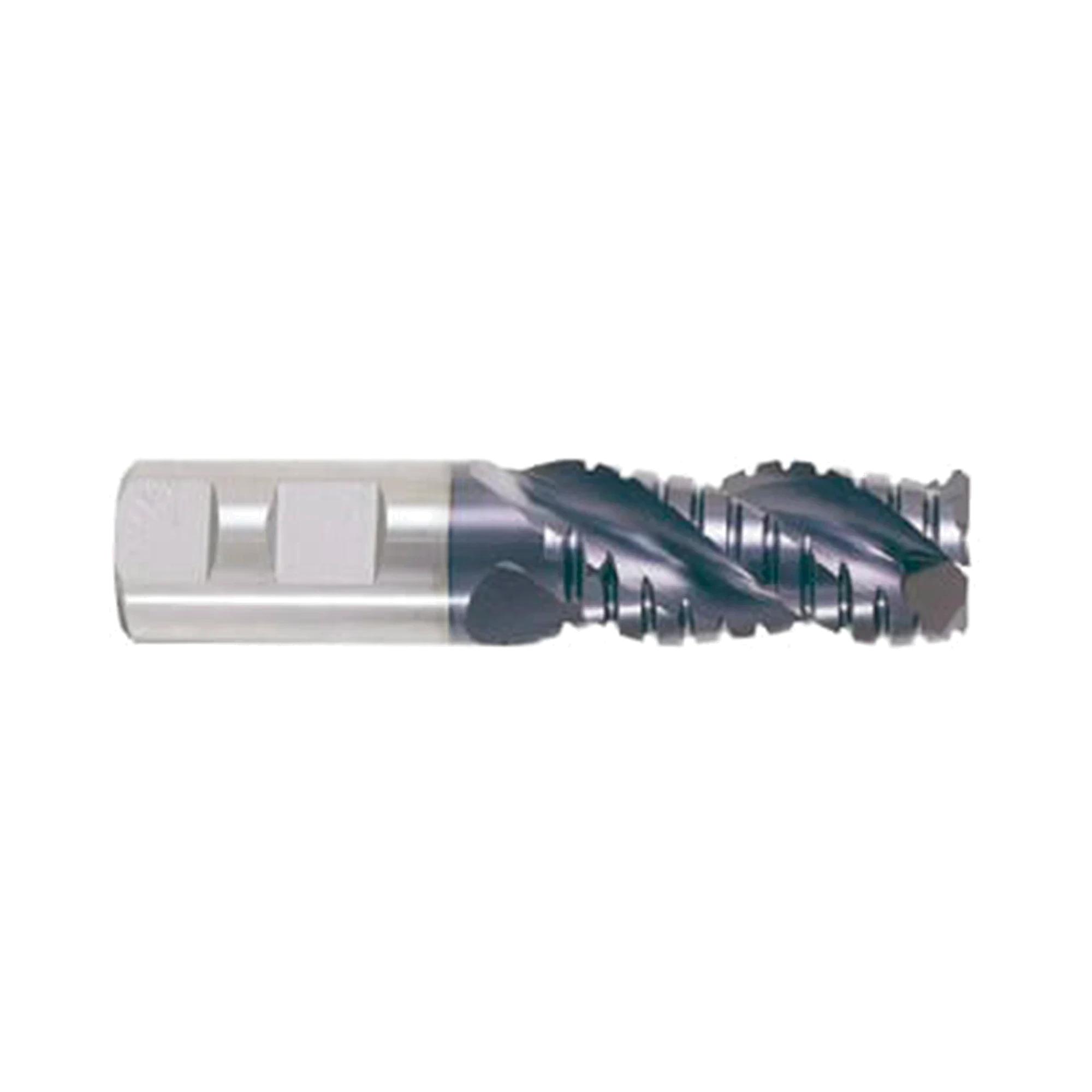

ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP922)

ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP922)
ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP922)
New

ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP922)

Product Code: EP922

No. Flutes: 3 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND ALU Finish Type: Aluminium YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND HELIX SQUARE 42 Helix Angle: Square 42° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local
  • Maximum stock removal rates at High Speed Condition.
  • Reduces vibrations and improves surface roughness.

Specifications

Flutes 3
Helix Angle 42°
Cutting Edge Shape Roughing
Size Min D12.0
Size Max D28.0
Length Short Length
Coated TiAIN
Product Data
Workpiece Material N
Finish Type Alu
Helix Angle Square 42
No. Flutes 3
Operation Die Sinking, Facing, Side Milling, Slotting
Shank Type Plain
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material HSS PM
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER 3 Flute 42°Helix Short Roughing (Aluminum) End Mill (EP922) to comparison

View Comparison

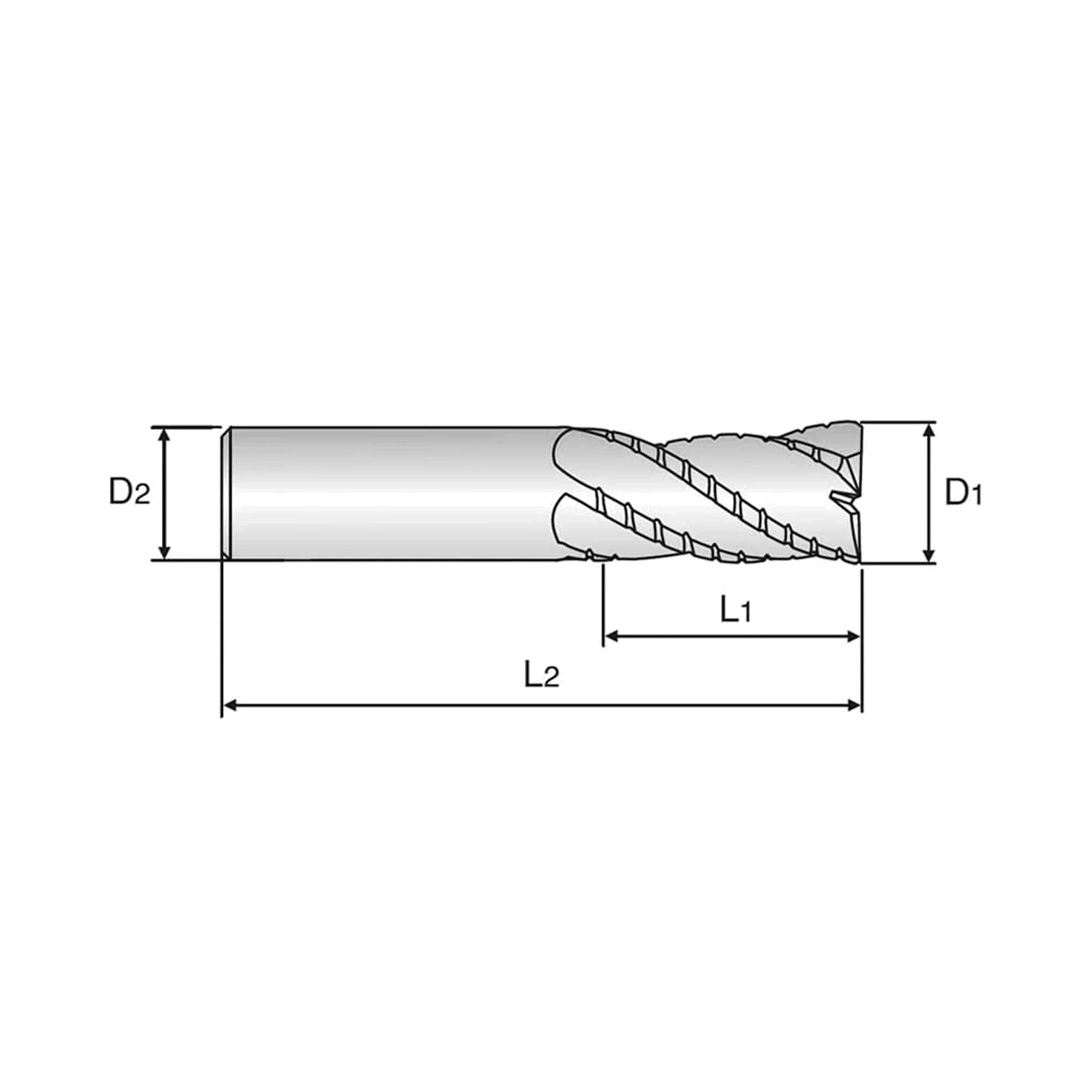

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EP922120 12 12 26 83 js12 h6 3 EP922140 14 12 26 83 js12 h6 3 EP922160 16 16 32 92 js12 h6 3 EP922180 18 16 32 92 js12 h6 3 EP922200 20 20 38 104 js12 h6 3 EP922220 22 20 38 104 js12 h6 3 EP922250 25 25 45 121 js12 h6 3 EP922280 28 25 45 121 js12 h6 3 EP922320 32 32 53 133 js12 h6 3

Speeds & Feeds

ØVcfzRPMFEED
12.01050.0652800550
14.01100.0802500600
16.01100.0952200625
18.01100.1161950680
20.01050.1371700700
22.01100.1431600685
25.01100.1491400625
28.01100.1801250675
32.01100.2121100700
ØVcfzRPMFEED
12.01050.0492800410
14.01100.0602500450
16.01100.0702200465
18.01100.0871950510
20.01050.1031700525
22.01100.1071600515
25.01100.1111400465
28.01100.1351250505
32.01100.1591100525
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth

Operation

Side Milling
Slotting
Die Sinking
Facing

Work Material

N Aluminium

Excellent

Good Great Excellent
