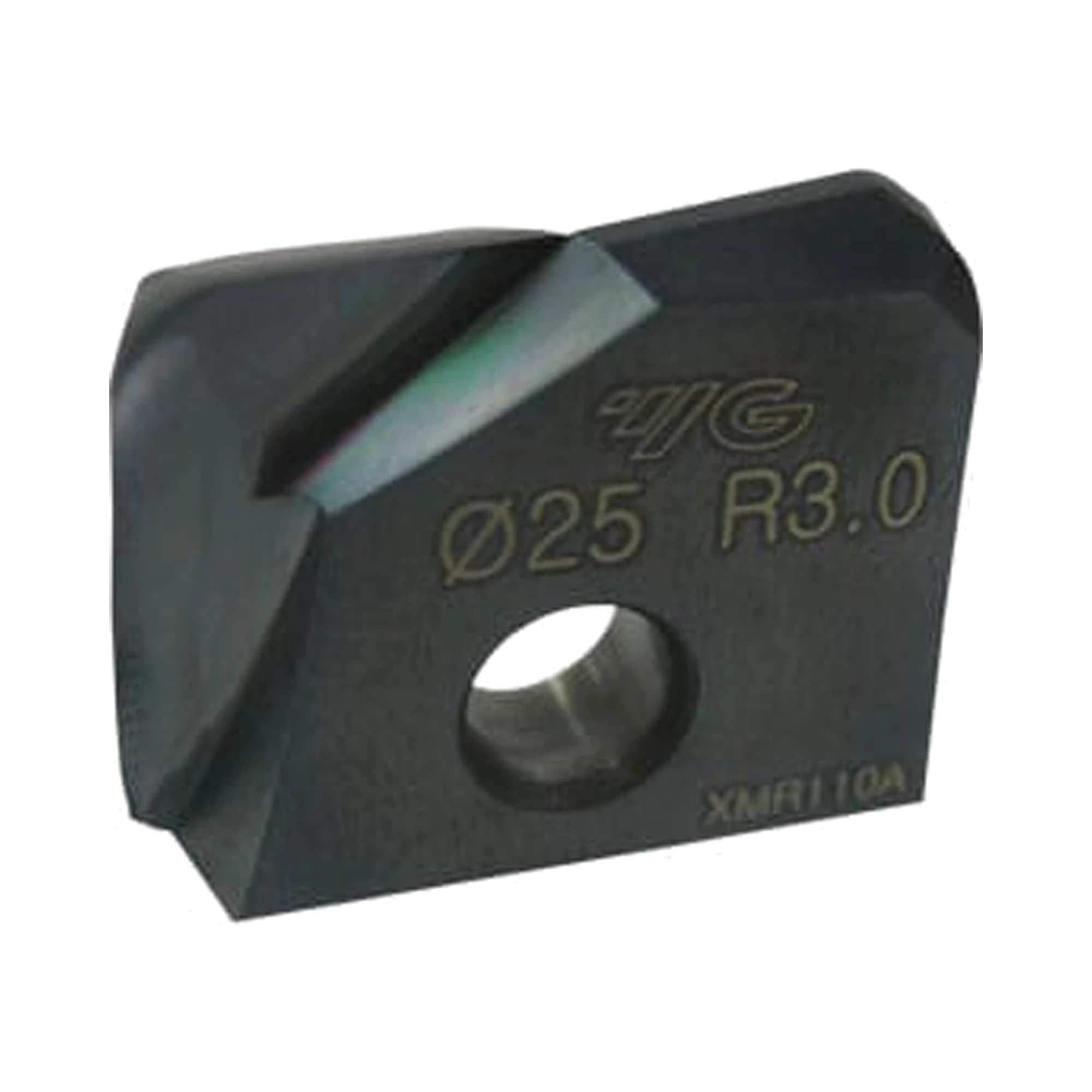

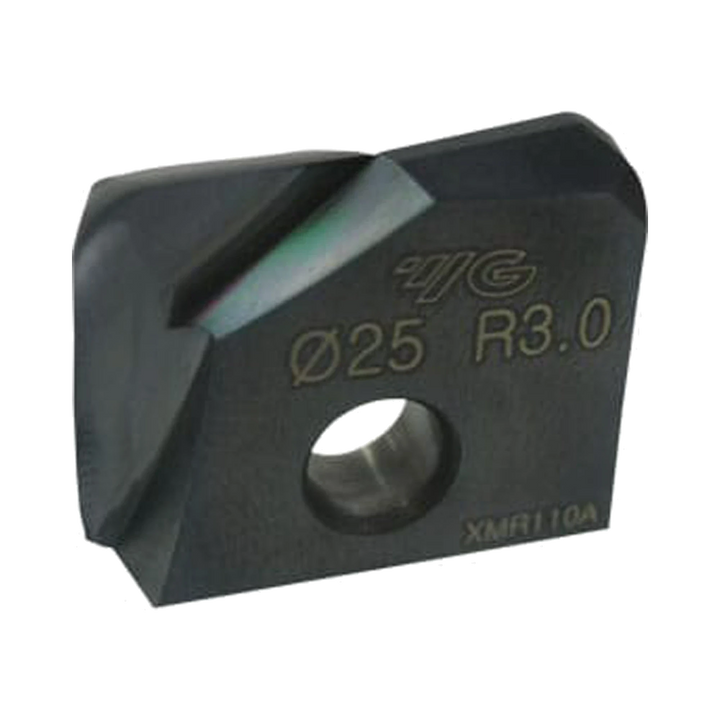

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)

  • $0.00INC GST $0.00 EX GST
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)
New

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: XMR110A-1

P M
Code
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Product Description
  • The optimum geometry of the tool to achieve the better reliability and less vibration and cutting load.
  • Interchangeability with i-Xmill ball holder, but the precise cutting is possible with i-Xmill corner radius holder due to higher stability and strength of tool.
  • The various and wide cutting range makes it possible to machine over the roughing and finishing.
  • Special coating makes high hardness with high thermal stability against oxidation.



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape CORNER RADIUS
Size Min D8.0
Size Max D33.0
Length -
Coating AlTiN



Product Data
Workpiece Material P M
Corner Radius Tolerance 0.015
No. Flutes 2
Operation Facing, Side Milling, Small Part
Surface Treatment Aluminium Titanium Nitride Coating
Tool Material NG HM

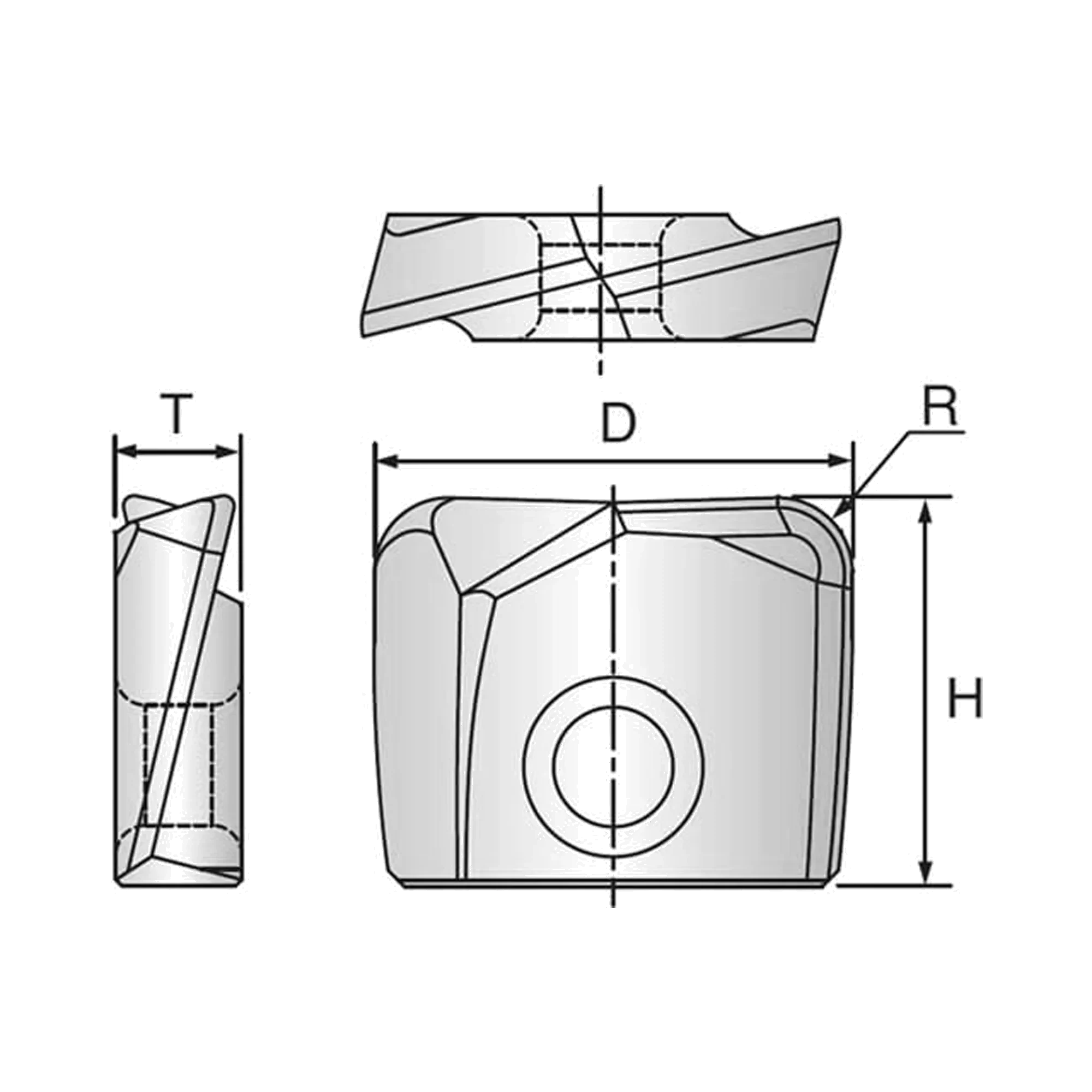

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR110A08003 8 R0.30 8 2.4 2 XMR110A08005 8 R0.50 8 2.4 2 XMR110A08010 8 R1.0 8 2.4 2 XMR110A08020 8 R2.0 2.4 2 XMR110A10003 10 R0.30 9.5 2.7 2 XMR110A10005 10 R0.50 9.5 2.7 2 XMR110A10010 10 R1.0 9.5 2.7 2 XMR110A10015 10 R1.5 9.5 2.7 2 XMR110A10020 10 R2.0 9.5 2.7 2 XMR110A10030 10 R3.0 9.5 2.7 2 XMR110A11003 11 R0.30 9.5 2.7 2 XMR110A11005 11 R0.50 9.5 2.7 2 XMR110A11010 11 R1.0 9.5 2.7 2 XMR110A11015 11 R1.5 9.5 2.7 2 XMR110A11020 11 R2.0 9.5 2.7 2 XMR110A11030 11 R3.0 9.5 2.7 2 XMR110A12003 12 R0.30 11 3.2 2 XMR110A12005 12 R0.50 11 3.2 2 XMR110A12010 12 R1.0 11 3.2 2 XMR110A12015 12 R1.5 11 3.2 2 XMR110A12020 12 R2.0 11 3.2 2 XMR110A12030 12 R3.0 11 3.2 2 XMR110A13003 13 R0.30 11.2 3.2 2 XMR110A13005 13 R0.50 11.2 3.2 2 XMR110A13010 13 R1.0 11.2 3.2 2 XMR110A13015 13 R1.5 11.2 3.2 2 XMR110A13020 13 R2.0 11.2 3.2 2 XMR110A13030 13 R3.0 11.2 3.2 2 XMR110A16003 16 R0.30 13 4.2 2 XMR110A16005 16 R0.50 13 4.2 2 XMR110A16010 16 R1.0 13 4.2 2 XMR110A16015 16 R1.5 13 4.2 2 XMR110A16020 16 R2.0 13 4.2 2 XMR110A16030 16 R3.0 13 4.2 2 XMR110A17003 17 R0.30 13 4.2 2 XMR110A17005 17 R0.50 13 4.2 2 XMR110A17010 17 R1.0 13 4.2 2 XMR110A17015 17 R1.5 13 4.2 2 XMR110A17020 17 R2.0 13 4.2 2 XMR110A17030 17 R3.0 13 4.2 2 XMR110A20003 20 R0.30 16 5.2 2 XMR110A20005 20 R0.50 16 5.2 2 XMR110A20010 20 R1.0 16 5.2 2 XMR110A20015 20 R1.5 16 5.2 2 XMR110A20020 20 R2.0 16 5.2 2 XMR110A20030 20 R3.0 16 5.2 2 XMR110A21003 21 R0.30 16 5.2 2 XMR110A21005 21 R0.50 16 5.2 2 XMR110A21010 21 R1.0 16 5.2 2 XMR110A21015 21 R1.5 16 5.2 2 XMR110A21020 21 R2.0 16 5.2 2 XMR110A21030 21 R3.0 16 5.2 2 XMR110A25003 25 R0.30 19.5 6.2 2 XMR110A25005 25 R0.50 19.5 6.2 2 XMR110A25010 25 R1.0 19.5 6.2 2 XMR110A25015 25 R1.5 19.5 6.2 2 XMR110A25020 25 R2.0 19.5 6.2 2 XMR110A25030 25 R3.0 19.5 6.2 2 XMR110A26003 26 R0.30 19.5 6.2 2 XMR110A26005 26 R0.50 19.5 6.2 2 XMR110A26010 26 R1.0 19.5 6.2 2 XMR110A26015 26 R1.5 19.5 6.2 2 XMR110A26020 26 R2.0 19.5 6.2 2 XMR110A26030 26 R3.0 19.5 6.2 2 XMR110A30003 30 R0.30 23.5 7.2 2 XMR110A30005 30 R0.50 23.5 7.2 2 XMR110A30010 30 R1.0 23.5 7.2 2 XMR110A30015 30 R1.5 23.5 7.2 2 XMR110A30020 30 R2.0 23.5 7.2 2 XMR110A30030 30 R3.0 23.5 7.2 2 XMR110A32003 32 R0.30 23.5 7.2 2 XMR110A32005 32 R0.50 23.5 7.2 2 XMR110A32010 32 R1.0 23.5 7.2 2 XMR110A32015 32 R1.5 23.5 7.2 2 XMR110A32020 32 R2.0 23.5 7.2 2 XMR110A32030 32 R3.0 23.5 7.2 2 XMR110A33003 33 R0.30 23.5 7.2 2 XMR110A33005 33 R0.50 23.5 7.2 2 XMR110A33010 33 R1.0 23.5 7.2 2 XMR110A33015 33 R1.5 23.5 7.2 2 XMR110A33020 33 R2.0 23.5 7.2 2 XMR110A33030 33 R3.0 23.5 7.2 2
Side Milling
Small Part
Facing
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent

Speeds & Feeds

ISO VDI
3323		 Material Description Parameter Diameter (Ø)
8 10, 11 12, 13 16, 17 20, 21 25, 26 30, 32, 33
P 1-4 Non-Alloy Steel Vc 160~300 160~300 160~300 160~300 160~300 160~300 160~300
fz 0.20~0.15 0.20~0.15 0.20~0.15 0.25~0.20 0.25~0.20 0.25~0.20 0.25~0.20
RPM 6370~11940 5090~9550 4240~7960 3180~5970 2550~4770 2040~3820 1700~3180
FEED 2550~3580 2040~2860 1700~2390 1590~2390 1270~1910 1020~1530 850~1270
5 Vc 120~280 120~280 120~280 120~280 120~280 120~280 120~280
fz 0.20~0.15 0.20~0.15 0.20~0.15 0.25~0.20 0.25~0.20 0.25~0.20 0.25~0.20
RPM 4770~11140 3820~8910 3180~7430 2390~5570 1910~4460 1530~3570 1270~2970
FEED 1910~3340 1530~2670 1270~2230 1190~2230 950~1780 760~1430 640~1190
6-7 Low-Alloy Steel Vc 160~300 160~300 160~300 160~300 160~300 160~300 160~300
fz 0.20~0.15 0.20~0.15 0.20~0.15 0.25~0.20 0.25~0.20 0.25~0.20 0.25~0.20
RPM 6370~11940 5090~9550 4240~7960 3180~5970 2550~4770 2040~3820 1700~3180
FEED 2550~3580 2040~2860 1700~2390 1590~2390 1270~1910 1020~1530 850~1270
8 Vc 120~280 120~280 120~280 120~280 120~280 120~280 120~280
fz 0.20~0.15 0.20~0.15 0.20~0.15 0.25~0.20 0.25~0.20 0.25~0.20 0.25~0.20
RPM 4770~11140 3820~8910 3180~7430 2390~5570 1910~4460 1530~3570 1270~2970
FEED 1910~3340 1530~2670 1270~2230 1190~2230 950~1780 760~1430 640~1190
M 12-14 Stainless Steel Vc 90~130 90~130 90~130 90~130 90~130 90~130 90~130
fz 0.10~0.10 0.11~0.11 0.12~0.11 0.13~0.13 0.13~0.13 0.13~0.12 0.13~0.12
RPM 3580~5170 2860~4140 2390~3450 1790~2590 1430~2070 1150~1660 950~1380
FEED 720~1030 630~910 550~790 450~650 360~520 290~410 240~340
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR110A08003 8 R0.30 8 2.4 2 XMR110A08005 8 R0.50 8 2.4 2 XMR110A08010 8 R1.0 8 2.4 2 XMR110A08020 8 R2.0 2.4 2 XMR110A10003 10 R0.30 9.5 2.7 2 XMR110A10005 10 R0.50 9.5 2.7 2 XMR110A10010 10 R1.0 9.5 2.7 2 XMR110A10015 10 R1.5 9.5 2.7 2 XMR110A10020 10 R2.0 9.5 2.7 2 XMR110A10030 10 R3.0 9.5 2.7 2 XMR110A11003 11 R0.30 9.5 2.7 2 XMR110A11005 11 R0.50 9.5 2.7 2 XMR110A11010 11 R1.0 9.5 2.7 2 XMR110A11015 11 R1.5 9.5 2.7 2 XMR110A11020 11 R2.0 9.5 2.7 2 XMR110A11030 11 R3.0 9.5 2.7 2 XMR110A12003 12 R0.30 11 3.2 2 XMR110A12005 12 R0.50 11 3.2 2 XMR110A12010 12 R1.0 11 3.2 2 XMR110A12015 12 R1.5 11 3.2 2 XMR110A12020 12 R2.0 11 3.2 2 XMR110A12030 12 R3.0 11 3.2 2 XMR110A13003 13 R0.30 11.2 3.2 2 XMR110A13005 13 R0.50 11.2 3.2 2 XMR110A13010 13 R1.0 11.2 3.2 2 XMR110A13015 13 R1.5 11.2 3.2 2 XMR110A13020 13 R2.0 11.2 3.2 2 XMR110A13030 13 R3.0 11.2 3.2 2 XMR110A16003 16 R0.30 13 4.2 2 XMR110A16005 16 R0.50 13 4.2 2 XMR110A16010 16 R1.0 13 4.2 2 XMR110A16015 16 R1.5 13 4.2 2 XMR110A16020 16 R2.0 13 4.2 2 XMR110A16030 16 R3.0 13 4.2 2 XMR110A17003 17 R0.30 13 4.2 2 XMR110A17005 17 R0.50 13 4.2 2 XMR110A17010 17 R1.0 13 4.2 2 XMR110A17015 17 R1.5 13 4.2 2 XMR110A17020 17 R2.0 13 4.2 2 XMR110A17030 17 R3.0 13 4.2 2 XMR110A20003 20 R0.30 16 5.2 2 XMR110A20005 20 R0.50 16 5.2 2 XMR110A20010 20 R1.0 16 5.2 2 XMR110A20015 20 R1.5 16 5.2 2 XMR110A20020 20 R2.0 16 5.2 2 XMR110A20030 20 R3.0 16 5.2 2 XMR110A21003 21 R0.30 16 5.2 2 XMR110A21005 21 R0.50 16 5.2 2 XMR110A21010 21 R1.0 16 5.2 2 XMR110A21015 21 R1.5 16 5.2 2 XMR110A21020 21 R2.0 16 5.2 2 XMR110A21030 21 R3.0 16 5.2 2 XMR110A25003 25 R0.30 19.5 6.2 2 XMR110A25005 25 R0.50 19.5 6.2 2 XMR110A25010 25 R1.0 19.5 6.2 2 XMR110A25015 25 R1.5 19.5 6.2 2 XMR110A25020 25 R2.0 19.5 6.2 2 XMR110A25030 25 R3.0 19.5 6.2 2 XMR110A26003 26 R0.30 19.5 6.2 2 XMR110A26005 26 R0.50 19.5 6.2 2 XMR110A26010 26 R1.0 19.5 6.2 2 XMR110A26015 26 R1.5 19.5 6.2 2 XMR110A26020 26 R2.0 19.5 6.2 2 XMR110A26030 26 R3.0 19.5 6.2 2 XMR110A30003 30 R0.30 23.5 7.2 2 XMR110A30005 30 R0.50 23.5 7.2 2 XMR110A30010 30 R1.0 23.5 7.2 2 XMR110A30015 30 R1.5 23.5 7.2 2 XMR110A30020 30 R2.0 23.5 7.2 2 XMR110A30030 30 R3.0 23.5 7.2 2 XMR110A32003 32 R0.30 23.5 7.2 2 XMR110A32005 32 R0.50 23.5 7.2 2 XMR110A32010 32 R1.0 23.5 7.2 2 XMR110A32015 32 R1.5 23.5 7.2 2 XMR110A32020 32 R2.0 23.5 7.2 2 XMR110A32030 32 R3.0 23.5 7.2 2 XMR110A33003 33 R0.30 23.5 7.2 2 XMR110A33005 33 R0.50 23.5 7.2 2 XMR110A33010 33 R1.0 23.5 7.2 2 XMR110A33015 33 R1.5 23.5 7.2 2 XMR110A33020 33 R2.0 23.5 7.2 2 XMR110A33030 33 R3.0 23.5 7.2 2
