New

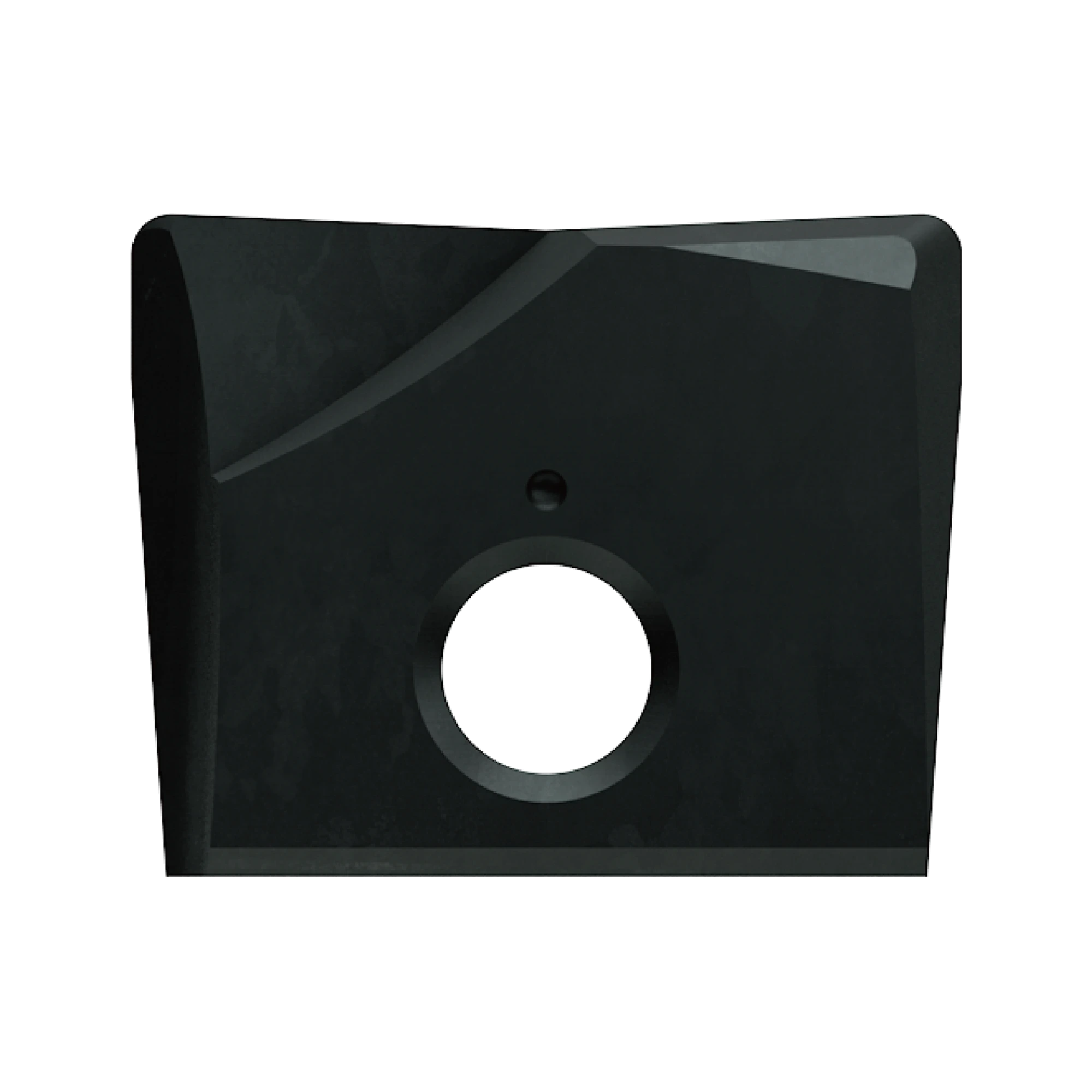

i-Xmill Corner Radius Insert for Hardened Material End Mill (XMR120C)

2-Flute Corner-Radius Insert for Pre-Hardened Steel
  • $64.02INC GST $58.20 EX GST
i-Xmill Corner Radius Insert for Hardened Material End Mill (XMR120C)
i-Xmill Corner Radius Insert for Hardened Material End Mill (XMR120C)
New

i-Xmill Corner Radius Insert for Hardened Material End Mill (XMR120C)

2-Flute Corner-Radius Insert for Pre-Hardened Steel
  • $64.02INC GST $58.20 EX GST

Code: XMR120C08005

P K
Mill Diameter (mm)
Size
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Corner Radius Insert for Hardened Material End Mill (XMR120C) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • The optimum geometry of the tool to achieve the better reliability and less vibration and cutting load.
  • Interchangeability with i-Xmill ball holder, but the precise cutting is possible with i-Xmill corner radius holder due to higher stability and strength of tool.
  • The various and wide cutting range makes it possible to machine over the roughing and finishing.
  • Special coating makes high hardness with high thermal stability against oxidation.



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape CORNER RADIUS
Size Min D8.0
Size Max D33.0
Length -
Coating X-Coating



Product Data
Workpiece Material P K
Corner Radius Tolerance 0.015
Hardened Steels(HRc40~45) Great
No. Flutes 2
Operation Facing, Side Milling, Small Part
Tool Material NG HM

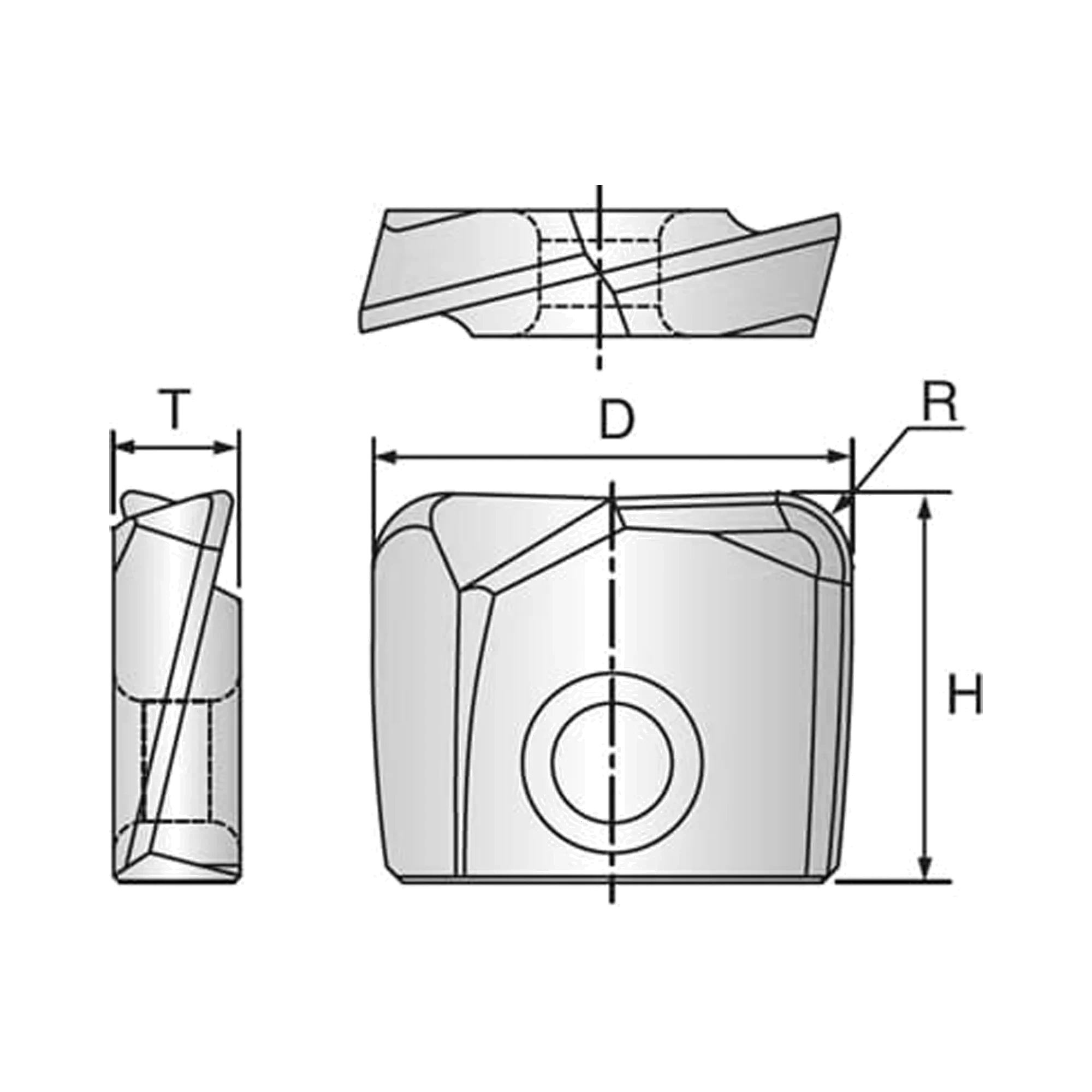

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR120C08005 8 R0.50 8 2.4 2 XMR120C08020 8 R2.0 2.4 2 XMR120C10005 10 R0.50 9.5 2.7 2 XMR120C11003 11 R0.30 9.5 2.7 2 XMR120C11005 11 R0.50 9.5 2.7 2 XMR120C11020 11 R2.0 9.5 2.7 2 XMR120C11030 11 R3.0 9.5 2.7 2 XMR120C12005 12 R0.50 11 3.2 2 XMR120C13003 13 R0.30 11.2 3.2 2 XMR120C13015 13 R1.5 11.2 3.2 2 XMR120C13020 13 R2.0 11.2 3.2 2 XMR120C16003 16 R0.30 13 4.2 2 XMR120C16020 16 R2.0 13 4.2 2 XMR120C17003 17 R0.30 13 4.2 2 XMR120C17005 17 R0.50 13 4.2 2 XMR120C20005 20 R0.50 16 5.2 2 XMR120C20030 20 R3.0 16 5.2 2 XMR120C21003 21 R0.30 16 5.2 2 XMR120C21005 21 R0.50 16 5.2 2 XMR120C21010 21 R1.0 16 5.2 2 XMR120C21030 21 R3.0 16 5.2 2 XMR120C25003 25 R0.30 19.5 6.2 2 XMR120C25005 25 R0.50 19.5 6.2 2 XMR120C26003 26 R0.30 19.5 6.2 2 XMR120C30003 30 R0.30 23.5 7.2 2 XMR120C30005 30 R0.50 23.5 7.2 2 XMR120C32005 32 R0.50 23.5 7.2 2 XMR120C32015 32 R1.5 23.5 7.2 2 XMR120C32030 32 R3.0 23.5 7.2 2 XMR120C33030 33 R3.0 23.5 7.2 2
Side Milling
Small Part
Facing
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR120C08005 8 R0.50 8 2.4 2 XMR120C08020 8 R2.0 2.4 2 XMR120C10005 10 R0.50 9.5 2.7 2 XMR120C11003 11 R0.30 9.5 2.7 2 XMR120C11005 11 R0.50 9.5 2.7 2 XMR120C11020 11 R2.0 9.5 2.7 2 XMR120C11030 11 R3.0 9.5 2.7 2 XMR120C12005 12 R0.50 11 3.2 2 XMR120C13003 13 R0.30 11.2 3.2 2 XMR120C13015 13 R1.5 11.2 3.2 2 XMR120C13020 13 R2.0 11.2 3.2 2 XMR120C16003 16 R0.30 13 4.2 2 XMR120C16020 16 R2.0 13 4.2 2 XMR120C17003 17 R0.30 13 4.2 2 XMR120C17005 17 R0.50 13 4.2 2 XMR120C20005 20 R0.50 16 5.2 2 XMR120C20030 20 R3.0 16 5.2 2 XMR120C21003 21 R0.30 16 5.2 2 XMR120C21005 21 R0.50 16 5.2 2 XMR120C21010 21 R1.0 16 5.2 2 XMR120C21030 21 R3.0 16 5.2 2 XMR120C25003 25 R0.30 19.5 6.2 2 XMR120C25005 25 R0.50 19.5 6.2 2 XMR120C26003 26 R0.30 19.5 6.2 2 XMR120C30003 30 R0.30 23.5 7.2 2 XMR120C30005 30 R0.50 23.5 7.2 2 XMR120C32005 32 R0.50 23.5 7.2 2 XMR120C32015 32 R1.5 23.5 7.2 2 XMR120C32030 32 R3.0 23.5 7.2 2 XMR120C33030 33 R3.0 23.5 7.2 2

Video

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

i-Xmill Endmills

You Might Also Like

New
i-Xmill Ball Insert for General Purpose End Mill (XMB110A) i-Xmill Ball Insert for General Purpose End Mill (XMB110A)

i-Xmill Ball Insert for General Purpose End Mill (XMB110A)

From $43.89INC GST
From $39.90 EX GST
Available in Mill Diameter (mm)
8 10 11 +11
Low stock
YG-1 LEGEND AlTiN YG-1 LEGEND NG HM
Add to Cart
View Comparison
New
i-Xmill Ball Insert for Graphite End Mill (XMB110D) i-Xmill Ball Insert for Graphite End Mill (XMB110D)

i-Xmill Ball Insert for Graphite End Mill (XMB110D)

Pricing available on request
Available in Code
XMB110D330 XMB110D320 XMB110D300 +11
Quantity unavailable
YG-1 LEGEND DIAMOND YG-1 LEGEND NG HM
Request Quote
View Comparison
New
i-Xmill Ball Insert for Hardened Material End Mill (XMB120C) i-Xmill Ball Insert for Hardened Material End Mill (XMB120C)

i-Xmill Ball Insert for Hardened Material End Mill (XMB120C)

From $43.89INC GST
From $39.90 EX GST
Available in Mill Diameter (mm)
8 10 11 +11
Low stock
YG-1 LEGEND X COATING YG-1 LEGEND NG HM
Add to Cart
View Comparison
New
i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T) i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)

i-Xmill Ball Insert for High Hardened Material End Mill (XMB260T)

From $43.89INC GST
From $39.90 EX GST
Available in Mill Diameter (mm)
8 10 11 +11
Low stock
YG-1 LEGEND Z COATING YG-1 LEGEND NG HM
Add to Cart
View Comparison
New
i-Xmill High Feed Insert for General Purpose End Mill (XMF110V) i-Xmill High Feed Insert for General Purpose End Mill (XMF110V)

i-Xmill High Feed Insert for General Purpose End Mill (XMF110V)

From $64.02INC GST
From $58.20 EX GST
Available in Mill Diameter (mm)
8 10 11 +11
5 days
YG-1 LEGEND Y COATING YG-1 LEGEND NG HM
Add to Cart
View Comparison
New
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A) i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)

Pricing available on request
Available in Code
XMR110A33030 XMR110A33020 XMR110A33015 +79
Quantity unavailable
YG-1 LEGEND AlTiN YG-1 LEGEND NG HM
Request Quote
View Comparison
New

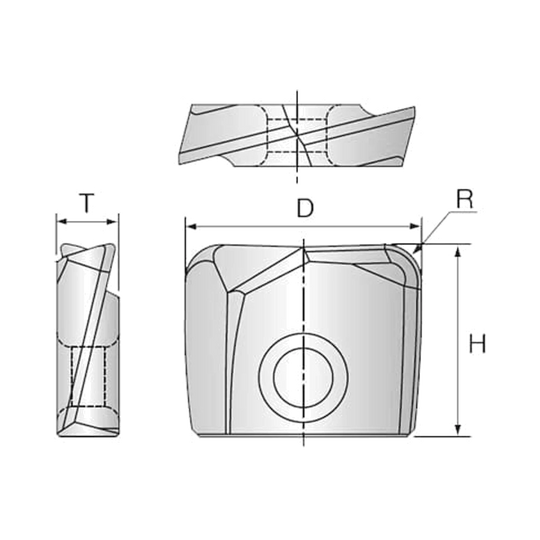

i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D) i-Xmill Corner Radius Insert for Graphite End Mill (XMR110D)
