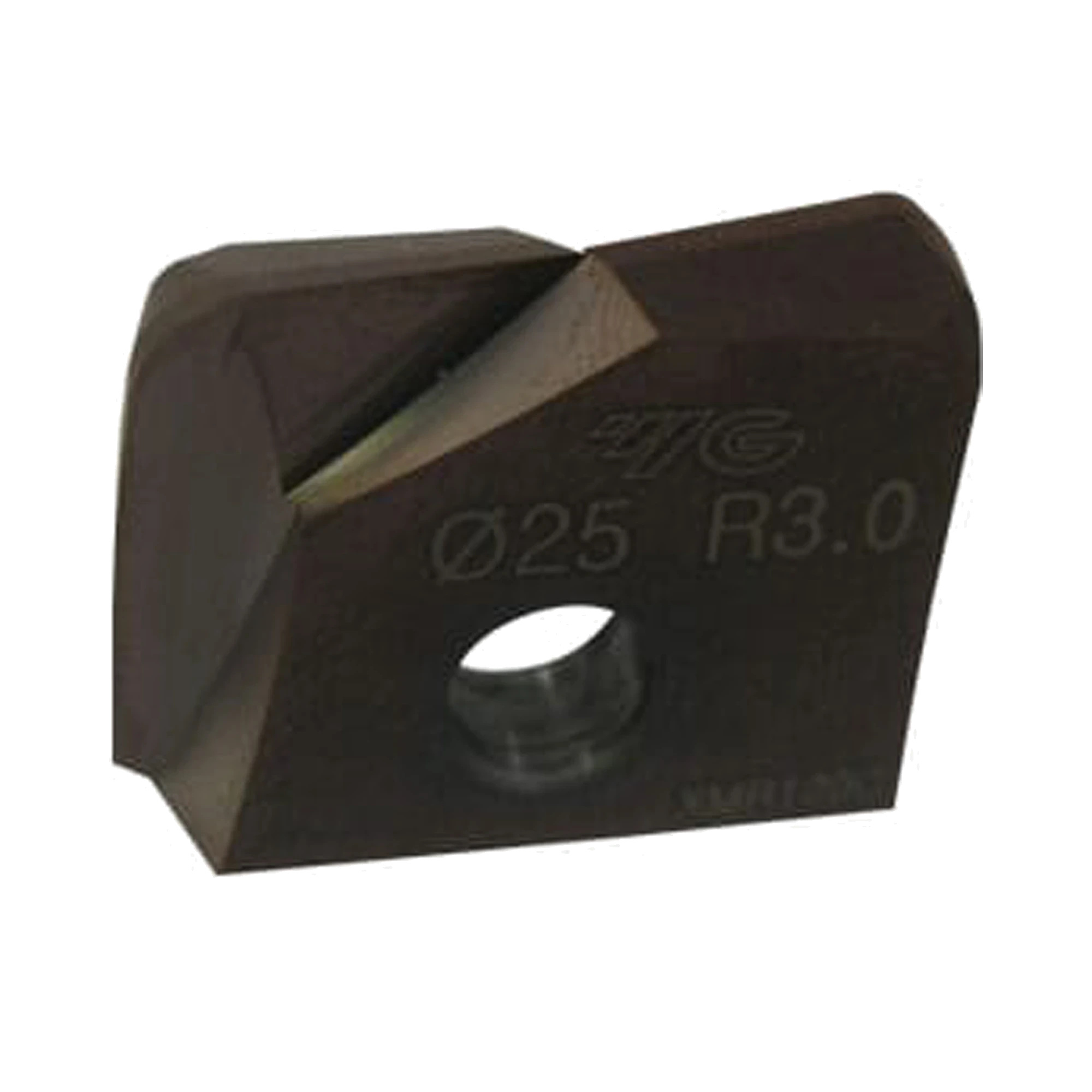

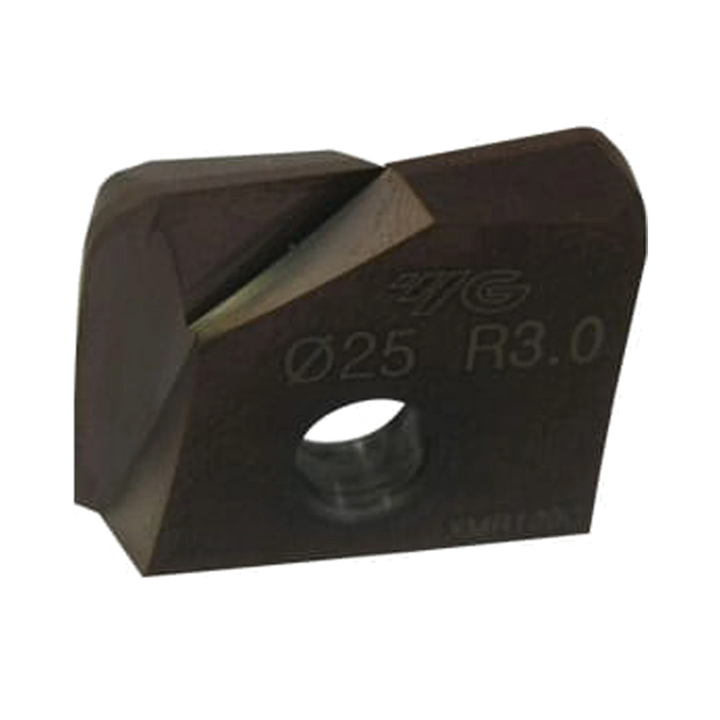

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR120C)

2-Flute Corner-Radius Insert General Purpose
  • $0.00INC GST $0.00 EX GST
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR120C)
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR120C)
New

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR120C)

2-Flute Corner-Radius Insert General Purpose
  • $0.00INC GST $0.00 EX GST Price available on request

Code: XMR120C-1

P K
Code
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Corner Radius Insert for General Purpose End Mill (XMR120C) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • The optimum geometry of the tool to achieve the better reliability and less vibration and cutting load.
  • Interchangeability with i-Xmill ball holder, but the precise cutting is possible with i-Xmill corner radius holder due to higher stability and strength of tool.
  • The various and wide cutting range makes it possible to machine over the roughing and finishing.
  • Special coating makes high hardness with high thermal stability against oxidation.



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape CORNER RADIUS
Size Min D8.0
Size Max D33.0
Length -
Coating X-Coating



Product Data
Workpiece Material P K
Corner Radius Tolerance 0.015
Hardened Steels(HRc40~45) Great
No. Flutes 2
Operation Facing, Side Milling, Small Part
Tool Material NG HM

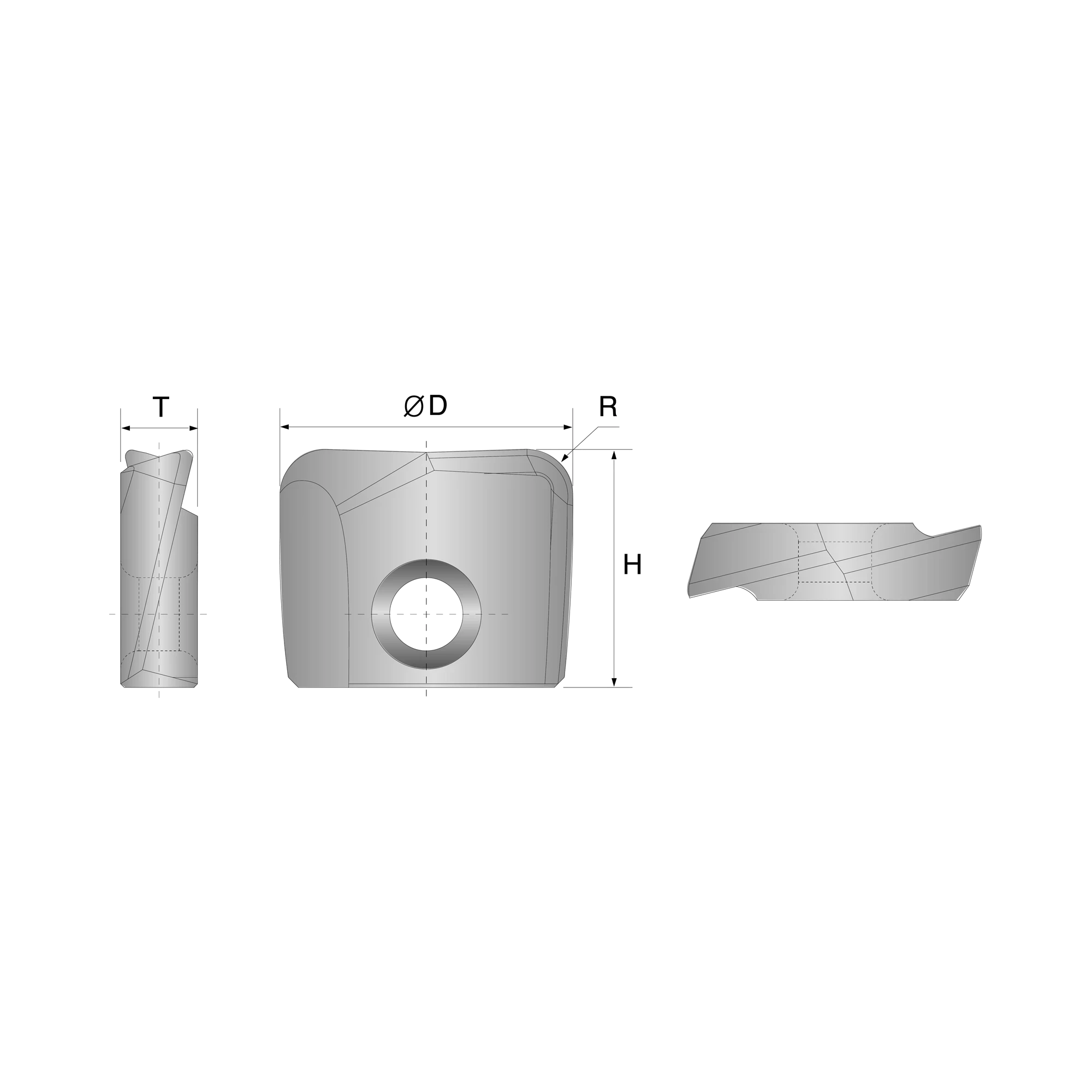

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR120C08003 8 R0.30 8 2.4 2 XMR120C08010 8 R1.0 8 2.4 2 XMR120C10003 10 R0.30 9.5 2.7 2 XMR120C10010 10 R1.0 9.5 2.7 2 XMR120C10015 10 R1.5 9.5 2.7 2 XMR120C10020 10 R2.0 9.5 2.7 2 XMR120C10030 10 R3.0 9.5 2.7 2 XMR120C11010 11 R1.0 9.5 2.7 2 XMR120C11015 11 R1.5 9.5 2.7 2 XMR120C12003 12 R0.30 11 3.2 2 XMR120C12010 12 R1.0 11 3.2 2 XMR120C12015 12 R1.5 11 3.2 2 XMR120C12020 12 R2.0 11 3.2 2 XMR120C12030 12 R3.0 11 3.2 2 XMR120C13005 13 R0.50 11.2 3.2 2 XMR120C13010 13 R1.0 11.2 3.2 2 XMR120C13030 13 R3.0 11.2 3.2 2 XMR120C16005 16 R0.50 13 4.2 2 XMR120C16010 16 R1.0 13 4.2 2 XMR120C16015 16 R1.5 13 4.2 2 XMR120C16030 16 R3.0 13 4.2 2 XMR120C17010 17 R1.0 13 4.2 2 XMR120C17015 17 R1.5 13 4.2 2 XMR120C17020 17 R2.0 13 4.2 2 XMR120C17030 17 R3.0 13 4.2 2 XMR120C20003 20 R0.30 16 5.2 2 XMR120C20010 20 R1.0 16 5.2 2 XMR120C20015 20 R1.5 16 5.2 2 XMR120C20020 20 R2.0 16 5.2 2 XMR120C21015 21 R1.5 16 5.2 2 XMR120C21020 21 R2.0 16 5.2 2 XMR120C25010 25 R1.0 19.5 6.2 2 XMR120C25015 25 R1.5 19.5 6.2 2 XMR120C25020 25 R2.0 19.5 6.2 2 XMR120C25030 25 R3.0 19.5 6.2 2 XMR120C26005 26 R0.50 19.5 6.2 2 XMR120C26010 26 R1.0 19.5 6.2 2 XMR120C26015 26 R1.5 19.5 6.2 2 XMR120C26020 26 R2.0 19.5 6.2 2 XMR120C26030 26 R3.0 19.5 6.2 2 XMR120C30010 30 R1.0 23.5 7.2 2 XMR120C30015 30 R1.5 23.5 7.2 2 XMR120C30020 30 R2.0 23.5 7.2 2 XMR120C30030 30 R3.0 23.5 7.2 2 XMR120C32003 32 R0.30 23.5 7.2 2 XMR120C32010 32 R1.0 23.5 7.2 2 XMR120C32020 32 R2.0 23.5 7.2 2 XMR120C33003 33 R0.30 23.5 7.2 2 XMR120C33005 33 R0.50 23.5 7.2 2 XMR120C33010 33 R1.0 23.5 7.2 2 XMR120C33015 33 R1.5 23.5 7.2 2 XMR120C33020 33 R2.0 23.5 7.2 2
Side Milling
Small Part
Facing
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR120C08003 8 R0.30 8 2.4 2 XMR120C08010 8 R1.0 8 2.4 2 XMR120C10003 10 R0.30 9.5 2.7 2 XMR120C10010 10 R1.0 9.5 2.7 2 XMR120C10015 10 R1.5 9.5 2.7 2 XMR120C10020 10 R2.0 9.5 2.7 2 XMR120C10030 10 R3.0 9.5 2.7 2 XMR120C11010 11 R1.0 9.5 2.7 2 XMR120C11015 11 R1.5 9.5 2.7 2 XMR120C12003 12 R0.30 11 3.2 2 XMR120C12010 12 R1.0 11 3.2 2 XMR120C12015 12 R1.5 11 3.2 2 XMR120C12020 12 R2.0 11 3.2 2 XMR120C12030 12 R3.0 11 3.2 2 XMR120C13005 13 R0.50 11.2 3.2 2 XMR120C13010 13 R1.0 11.2 3.2 2 XMR120C13030 13 R3.0 11.2 3.2 2 XMR120C16005 16 R0.50 13 4.2 2 XMR120C16010 16 R1.0 13 4.2 2 XMR120C16015 16 R1.5 13 4.2 2 XMR120C16030 16 R3.0 13 4.2 2 XMR120C17010 17 R1.0 13 4.2 2 XMR120C17015 17 R1.5 13 4.2 2 XMR120C17020 17 R2.0 13 4.2 2 XMR120C17030 17 R3.0 13 4.2 2 XMR120C20003 20 R0.30 16 5.2 2 XMR120C20010 20 R1.0 16 5.2 2 XMR120C20015 20 R1.5 16 5.2 2 XMR120C20020 20 R2.0 16 5.2 2 XMR120C21015 21 R1.5 16 5.2 2 XMR120C21020 21 R2.0 16 5.2 2 XMR120C25010 25 R1.0 19.5 6.2 2 XMR120C25015 25 R1.5 19.5 6.2 2 XMR120C25020 25 R2.0 19.5 6.2 2 XMR120C25030 25 R3.0 19.5 6.2 2 XMR120C26005 26 R0.50 19.5 6.2 2 XMR120C26010 26 R1.0 19.5 6.2 2 XMR120C26015 26 R1.5 19.5 6.2 2 XMR120C26020 26 R2.0 19.5 6.2 2 XMR120C26030 26 R3.0 19.5 6.2 2 XMR120C30010 30 R1.0 23.5 7.2 2 XMR120C30015 30 R1.5 23.5 7.2 2 XMR120C30020 30 R2.0 23.5 7.2 2 XMR120C30030 30 R3.0 23.5 7.2 2 XMR120C32003 32 R0.30 23.5 7.2 2 XMR120C32010 32 R1.0 23.5 7.2 2 XMR120C32020 32 R2.0 23.5 7.2 2 XMR120C33003 33 R0.30 23.5 7.2 2 XMR120C33005 33 R0.50 23.5 7.2 2 XMR120C33010 33 R1.0 23.5 7.2 2 XMR120C33015 33 R1.5 23.5 7.2 2 XMR120C33020 33 R2.0 23.5 7.2 2
