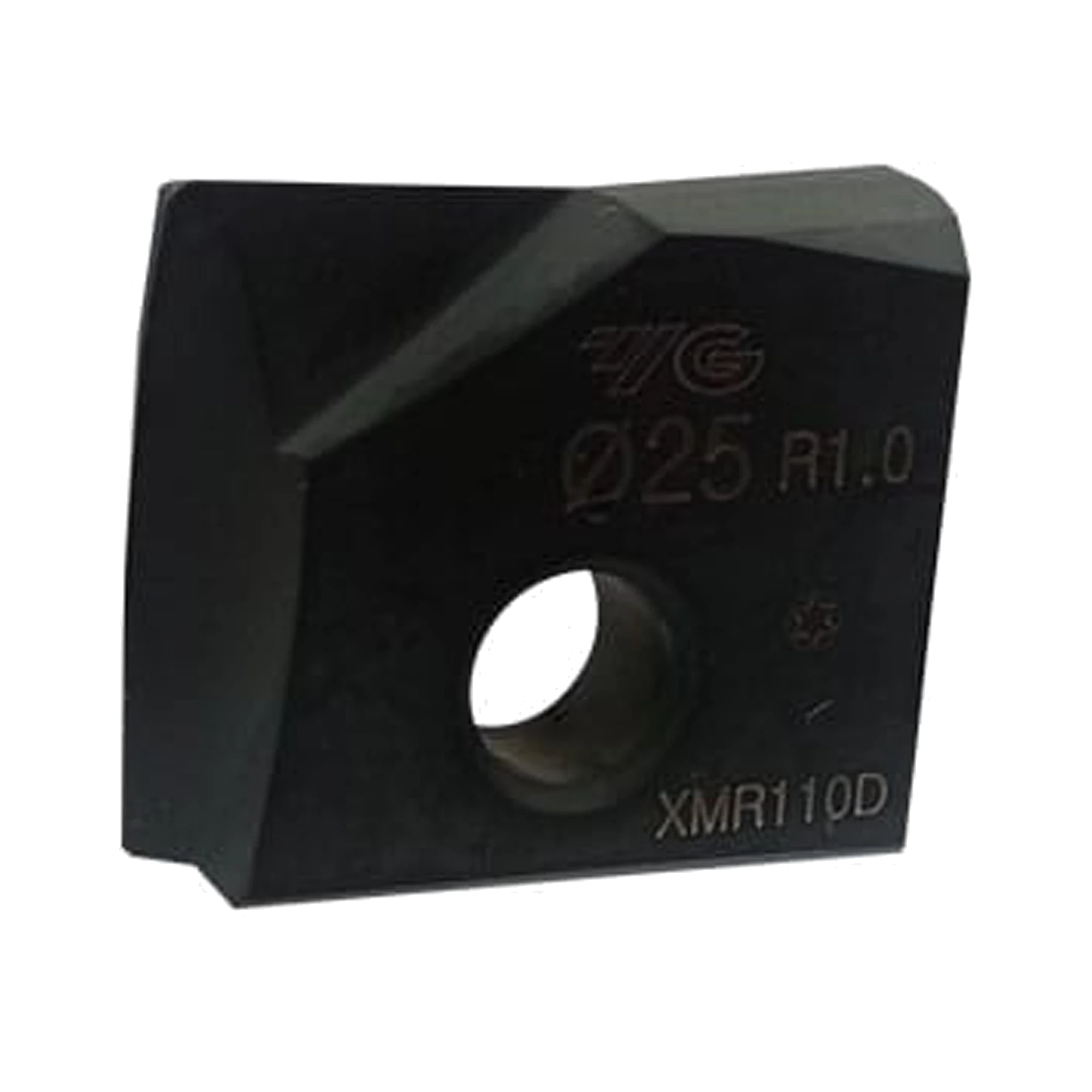

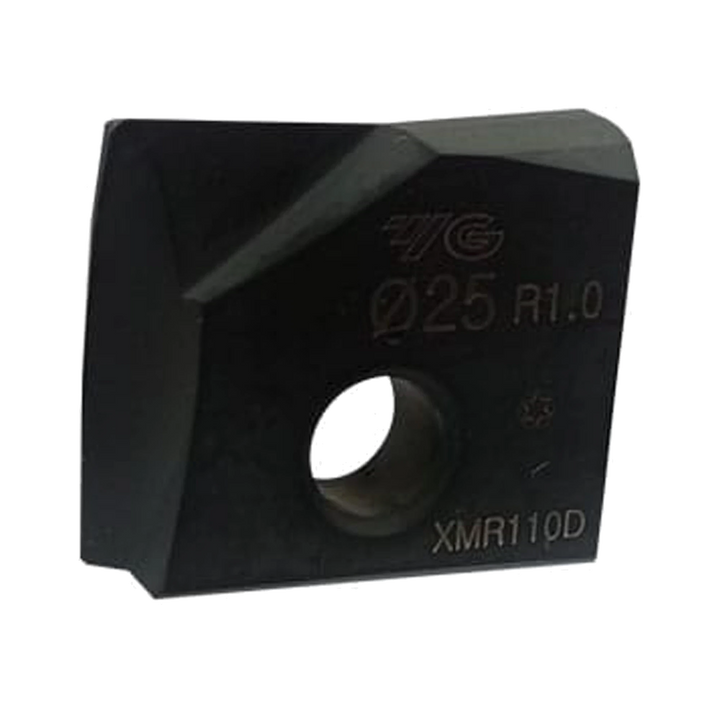

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110D)

  • $0.00INC GST $0.00 EX GST
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110D)
i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110D)
New

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110D)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: XMR110D-1

Code
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110D) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • The optimum geometry of the tool to achieve the better reliability
    and less vibration and cutting load.
  • Interchangeability with i-Xmill ball holder, but the precise cutting is possible with i-Xmill corner radius holder due to higher stability and strength of tool.
  • The various and wide cutting range makes it possible to machine over the roughing and finishing.
  • Special coating makes high hardness with high thermal stability against oxidation.



Specifications

Flutes 2
Helix Angle -
Cutting Edge Shape CORNER RADIUS
Size Min D8.0
Size Max D33.0
Length -
Coating Diamond



Product Data
Corner Radius Tolerance 0.015
Graphite Excellent
No. Flutes 2
Operation Facing, Side Milling, Small Part
Surface Treatment Diamond Coating
Tool Material NG HM

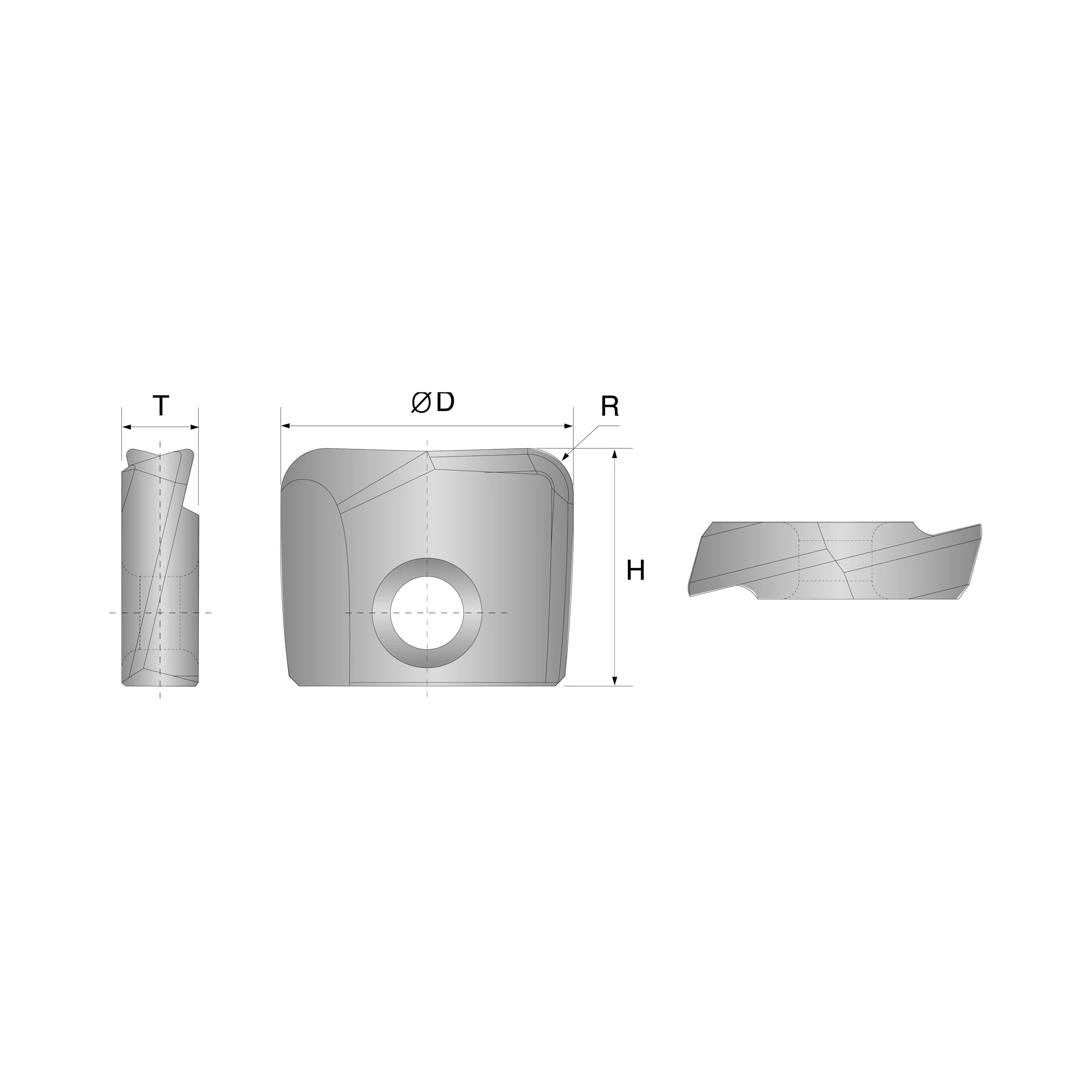

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR110D08003 8 R0.30 8 2.4 2 XMR110D08010 8 R1.0 8 2.4 2 XMR110D10005 10 R0.50 9.5 2.7 2 XMR110D10015 10 R1.5 9.5 2.7 2 XMR110D10020 10 R2.0 9.5 2.7 2 XMR110D10030 10 R3.0 9.5 2.7 2 XMR110D11030 11 R3.0 9.5 2.7 2 XMR110D12003 12 R0.30 11 3.2 2 XMR110D12005 12 R0.50 11 3.2 2 XMR110D12015 12 R1.5 11 3.2 2 XMR110D12020 12 R2.0 11 3.2 2 XMR110D12030 12 R3.0 11 3.2 2 XMR110D13020 13 R2.0 11.2 3.2 2 XMR110D13030 13 R3.0 11.2 3.2 2 XMR110D16020 16 R2.0 13 4.2 2 XMR110D16030 16 R3.0 13 4.2 2 XMR110D17003 17 R0.30 13 4.2 2 XMR110D17010 17 R1.0 13 4.2 2 XMR110D20005 20 R0.50 16 5.2 2 XMR110D20030 20 R3.0 16 5.2 2 XMR110D21003 21 R0.30 16 5.2 2 XMR110D21005 21 R0.50 16 5.2 2 XMR110D21010 21 R1.0 16 5.2 2 XMR110D21020 21 R2.0 16 5.2 2 XMR110D25010 25 R1.0 19.5 6.2 2 XMR110D25020 25 R2.0 19.5 6.2 2 XMR110D26015 26 R1.5 19.5 6.2 2 XMR110D30003 30 R0.30 23.5 7.2 2 XMR110D30010 30 R1.0 23.5 7.2 2 XMR110D30030 30 R3.0 23.5 7.2 2 XMR110D32003 32 R0.30 23.5 7.2 2 XMR110D32015 32 R1.5 23.5 7.2 2 XMR110D32020 32 R2.0 23.5 7.2 2 XMR110D32030 32 R3.0 23.5 7.2 2 XMR110D33005 33 R0.50 23.5 7.2 2 XMR110D33010 33 R1.0 23.5 7.2 2 XMR110D33015 33 R1.5 23.5 7.2 2 XMR110D33020 33 R2.0 23.5 7.2 2
Side Milling
Small Part
Facing
EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR110D08003 8 R0.30 8 2.4 2 XMR110D08010 8 R1.0 8 2.4 2 XMR110D10005 10 R0.50 9.5 2.7 2 XMR110D10015 10 R1.5 9.5 2.7 2 XMR110D10020 10 R2.0 9.5 2.7 2 XMR110D10030 10 R3.0 9.5 2.7 2 XMR110D11030 11 R3.0 9.5 2.7 2 XMR110D12003 12 R0.30 11 3.2 2 XMR110D12005 12 R0.50 11 3.2 2 XMR110D12015 12 R1.5 11 3.2 2 XMR110D12020 12 R2.0 11 3.2 2 XMR110D12030 12 R3.0 11 3.2 2 XMR110D13020 13 R2.0 11.2 3.2 2 XMR110D13030 13 R3.0 11.2 3.2 2 XMR110D16020 16 R2.0 13 4.2 2 XMR110D16030 16 R3.0 13 4.2 2 XMR110D17003 17 R0.30 13 4.2 2 XMR110D17010 17 R1.0 13 4.2 2 XMR110D20005 20 R0.50 16 5.2 2 XMR110D20030 20 R3.0 16 5.2 2 XMR110D21003 21 R0.30 16 5.2 2 XMR110D21005 21 R0.50 16 5.2 2 XMR110D21010 21 R1.0 16 5.2 2 XMR110D21020 21 R2.0 16 5.2 2 XMR110D25010 25 R1.0 19.5 6.2 2 XMR110D25020 25 R2.0 19.5 6.2 2 XMR110D26015 26 R1.5 19.5 6.2 2 XMR110D30003 30 R0.30 23.5 7.2 2 XMR110D30010 30 R1.0 23.5 7.2 2 XMR110D30030 30 R3.0 23.5 7.2 2 XMR110D32003 32 R0.30 23.5 7.2 2 XMR110D32015 32 R1.5 23.5 7.2 2 XMR110D32020 32 R2.0 23.5 7.2 2 XMR110D32030 32 R3.0 23.5 7.2 2 XMR110D33005 33 R0.50 23.5 7.2 2 XMR110D33010 33 R1.0 23.5 7.2 2 XMR110D33015 33 R1.5 23.5 7.2 2 XMR110D33020 33 R2.0 23.5 7.2 2
