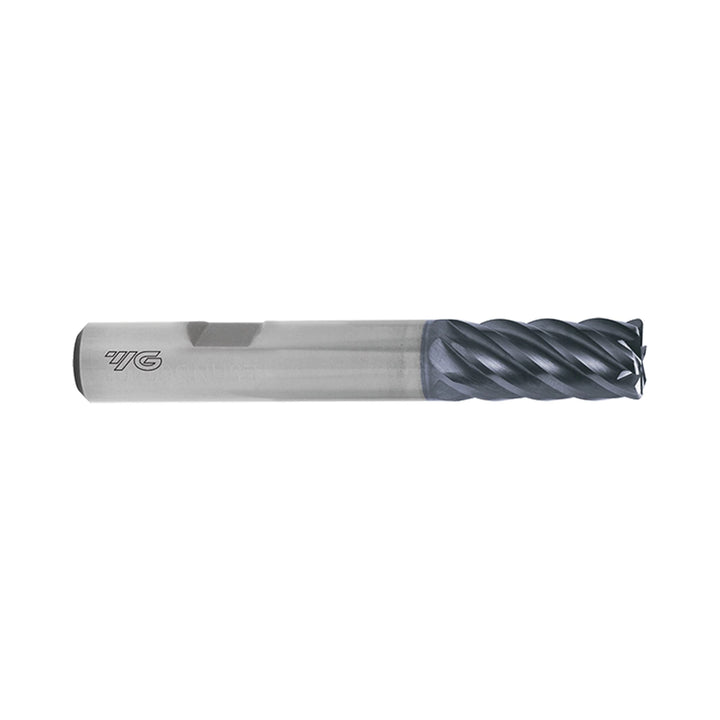

V7 PLUS 6 Flute 45°Helix Ex-Long Corner Radius End mill (GMG18)

  • $0.00INC GST $0.00 EX GST
V7 PLUS 6 Flute 45°Helix Ex-Long Corner Radius End mill (GMG18)
V7 PLUS 6 Flute 45°Helix Ex-Long Corner Radius End mill (GMG18)
New

V7 PLUS 6 Flute 45°Helix Ex-Long Corner Radius End mill (GMG18)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: GMG18

P M K S H
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add V7 PLUS 6 Flute 45°Helix Ex-Long Corner Radius End mill (GMG18) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Product Description

The V7 Plus TRP range from YG-1 are designed for hyper metal removal rates in deep slots or profiling up to 2xD. The GMG16/18 corner radius series comes with a plain shank and a revolutionary 45° 6 flute design for phenomenal performance and outstanding surface finish. These milling cutters are also ideal for trochoidal milling applications and offer exceptional results in silent machining of steel, stainless steel and heat resistant super alloys such as inconel & cast iron. For the best results, use in a hydraulic chuck or high-performance tool holder with excellent clamping torque.

  • TRP range for the fastest metal removal rates, even in deep slots or profiling up to 2xD
  • Revolutionary 6 flute design for phenomenal performance and outstanding surface finish
  • Ideal for high speed trochoidal milling and super finishing applications
  • Multiple helix geometries and unequal flute spacing enable higher feed rates and larger cut depths with no vibration
  • Corner radius geometry with plain shank
  • Y1200 coated with premium ultrafine micrograin carbide
  • High heat resistance of Y1200 coating ensures exceptional tool life in stainless steel, titanium and HRSA machining
  • Made by global market leader YG-1

Download Brochure

Product Data
Workpiece Material P M K S H
Cutting Shape Corner Radius
Hardened Steels(HRc40~45) Great
Helix Angle Square 45
No. Flutes 6
Operation Corner, Facing, Helical-Interpol, Side Milling, Small Part, Trochoidal
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 6
Helix Angle 45°
Cutting Edge Shape Corner Radius
Shank Plain
Coating Y-Coating



EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG18060 R0.50 6 6 24 75 0~-0.02 h5 6 GMG18060 R0.50 6 6 24 75 0~-0.030 h5 6 GMG18080 R0.50 8 8 32 75 0~-0.02 h5 6 GMG18080 R0.50 8 8 32 75 0~-0.030 h5 6 GMG18100 R0.50 10 10 40 100 0~-0.02 h5 6 GMG18100 R0.50 10 10 40 100 0~-0.030 h5 6 GMG18120 R0.50 12 12 48 120 0~-0.02 h6 6 GMG18120 R0.50 12 12 48 120 0~-0.030 h6 6 GMG18160 R1.0 16 16 64 140 0~-0.030 h6 6 GMG18200 R1.0 20 20 80 150 0~-0.030 h6 6 GMG18250 R1.0 25 25 100 170 0~-0.030 h6 6 GMG18901 R1.0 6 6 24 75 0~-0.02 h5 6 GMG18901 R1.0 6 6 24 75 0~-0.030 h5 6 GMG18902 R1.0 8 8 32 75 0~-0.02 h5 6 GMG18902 R1.0 8 8 32 75 0~-0.030 h5 6 GMG18903 R2.0 8 8 32 75 0~-0.02 h5 6 GMG18903 R2.0 8 8 32 75 0~-0.030 h5 6 GMG18904 R1.0 10 10 40 100 0~-0.02 h5 6 GMG18904 R1.0 10 10 40 100 0~-0.030 h5 6 GMG18905 R1.5 10 10 40 100 0~-0.02 h5 6 GMG18905 R1.5 10 10 40 100 0~-0.030 h5 6 GMG18906 R2.0 10 10 40 100 0~-0.02 h5 6 GMG18906 R2.0 10 10 40 100 0~-0.030 h5 6 GMG18907 R1.0 12 12 48 120 0~-0.02 h6 6 GMG18907 R1.0 12 12 48 120 0~-0.030 h6 6 GMG18908 R1.5 12 12 48 120 0~-0.02 h6 6 GMG18908 R1.5 12 12 48 120 0~-0.030 h6 6 GMG18909 R2.0 12 12 48 120 0~-0.02 h6 6 GMG18909 R2.0 12 12 48 120 0~-0.030 h6 6 GMG18910 R3.0 12 12 48 120 0~-0.02 h6 6 GMG18910 R3.0 12 12 48 120 0~-0.030 h6 6 GMG18911 R1.5 16 16 64 140 0~-0.030 h6 6 GMG18912 R2.0 16 16 64 140 0~-0.030 h6 6 GMG18913 R3.0 16 16 64 140 0~-0.030 h6 6 GMG18914 R1.5 20 20 80 150 0~-0.030 h6 6 GMG18915 R2.0 20 20 80 150 0~-0.030 h6 6 GMG18916 R3.0 20 20 80 150 0~-0.030 h6 6 GMG18917 R4.0 20 20 80 150 0~-0.030 h6 6 GMG18918 R5.0 20 20 80 150 0~-0.030 h6 6 GMG18919 R1.5 25 25 100 170 0~-0.030 h6 6 GMG18920 R2.0 25 25 100 170 0~-0.030 h6 6 GMG18921 R3.0 25 25 100 170 0~-0.030 h6 6 GMG18922 R4.0 25 25 100 170 0~-0.030 h6 6 GMG18923 R5.0 25 25 100 170 0~-0.030 h6 6
Side Milling
Small Part
Facing
Corner
Helical Interpol
Trochoidal
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
S Inconel

Great

Good Great Excellent
S Titanium

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent

Speeds & Feeds

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG18060 R0.50 6 6 24 75 0~-0.02 h5 6 GMG18060 R0.50 6 6 24 75 0~-0.030 h5 6 GMG18080 R0.50 8 8 32 75 0~-0.02 h5 6 GMG18080 R0.50 8 8 32 75 0~-0.030 h5 6 GMG18100 R0.50 10 10 40 100 0~-0.02 h5 6 GMG18100 R0.50 10 10 40 100 0~-0.030 h5 6 GMG18120 R0.50 12 12 48 120 0~-0.02 h6 6 GMG18120 R0.50 12 12 48 120 0~-0.030 h6 6 GMG18160 R1.0 16 16 64 140 0~-0.030 h6 6 GMG18200 R1.0 20 20 80 150 0~-0.030 h6 6 GMG18250 R1.0 25 25 100 170 0~-0.030 h6 6 GMG18901 R1.0 6 6 24 75 0~-0.02 h5 6 GMG18901 R1.0 6 6 24 75 0~-0.030 h5 6 GMG18902 R1.0 8 8 32 75 0~-0.02 h5 6 GMG18902 R1.0 8 8 32 75 0~-0.030 h5 6 GMG18903 R2.0 8 8 32 75 0~-0.02 h5 6 GMG18903 R2.0 8 8 32 75 0~-0.030 h5 6 GMG18904 R1.0 10 10 40 100 0~-0.02 h5 6 GMG18904 R1.0 10 10 40 100 0~-0.030 h5 6 GMG18905 R1.5 10 10 40 100 0~-0.02 h5 6 GMG18905 R1.5 10 10 40 100 0~-0.030 h5 6 GMG18906 R2.0 10 10 40 100 0~-0.02 h5 6 GMG18906 R2.0 10 10 40 100 0~-0.030 h5 6 GMG18907 R1.0 12 12 48 120 0~-0.02 h6 6 GMG18907 R1.0 12 12 48 120 0~-0.030 h6 6 GMG18908 R1.5 12 12 48 120 0~-0.02 h6 6 GMG18908 R1.5 12 12 48 120 0~-0.030 h6 6 GMG18909 R2.0 12 12 48 120 0~-0.02 h6 6 GMG18909 R2.0 12 12 48 120 0~-0.030 h6 6 GMG18910 R3.0 12 12 48 120 0~-0.02 h6 6 GMG18910 R3.0 12 12 48 120 0~-0.030 h6 6 GMG18911 R1.5 16 16 64 140 0~-0.030 h6 6 GMG18912 R2.0 16 16 64 140 0~-0.030 h6 6 GMG18913 R3.0 16 16 64 140 0~-0.030 h6 6 GMG18914 R1.5 20 20 80 150 0~-0.030 h6 6 GMG18915 R2.0 20 20 80 150 0~-0.030 h6 6 GMG18916 R3.0 20 20 80 150 0~-0.030 h6 6 GMG18917 R4.0 20 20 80 150 0~-0.030 h6 6 GMG18918 R5.0 20 20 80 150 0~-0.030 h6 6 GMG18919 R1.5 25 25 100 170 0~-0.030 h6 6 GMG18920 R2.0 25 25 100 170 0~-0.030 h6 6 GMG18921 R3.0 25 25 100 170 0~-0.030 h6 6 GMG18922 R4.0 25 25 100 170 0~-0.030 h6 6 GMG18923 R5.0 25 25 100 170 0~-0.030 h6 6
