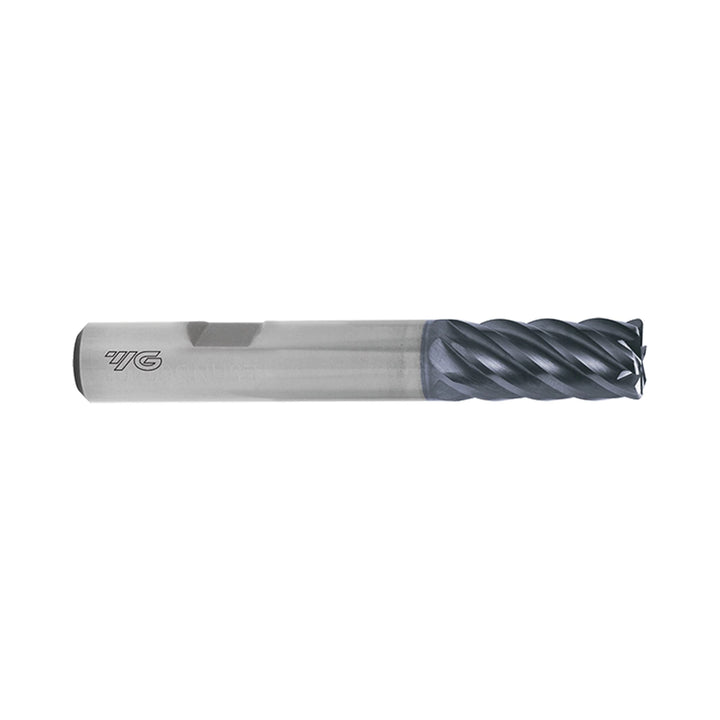

(GMG16) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Plain Shank

V7 Plus 6 Flute Long Corner Radius End Mill

(GMG16) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Plain Shank
$68.76 INC GST $62.51 EX GST
SKU
GMG16060
Work materials
PMKS

Key features

  • Solid carbide V7 Plus corner radius end mill
  • Six-flute 45° helix geometry
  • Long-length plain shank design
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Six-flute side cutting

GMG16 is specified by YG-1 as a six-flute V7 Plus series for side cutting.

Rounded corner machining

Corner radius geometry suits milling work requiring filleted internal corner profiles.

Useful long-length range

Available variants cover 6 to 25 mm diameters with R0.5 and R1.0 radii.

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GMG160606.0R0.557.06.013.0 In stock $62.51
GMG160808.0R0.563.08.019.0 In stock $86.88
GMG1610010.0R0.572.010.022.0 In stock $136.89
GMG1612012.0R0.583.012.026.0 In stock $164.61
GMG1616016.0R1.092.016.032.0 Low stock $284.94
GMG1620020.0R1.0104.020.038.0 Low stock $511.39
GMG1625025.0R1.0104.025.044.0 1-2 Weeks $719.73

Add (GMG16) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 V7 Plus GMG16 is a long-length solid carbide corner radius end mill with six flutes and a 45° helix. It is designed for side cutting where a radiused corner profile is required. The long-length range covers 6 to 25 mm cutting diameters with R0.5 or R1.0 corner radii. YG-1 identifies GMG16 as a V7 Plus six-flute side-cutting series. The V7 Plus geometry is designed to reduce vibration and promote chip evacuation. Its rounded cutting edge supports filleted internal corners during side milling operations. Select the diameter and corner radius to suit required feature geometry and reach. A plain shank provides straightforward compatibility with suitable milling toolholders.

  • Solid carbide V7 Plus corner radius end mill
  • Six-flute 45° helix geometry
  • Long-length plain shank design
  • Side-cutting configuration
  • 6 to 25 mm cutting diameter range
  • R0.5 and R1.0 corner radius options
Product Data
Cutting Shape Corner Radius
Length Long
EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG16060 R0.50 6 6 13 57 0~-0.02 h5 6 GMG16060 R0.50 6 6 13 57 0~-0.030 h5 6 GMG16080 R0.50 8 8 19 63 0~-0.02 h5 6 GMG16080 R0.50 8 8 19 63 0~-0.030 h5 6 GMG16100 R0.50 10 10 22 72 0~-0.02 h5 6 GMG16100 R0.50 10 10 22 72 0~-0.030 h5 6 GMG16120 R0.50 12 12 26 83 0~-0.02 h6 6 GMG16120 R0.50 12 12 26 83 0~-0.030 h6 6 GMG16160 R1.0 16 16 32 92 0~-0.030 h6 6 GMG16200 R1.0 20 20 38 104 0~-0.030 h6 6 GMG16250 R1.0 25 25 44 104 0~-0.030 h6 6 GMG16901 R1.0 6 6 13 57 0~-0.02 h5 6 GMG16901 R1.0 6 6 13 57 0~-0.030 h5 6 GMG16902 R1.0 8 8 19 63 0~-0.02 h5 6 GMG16902 R1.0 8 8 19 63 0~-0.030 h5 6 GMG16903 R1.0 10 10 22 72 0~-0.02 h5 6 GMG16903 R1.0 10 10 22 72 0~-0.030 h5 6 GMG16904 R1.5 10 10 22 72 0~-0.02 h5 6 GMG16904 R1.5 10 10 22 72 0~-0.030 h5 6 GMG16905 R2.0 10 10 22 72 0~-0.02 h5 6 GMG16905 R2.0 10 10 22 72 0~-0.030 h5 6 GMG16906 R1.0 12 12 26 83 0~-0.02 h6 6 GMG16906 R1.0 12 12 26 83 0~-0.030 h6 6 GMG16907 R1.5 12 12 26 83 0~-0.02 h6 6 GMG16907 R1.5 12 12 26 83 0~-0.030 h6 6 GMG16908 R2.0 12 12 26 83 0~-0.02 h6 6 GMG16908 R2.0 12 12 26 83 0~-0.030 h6 6 GMG16909 R3.0 12 12 26 83 0~-0.02 h6 6 GMG16909 R3.0 12 12 26 83 0~-0.030 h6 6 GMG16910 R1.5 16 16 32 92 0~-0.030 h6 6 GMG16911 R2.0 16 16 32 92 0~-0.030 h6 6 GMG16912 R3.0 16 16 32 92 0~-0.030 h6 6 GMG16913 R1.5 20 20 38 104 0~-0.030 h6 6 GMG16914 R2.0 20 20 38 104 0~-0.030 h6 6 GMG16915 R3.0 20 20 38 104 0~-0.030 h6 6 GMG16916 R1.5 25 25 44 104 0~-0.030 h6 6 GMG16917 R2.0 25 25 44 104 0~-0.030 h6 6 GMG16918 R3.0 25 25 44 104 0~-0.030 h6 6

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
ExcellentVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
GoodVDI 36–37
VDI grade reference27 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysGood--
37STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (GMG16) V7 Plus Carbide, 4Flute Corner Radius End Mill, Long length, Plain Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Radius (R) Mill Diameter (D1) ShankDia (D2) Length of Cut (l1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG16060 R0.50 6 6 13 57 0~-0.02 h5 6 GMG16060 R0.50 6 6 13 57 0~-0.030 h5 6 GMG16080 R0.50 8 8 19 63 0~-0.02 h5 6 GMG16080 R0.50 8 8 19 63 0~-0.030 h5 6 GMG16100 R0.50 10 10 22 72 0~-0.02 h5 6 GMG16100 R0.50 10 10 22 72 0~-0.030 h5 6 GMG16120 R0.50 12 12 26 83 0~-0.02 h6 6 GMG16120 R0.50 12 12 26 83 0~-0.030 h6 6 GMG16160 R1.0 16 16 32 92 0~-0.030 h6 6 GMG16200 R1.0 20 20 38 104 0~-0.030 h6 6 GMG16250 R1.0 25 25 44 104 0~-0.030 h6 6 GMG16901 R1.0 6 6 13 57 0~-0.02 h5 6 GMG16901 R1.0 6 6 13 57 0~-0.030 h5 6 GMG16902 R1.0 8 8 19 63 0~-0.02 h5 6 GMG16902 R1.0 8 8 19 63 0~-0.030 h5 6 GMG16903 R1.0 10 10 22 72 0~-0.02 h5 6 GMG16903 R1.0 10 10 22 72 0~-0.030 h5 6 GMG16904 R1.5 10 10 22 72 0~-0.02 h5 6 GMG16904 R1.5 10 10 22 72 0~-0.030 h5 6 GMG16905 R2.0 10 10 22 72 0~-0.02 h5 6 GMG16905 R2.0 10 10 22 72 0~-0.030 h5 6 GMG16906 R1.0 12 12 26 83 0~-0.02 h6 6 GMG16906 R1.0 12 12 26 83 0~-0.030 h6 6 GMG16907 R1.5 12 12 26 83 0~-0.02 h6 6 GMG16907 R1.5 12 12 26 83 0~-0.030 h6 6 GMG16908 R2.0 12 12 26 83 0~-0.02 h6 6 GMG16908 R2.0 12 12 26 83 0~-0.030 h6 6 GMG16909 R3.0 12 12 26 83 0~-0.02 h6 6 GMG16909 R3.0 12 12 26 83 0~-0.030 h6 6 GMG16910 R1.5 16 16 32 92 0~-0.030 h6 6 GMG16911 R2.0 16 16 32 92 0~-0.030 h6 6 GMG16912 R3.0 16 16 32 92 0~-0.030 h6 6 GMG16913 R1.5 20 20 38 104 0~-0.030 h6 6 GMG16914 R2.0 20 20 38 104 0~-0.030 h6 6 GMG16915 R3.0 20 20 38 104 0~-0.030 h6 6 GMG16916 R1.5 25 25 44 104 0~-0.030 h6 6 GMG16917 R2.0 25 25 44 104 0~-0.030 h6 6 GMG16918 R3.0 25 25 44 104 0~-0.030 h6 6
