(TC807) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose (Short Chamfer)

HSS-E metric spiral flute combo tap for blind holes

(TC807) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose (Short Chamfer)
$36.19 INC GST $32.90 EX GST
SKU
TC807136
Work materials
PMKN

Key features

  • HSS-E M35 spiral flute combo tap for multi-purpose blind-hole threading
  • Short chamfer with R40 spiral flute geometry
  • Maximum blind-hole thread depth of 2.5×D
Tool material HSS-E
Surface treatment Bright
Size
Pitch (mm)
Loading stock…
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for blind holes

Short chamfer and spiral flute geometry support blind-hole threading to 2.5×D depth

Wide metric coverage

Covers metric coarse threads from M2 × 0.4 through M30 × 3.5

Multi-material use

Recommended for steels, stainless steel, cast iron, aluminium, copper alloys and plastics

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TC807136M20.48.045.013.02.82.15.031.6STEPDXF Order in $32.90
TC807156M2.20.458.045.013.02.82.15.031.75STEPDXF Order in $36.80
TC807196M2.30.48.045.013.02.82.15.031.9STEPDXF Order in $27.30
TC807176M2.50.459.050.015.02.82.15.032.05STEPDXF Order in $41.20
TC807496M2.60.459.050.015.02.82.15.032.1STEPDXF Order in $21.70
TC807206M30.56.056.018.03.52.76.032.5STEPDXF Order in $24.50
TC807226M3.50.67.056.020.04.03.06.032.9STEPDXF Order in $21.70
TC807246M40.77.063.021.04.53.46.033.3STEPDXF Order in $21.60
TC807266M4.50.758.070.025.06.04.98.033.7STEPDXF Order in $22.40
TC807286M50.88.070.025.06.04.98.034.2STEPDXF Order in $23.10
TC807316M61.010.080.030.06.04.98.035.0STEPDXF Order in $23.10
TC807346M71.010.080.030.07.05.58.036.0STEPDXF Order in $29.20
TC807366M81.2513.090.035.08.06.29.036.8STEPDXF Order in $29.90
TC807396M91.2513.090.035.09.07.010.037.8STEPDXF Order in $35.00
TC807426M101.515.0100.039.010.08.011.038.5STEPDXF Order in $42.50
TC807466M111.517.0100.040.08.06.29.039.5STEPDXF Order in $26.10
TC807506M121.7518.0110.044.09.07.010.0310.2STEPDXF Order in $53.00
TC807546M142.020.0110.044.011.09.012.0312.0STEPDXF Order in $57.20
TC807606M162.020.0110.044.012.09.012.0314.0STEPDXF Order in $71.60
TC807656M182.525.0125.050.014.011.014.0415.5STEPDXF Order in $94.80
TC807706M202.525.0140.054.016.012.015.0417.5STEPDXF Order in $113.00
TC807746M222.525.0140.054.018.014.517.0419.5STEPDXF Order in $140.20
TC807786M243.030.0160.060.018.014.517.0421.0STEPDXF Order in $152.50
TC807866M273.030.0160.060.020.016.019.0424.0STEPDXF Order in $219.20
TC807946M303.535.0180.070.022.018.021.0426.5STEPDXF Order in $280.20

Add (TC807) HSS-E (M35) Metric Spiral Flute Combo Tap for Multi Purpose (Short Chamfer) to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

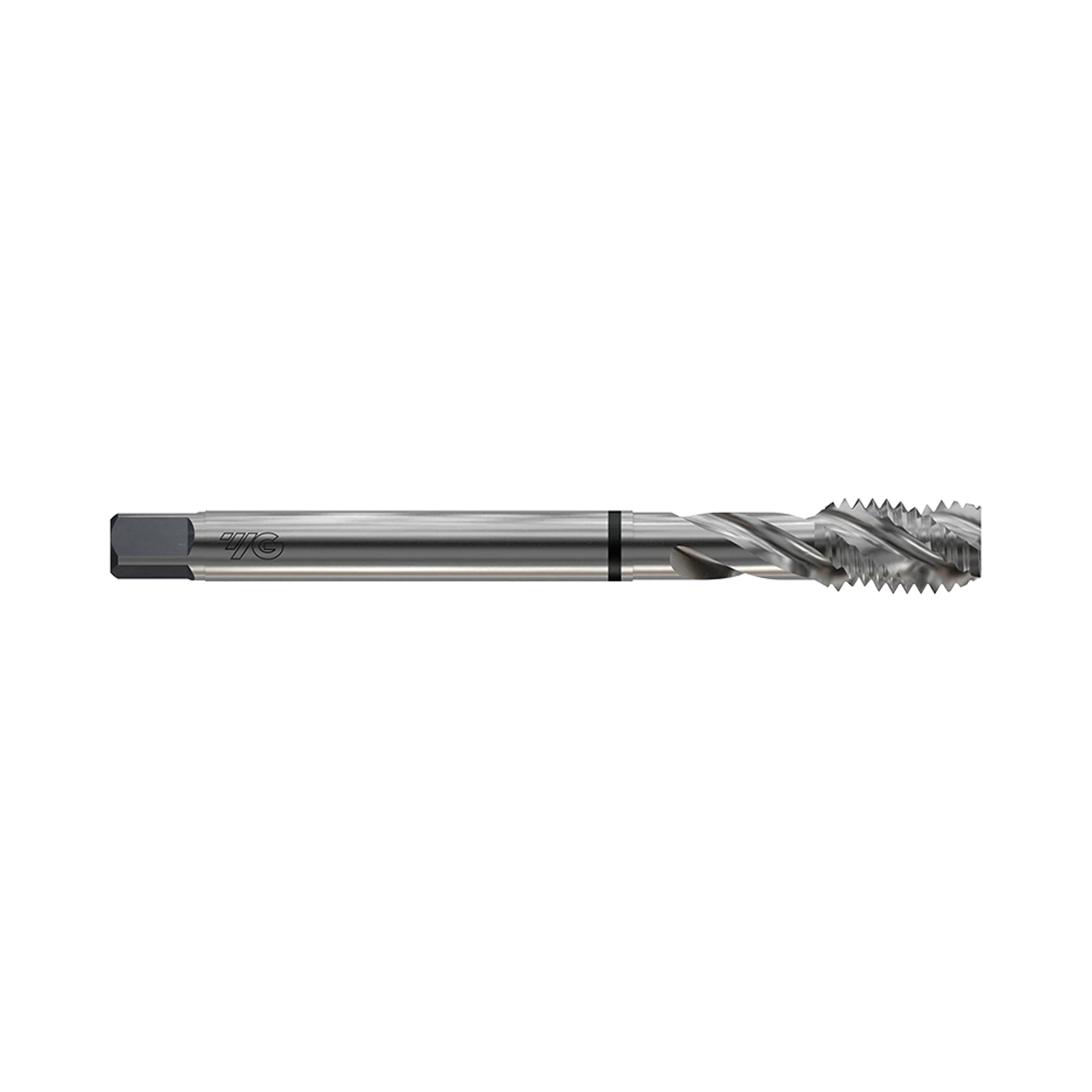

YG-1 TC807 HSS-E (M35) metric spiral flute combo tap is designed for multi-purpose blind-hole threading. Its short chamfer and R40 spiral flute geometry support tapping to a maximum 2.5×D depth. DIN 371 and DIN 376 construction covers M2 × 0.4 to M30 × 3.5 metric coarse threads. The range is recommended for steels, stainless steel, cast iron, aluminium, copper alloys and plastics. Selected M18 to M30 variants have four flutes, while smaller metric sizes have three. Bright finish is the specified surface treatment throughout the TC807 product family. Thread form E and 6H thread class are specified across this metric thread range.

  • HSS-E M35 spiral flute combo tap for multi-purpose blind-hole threading
  • Short chamfer with R40 spiral flute geometry
  • Maximum blind-hole thread depth of 2.5×D
  • Metric coarse thread range from M2 × 0.4 to M30 × 3.5
  • DIN 371 and DIN 376 tool standard
  • Bright finish with E thread form and 6H thread class
Product Data
Chamfer Lead Form E
Hole Type Blind
Spiral Flute Angle 40°
Standard DIN 371 / 376
Surface Treatment Bright
Thread Angle 60°
Thread Class 6H
Thread Shape M
Tool Material HSS-E
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC807136 M2 0.4 8 45 13 2.8 2.1 5 3 TC807156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC807176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC807196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC807206 M3 0.5 6 56 18 3.5 2.7 6 3 TC807226 M3.5 0.6 7 56 20 4 3 6 3 TC807246 M4 0.7 7 63 21 4.5 3.4 6 3 TC807266 M4.5 0.75 8 70 25 6 4.9 8 3 TC807286 M5 0.8 8 70 25 6 4.9 8 3 TC807316 M6 1 10 80 30 6 4.9 8 3 TC807346 M7 1 10 80 30 7 5.5 8 3 TC807366 M8 1.25 13 90 35 8 6.2 9 3 TC807396 M9 1.25 13 90 35 9 7 10 3 TC807426 M10 1.5 15 100 39 10 8 11 3 TC807466 M11 1.5 17 100 40 8 6.2 9 3 TC807496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC807506 M12 1.75 18 110 44 9 7 10 3 TC807546 M14 2 20 110 44 11 9 12 3 TC807606 M16 2 20 110 44 12 9 12 3 TC807656 M18 2.5 25 125 50 14 11 14 4 TC807706 M20 2.5 25 140 54 16 12 15 4 TC807746 M22 2.5 25 140 54 18 14.5 17 4 TC807786 M24 3 30 160 60 18 14.5 17 4 TC807866 M27 3 30 160 60 20 16 19 4 TC807946 M30 3.5 35 180 70 22 18 21 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

10 grades
Non-alloy steel
ExcellentVDI 2–5
GoodVDI 1
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
GoodVDI 10

Cast iron

4 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

4 grades
Cast aluminium
ExcellentVDI 23
Copper, bronze and brass
ExcellentVDI 26–28
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
23NCast aluminiumExcellent75-
26NCopper, bronze and brassExcellent110-
27NCopper, bronze and brassExcellent90-
28NCopper, bronze and brassExcellent100-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC807136 M2 0.4 8 45 13 2.8 2.1 5 3 TC807156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC807176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC807196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC807206 M3 0.5 6 56 18 3.5 2.7 6 3 TC807226 M3.5 0.6 7 56 20 4 3 6 3 TC807246 M4 0.7 7 63 21 4.5 3.4 6 3 TC807266 M4.5 0.75 8 70 25 6 4.9 8 3 TC807286 M5 0.8 8 70 25 6 4.9 8 3 TC807316 M6 1 10 80 30 6 4.9 8 3 TC807346 M7 1 10 80 30 7 5.5 8 3 TC807366 M8 1.25 13 90 35 8 6.2 9 3 TC807396 M9 1.25 13 90 35 9 7 10 3 TC807426 M10 1.5 15 100 39 10 8 11 3 TC807466 M11 1.5 17 100 40 8 6.2 9 3 TC807496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC807506 M12 1.75 18 110 44 9 7 10 3 TC807546 M14 2 20 110 44 11 9 12 3 TC807606 M16 2 20 110 44 12 9 12 3 TC807656 M18 2.5 25 125 50 14 11 14 4 TC807706 M20 2.5 25 140 54 16 12 15 4 TC807746 M22 2.5 25 140 54 18 14.5 17 4 TC807786 M24 3 30 160 60 18 14.5 17 4 TC807866 M27 3 30 160 60 20 16 19 4 TC807946 M30 3.5 35 180 70 22 18 21 4
