(TD814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose (TiN Coated)

TiN-coated HSS-E combo tap for through holes

(TD814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose (TiN Coated)
$64.68 INC GST $58.80 EX GST
SKU
TD814136
Work materials
PMKN

Key features

  • TiN-coated HSS-E metric gun point combo tap
  • ISO metric coarse threads to DIN 13
  • Form B spiral-point geometry
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for through holes

Spiral-point geometry supports machine tapping in through holes up to 3.0×D deep.

Accurate thread formation

Special tap geometry is designed to produce correct ISO metric coarse thread profiles.

Broad metric coverage

The family covers common coarse-pitch metric thread sizes from M2 to M39.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TD814136M20.48.045.013.02.82.15.031.6 In stock $58.80
TD814156M2.20.458.045.013.02.82.15.031.75 1-2 Weeks $64.40
TD814196M2.30.48.045.013.02.82.15.031.9 1-2 Weeks $71.20
TD814176M2.50.459.050.015.02.82.15.032.05 1-2 Weeks $50.10
TD814496M2.60.459.050.015.02.82.15.032.1 1-2 Weeks $54.90
TD814206M30.511.056.018.03.52.76.032.5 1-2 Weeks $40.20
TD814226M3.50.612.056.020.04.03.06.032.9 1-2 Weeks $56.00
TD814246M40.713.063.021.04.53.46.033.3 1-2 Weeks $40.40
TD814266M4.50.7514.070.025.06.04.98.033.7 1-2 Weeks $59.80
TD814286M50.815.070.025.06.04.98.034.2 1-2 Weeks $45.70
TD814316M61.017.080.030.06.04.98.035.0 In stock $45.70
TD814346M71.017.080.030.07.05.58.036.0 1-2 Weeks $60.10
TD814366M81.2520.090.035.08.06.29.036.8 1-2 Weeks $52.90
TD814396M91.2520.090.035.09.07.010.037.8 1-2 Weeks $77.80
TD814426M101.522.0100.039.010.08.011.038.5 1-2 Weeks $70.80
TD814506M121.7524.0110.044.09.07.010.0310.2 In stock $89.10
TD814546M142.026.0110.044.011.09.012.0312.0 1-2 Weeks $112.90
TD814606M162.027.0110.044.012.09.012.0314.0 Low stock $136.00
TD814656M182.530.0125.050.014.011.014.0415.5 1-2 Weeks $177.50
TD814706M202.532.0140.054.016.012.015.0417.5 1-2 Weeks $217.00
TD814746M222.532.0140.054.018.014.517.0419.5 1-2 Weeks $269.00
TD814786M243.034.0160.060.018.014.517.0421.0 1-2 Weeks $289.80
TD814866M273.036.0160.060.020.016.019.0424.0 1-2 Weeks $428.60
TD814946M303.540.0180.070.022.018.021.0426.5 1-2 Weeks $505.40
TD814C06M394.050.0200.080.032.024.027.0435.0 1-2 Weeks $897.20

Add (TD814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose (TiN Coated) to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

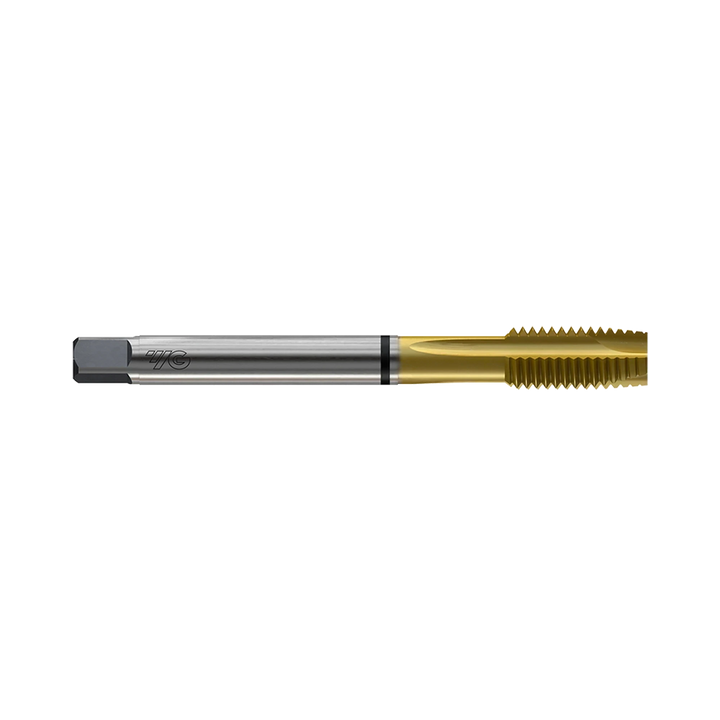

YG-1 TD814 is a TiN-coated HSS-E metric gun point combo tap for multi-purpose through-hole threading. It produces ISO metric coarse threads to DIN 13 in holes up to 3.0×D deep. Its Form B spiral-point geometry is designed for accurate thread profiles and long tool life. The TiN coating distinguishes this TD814 series within YG-1’s multi-purpose combo tap range. Sizes cover M2 × 0.4 through M39 × 4 ISO metric coarse thread options. DIN 371 shanks suit M2 to M10, while DIN 376 shanks apply to larger sizes. This machine tap suits general-purpose through-hole threading where ISO metric coarse thread form is required. The range offers a straightforward choice for common metric coarse production threading tasks.

  • TiN-coated HSS-E metric gun point combo tap
  • ISO metric coarse threads to DIN 13
  • Form B spiral-point geometry
  • For through holes up to 3.0×D deep
  • M2 × 0.4 to M39 × 4 thread sizes
  • DIN 371 and DIN 376 shank configurations
Product Data

No specifications available.

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

10 grades
Non-alloy steel
ExcellentVDI 2–5
GoodVDI 1
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
GoodVDI 10

Cast iron

4 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

4 grades
Cast aluminium
ExcellentVDI 23
Copper, bronze and brass
ExcellentVDI 26–28
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
23NCast aluminiumExcellent75-
26NCopper, bronze and brassExcellent110-
27NCopper, bronze and brassExcellent90-
28NCopper, bronze and brassExcellent100-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
