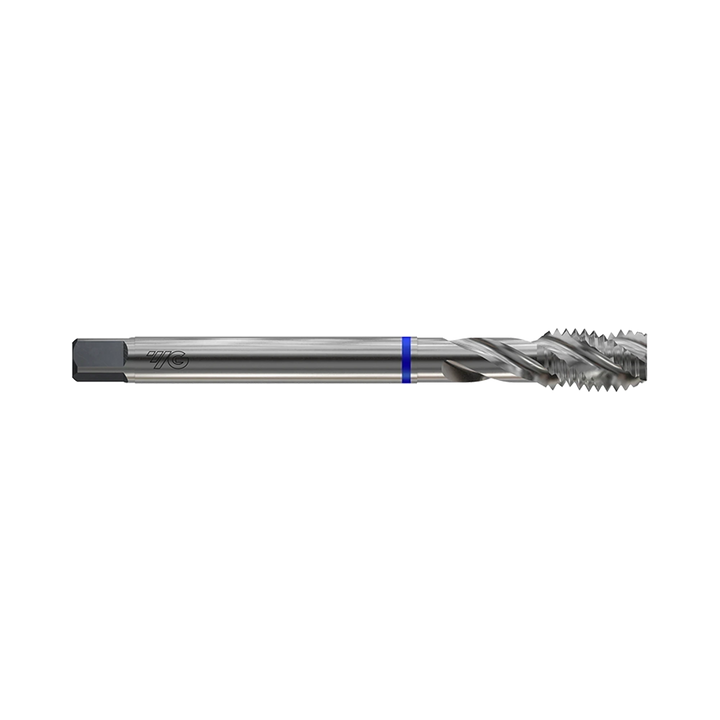

(TC169) HSS-E (M35) UNC Spiral Flute for Aluminum
Bright HSS-E UNC spiral flute taps for aluminium
- SKU
- TC169162
Key features
- Bright HSS-E UNC spiral flute machine tap
- Special flute geometry supports chip evacuation in blind holes
- Designed for tapping aluminium applications
Made in South Korea
Blind-hole focused
Special flute geometry supports effective chip evacuation in blind-hole tapping.
UNC thread range
Eight coarse-thread sizes cover #4-40 through 5/8-11 UNC requirements.
Aluminium application
Bright HSS-E construction is specified for tapping aluminium applications.

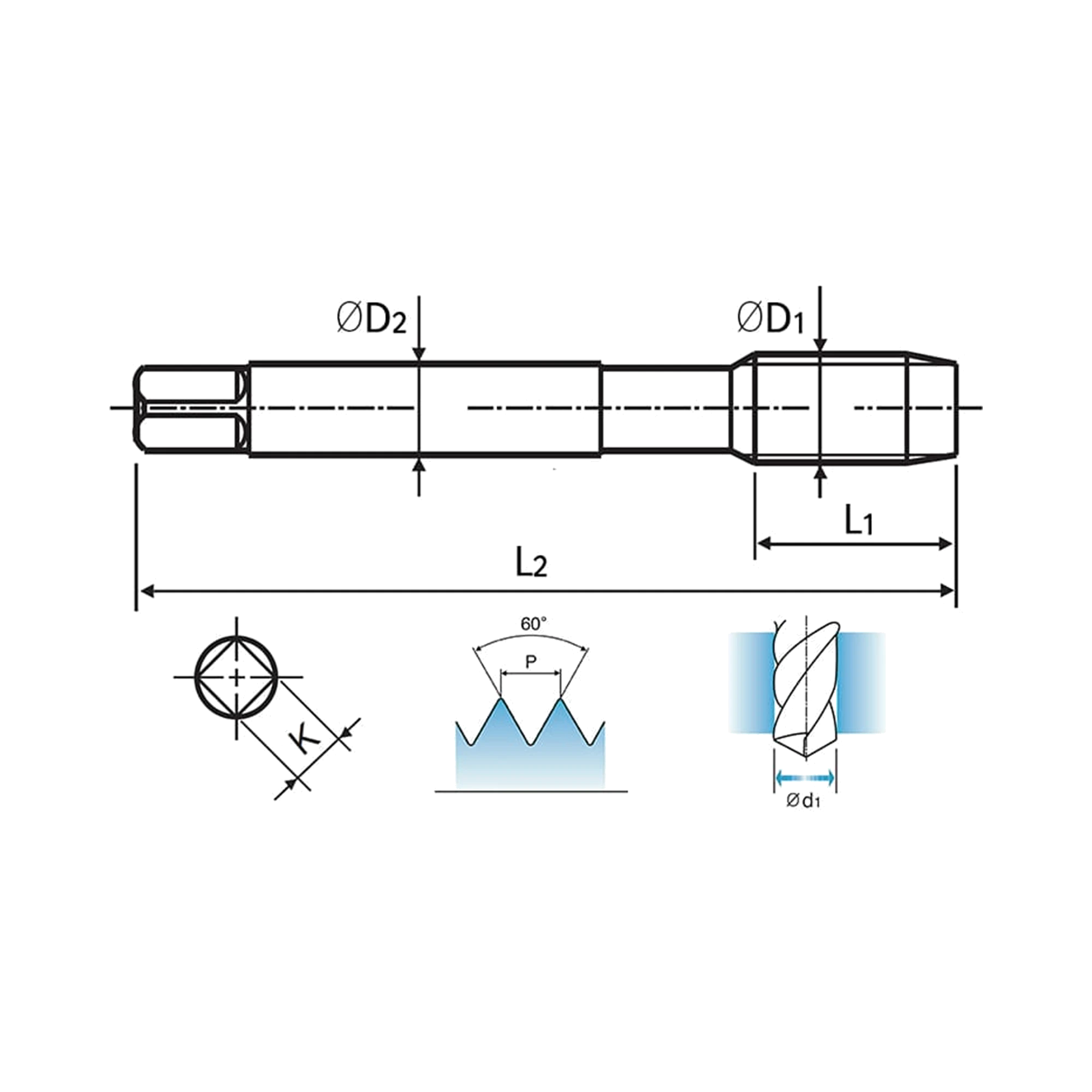

| SKU | Size | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC169162 | #4 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 2 | 2.3 | Low stock | $22.70 | ||
| TC169282 | #8 | 8.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 2 | 3.5 | 1-2 Weeks | $24.40 | ||
| TC169362 | #12 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 2 | 4.5 | 1-2 Weeks | $18.20 | ||
| TC169402 | 1/4 | 13.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 2 | 5.2 | Low stock | $18.20 | ||
| TC169442 | 5/16 | 14.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 2 | 6.6 | In stock | $23.60 | ||
| TC169482 | 3/8 | 16.0 | 100.0 | 39.0 | 9.0 | 7.0 | 10.0 | 2 | 8.0 | In stock | $28.40 | ||
| TC169562 | 1/2 | 20.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 2 | 10.75 | Low stock | $38.20 | ||
| TC169642 | 5/8 | 22.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 13.5 | 1-2 Weeks | $80.30 |
Add (TC169) HSS-E (M35) UNC Spiral Flute for Aluminum to comparison
View Comparison- Overview
- Specifications
- Reviews

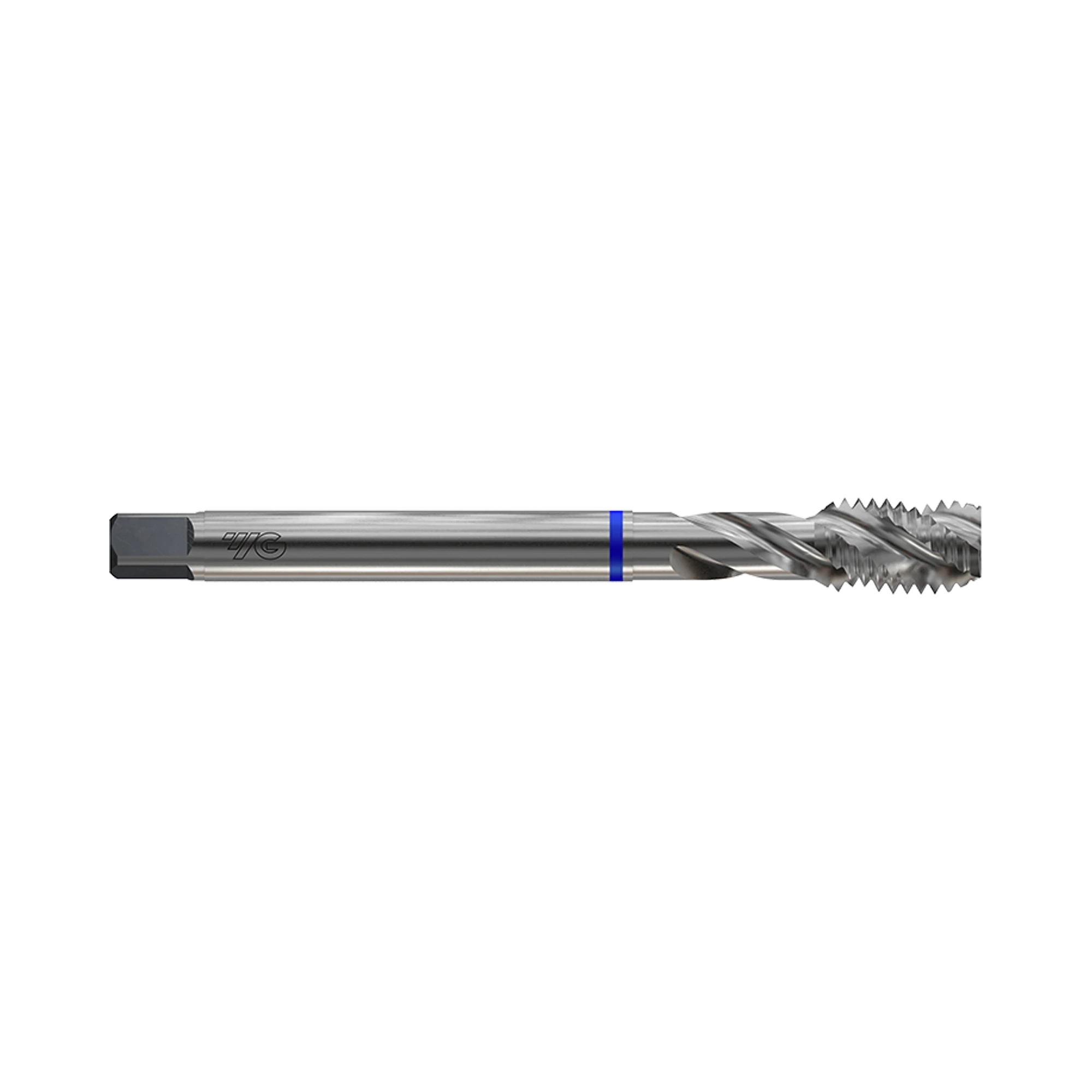

YG-1 TC169 HSS-E UNC spiral flute machine taps are bright finished for aluminium. Special flute geometry promotes chip evacuation when tapping blind holes in aluminium applications. The series produces Unified National Coarse internal threads with a 60° thread angle. It combines DIN 371 sizes from #4 to 3/8 with DIN 376 sizes from 1/2 to 5/8.
Available UNC sizes span #4-40 through 5/8-11, covering eight listed thread sizes. Each thread size has a specified tapping drill diameter for preparation. Two flutes are used through 3/8, while 1/2 and 5/8 versions have three. Choose TC169 for machine tapping aluminium blind holes where controlled chip evacuation matters.
- Bright HSS-E UNC spiral flute machine tap
- Special flute geometry supports chip evacuation in blind holes
- Designed for tapping aluminium applications
- UNC sizes from #4-40 to 5/8-11
- DIN 371 from #4 to 3/8
- DIN 376 in 1/2 and 5/8 sizes
No specifications available.
