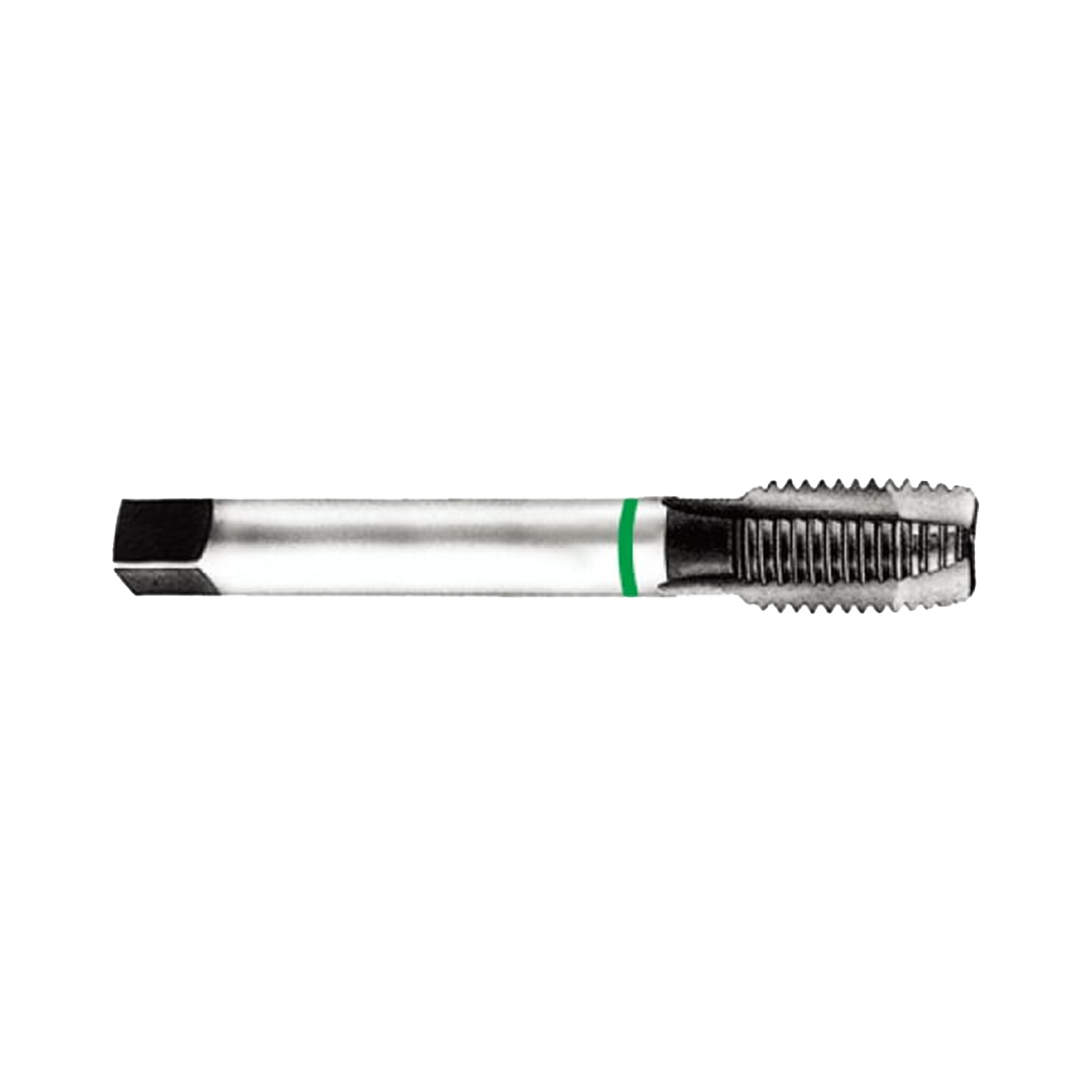

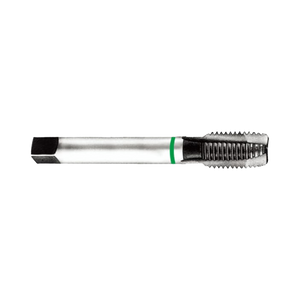

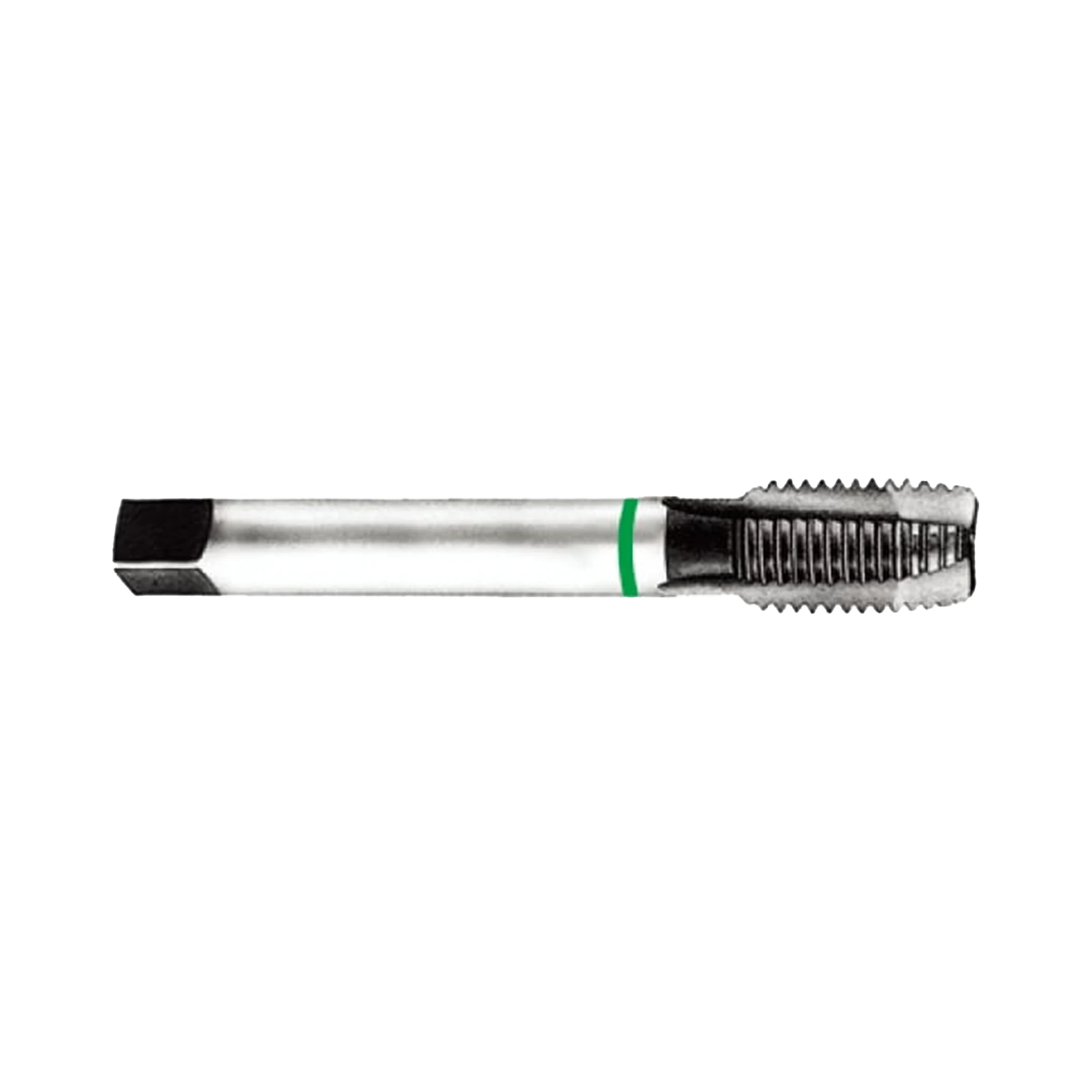

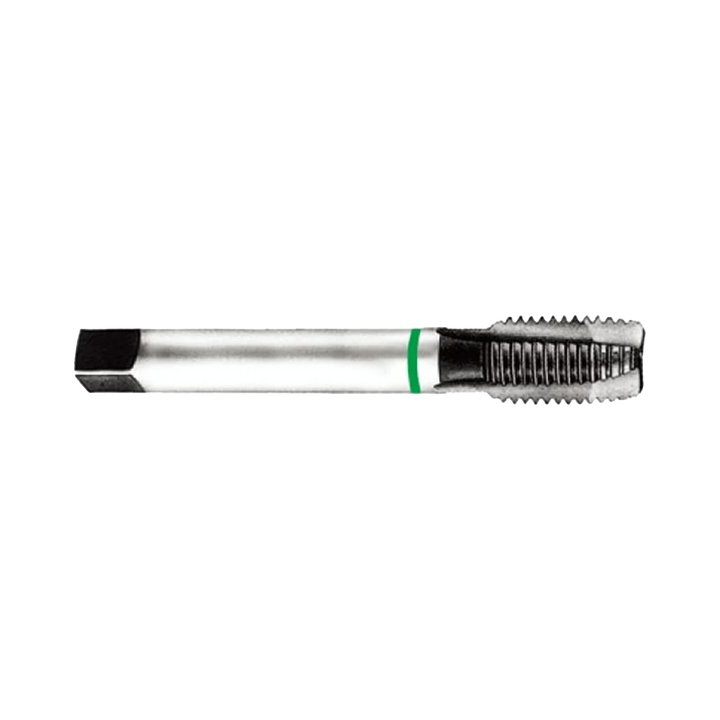

(TB264) HSS-E (M35) UNC Gun Point for Stainless Steel

UNC spiral-point machine taps for through holes

(TB264) HSS-E (M35) UNC Gun Point for Stainless Steel
$34.10 INC GST $31.00 EX GST
SKU
TB264322
Work materials
PMS

Key features

  • HSS-E UNC spiral-point machine tap for through holes
  • Thick web supports higher cutting speeds than other taps
  • Recommended for stainless steel machining
Tool material HSS-E
Surface treatment Steam Homo
Size
TPI
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Through-hole threading

Spiral-point geometry and a thick web suit machine tapping of through holes.

UNC size coverage

Covers coarse unified threads from #6-32 UNC through to 7/8-9 UNC.

Stainless steel suitability

Recommended for stainless steel, with suitability also indicated for selected steel materials.

SKUSizeTPIThread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TB264322#1024UNC15.070.025.06.04.98.033.9STEPDXF In stock $31.00
TB264282#832UNC13.063.021.04.53.46.033.5STEPDXF In stock $26.60
TB264242#632UNC12.056.020.04.03.06.032.85STEPDXF Low stock $29.30
TB2644021/420UNC17.080.030.07.05.58.035.2STEPDXF In stock $26.70
TB2644425/1618UNC20.090.035.08.06.29.036.6STEPDXF In stock $33.40
TB2644823/816UNC22.0100.039.09.07.010.038.0STEPDXF In stock $38.60
TB2645227/1614UNC22.0100.044.08.06.29.039.4STEPDXF In stock $47.60
TB2645621/213UNC25.0110.044.09.07.010.0310.75STEPDXF In stock $47.60
TB2646029/1612UNC26.0110.044.011.09.012.0312.25STEPDXF In stock $57.60
TB2646425/811UNC27.0110.044.012.09.012.0313.5STEPDXF In stock $72.30
TB2647023/410UNC30.0125.050.014.011.014.0416.5STEPDXF Low stock $102.60
TB2647427/89UNC32.0140.054.018.014.517.0419.5STEPDXF In stock $124.00
TB2647821"8.036.0160.060.020.016.019.0422.2STEPDXF Low stock $173.00

Add (TB264) HSS-E (M35) UNC Gun Point for Stainless Steel to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 TB264 HSS-E UNC spiral-point machine taps use a thick web for through-hole threading operations. Designed for through holes, this gun-point tap produces unified coarse UNC internal threads. The thick web supports use at higher cutting speeds than other taps. TB264 is recommended for stainless steel, with suitability also indicated for selected steel grades and materials. Available sizes run from #6-32 UNC to 7/8-9 UNC for common coarse-thread applications. Smaller sizes through 3/8 inch follow DIN 371, while larger sizes follow DIN 376. Six or four flutes are specified by size, providing an established range for machine tapping in production environments.

  • HSS-E UNC spiral-point machine tap for through holes
  • Thick web supports higher cutting speeds than other taps
  • Recommended for stainless steel machining
  • Unified coarse UNC sizes from #6-32 to 7/8-9
  • DIN 371 sizes through 3/8 inch
  • DIN 376 sizes from 7/16 inch
Product Data
Hole Type Through
Standard DIN 371 / 376
Surface Treatment Steam Homo
Thread Angle 60°
Thread Class 2B
Thread Form B
Thread Shape UNC
Tool Material HSS-E
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB264162 #4 40 11 56 18 3.5 2.7 6 3 TB264202 #5 40 11 56 18 3.5 2.7 6 3 TB264242 #6 32 12 56 20 4 3 6 3 TB264282 #8 32 13 63 21 4.5 3.4 6 3 TB264322 #10 24 15 70 25 6 4.9 8 3 TB264362 #12 24 16 80 30 6 4.9 8 3 TB264402 1/4 20 17 80 30 7 5.5 8 3 TB264442 5/16 18 20 90 35 8 6.2 9 3 TB264482 3/8 16 22 100 39 9 7 10 3 TB264522 7/16 14 22 100 44 8 6.2 9 3 TB264562 1/2 13 25 110 44 9 7 10 3 TB264602 9/16 12 26 110 44 11 9 12 3 TB264642 5/8 11 27 110 44 12 9 12 3 TB264702 3/4 10 30 125 50 14 11 14 4 TB264742 7/8 9 32 140 54 18 14.5 17 4 TB264782 1" 8 36 160 60 20 16 19 4 TB264822 1-1/8 7 40 180 70 22 18 21 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

5 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3–4
Low-alloy steel
GoodVDI 6

Superalloys & titanium

2 grades
Heat-resistant superalloys
GoodVDI 31
Titanium alloys
GoodVDI 36

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14
VDI grade reference10 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
6PLow-alloy steelGood18010
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
36STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
