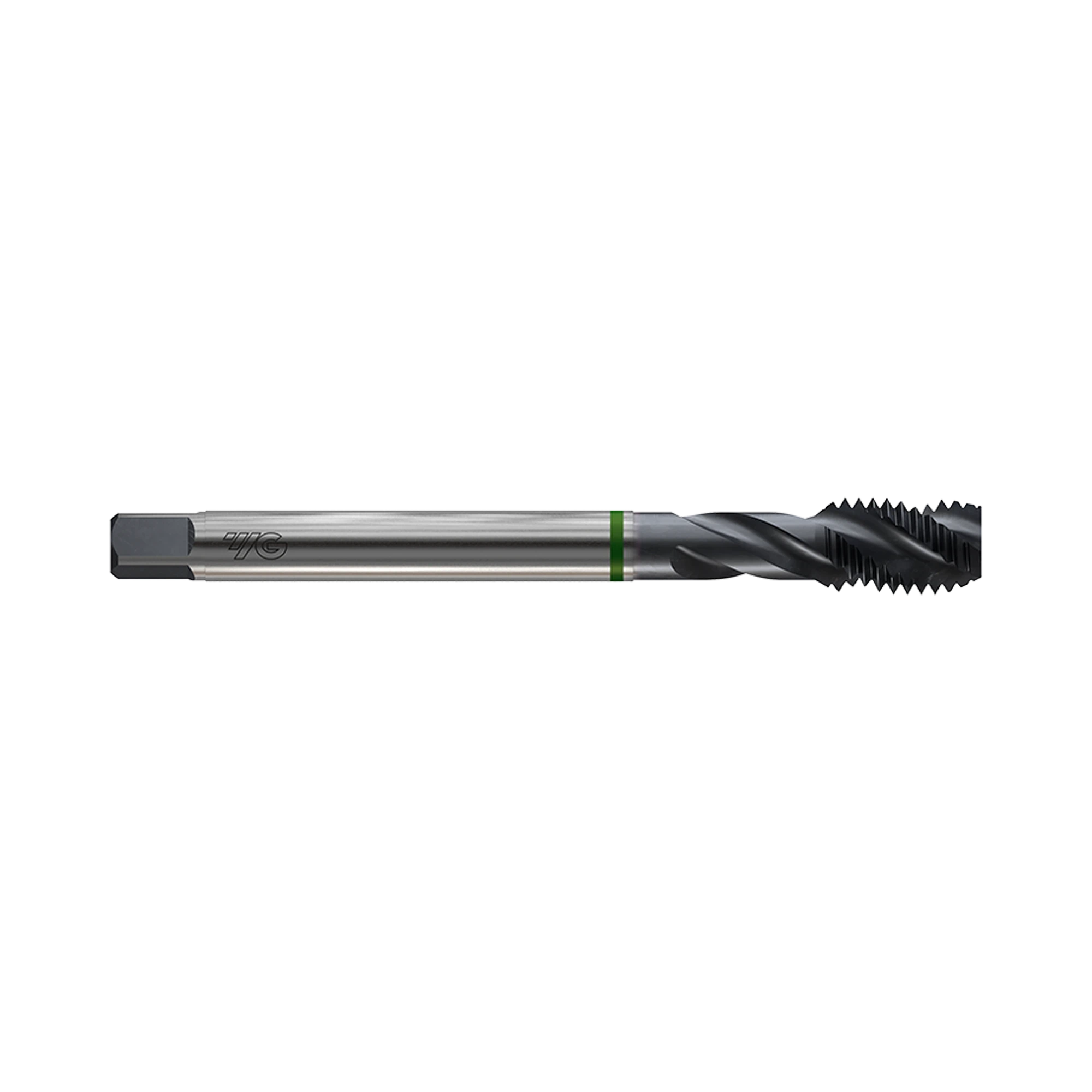

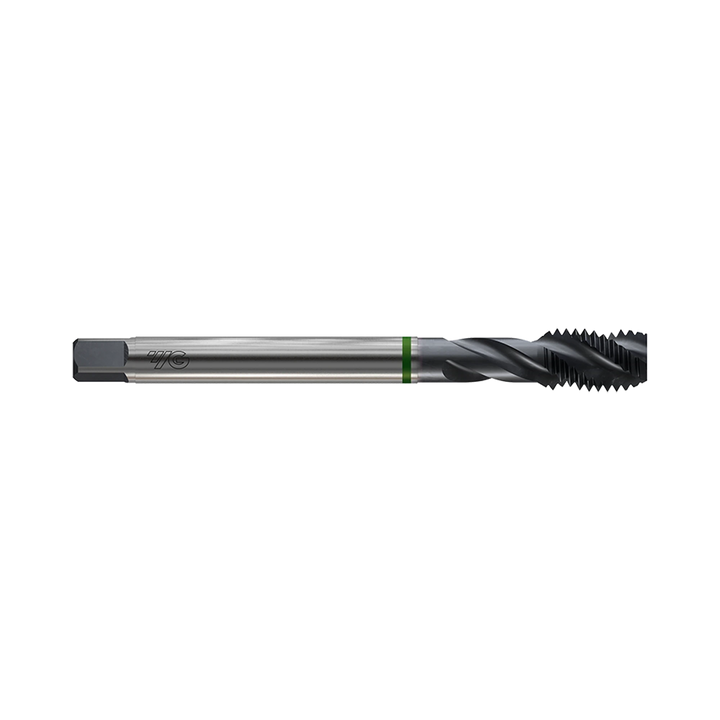

(TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless Steel

VAP-treated spiral flute taps for metric fine blind holes

(TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless Steel
$35.97 INC GST $32.70 EX GST
SKU
TB183296
Work materials
PMS

Key features

  • VAP treatment for stainless steel
  • Special flute geometry for blind-hole chip evacuation
  • ISO metric fine threads specified under DIN 13
Tool material HSS-E
Surface treatment Steam Homo
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Blind-hole control

Special flute geometry supports chip evacuation when producing internal threads in blind holes.

Stainless steel focus

VAP treatment and the TB183 configuration suit stainless-steel threading applications.

Metric fine coverage

The selected range covers common metric fine thread sizes from M5 to M20.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TB183296M50.55.070.025.03.52.76.034.5STEPDXF 1-2 Weeks $32.70
TB183336M60.55.080.030.04.53.46.035.5STEPDXF 1-2 Weeks $32.40
TB183326M60.758.080.030.04.53.46.035.2STEPDXF 1-2 Weeks $32.30
TB183386M80.758.080.030.06.04.98.037.3STEPDXF 1-2 Weeks $43.50
TB183376M81.010.090.036.06.04.98.037.0STEPDXF 1-2 Weeks $43.46
TB183456M100.7510.090.036.07.05.58.039.3STEPDXF Restocking $59.16
TB183446M101.010.090.036.07.05.58.039.0STEPDXF Low stock $59.16
TB183436M101.2516.0100.040.07.05.58.038.8STEPDXF 1-2 Weeks $59.16
TB183536M121.011.0100.040.09.07.010.0311.0STEPDXF 1-2 Weeks $74.96
TB183526M121.2515.0100.040.09.07.010.0310.8STEPDXF In stock $74.96
TB183516M121.515.0100.040.09.07.010.0310.5STEPDXF Low stock $74.96
TB183566M141.2515.0100.040.011.09.012.0312.8STEPDXF 1-2 Weeks $91.11
TB183556M141.515.0100.040.011.09.012.0312.5STEPDXF In stock $91.11
TB183616M161.515.0100.040.012.09.012.0314.5STEPDXF In stock $105.67
TB183676M181.517.0110.044.014.011.014.0416.5STEPDXF In stock $105.68
TB183726M201.517.0125.050.016.012.015.0418.5STEPDXF Low stock $166.74
TB183766M221.517.0125.050.018.014.517.0420.5STEPDXF Low stock $206.73
TB183806M241.520.0140.054.018.014.517.0422.5STEPDXF 1-2 Weeks $225.02

Add (TB183) HSS-E (M35) Metric Fine Spiral Flute for Stainless Steel to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 TB183 HSS-E metric fine spiral flute machine taps use VAP treatment for stainless steel. Designed for blind holes, the special flute geometry provides excellent chip evacuation while tapping. They produce ISO metric fine internal threads specified under DIN 13. This configuration is intended for internal threading where blind-hole chip control is required. Selected sizes cover M5 × 0.5 through M20 × 1.5 fine threads. Three flutes are specified throughout the selected TB183 range. The selected taps use tapping drill diameters from 4.5 mm to 18.5 mm.

  • VAP treatment for stainless steel
  • Special flute geometry for blind-hole chip evacuation
  • ISO metric fine threads specified under DIN 13
  • DIN 374 machine tap format
  • Three flute configuration
  • Selected M5 × 0.5 to M20 × 1.5 range
Product Data
Chamfer Lead Form C
Hole Type Blind
Spiral Flute Angle 40°
Surface Treatment Steam Homo
Thread Angle 60°
Thread Class 6H
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB183256 M4 0.5 5 63 21 2.8 2.1 5 3 TB183296 M5 0.5 5 70 25 3.5 2.7 6 3 TB183326 M6 0.75 8 80 30 4.5 3.4 6 3 TB183336 M6 0.5 5 80 30 4.5 3.4 6 3 TB183356 M7 0.75 10 80 30 5.5 4.3 7 3 TB183376 M8 1 10 90 36 6 4.9 8 3 TB183386 M8 0.75 8 80 30 6 4.9 8 3 TB183436 M10 1.25 16 100 40 7 5.5 8 3 TB183446 M10 1 10 90 36 7 5.5 8 3 TB183456 M10 0.75 10 90 36 7 5.5 8 3 TB183516 M12 1.5 15 100 40 9 7 10 3 TB183526 M12 1.25 15 100 40 9 7 10 3 TB183536 M12 1 11 100 40 9 7 10 3 TB183556 M14 1.5 15 100 40 11 9 12 3 TB183566 M14 1.25 15 100 40 11 9 12 3 TB183616 M16 1.5 15 100 40 12 9 12 3 TB183676 M18 1.5 17 110 44 14 11 14 4 TB183726 M20 1.5 17 125 50 16 12 15 4 TB183766 M22 1.5 17 125 50 18 14.5 17 4 TB183806 M24 1.5 20 140 54 18 14.5 17 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

5 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3–4
Low-alloy steel
GoodVDI 6

Superalloys & titanium

2 grades
Heat-resistant superalloys
GoodVDI 31
Titanium alloys
GoodVDI 36

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14
VDI grade reference10 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
6PLow-alloy steelGood18010
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
36STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB183256 M4 0.5 5 63 21 2.8 2.1 5 3 TB183296 M5 0.5 5 70 25 3.5 2.7 6 3 TB183326 M6 0.75 8 80 30 4.5 3.4 6 3 TB183336 M6 0.5 5 80 30 4.5 3.4 6 3 TB183356 M7 0.75 10 80 30 5.5 4.3 7 3 TB183376 M8 1 10 90 36 6 4.9 8 3 TB183386 M8 0.75 8 80 30 6 4.9 8 3 TB183436 M10 1.25 16 100 40 7 5.5 8 3 TB183446 M10 1 10 90 36 7 5.5 8 3 TB183456 M10 0.75 10 90 36 7 5.5 8 3 TB183516 M12 1.5 15 100 40 9 7 10 3 TB183526 M12 1.25 15 100 40 9 7 10 3 TB183536 M12 1 11 100 40 9 7 10 3 TB183556 M14 1.5 15 100 40 11 9 12 3 TB183566 M14 1.25 15 100 40 11 9 12 3 TB183616 M16 1.5 15 100 40 12 9 12 3 TB183676 M18 1.5 17 110 44 14 11 14 4 TB183726 M20 1.5 17 125 50 16 12 15 4 TB183766 M22 1.5 17 125 50 18 14.5 17 4 TB183806 M24 1.5 20 140 54 18 14.5 17 4
