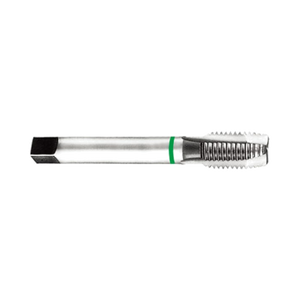

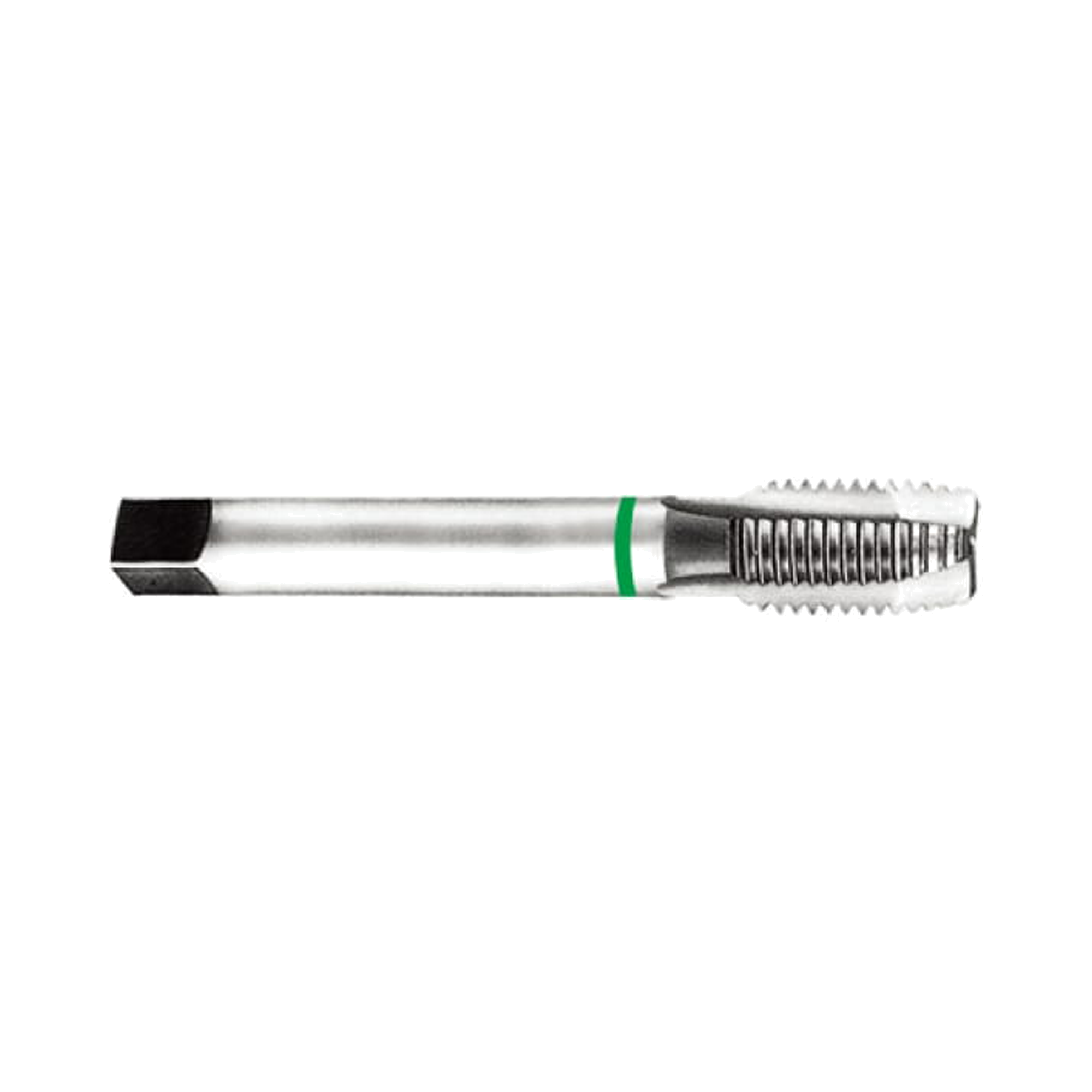

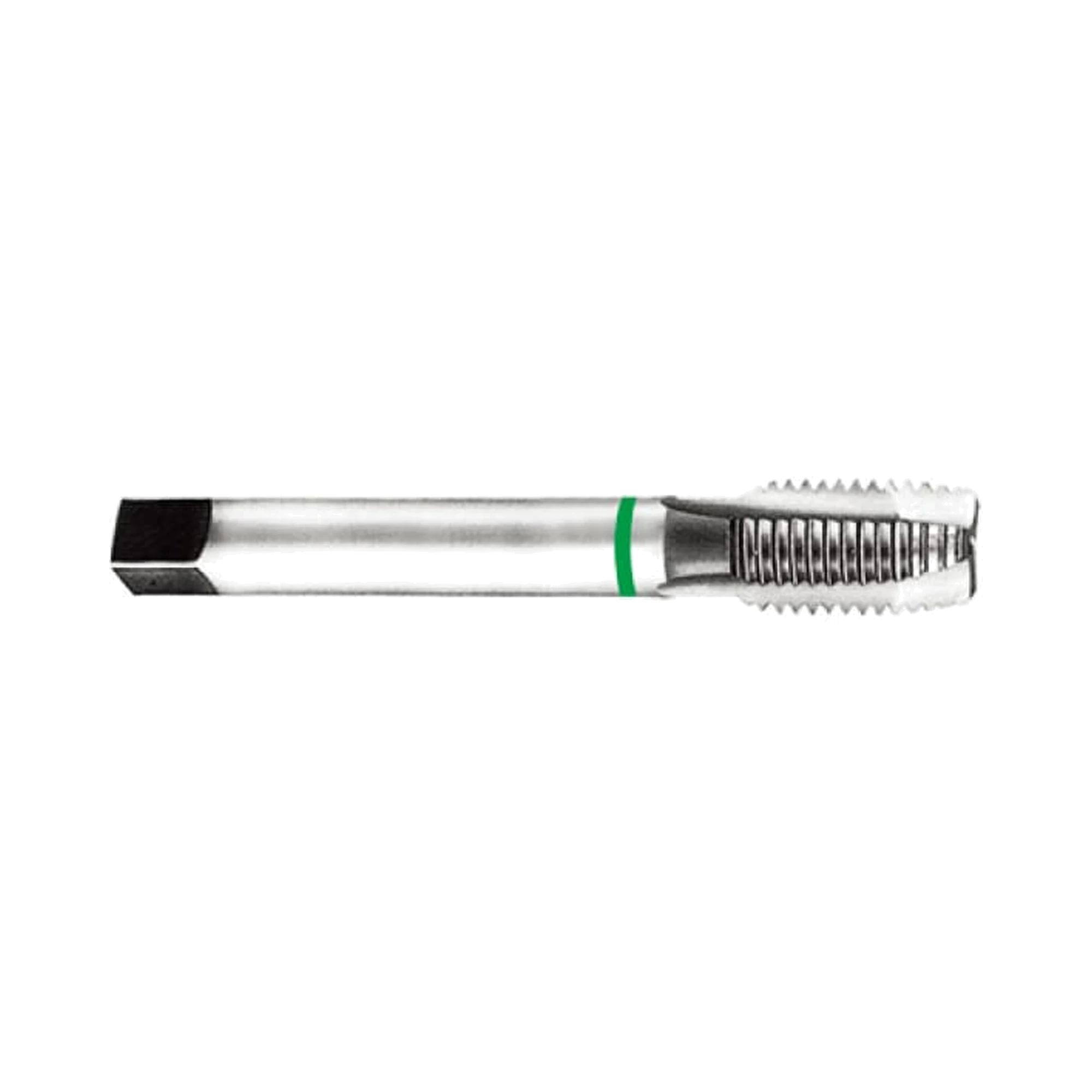

(TB123) HSS-E (M35) Metric Fine Gun Point for Stainless Steel

HSS-E metric fine spiral point taps for through holes

(TB123) HSS-E (M35) Metric Fine Gun Point for Stainless Steel
$42.68 INC GST $38.80 EX GST
SKU
TB123256
Work materials
PMS

Key features

  • HSS-E M35 metric fine spiral point machine tap
  • Thick web supports higher cutting speed through holes
  • Designed for stainless steels with irregular chip formation
Tool material HSS-E
Surface treatment Steam Homo
Size
Pitch (mm)
Loading stock…
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for through holes

The thick web supports higher cutting speed for productive through-hole threading.

For stainless steel work

Part of the YG TAP INOX range for stainless steels with irregular chip formation.

Useful metric fine coverage

Twelve supplied sizes cover M4 × 0.5 through to M24 × 1.5.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TB123256M40.510.063.021.02.82.15.033.5STEPDXF Order in $38.80
TB123296M50.511.070.025.03.52.76.034.5STEPDXF Order in $39.90
TB123326M60.7513.080.030.04.53.46.035.2STEPDXF Order in $39.40
TB123356M70.7514.080.030.05.54.37.036.2STEPDXF Order in $57.80
TB123376M81.017.090.036.06.04.98.037.0STEPDXF Order in $36.62
TB123436M101.2522.0100.040.07.05.58.038.8STEPDXF Order in $44.31
TB123516M121.522.0100.040.09.07.010.0310.5STEPDXF Order in $49.78
TB123556M141.522.0100.040.011.09.012.0312.5STEPDXF In stock $49.60
TB123616M161.522.0100.040.012.09.012.0314.5STEPDXF Low stock $73.88
TB123676M181.525.0110.044.014.011.014.0416.5STEPDXF Order in $110.50
TB123766M221.525.0125.050.018.014.517.0420.5STEPDXF Order in $152.90
TB123806M241.527.0140.054.018.014.517.0422.5STEPDXF Order in $141.20

Add (TB123) HSS-E (M35) Metric Fine Gun Point for Stainless Steel to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 TB123 HSS-E metric fine spiral point machine taps feature a thick web for through holes. They are designed for threading stainless steels with lamellar, irregular chip formation and higher cutting forces. Spiral point geometry supports higher cutting speed in through-hole tapping applications.

The DIN 374 range covers M4 × 0.5 to M24 × 1.5 thread sizes. Selected variants provide three or four flutes and tapping drill diameters from 3.5 to 22.5 mm. The full selection spans twelve commonly used metric fine thread sizes for workshop and production machining. Use these machine taps where metric fine internal threads are required in through holes.

  • HSS-E M35 metric fine spiral point machine tap
  • Thick web supports higher cutting speed through holes
  • Designed for stainless steels with irregular chip formation
  • DIN 374 thread tap range from M4 × 0.5 to M24 × 1.5
  • Three or four flute variants
  • Tapping drill diameters from 3.5 to 22.5 mm
Product Data
Hole Type Through
Surface Treatment Steam Homo
Thread Angle 60°
Thread Class 6HX
Thread Form B
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB123256 M4 0.5 10 63 21 2.8 2.1 5 3 TB123296 M5 0.5 11 70 25 3.5 2.7 6 3 TB123326 M6 0.75 13 80 30 4.5 3.4 6 3 TB123336 M6 0.5 13 80 30 4.5 3.4 6 3 TB123356 M7 0.75 14 80 30 5.5 4.3 7 3 TB123376 M8 1 17 90 36 6 4.9 8 3 TB123386 M8 0.75 14 80 30 6 4.9 8 3 TB123436 M10 1.25 22 100 40 7 5.5 8 3 TB123446 M10 1 18 90 36 7 5.5 8 3 TB123456 M10 0.75 18 90 36 7 5.5 8 3 TB123516 M12 1.5 22 100 40 9 7 10 3 TB123526 M12 1.25 22 100 40 9 7 10 3 TB123536 M12 1 18 100 40 9 7 10 3 TB123556 M14 1.5 22 100 40 11 9 12 3 TB123566 M14 1.25 22 100 40 11 9 12 3 TB123616 M16 1.5 22 100 40 12 9 12 3 TB123676 M18 1.5 25 110 44 14 11 14 4 TB123726 M20 1.5 25 125 50 16 12 15 4 TB123766 M22 1.5 25 125 50 18 14.5 17 4 TB123806 M24 1.5 27 140 54 18 14.5 17 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

5 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3–4
Low-alloy steel
GoodVDI 6

Superalloys & titanium

2 grades
Heat-resistant superalloys
GoodVDI 31
Titanium alloys
GoodVDI 36

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14
VDI grade reference10 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
6PLow-alloy steelGood18010
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
36STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB123256 M4 0.5 10 63 21 2.8 2.1 5 3 TB123296 M5 0.5 11 70 25 3.5 2.7 6 3 TB123326 M6 0.75 13 80 30 4.5 3.4 6 3 TB123336 M6 0.5 13 80 30 4.5 3.4 6 3 TB123356 M7 0.75 14 80 30 5.5 4.3 7 3 TB123376 M8 1 17 90 36 6 4.9 8 3 TB123386 M8 0.75 14 80 30 6 4.9 8 3 TB123436 M10 1.25 22 100 40 7 5.5 8 3 TB123446 M10 1 18 90 36 7 5.5 8 3 TB123456 M10 0.75 18 90 36 7 5.5 8 3 TB123516 M12 1.5 22 100 40 9 7 10 3 TB123526 M12 1.25 22 100 40 9 7 10 3 TB123536 M12 1 18 100 40 9 7 10 3 TB123556 M14 1.5 22 100 40 11 9 12 3 TB123566 M14 1.25 22 100 40 11 9 12 3 TB123616 M16 1.5 22 100 40 12 9 12 3 TB123676 M18 1.5 25 110 44 14 11 14 4 TB123726 M20 1.5 25 125 50 16 12 15 4 TB123766 M22 1.5 25 125 50 18 14.5 17 4 TB123806 M24 1.5 27 140 54 18 14.5 17 4
