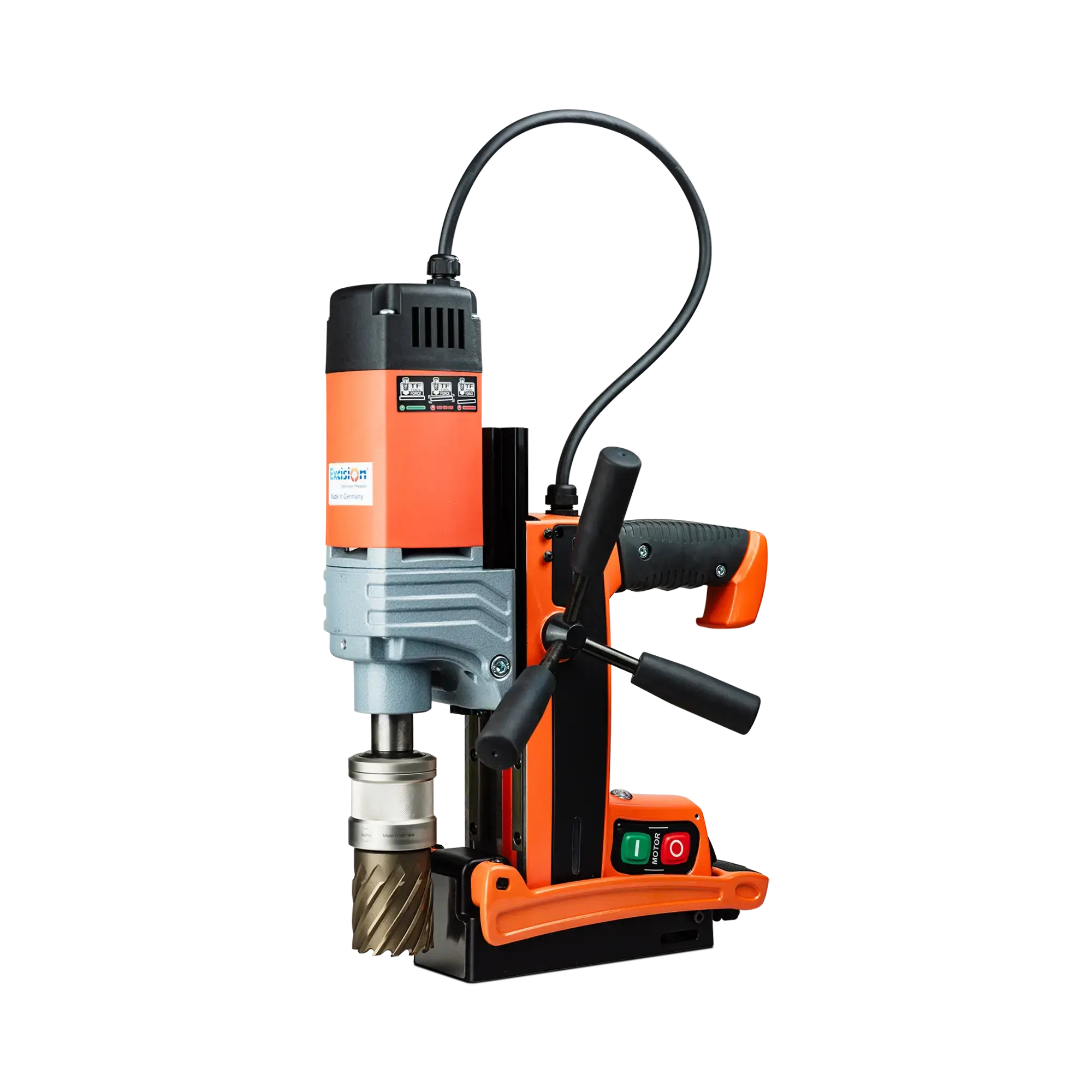

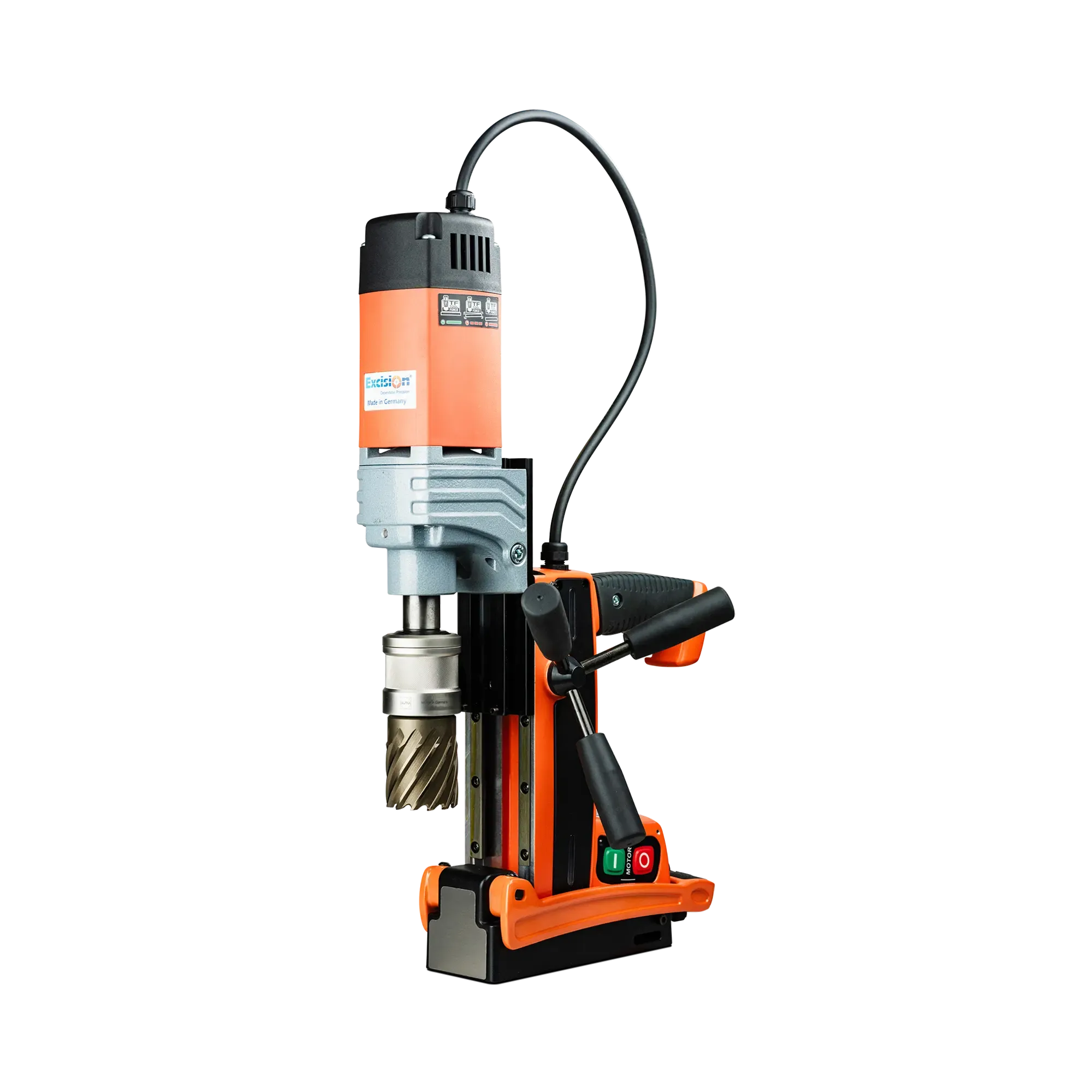

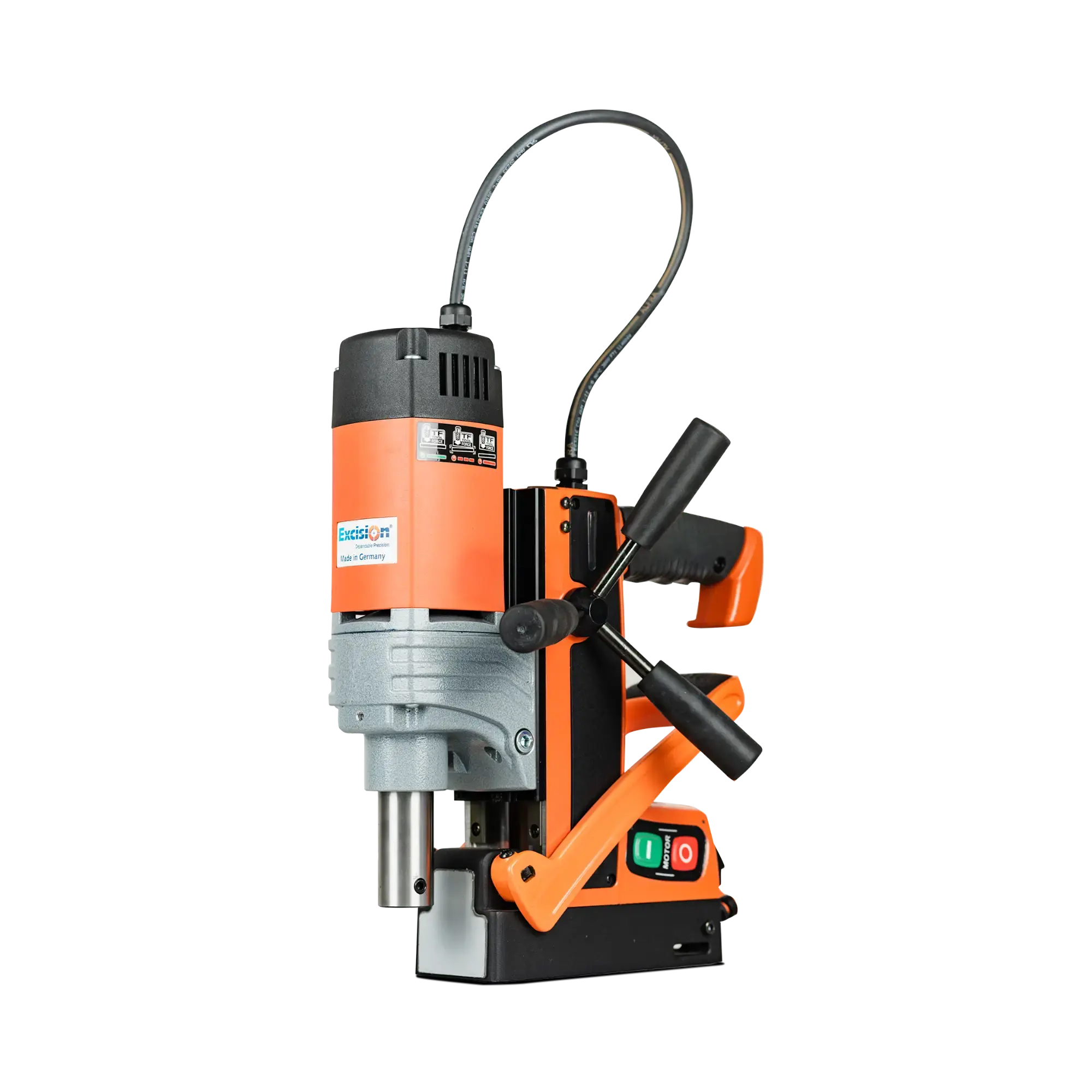

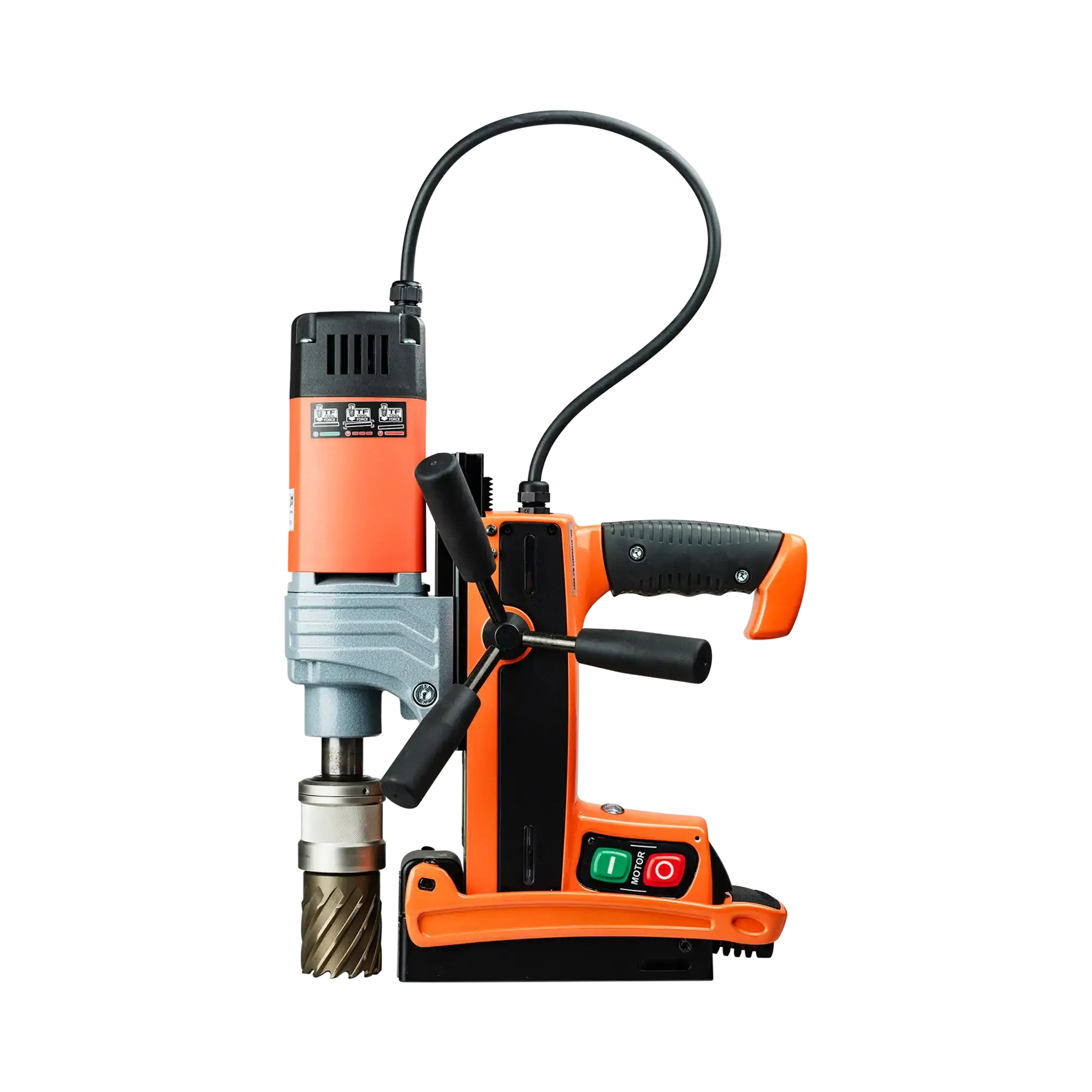

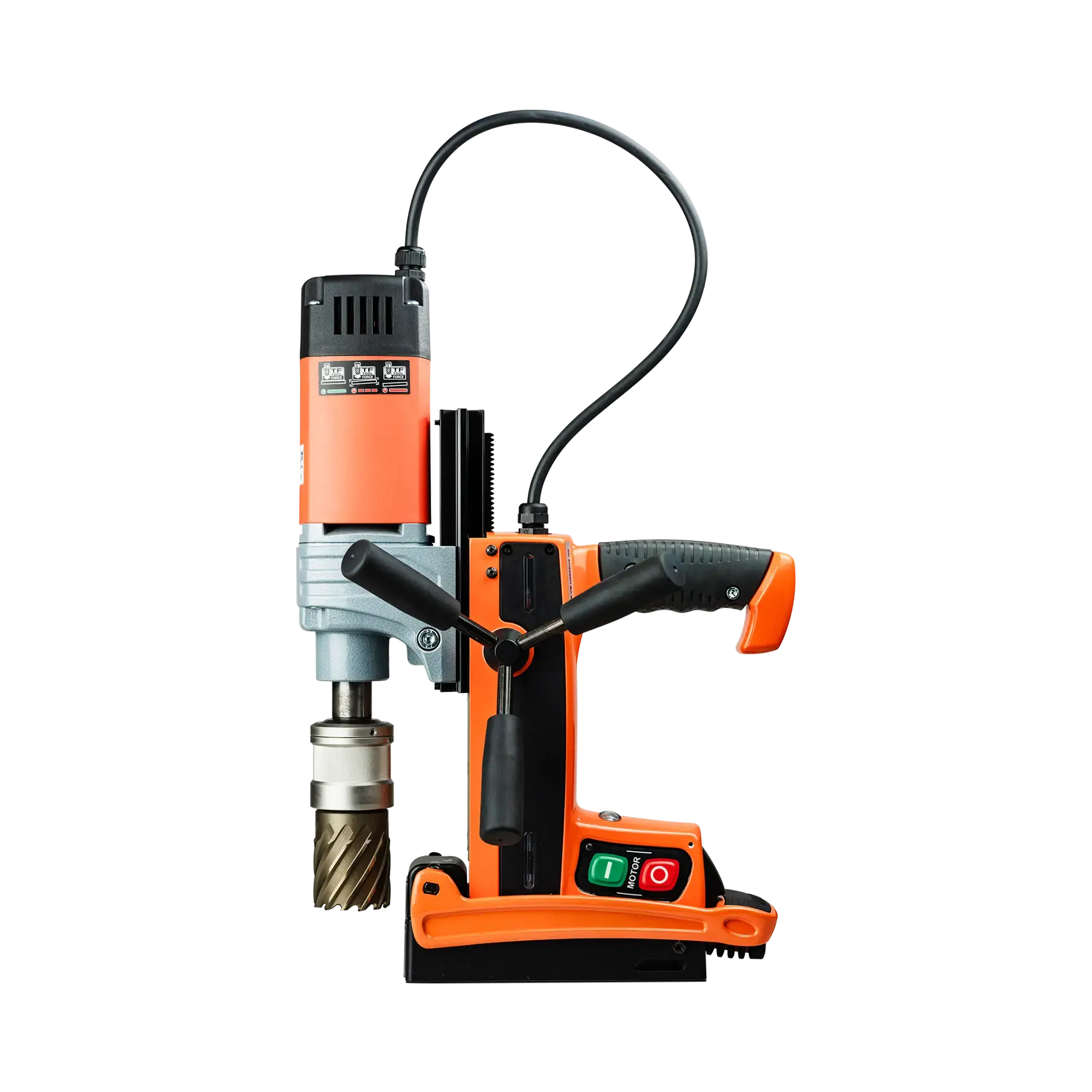

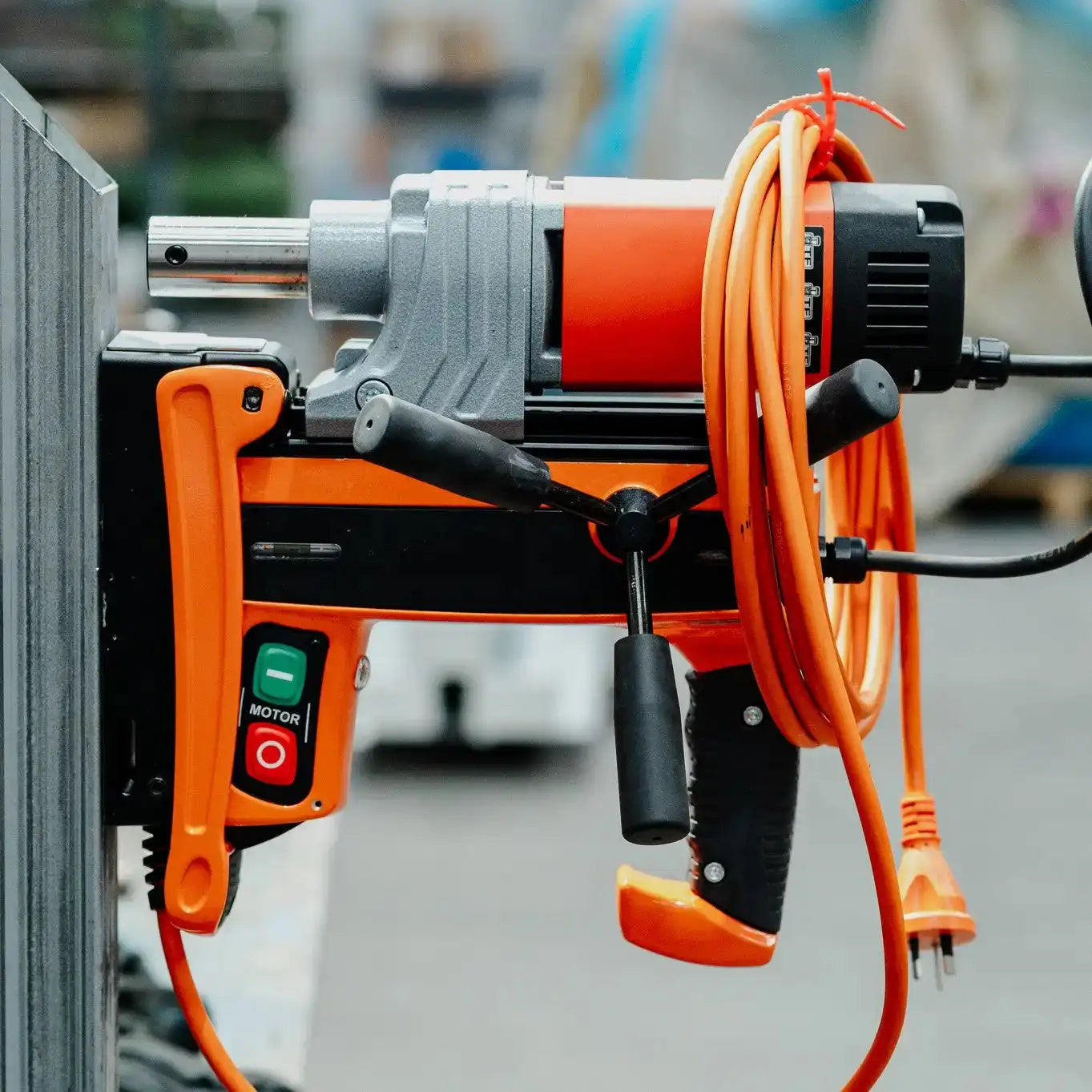

Magnex Drill 40

Made in Germany Germany

SKU: 18801

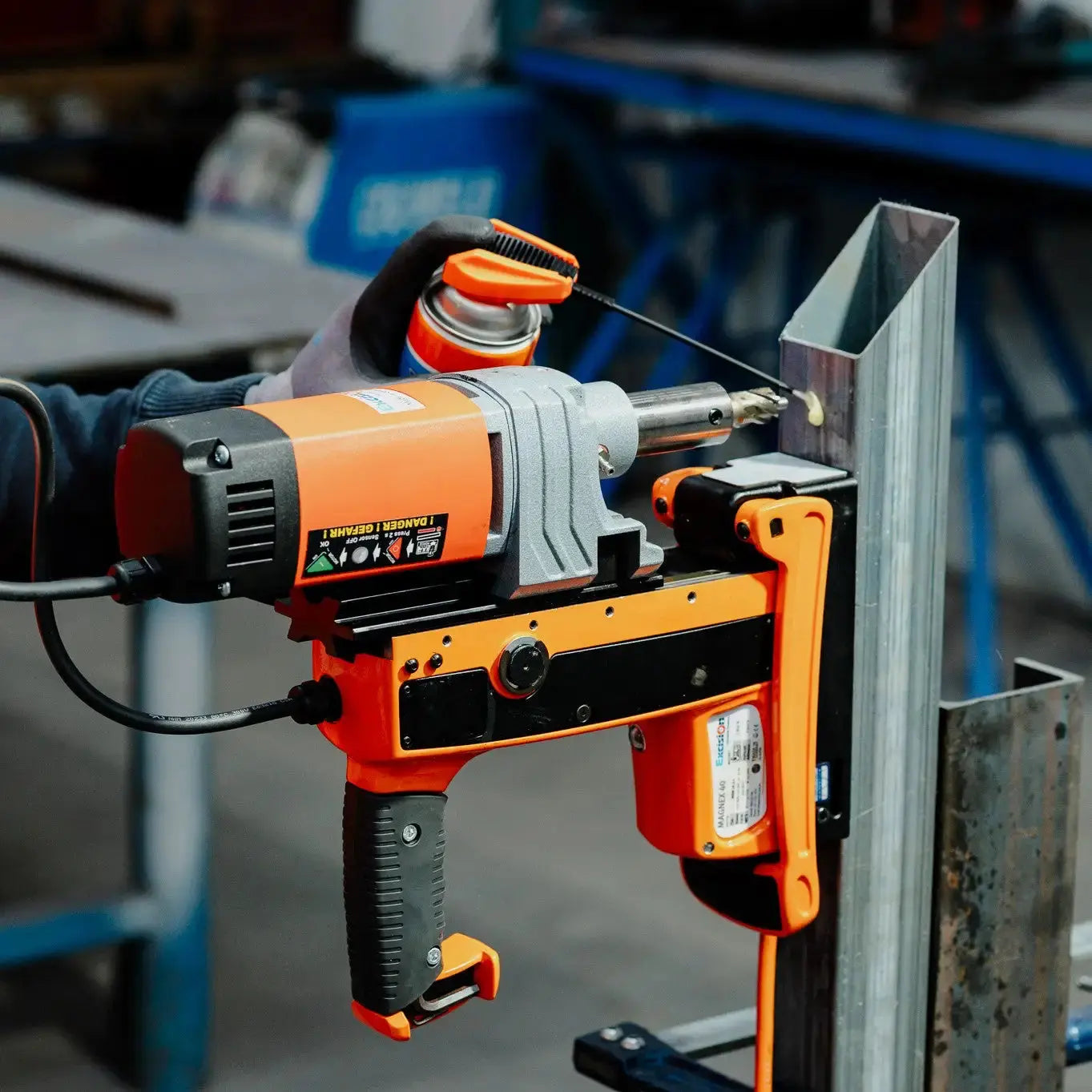

Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It's also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.
  • Powerful permanent magnet - doesn't need a power supply

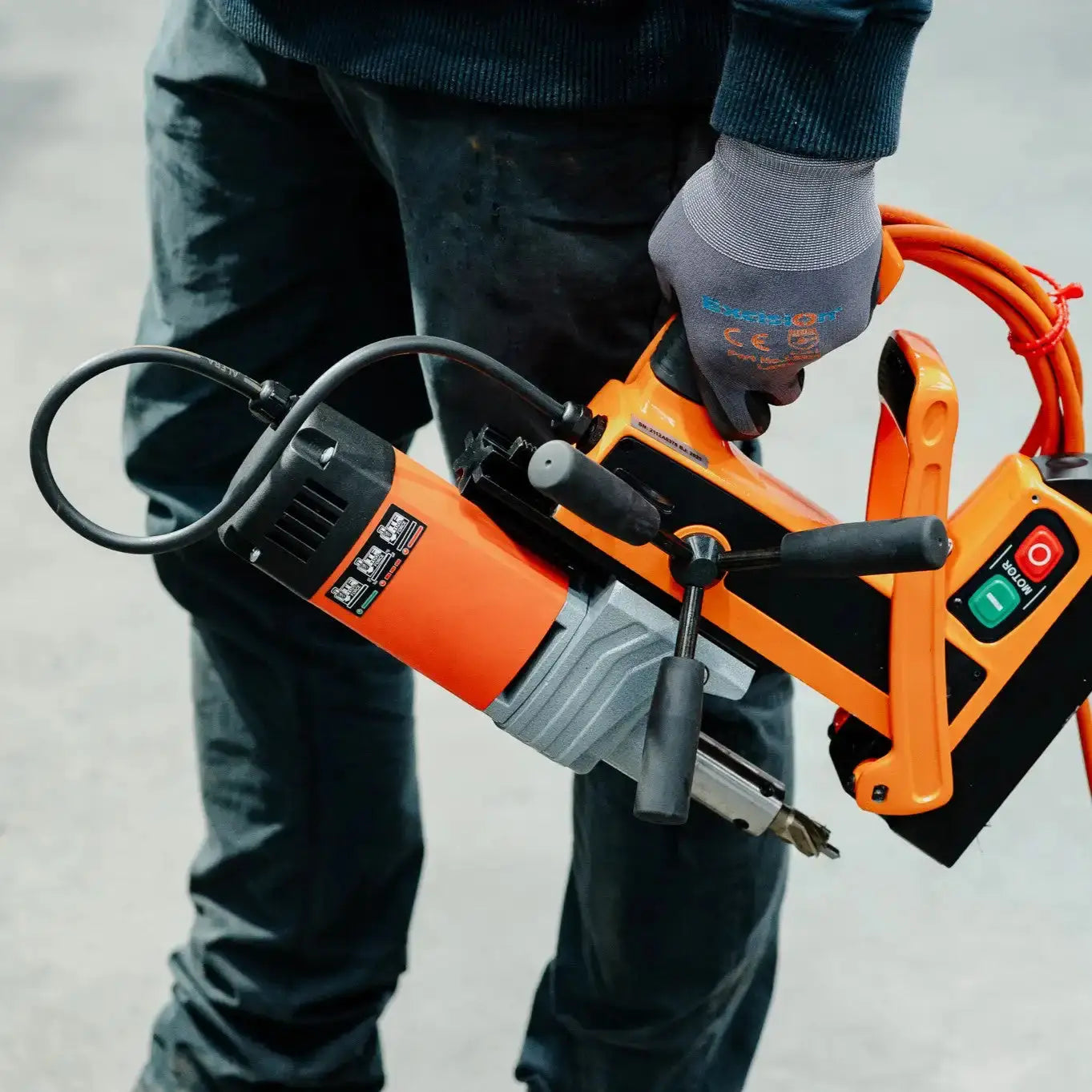

  • Very light and compact
  • Smooth start motor with overload protection and emergency stop
  • Stepless adjustment slides
  • Self-adjustment guides
  • Soft touch grips
  • Membrane keyboard
  • Quick-change chuck
  • 105mm stroke
  • Suits 19mm Weldon shanks

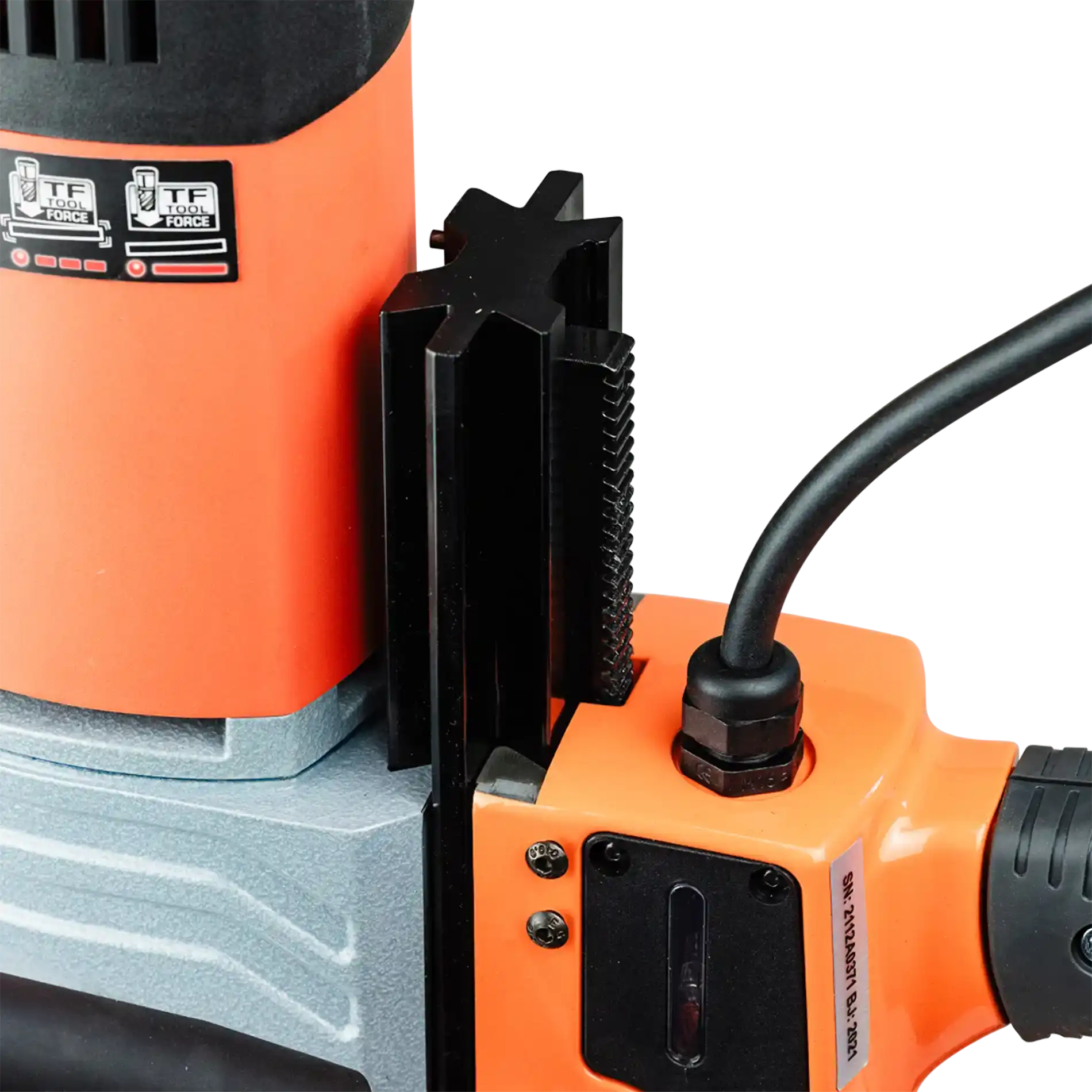

  • Double dove-tailed height-adjustment for using drill chucks
  • Ergonomic design
  • Solid brass guides
    Drill Features and Specifications
    Core Drill Dimensions 12.0-40.0mm
    Cutting Depth 50.0mm
    Twist Drill

    1.0-13.0mm

    Counter-Boring

    10.0-40.0mm

    Arbors

    Quick-Release Chuck

    Stroke

    105mm

    Height Adjustment

    80mm

    Gearbox-On-Load Speed

    450rpm

    Power Consumption

    1,100W

    Voltage

    230V 50/60Hz

    Tool Force (10mm)/Magnetic Adhesion Strength

    2,800N/17,000N

    Tool Force (6mm S235)

    2,300N

    Magnetic Base

    72×190mm

    Weight

    9.9Kg
