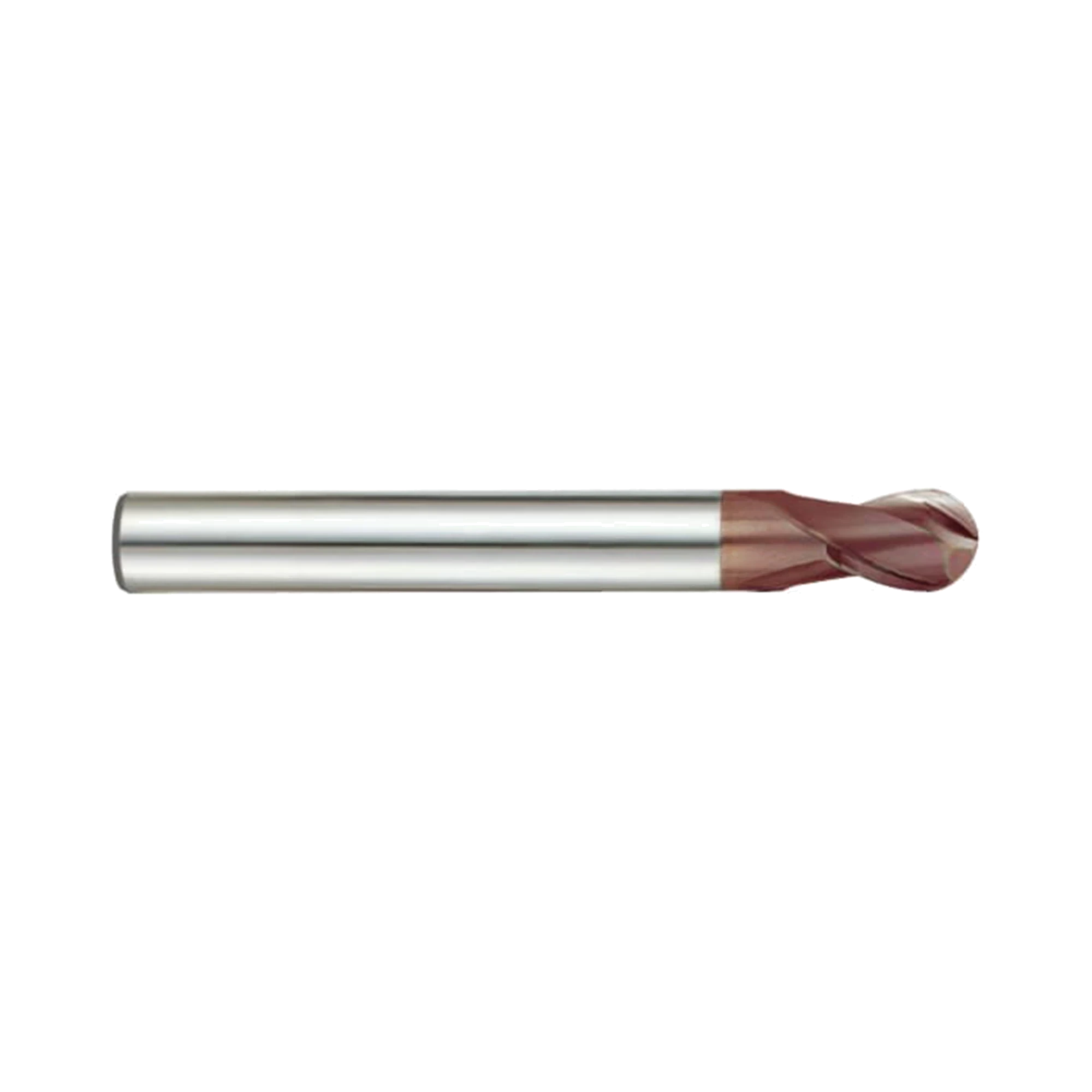

(G9454) K-2 Carbide, 2Flute Ball Nose End Mill, Long Reach

TiAlN-Coated Extra-Long 2 Flute Ball Nose End Mill

(G9454) K-2 Carbide, 2Flute Ball Nose End Mill, Long Reach
$41.47 INC GST $37.70 EX GST
SKU
G9454030

Key features

  • TiAlN-coated solid carbide construction
  • Two flute ball nose cutting geometry
  • Extra-long length plain shank design
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Extended Tool Length

Extra-long length geometry suits machining tasks requiring greater tool reach

Contour Milling Geometry

Ball nose form is designed for radius-bottom slots, fillets and special contours

Dry Milling Capability

TiAlN-coated carbide is suitable for dry milling applications at high temperatures

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
G94540303R1.575.03.05.0 In stock $37.70
G94540404R2.075.04.08.0 In stock $37.70
G94540505R2.575.05.09.0 In stock $41.10
G94540606R3.0100.06.010.0 In stock $46.50
G94540808R4.0100.08.012.0 In stock $73.50
G945410010R5.0100.010.014.0 Low stock $112.30
G945412012R6.0100.012.016.0 1-2 Weeks $177.10
G945414014R7.0100.014.018.0 1-2 Weeks $223.60
G945416016R8.0150.016.022.0 Low stock $330.50
G945420020R10.0150.020.026.0 1-2 Weeks $417.60

Add (G9454) K-2 Carbide, 2Flute Ball Nose End Mill, Long Reach to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Application
Product Description

YG-1 G9454 K-2 Carbide ball nose end mills are TiAlN-coated solid carbide tools with extra-long length geometry. They machine radius-bottom slots, fillets and special contours, and suit dry milling at high temperatures. The two-flute plain-shank series provides R1.5 to R10.0 radii, with 3 to 20 mm diameters. Listed tools have 5 to 26 mm cutting lengths and overall lengths from 75 to 150 mm. Ball-nose radius tolerance is ±0.02 mm, while shank diameter tolerance is h5. Its listed dimensions span compact through larger tool sizes for varied contouring requirements. Choose this high-performance series for contour milling where extra-long length and ball-nose form are required.

  • TiAlN-coated solid carbide construction
  • Two flute ball nose cutting geometry
  • Extra-long length plain shank design
  • Designed for radius-bottom slots fillets and special contours
  • Suitable for dry milling at high temperatures
  • R1.5 to R10.0 ball nose radius range
Product Data

No specifications available.

EDP No. Radius Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9454030 R1.5 3 3 5 75 0~-0.030 h5 2 G9454040 R2.0 4 4 8 75 0~-0.030 h5 2 G9454050 R2.5 5 5 9 75 0~-0.030 h5 2 G9454060 R3.0 6 6 10 100 0~-0.030 h5 2 G9454080 R4.0 8 8 12 100 0~-0.030 h5 2 G9454100 R5.0 10 10 14 100 0~-0.030 h5 2 G9454120 R6.0 12 12 16 100 0~-0.030 h5 2 G9454140 R7.0 14 14 18 100 0~-0.030 h5 2 G9454160 R8.0 16 16 22 150 0~-0.030 h5 2 G9454200 R10.0 20 20 26 150 0~-0.030 h5 2

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (G9454) K-2 Carbide, 2Flute Ball Nose End Mill, Long Reach

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (Fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Radius Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9454030 R1.5 3 3 5 75 0~-0.030 h5 2 G9454040 R2.0 4 4 8 75 0~-0.030 h5 2 G9454050 R2.5 5 5 9 75 0~-0.030 h5 2 G9454060 R3.0 6 6 10 100 0~-0.030 h5 2 G9454080 R4.0 8 8 12 100 0~-0.030 h5 2 G9454100 R5.0 10 10 14 100 0~-0.030 h5 2 G9454120 R6.0 12 12 16 100 0~-0.030 h5 2 G9454140 R7.0 14 14 18 100 0~-0.030 h5 2 G9454160 R8.0 16 16 22 150 0~-0.030 h5 2 G9454200 R10.0 20 20 26 150 0~-0.030 h5 2
