(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank

TiAlN-Coated Four-Flute Short-Length End Mill

(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank
$34.43 INC GST $31.30 EX GST
SKU
G9448020

Key features

  • TiAlN-coated solid carbide construction
  • Four-flute geometry supports improved workpiece finishes
  • Suitable for dry milling at high temperatures
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Dry Milling Capability

TiAlN coating supports dry milling applications at high temperatures

Finish-Oriented Geometry

Four flutes support improved workpiece finishes

Useful Size Range

Mill diameters span 2 to 20 mm with flat shanks

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
G9448020250.06.04.0 In stock $31.30
G94480252.550.06.04.0 Low stock $31.30
G9448030350.06.05.0 In stock $29.60
G9448040454.06.08.0 In stock $29.60
G94480454.554.06.08.0 1-2 Weeks $29.60
G9448050554.06.09.0 Low stock $29.60
G9448060654.06.010.0 In stock $29.60
G9448070758.08.011.0 1-2 Weeks $40.30
G9448080858.08.012.0 In stock $40.30
G9448090966.010.013.0 1-2 Weeks $70.10
G94481001066.010.014.0 1-2 Weeks $60.50
G94481201273.012.016.0 1-2 Weeks $85.10
G94481401475.014.018.0 1-2 Weeks $128.30
G94481601682.016.022.0 1-2 Weeks $185.30
G94482002092.020.026.0 Low stock $190.80

Add (G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Application
Product Description

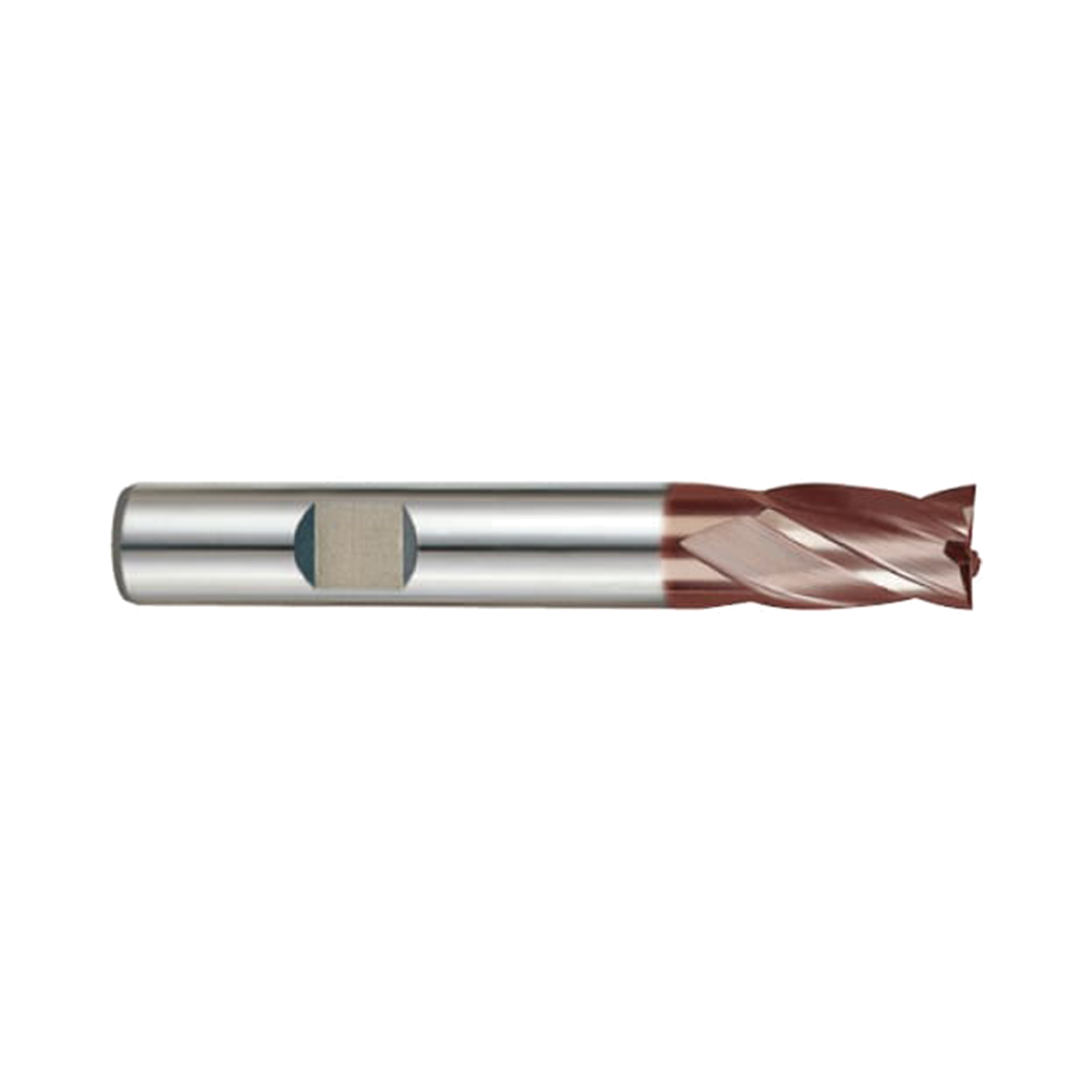

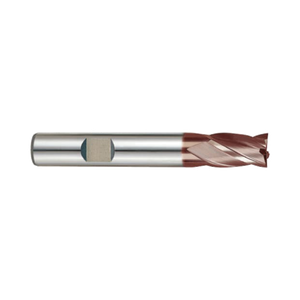

YG-1 G9448 K-2 Carbide is a TiAlN-coated solid carbide four-flute short-length flat shank end mill. It is designed for dry milling applications at high temperatures in steel, stainless steel and cast iron. Four flutes support improved workpiece finishes in dry milling operations. The flat shank series covers 2 to 20 mm mill diameters. Listed variants pair 6 to 20 mm shanks with 4 to 26 mm lengths of cut. Overall lengths range from 50 to 92 mm across the supplied SKU selection. The series is recommended for ISO P, M and K materials. This geometry suits machining environments where a short length tool and flat shank are required.

  • TiAlN-coated solid carbide construction
  • Four-flute geometry supports improved workpiece finishes
  • Suitable for dry milling at high temperatures
  • Flat shank configuration
  • 2 to 20 mm milling diameter range
  • Recommended for steel stainless steel and cast iron
Product Data

No specifications available.

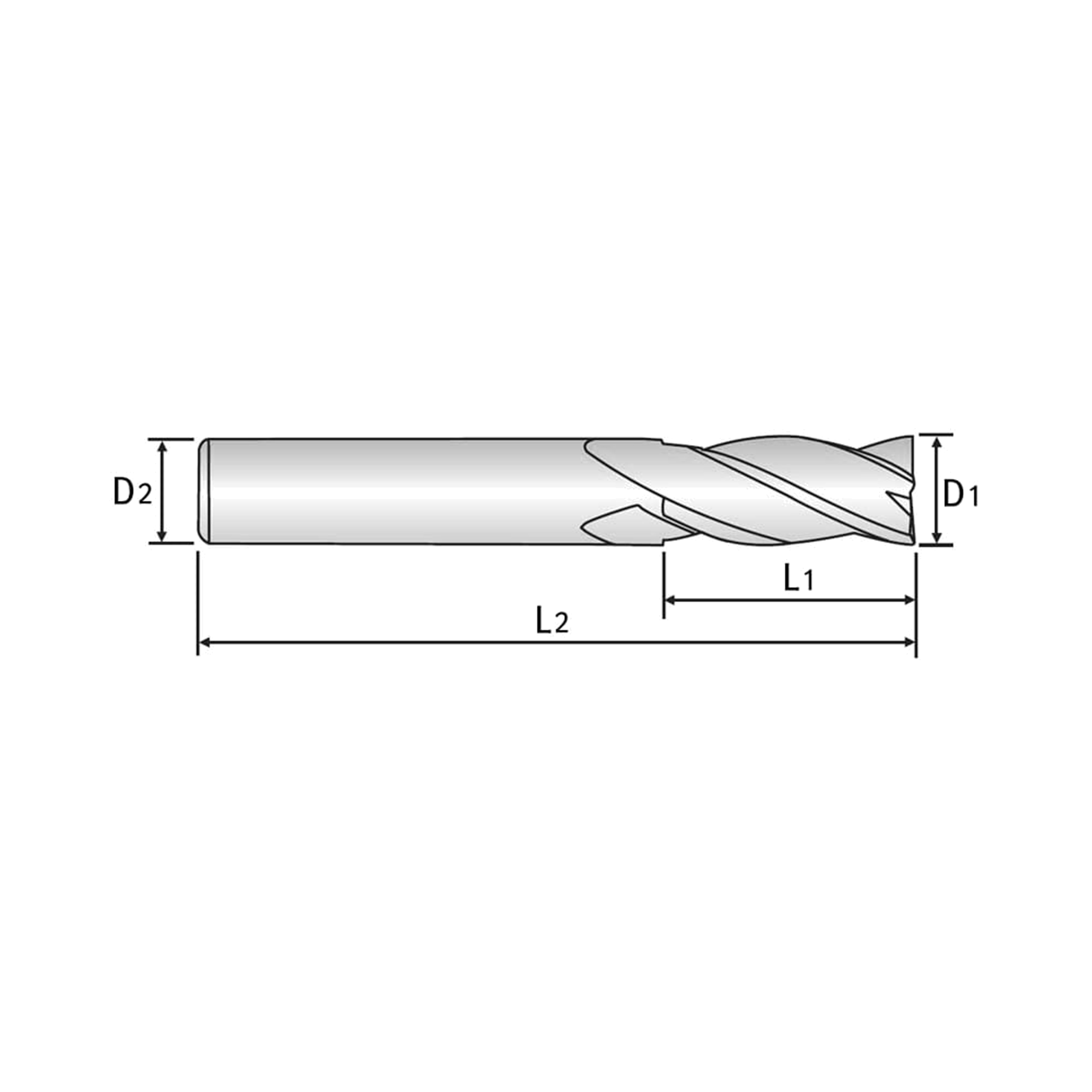

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9448020 2 6 4 50 0~-0.030 h5 4 G9448025 2.5 6 4 50 0~-0.030 h5 4 G9448030 3 6 5 50 0~-0.030 h5 4 G9448035 3.5 6 6 50 0~-0.030 h5 4 G9448040 4 6 8 54 0~-0.030 h5 4 G9448045 4.5 6 8 54 0~-0.030 h5 4 G9448050 5 6 9 54 0~-0.030 h5 4 G9448060 6 6 10 54 0~-0.030 h5 4 G9448070 7 8 11 58 0~-0.030 h5 4 G9448080 8 8 12 58 0~-0.030 h5 4 G9448090 9 10 13 66 0~-0.030 h5 4 G9448100 10 10 14 66 0~-0.030 h5 4 G9448120 12 12 16 73 0~-0.030 h5 4 G9448140 14 14 18 75 0~-0.030 h5 4 G9448160 16 16 22 82 0~-0.030 h5 4 G9448180 18 18 24 84 0~-0.030 h5 4 G9448200 20 20 26 92 0~-0.030 h5 4

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (Fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9448020 2 6 4 50 0~-0.030 h5 4 G9448025 2.5 6 4 50 0~-0.030 h5 4 G9448030 3 6 5 50 0~-0.030 h5 4 G9448035 3.5 6 6 50 0~-0.030 h5 4 G9448040 4 6 8 54 0~-0.030 h5 4 G9448045 4.5 6 8 54 0~-0.030 h5 4 G9448050 5 6 9 54 0~-0.030 h5 4 G9448060 6 6 10 54 0~-0.030 h5 4 G9448070 7 8 11 58 0~-0.030 h5 4 G9448080 8 8 12 58 0~-0.030 h5 4 G9448090 9 10 13 66 0~-0.030 h5 4 G9448100 10 10 14 66 0~-0.030 h5 4 G9448120 12 12 16 73 0~-0.030 h5 4 G9448140 14 14 18 75 0~-0.030 h5 4 G9448160 16 16 22 82 0~-0.030 h5 4 G9448180 18 18 24 84 0~-0.030 h5 4 G9448200 20 20 26 92 0~-0.030 h5 4
