(G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse)

X-Coated Carbide Coarse Roughing End Mill
  • $58.96INC GST $53.60 EX GST
(G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse)
(G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse)
(G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse)
(G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse)

(G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse)

X-Coated Carbide Coarse Roughing End Mill
  • $58.96INC GST $53.60 EX GST

Code: G9A42060

    Key Features
  • X-coated solid carbide construction
  • Coarse long-length roughing geometry
  • Fast chip ejection for dry high-temperature milling
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Dry milling capability

Suitable for dry milling applications at high temperatures.

Rapid chip evacuation

Coarse roughing geometry supports fast chip ejection.

Useful diameter range

Available from 6 to 25 mm with three, four or five flutes.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
G9A4206060.657.06.0316.0 5 days $53.60
G9A4208080.663.08.0316.0 Low stock $64.60
G9A42100100.672.010.0422.0 Low stock $96.50
G9A42120120.7483.012.0426.0 In stock $127.70
G9A42140140.9483.014.0426.0 5 days $155.70
G9A42160160.9492.016.0432.0 In stock $196.80
G9A42180180.9492.018.0432.0 5 days $261.90
G9A42200200.94104.020.0438.0 5 days $290.30
G9A42250250.94121.025.0545.0 5 days $412.70

Add (G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse) to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Product Description

YG-1 G9A42 is an X-coated solid-carbide, long-length coarse roughing end mill with a flat shank. Designed for high-temperature dry milling, it combines coarse roughing geometry with fast chip ejection. The multi-flute design provides three, four or five flutes according to diameter. Its enforced cutting edge and listed chamfer provide a strengthened edge configuration. Available diameters span 6 to 25 mm, with matching flat-shank diameters. Long-length overall dimensions range from 57 to 121 mm throughout the series. It suits operations requiring dry milling and rapid chip evacuation at elevated temperatures. Solid carbide construction provides the tool material specified for the complete series.

  • X-coated solid carbide construction
  • Coarse long-length roughing geometry
  • Fast chip ejection for dry high-temperature milling
  • Flat shank configuration
  • Three to five flutes across 6 to 25 mm diameters
  • Enforced cutting edge with chamfer
Product Data

No specifications available.

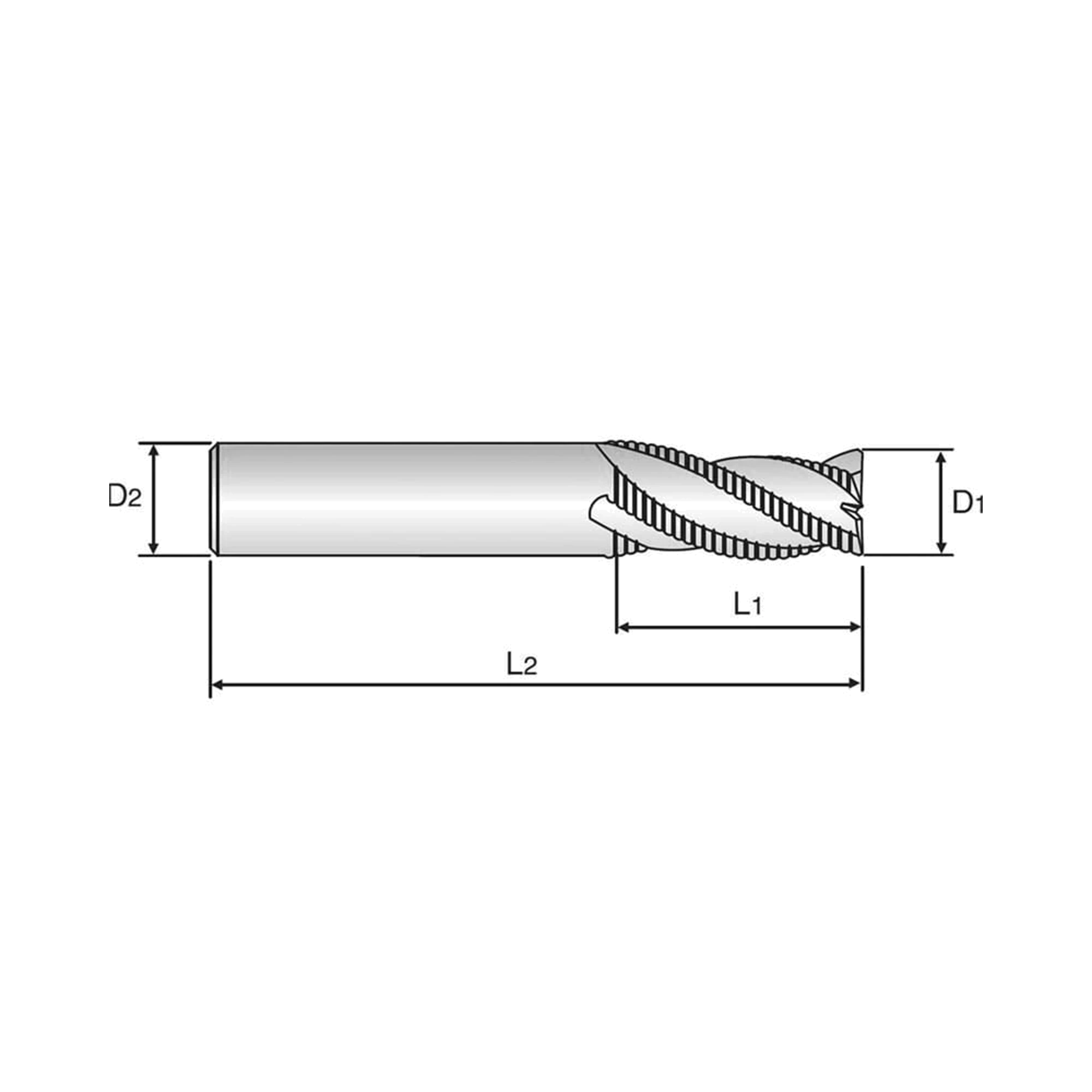

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9A42060 6 6 16 57 h10 h5 3 G9A42080 8 8 16 63 h10 h5 3 G9A42100 10 10 22 72 h10 h5 4 G9A42120 12 12 26 83 h10 h5 4 G9A42140 14 14 26 83 h10 h5 4 G9A42160 16 16 32 92 h10 h5 4 G9A42180 18 18 32 92 h10 h5 4 G9A42200 20 20 38 104 h10 h5 4 G9A42250 25 25 45 121 h10 h5 4

Speeds & Feeds

ISO VDI 3323  Material Description Ae Ap Parameter Diameter (Ø)
6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 25.0
P 1-4 Non-Alloy Steel 0.3D 1.5D Vc 250 250 245 255 255 255 250 260 285
fz 0.05 0.067 0.063 0.075 0.088 0.1 0.112 0.112 0.1
RPM 13263 9947 7799 6764 5798 5073 4421 4138 3629
FEED 1989 1999 1965 2029 2041 2029 1981 1854 1814
5 0.3D 1.5D Vc 200 195 205 190 195 205 210 190 210
fz 0.022 0.023 0.028 0.033 0.04 0.04 0.041 0.039 0.039
RPM 10610 7759 6525 5040 4434 4078 3714 3024 2674
FEED 700 535 731 665 709 653 609 472 521
6-7 Low-Alloy Steel 0.3D 1.5D Vc 250 250 245 255 255 255 250 260 285
fz 0.05 0.067 0.063 0.075 0.088 0.1 0.112 0.112 0.1
RPM 13263 9947 7799 6764 5798 5073 4421 4138 3629
FEED 1989 1999 1965 2029 2041 2029 1981 1854 1814
8-9 0.3D 1.5D Vc 200 195 205 190 195 205 210 190 210
fz 0.022 0.023 0.028 0.033 0.04 0.04 0.041 0.039 0.039
RPM 10610 7759 6525 5040 4434 4078 3714 3024 2674
FEED 700 535 731 665 709 653 609 472 521
10 High-Alloyed Steel, and Tool Steel 0.3D 1.5D Vc 250 250 245 255 255 255 250 260 285
fz 0.05 0.067 0.063 0.075 0.088 0.1 0.112 0.112 0.1
RPM 13263 9947 7799 6764 5798 5073 4421 4138 3629
FEED 1989 1999 1965 2029 2041 2029 1981 1854 1814
11.1-11.2 0.3D 1.5D Vc 200 195 205 190 195 205 210 190 210
fz 0.022 0.023 0.028 0.033 0.04 0.04 0.041 0.039 0.039
RPM 10610 7759 6525 5040 4434 4078 3714 3024 2674
FEED 700 535 731 665 709 653 609 472 521
M 14.1 Stainless steel 0.3D 1.5D Vc 135 135 135 135 135 140 130 130 145
fz 0.022 0.022 0.028 0.034 0.039 0.038 0.039 0.038 0.038
RPM 7162 5371 4297 3581 3069 2785 2299 2069 1846
FEED 473 355 481 487 479 423 359 314 351
S 31-35 Heat Resistant Super Alloys 0.5D 1.0D Vc 60 55 60 55 60 55 55 55 60
fz 0.008 0.013 0.017 0.026 0.035 0.044 0.064 0.093 0.115
RPM 19099 11671 9549 5836 4775 3501 2918 2188 1910
FEED 458 455 487 455 501 462 560 611 659
H 40 Chilled Cast Iron 0.3D 1.5D Vc 200 195 205 190 195 205 210 190 210
fz 0.022 0.023 0.028 0.033 0.04 0.04 0.041 0.039 0.039
RPM 10610 7759 6525 5040 4434 4078 3714 3024 2674
FEED 700 535 731 665 709 653 609 472 521
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9A42060 6 6 16 57 h10 h5 3 G9A42080 8 8 16 63 h10 h5 3 G9A42100 10 10 22 72 h10 h5 4 G9A42120 12 12 26 83 h10 h5 4 G9A42140 14 14 26 83 h10 h5 4 G9A42160 16 16 32 92 h10 h5 4 G9A42180 18 18 32 92 h10 h5 4 G9A42200 20 20 38 104 h10 h5 4 G9A42250 25 25 45 121 h10 h5 4
