(G9634) K-2 Carbide, 4F Ball Nose Plain Shank

4-Flute Short Ball Nose End Mill
  • $36.30INC GST $33.00 EX GST
(G9634) K-2 Carbide, 4F Ball Nose Plain Shank
(G9634) K-2 Carbide, 4F Ball Nose Plain Shank
(G9634) K-2 Carbide, 4F Ball Nose Plain Shank
(G9634) K-2 Carbide, 4F Ball Nose Plain Shank
(G9634) K-2 Carbide, 4F Ball Nose Plain Shank
(G9634) K-2 Carbide, 4F Ball Nose Plain Shank

(G9634) K-2 Carbide, 4F Ball Nose Plain Shank

4-Flute Short Ball Nose End Mill
  • $36.30INC GST $33.00 EX GST

Code: G9634020

    Key Features
  • TiAlN-coated solid carbide ball nose end mill
  • Four-flute geometry for improved workpiece finishes
  • Short-length design for radius-bottom slots fillets and special contours
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Contour milling capability

Ball nose geometry is designed for radius-bottom slots, fillets and special contours.

Improved finish potential

The four-flute design supports better workpiece finishes in suitable milling operations.

Useful size coverage

The family covers ball radii from R1.0 to R10.0 and diameters from 2 to 20 mm.

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
G96340202R1.048.06.04.0 In stock $33.00
G96340303R1.548.06.04.0 In stock $33.00
G96340404R2.050.06.06.0 In stock $34.90
G96340505R2.551.06.07.0 In stock $35.50
G96340606R3.051.06.07.0 In stock $36.70
G96340808R4.059.08.09.0 In stock $64.90
G963410010R5.060.010.010.0 Low stock $83.20
G963412012R6.071.012.014.0 In stock $92.60
G963414014R7.071.014.014.0 5 days $185.17
G963416016R8.076.016.016.0 5 days $199.41
G963418018R9.076.018.018.0 5 days $209.60
G963420020R10.082.020.020.0 5 days $230.40

Add (G9634) K-2 Carbide, 4F Ball Nose Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Product Description

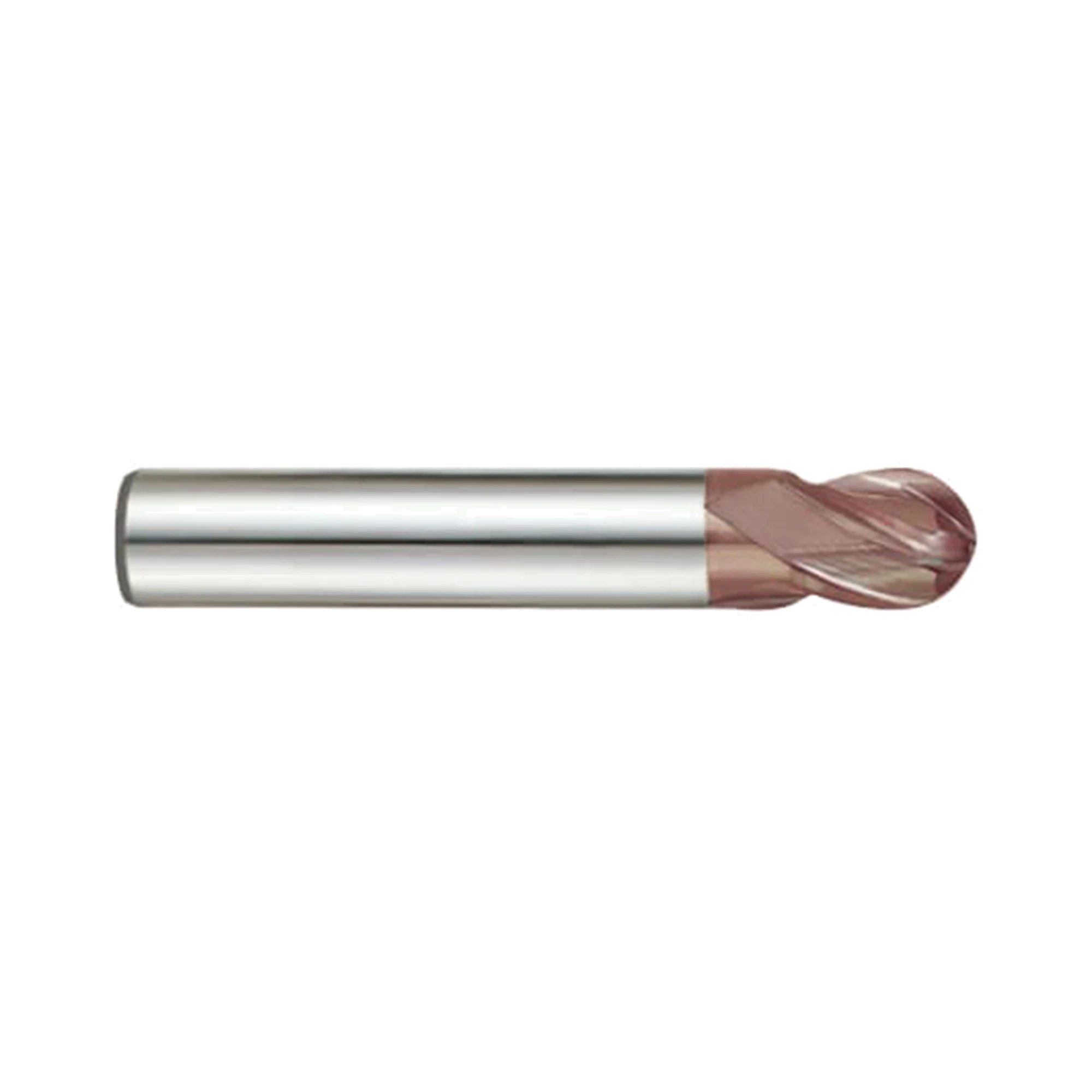

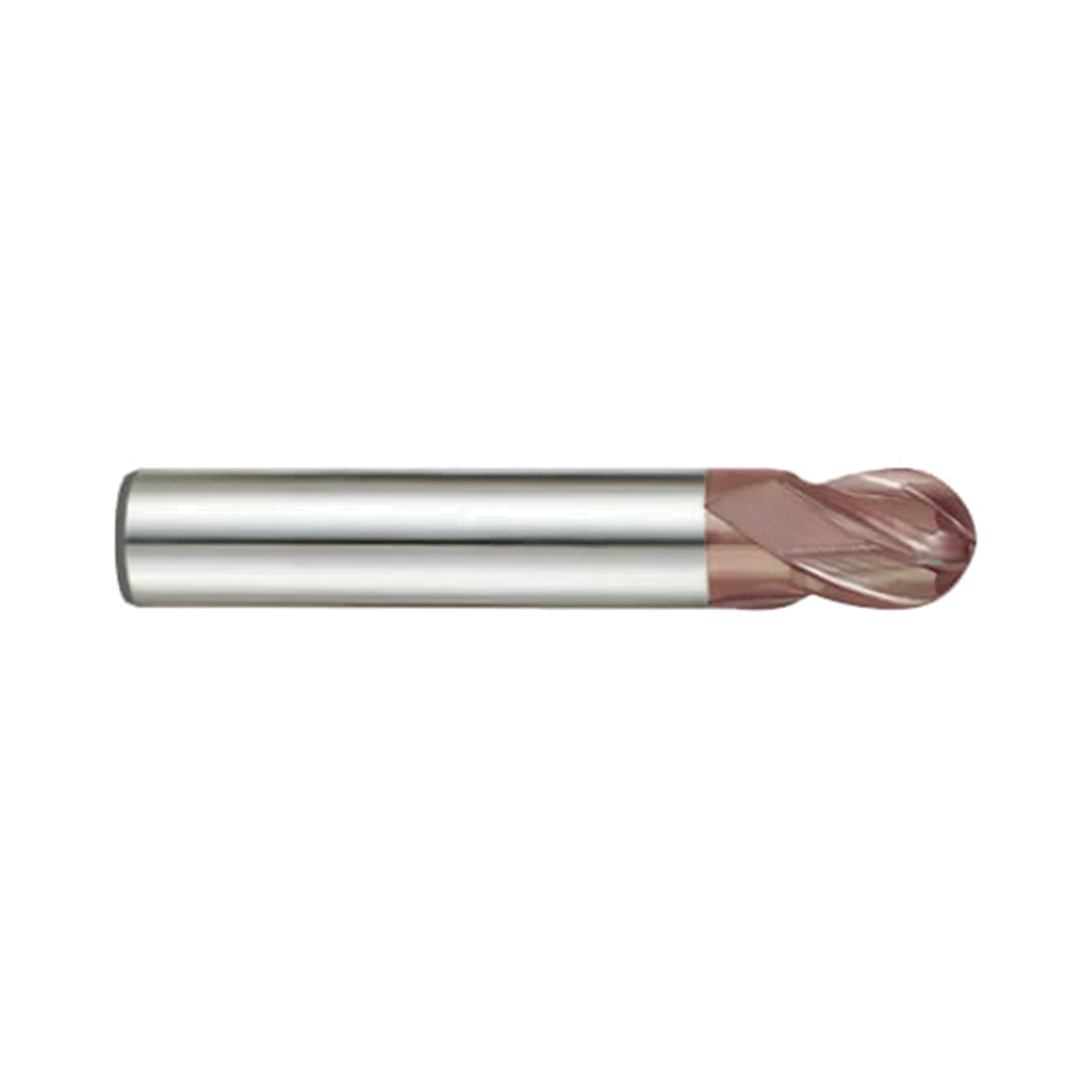

YG-1 G9634 K-2 Carbide is a four-flute short-length ball nose end mill with TiAlN coating. It is designed for milling radius-bottom slots, fillets and special contours in profiling applications. Four flutes support improved workpiece finishes for suitable milling operations. Solid carbide construction provides the specified cutting tool material for this K-2 series. Plain-shank variants cover 2 to 20 mm diameters and R1.0 to R10.0 ball radii. Lengths of cut range from 4 to 20 mm within the family. The series is described as an excellent high-performance end mill. Choose this short ball nose geometry where controlled contour and fillet milling is required.

  • TiAlN-coated solid carbide ball nose end mill
  • Four-flute geometry for improved workpiece finishes
  • Short-length design for radius-bottom slots fillets and special contours
  • Suitable for dry milling applications at high temperatures
  • Plain-shank range from 2 to 20 mm diameter
  • Ball radii from R1.0 to R10.0
Product Data

No specifications available.

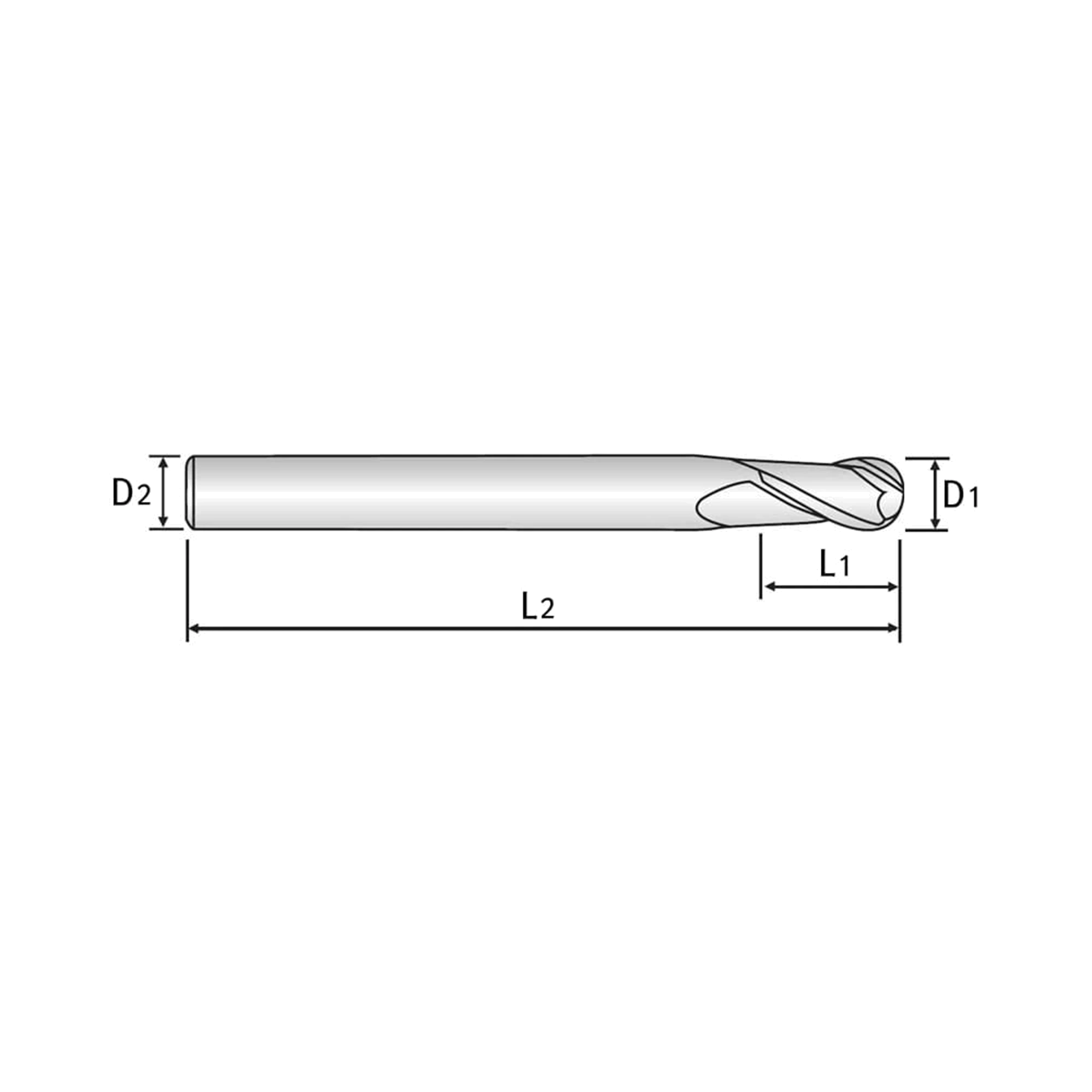

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9634020 2 6 4 48 0~-0.030 h5 4 G9634030 3 6 4 48 0~-0.030 h5 4 G9634040 4 6 6 50 0~-0.030 h5 4 G9634050 5 6 7 51 0~-0.030 h5 4 G9634060 6 6 7 51 0~-0.030 h5 4 G9634080 8 8 9 59 0~-0.030 h5 4 G9634100 10 10 10 60 0~-0.030 h5 4 G9634120 12 12 14 71 0~-0.030 h5 4 G9634140 14 14 14 71 0~-0.030 h5 4 G9634160 16 16 16 76 0~-0.030 h5 4 G9634180 18 18 18 76 0~-0.030 h5 4 G9634200 20 20 20 82 0~-0.030 h5 4

Speeds & Feeds

ISO VDI 3323  Material Description Ae Parameter Diameter (Ø)
2.0 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0
P 1-4 Non-Alloy Steel 0.2D Vc 85 110 110 125 135 155 170 190 200 205 210 225
fz 0.013 0.019 0.027 0.033 0.046 0.068 0.089 0.112 0.124 0.136 0.14 0.15
RPM 13528 11671 8754 7958 7162 6167 5411 5040 4547 4078 3802 3581
FEED 703 887 945 1050 1318 1677 1926 2258 2255 2219 2129 2149
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
5 0.2D Vc 65 80 90 95 110 125 135 150 160 160 170 175
fz 0.01 0.017 0.024 0.03 0.046 0.06 0.076 0.089 0.099 0.108 0.111 0.119
RPM 10345 8488 7162 6048 5836 4974 4297 3979 3638 3183 3006 2785
FEED 414 577 688 726 1074 1194 1306 1416 1441 1375 1335 1326
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
6-7 Low-Alloy Steel 0.2D Vc 85 110 110 125 135 155 170 190 200 205 210 225
fz 0.013 0.019 0.027 0.033 0.046 0.068 0.089 0.112 0.124 0.136 0.14 0.15
RPM 13528 11671 8754 7958 7162 6167 5411 5040 4547 4078 3802 3581
FEED 703 887 945 1050 1318 1677 1926 2258 2255 2219 2129 2149
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
8-9 0.2D Vc 65 80 90 95 110 125 135 150 160 160 170 175
fz 0.01 0.017 0.024 0.03 0.046 0.06 0.076 0.089 0.099 0.108 0.111 0.119
RPM 10345 8488 7162 6048 5836 4974 4297 3979 3638 3183 3006 2785
FEED 414 577 688 726 1074 1194 1306 1416 1441 1375 1335 1326
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
10 High-Alloyed Steel, and Tool Steel 0.2D Vc 85 110 110 125 135 155 170 190 200 205 210 225
fz 0.013 0.019 0.027 0.033 0.046 0.068 0.089 0.112 0.124 0.136 0.14 0.15
RPM 13528 11671 8754 7958 7162 6167 5411 5040 4547 4078 3802 3581
FEED 703 887 945 1050 1318 1677 1926 2258 2255 2219 2129 2149
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
11.1-11.2 0.2D Vc 65 80 90 95 110 125 135 150 160 160 170 175
fz 0.01 0.017 0.024 0.03 0.046 0.06 0.076 0.089 0.099 0.108 0.111 0.119
RPM 10345 8488 7162 6048 5836 4974 4297 3979 3638 3183 3006 2785
FEED 414 577 688 726 1074 1194 1306 1416 1441 1375 1335 1326
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
K 15-20 Grey cast iron Nodular cast iron Malleable cast iron 0.7D Vc 65 65 65 65 65 65 65 65 60 65 60 65
fz 0.008 0.012 0.021 0.03 0.04 0.068 0.083 0.097 0.125 0.135 0.159 0.15
RPM 10345 6897 5173 4138 3448 2586 2069 1724 1364 1293 1061 1035
FEED 331 331 434 497 552 703 687 669 682 698 675 621
Ap 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
N 21~22 Aluminum-wrought alloy 0.7D Vc 195 195 195 190 195 200 195 195 190 195 190 185
fz 0.005 0.007 0.01 0.015 0.017 0.026 0.033 0.046 0.055 0.053 0.06 0.069
RPM 31035 20690 15518 12096 10345 7958 6207 5173 4320 3879 3360 2944
FEED 621 579 621 726 703 828 819 952 950 822 806 813
Ap 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
23~25 Aluminum-cast,alloyed 0.7D Vc 195 195 195 190 195 200 195 195 190 195 190 185
fz 0.005 0.007 0.01 0.015 0.017 0.026 0.033 0.046 0.055 0.053 0.06 0.069
RPM 31035 20690 15518 12096 10345 7958 6207 5173 4320 3879 3360 2944
FEED 621 579 621 726 703 828 819 952 950 822 806 813
Ap 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
H 38.1 Hardened steel 0.2D Vc 25 35 45 50 50 55 55 55 55 55 60 60
fz 0.008 0.012 0.016 0.019 0.022 0.034 0.041 0.053 0.062 0.073 0.076 0.084
RPM 3979 3714 3581 3183 2653 2188 1751 1459 1251 1094 1061 955
FEED 127 178 229 242 233 298 287 309 310 320 323 321
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
40 Chilled Cast Iron 0.2D Vc 65 80 90 95 110 125 135 150 160 160 170 175
fz 0.01 0.017 0.024 0.03 0.046 0.06 0.076 0.089 0.099 0.108 0.111 0.119
RPM 10345 8488 7162 6048 5836 4974 4297 3979 3638 3183 3006 2785
FEED 414 577 688 726 1074 1194 1306 1416 1441 1375 1335 1326
Ap 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9634020 2 6 4 48 0~-0.030 h5 4 G9634030 3 6 4 48 0~-0.030 h5 4 G9634040 4 6 6 50 0~-0.030 h5 4 G9634050 5 6 7 51 0~-0.030 h5 4 G9634060 6 6 7 51 0~-0.030 h5 4 G9634080 8 8 9 59 0~-0.030 h5 4 G9634100 10 10 10 60 0~-0.030 h5 4 G9634120 12 12 14 71 0~-0.030 h5 4 G9634140 14 14 14 71 0~-0.030 h5 4 G9634160 16 16 16 76 0~-0.030 h5 4 G9634180 18 18 18 76 0~-0.030 h5 4 G9634200 20 20 20 82 0~-0.030 h5 4
