(G9540) K-2 Carbide, 4Flute End Mill, Long Length

Name: (G9540) K-2 Carbide, 4Flute End Mill, Long Length
Brand: Excision Pty Ltd
SKU: G9540035
Price: 27.30 AUD
Availability: InStock

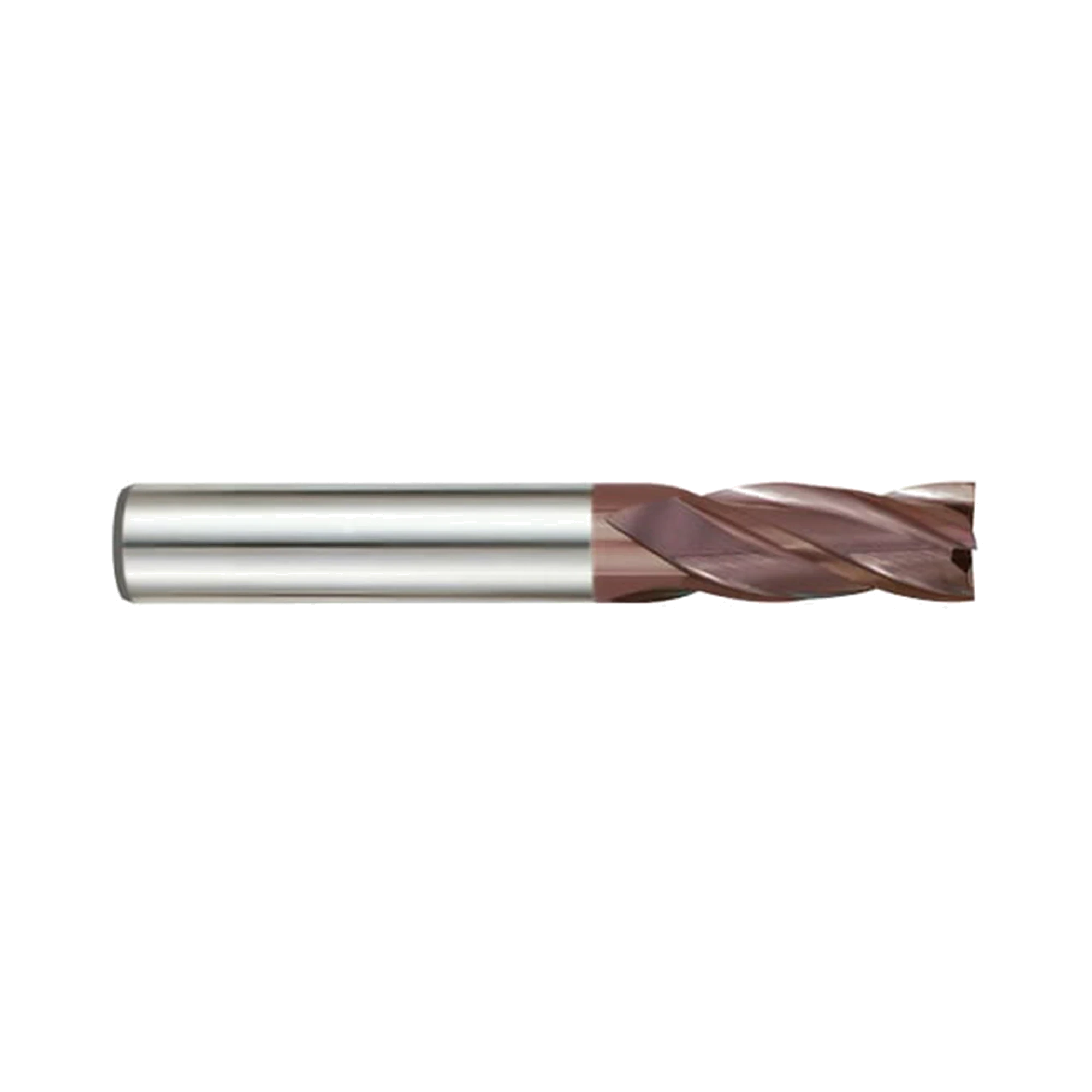

TiAlN-Coated Solid Carbide Long-Length End Mill

$30.03 INC GST $27.30 EX GST Price available on request

SKU: G9540035

Key features

TiAlN-coated solid carbide construction
Four-flute long-length end mill geometry
Suitable for dry milling at high temperatures

Mill Diameter (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Extended reach

Long-length geometry supports milling work requiring additional tool reach

Dry milling capability

TiAlN-coated solid carbide construction suits high-temperature dry milling applications

Improved finish potential

Four flutes are specified to support better workpiece finishes

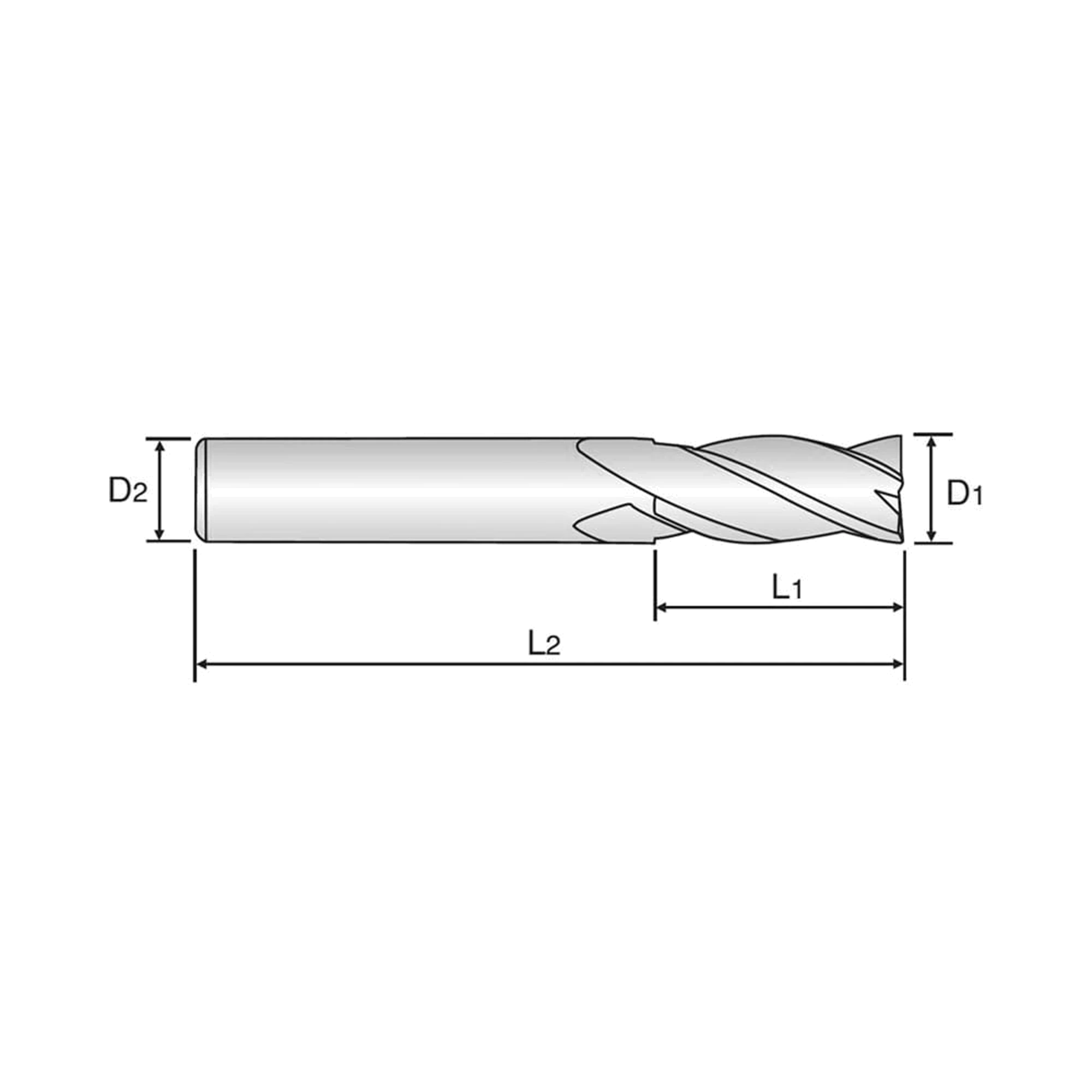

SKU	Mill Diameter (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Stock	Price
G9540035	3.5	50.0	3.5	10.0	1-2 Weeks	$27.30
G9540040	4	50.0	4.0	11.0	Low stock	$26.80
G9540045	4.5	50.0	4.5	11.0	1-2 Weeks	$28.50
G9540050	5	50.0	5.0	13.0	In stock	$27.60
G9540055	5.5	57.0	5.5	13.0	1-2 Weeks	$40.60
G9540060	6	57.0	6.0	13.0	In stock	$31.60
G9540065	6.5	60.0	6.5	16.0	1-2 Weeks	$46.90
G9540070	7	60.0	7.0	16.0	1-2 Weeks	$46.90
G9540075	7.5	63.0	7.5	19.0	1-2 Weeks	$41.90
G9540080	8	63.0	8.0	19.0	Low stock	$46.30
G9540085	8.5	67.0	8.5	19.0	1-2 Weeks	$59.20
G9540090	9	67.0	9.0	19.0	1-2 Weeks	$73.40
G9540095	9.5	72.0	9.5	22.0	1-2 Weeks	$77.90
G9540100	10	72.0	10.0	22.0	In stock	$68.50
G9540110	11	83.0	11.0	26.0	1-2 Weeks	$101.00
G9540120	12	83.0	12.0	26.0	In stock	$92.60
G9540130	13	83.0	13.0	26.0	In stock	$116.10
G9540140	14	83.0	14.0	26.0	1-2 Weeks	$145.20
G9540150	15	92.0	15.0	32.0	1-2 Weeks	$158.70
G9540160	16	92.0	16.0	32.0	Low stock	$158.70
G9540180	18	92.0	18.0	32.0	1-2 Weeks	$251.30
G9540200	20	104.0	20.0	38.0	1-2 Weeks	$276.35

Add (G9540) K-2 Carbide, 4Flute End Mill, Long Length to comparison

View Comparison

Overview
Specifications
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9540 K-2 Carbide four-flute long-length end mills are TiAlN-coated solid carbide tools for dry milling at high temperatures. Designed for milling operations requiring extended reach, their four-flute geometry supports improved workpiece finishes. This plain-shank series covers 3.5 to 20 mm cutting diameters, with long-length proportions for reach-sensitive work.

K-2 Carbide construction and TiAlN coating provide a focused choice for high-performance precision milling applications. Documented tolerances include 0 to minus 0.03 mm cutting diameter and h5 shank tolerance. The four-flute format is specified to support better workpiece finishes during applicable milling operations. It suits general metalworking where a solid carbide long-length end mill is required.

TiAlN-coated solid carbide construction
Four-flute long-length end mill geometry
Suitable for dry milling at high temperatures
Plain shank configuration
3.5 to 20 mm cutting diameter range
0 to minus 0.03 mm cutting diameter tolerance with h5 shank tolerance

Product Data

No specifications available.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	1.0	1.5	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0	14.0	16.0	20.0
P	1-4	Non-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.029	0.043	0.047	0.047	0.047	0.047	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	140	233	229	267	484	519	554	616	509	449	385	355	269
	5		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.038	0.037	0.038
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	76	119	153	172	302	306	362	333	266	216	190	177	133
	6-7	Low-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.029	0.043	0.047	0.047	0.047	0.047	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	140	233	229	267	484	519	554	616	509	449	385	355	269
	8-9		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.038	0.037	0.038
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	76	119	153	172	302	306	362	333	266	216	190	177	133
	10	High-Alloyed Steel, and Tool Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.029	0.043	0.047	0.047	0.047	0.047	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	140	233	229	267	484	519	554	616	509	449	385	355	269
	11.1-11.2		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.038	0.037	0.038
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	76	119	153	172	302	306	362	333	266	216	190	177	133
M	14.1	Stainless steel	0.1D	1.0D	Vc	25	35	35	35	40	40	45	45	45	45	45	50	45
					fz	0.002	0.004	0.006	0.009	0.018	0.024	0.020	0.042	0.044	0.045	0.045	0.045	0.046
					RPM	7958	7427	5570	3714	3183	2546	2387	1790	1432	1194	1023	895	716
					FEED	64	119	134	134	229	244	277	301	252	215	184	179	132
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	0.1D	1.5D	Vc	60	55	60	55	60	55	55	55	60	55	55	55	55
					fz	0.008	0.013	0.017	0.026	0.035	0.044	0.065	0.093	0.116	0.155	0.182	0.22	0.288
					RPM	19099	11671	9549	5836	4775	3501	2918	2188	1910	1459	1251	1094	875
					FEED	611	607	649	607	668	616	759	814	886	905	910	963	1008
N	21~22	Aluminum-wrought alloy	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.011	0.015	0.021	0.03	0.036	0.047	0.063	0.078	0.095	0.108	0.125	0.163
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	1070	1214	1337	1292	1337	1329	1446	1454	1440	1411	1424	1442	1453
	23~25	Aluminum-cast,alloyed	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.011	0.015	0.021	0.03	0.036	0.047	0.063	0.078	0.095	0.108	0.125	0.163
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	1070	1214	1337	1292	1337	1329	1446	1454	1440	1411	1424	1442	1453
	26-28	Copper Alloys (Bronze / Brass)	0.1D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.024	0.029	0.038	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	611	887	1070	1070	1015	1016	1070	1103	1083	1070	1098	1094	1083
	29.1	Non Metallic Materials	1.0D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.024	0.029	0.038	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	611	887	1070	1070	1015	1016	1070	1103	1083	1070	1098	1094	1083
H	40	Chilled Cast Iron	0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.038	0.037	0.038
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	76	119	153	172	302	306	362	333	266	216	190	177	133

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
