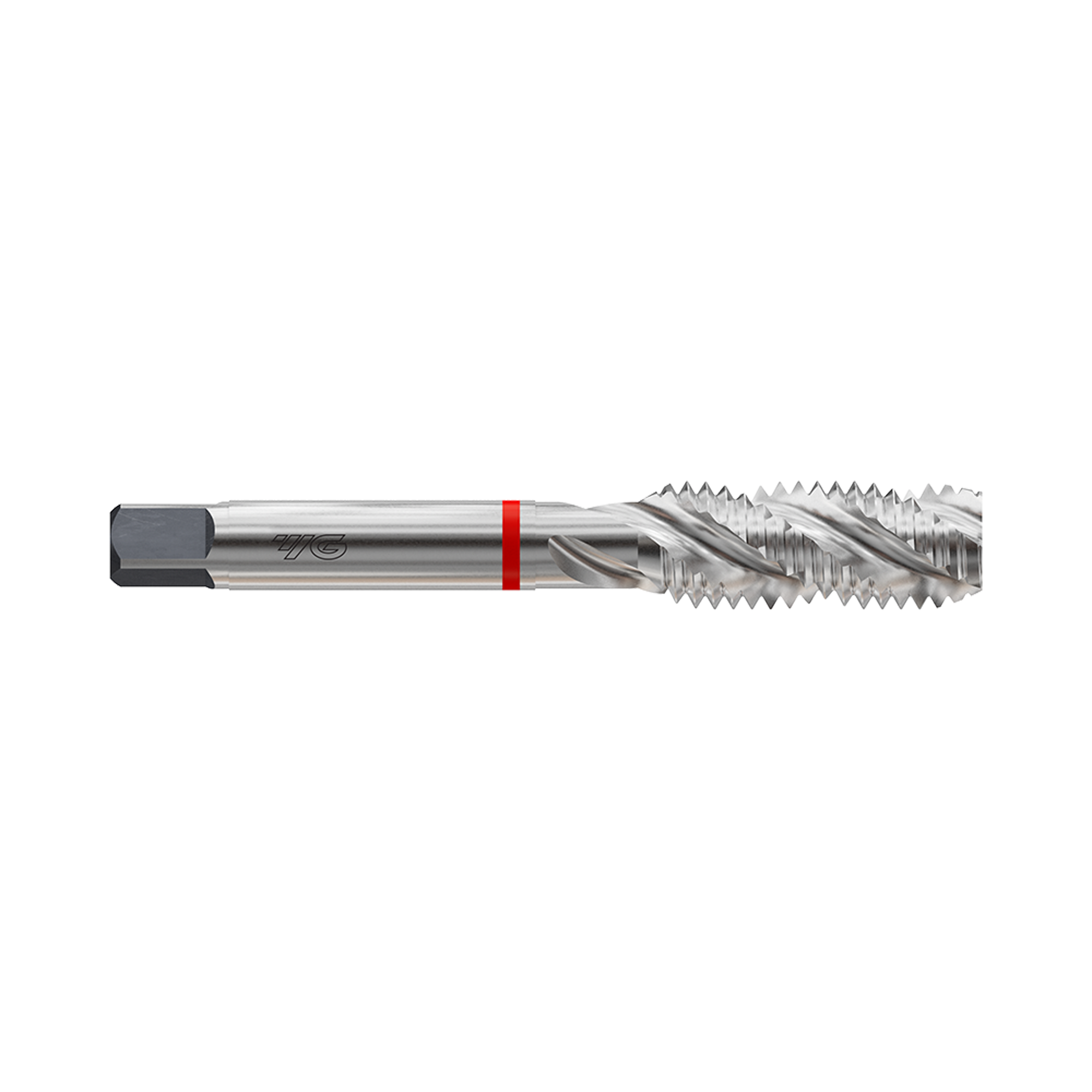

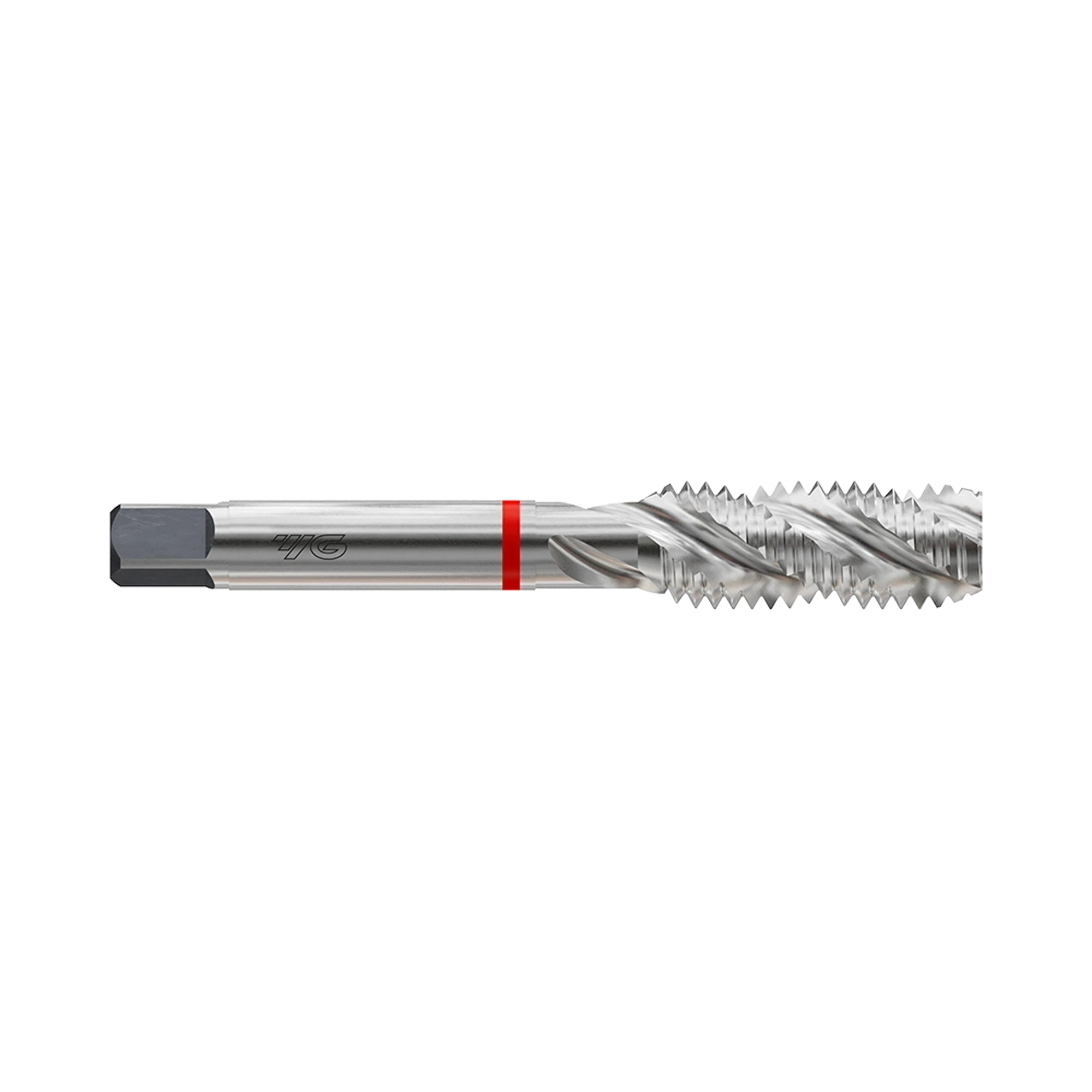

COMBO JIS I-TYPE Spiral Flute Bright (T2809)

New

COMBO JIS I-TYPE Spiral Flute Bright (T2809)

Product Code: T2809

Quantity

Buy Local

Product Data

Workpiece Material	P M K N
Helix Angle	Square 40
Operation	Blind Drilling
Surface Treatment	Bright
Thread Angle	60
Thread Class	YH
Thread Form	2.5P
Thread Shape	M/MF
Tool Material	HSS-E

Made in South Korea

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add COMBO JIS I-TYPE Spiral Flute Bright (T2809) to comparison

View Comparison

Specifications Operation Work Material

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute T2809A44 M33 3.5 51 145 145 25 19 4 T2809A53 M33 3 51 145 145 25 19 4 T2809A63 M33 2 45 145 145 25 19 4 T2809A73 M33 1.5 45 145 145 25 19 4 T2809B13 M35 1.5 45 166 166 26 21 4 T2809B34 M36 4 57 155 155 28 21 4 T2809B43 M36 3 57 155 155 28 21 4 T2809B53 M36 2 45 155 155 28 21 4 T2809B63 M36 1.5 45 155 155 28 21 4 T2809C04 M39 4 60 165 165 30 23 4 T2809C84 M42 4.5 60 175 175 32 26 4 T2809E24 M48 5 67 185 185 38 29 4 T2809E54 M48 3 67 185 185 38 29 4 T2809E73 M48 1.5 67 185 185 38 29 4 T2809F34 M52 5 70 195 195 42 32 4 T2809I75 M64 6 79 225 225 48 38 4 T2809K51 M1.7 0.35 8 36 36 3 2.5 2 T2809K71 M2.6 0.35 9.5 44 44 3 2.5 2 T2809K92-C M11 1.25 25 80 80 8 6 3 T2809L12-C M7 0.5 19 65 65 6.2 5 3 T2809N43 M26 2 45 125 125 20 15 4 T2809N43 M26 2 45 125 125 20 15 4 T2809N52 M26 1 45 125 125 20 15 4 T2809N52 M26 1 45 125 125 20 15 4 T2809O34 M50 5 70 195 195 40 32 4 T2809011 M1 0.25 5.5 30 30 3 2.5 2 T2809031 M1.1 0.25 5.5 32 32 3 2.5 2 T2809051 M1.2 0.25 5.5 32 32 3 2.5 2 T2809071 M1.4 0.3 8 34 34 3 2.5 2 T2809091 M1.6 0.35 8 36 36 3 2.5 2 T2809111 M1.8 0.35 8 36 36 3 2.5 2 T2809112 M1.8 0.35 8 36 36 3 2.5 2 T2809131 M2 0.4 9.5 40 40 3 2.5 2 T2809131 M2 0.4 9.5 40 40 3 2.5 2 T2809141 M2 0.25 9.5 40 40 3 2.5 2 T2809151 M2.2 0.45 9.5 42 42 3 2.5 2 T2809151 M2.2 0.45 9.5 42 42 3 2.5 2 T2809171 M2.5 0.45 9.5 44 44 3 2.5 2 T2809171 M2.5 0.45 9.5 44 44 3 2.5 2 T2809174 M2.5 0.45 9.5 44 44 3 2.5 2 T2809181 M2.5 0.35 9.5 44 44 3 2.5 2 T2809191 M2.3 0.4 9.5 42 42 3 2.5 2 T2809191 M2.3 0.4 9.5 42 42 3 2.5 2 T2809201-C M3 0.5 11 46 46 4 3.2 3 T2809202-C M3 0.5 11 46 46 4 3.2 3 T2809202-C M3 0.5 11 46 46 4 3.2 3 T2809211-C M3 0.35 11 46 46 4 3.2 3 T2809211-C M3 0.35 11 46 46 4 3.2 3 T2809222-C M3.5 0.6 13 48 48 4 3.2 3 T2809222-C M3.5 0.6 13 48 48 4 3.2 3 T2809231-C M3.5 0.35 13 48 48 4 3.2 3 T2809231-C M3.5 0.35 13 48 48 4 3.2 3 T2809242-C M4 0.7 13 52 52 5 4 3 T2809242-C M4 0.7 13 52 52 5 4 3 T2809251-C M4 0.5 13 52 52 5 4 3 T2809252-C M4 0.5 13 52 52 5 4 3 T2809252-C M4 0.5 13 52 52 5 4 3 T2809262-C M4.5 0.75 13 55 55 5 4 3 T2809262-C M4.5 0.75 13 55 55 5 4 3 T2809271-C M4.5 0.5 13 55 55 5 4 3 T2809271-C M4.5 0.5 13 55 55 5 4 3 T2809272-C M4.5 0.5 13 55 55 5 4 3 T2809282-C M5 0.8 16 60 60 5.5 4.5 3 T2809282-C M5 0.8 16 60 60 5.5 4.5 3 T2809291-C M5 0.5 16 60 60 5.5 4.5 3 T2809292-C M5 0.5 16 60 60 5.5 4.5 3 T2809292-C M5 0.5 16 60 60 5.5 4.5 3 T2809301-C M5.5 0.5 16 60 60 5.5 4.5 3 T2809301-C M5.5 0.5 16 60 60 5.5 4.5 3 T2809312-C M6 1 19 62 62 6 4.5 3 T2809312-C M6 1 19 62 62 6 4.5 3 T2809322-C M6 0.75 19 62 62 6 4.5 3 T2809322-C M6 0.75 19 62 62 6 4.5 3 T2809323-C M6 0.75 19 62 62 6 4.5 3 T2809331-C M6 0.5 19 62 62 6 4.5 3 T2809332-C M6 0.5 19 62 62 6 4.5 3 T2809332-C M6 0.5 19 62 62 6 4.5 3 T2809342-C M7 1 19 65 65 6.2 5 3 T2809342-C M7 1 19 65 65 6.2 5 3 T2809352-C M7 0.75 19 65 65 6.2 5 3 T2809352-C M7 0.75 19 65 65 6.2 5 3 T2809362-C M8 1.25 22 70 70 6.2 5 3 T2809362-C M8 1.25 22 70 70 6.2 5 3 T2809372-C M8 1 22 70 70 6.2 5 3 T2809372-C M8 1 22 70 70 6.2 5 3 T2809382-C M8 0.75 22 70 70 6.2 5 3 T2809382-C M8 0.75 22 70 70 6.2 5 3 T2809392-C M9 1.25 22 72 72 7 5.5 3 T2809392-C M9 1.25 22 72 72 7 5.5 3 T2809402-C M9 1 22 72 72 7 5.5 3 T2809402-C M9 1 22 72 72 7 5.5 3 T2809412-C M9 0.75 22 72 72 7 5.5 3 T2809412-C M9 0.75 22 72 72 7 5.5 3 T2809422-C M10 1.5 24 75 75 7 5.5 3 T2809422-C M10 1.5 24 75 75 7 5.5 3 T2809423-C M10 1.5 24 75 75 7 5.5 3 T2809432-C M10 1.25 24 75 75 7 5.5 3 T2809432-C M10 1.25 24 75 75 7 5.5 3 T2809442-C M10 1 24 75 75 7 5.5 3 T2809442-C M10 1 24 75 75 7 5.5 3 T2809452-C M10 0.75 24 75 75 7 5.5 3 T2809452-C M10 0.75 24 75 75 7 5.5 3 T2809462-C M11 1.5 25 80 80 8 6 3 T2809462-C M11 1.5 25 80 80 8 6 3 T2809472-C M11 1 25 80 80 8 6 3 T2809472-C M11 1 25 80 80 8 6 3 T2809482-C M11 0.75 25 80 80 8 6 3 T2809482-C M11 0.75 25 80 80 8 6 3 T2809491 M2.6 0.45 9.5 44 44 3 2.5 2 T2809491 M2.6 0.45 9.5 44 44 3 2.5 2 T2809502-C M12 1.75 29 82 82 8.5 6.5 3 T2809502-C M12 1.75 29 82 82 8.5 6.5 3 T2809503-C M12 1.75 29 82 82 8.5 6.5 3 T2809512-C M12 1.5 29 82 82 8.5 6.5 3 T2809512-C M12 1.5 29 82 82 8.5 6.5 3 T2809522-C M12 1.25 29 82 82 8.5 6.5 3 T2809522-C M12 1.25 29 82 82 8.5 6.5 3 T2809532-C M12 1 29 82 82 8.5 6.5 3 T2809532-C M12 1 29 82 82 8.5 6.5 3 T2809542 M14 2 30 88 88 10.5 8 3 T2809542 M14 2 30 88 88 10.5 8 3 T2809552 M14 1.5 30 88 88 10.5 8 3 T2809552 M14 1.5 30 88 88 10.5 8 3 T2809562 M14 1.25 30 88 88 10.5 8 3 T2809562 M14 1.25 30 88 88 10.5 8 3 T2809572 M14 1 30 88 88 10.5 8 3 T2809572 M14 1 30 88 88 10.5 8 3 T2809582 M15 1.5 30 90 90 10.5 8 3 T2809582 M15 1.5 30 90 90 10.5 8 3 T2809592 M15 1 30 90 90 10.5 8 3 T2809592 M15 1 30 90 90 10.5 8 3 T2809602 M16 2 32 95 95 12.5 10 3 T2809602 M16 2 32 95 95 12.5 10 3 T2809604 M16 2 32 95 95 12.5 10 3 T2809612 M16 1.5 32 95 95 12.5 10 3 T2809612 M16 1.5 32 95 95 12.5 10 3 T2809616 M16 1.5 32 95 95 12.5 10 3 T2809622 M16 1 32 95 95 12.5 10 3 T2809622 M16 1 32 95 95 12.5 10 3 T2809653 M18 2.5 37 100 100 14 11 4 T2809653 M18 2.5 37 100 100 14 11 4 T2809663 M18 2 37 100 100 14 11 4 T2809663 M18 2 37 100 100 14 11 4 T2809672 M18 1.5 37 100 100 14 11 4 T2809672 M18 1.5 37 100 100 14 11 4 T2809676 M18 1.5 37 100 100 14 11 4 T2809682 M18 1 37 100 100 14 11 4 T2809682 M18 1 37 100 100 14 11 4 T2809685 M18 1 37 100 100 14 11 4 T2809703 M20 2.5 37 105 105 15 12 4 T2809703 M20 2.5 37 105 105 15 12 4 T2809713 M20 2 37 105 105 15 12 4 T2809713 M20 2 37 105 105 15 12 4 T2809723 M20 1.5 37 105 105 15 12 4 T2809723 M20 1.5 37 105 105 15 12 4 T2809732 M20 1 37 105 105 15 12 4 T2809732 M20 1 37 105 105 15 12 4 T2809743 M22 2.5 38 115 115 17 13 4 T2809743 M22 2.5 38 115 115 17 13 4 T2809753 M22 2 38 115 115 17 13 4 T2809753 M22 2 38 115 115 17 13 4 T2809763 M22 1.5 38 115 115 17 13 4 T2809763 M22 1.5 38 115 115 17 13 4 T2809772 M22 1 38 115 115 17 13 4 T2809772 M22 1 38 115 115 17 13 4 T2809783 M24 3 45 120 120 19 15 4 T2809783 M24 3 45 120 120 19 15 4 T2809793 M24 2 45 120 120 19 15 4 T2809793 M24 2 45 120 120 19 15 4 T2809803 M24 1.5 45 120 120 19 15 4 T2809803 M24 1.5 45 120 120 19 15 4 T2809812 M24 1 45 120 120 19 15 4 T2809812 M24 1 45 120 120 19 15 4 T2809823 M25 2 45 125 125 19 15 4 T2809823 M25 2 45 125 125 19 15 4 T2809833 M25 1.5 45 125 125 19 15 4 T2809833 M25 1.5 45 125 125 19 15 4 T2809853 M26 1.5 45 125 125 20 15 4 T2809853 M26 1.5 45 125 125 20 15 4 T2809863 M27 3 45 130 130 20 15 4 T2809863 M27 3 45 130 130 20 15 4 T2809873 M27 2 45 130 130 20 15 4 T2809873 M27 2 45 130 130 20 15 4 T2809883 M27 1.5 45 130 130 20 15 4 T2809883 M27 1.5 45 130 130 20 15 4 T2809903 M28 2 45 130 130 21 17 4 T2809903 M28 2 45 130 130 21 17 4 T2809913 M28 1.5 45 130 130 21 17 4 T2809913 M28 1.5 45 130 130 21 17 4 T2809932-C M8 0.5 22 70 70 6.2 5 3 T2809944 M30 3.5 48 135 135 23 17 4 T2809944 M30 3.5 48 135 135 23 17 4 T2809953 M30 3 48 135 135 23 17 4 T2809953 M30 3 48 135 135 23 17 4 T2809963 M30 2 48 135 135 23 17 4 T2809963 M30 2 48 135 135 23 17 4 T2809973 M30 1.5 48 135 135 23 17 4 T2809973 M30 1.5 48 135 135 23 17 4 T2809982 M30 1 48 135 135 23 17 4 T2809982 M30 1 48 135 135 23 17 4

Operation

Blind Drilling

Good Great Excellent

N Plastic

Great

Good Great Excellent
