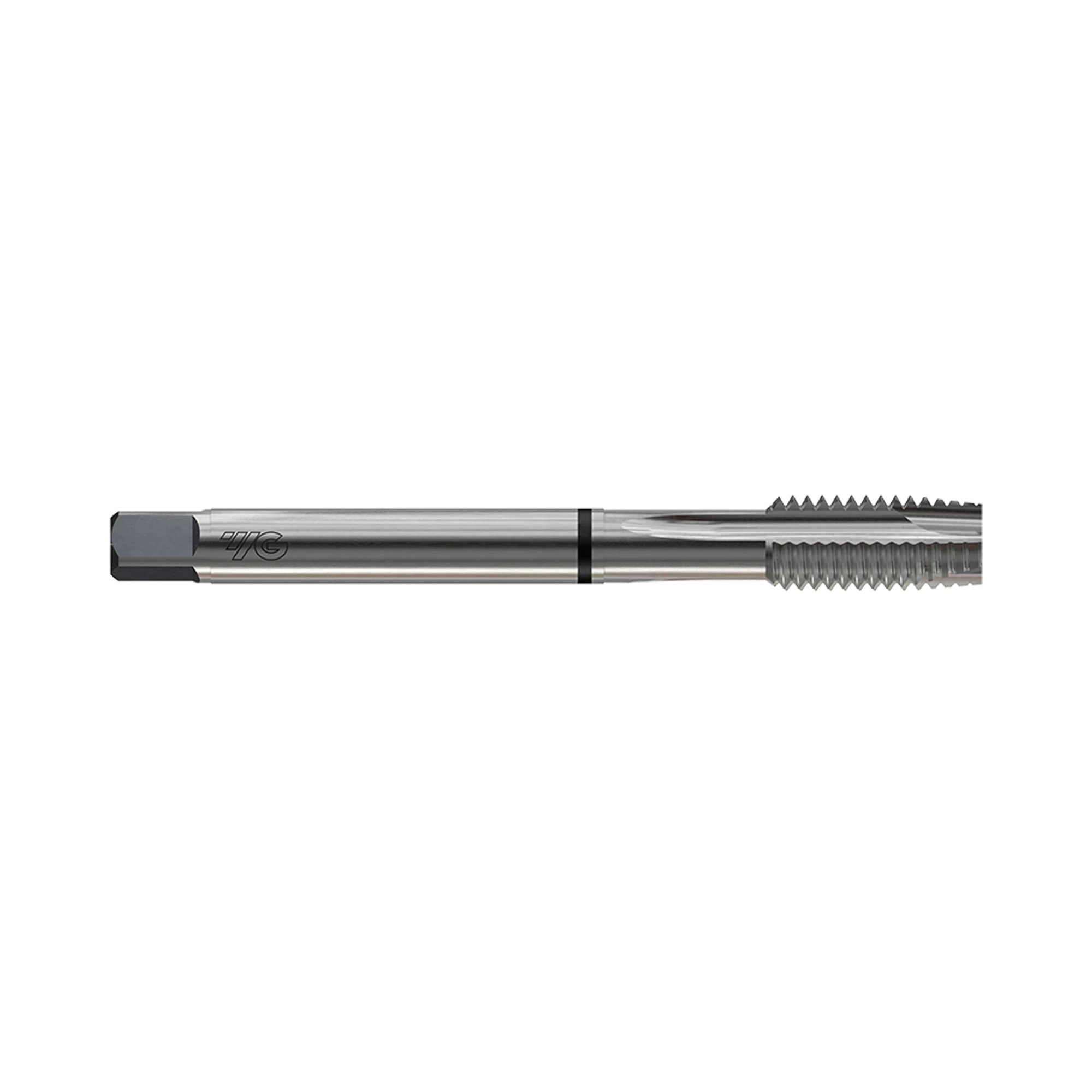

(TC834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose
Bright HSS-E UNC spiral point combo tapCode: TC834162
-
Key Features
- Bright HSS-E UNC spiral point combo tap
- Patented special tap geometry for correct thread profiles
- Designed for multi-purpose machine tapping
Made in South Korea
Accurate UNC threads
Special tap geometry supports correct Unified Coarse thread profiles.
Versatile material coverage
Suitable for multi-purpose tapping in selected steels, cast irons, aluminium and copper alloys.
Practical size coverage
Covers UNC sizes from #4-40 through to 1-8 with DIN 371 and DIN 376 shanks.
| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Thickness (mm) | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC834162 | #4 | 40UNC | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 90.0 | 2.3 | 5 days | $31.70 | ||
| TC834202 | #5 | 40UNC | 11.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 90.0 | 2.6 | 5 days | $25.10 | ||
| TC834242 | #6 | 32UNC | 12.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | - | 2.85 | 5 days | $28.40 | ||
| TC834282 | #8 | 32UNC | 13.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | - | 3.5 | 5 days | $25.10 | ||
| TC834322 | #10 | 24UNC | 15.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | - | 3.9 | 5 days | $26.00 | ||
| TC834362 | #12 | 24UNC | 16.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | - | 4.5 | 5 days | $26.00 | ||
| TC834402 | 1/4 | 20UNC | 17.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | - | 5.2 | 5 days | $26.00 | ||
| TC834442 | 5/16 | 18UNC | 20.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | - | 6.6 | In stock | $34.80 | ||
| TC834482 | 3/8 | 16UNC | 22.0 | 100.0 | 39.0 | 8.0 | 7.0 | 10.0 | 3 | - | 8.0 | 5 days | $41.80 | ||
| TC834522 | 7/16 | 14UNC | 22.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | - | 9.4 | 5 days | $54.30 | ||
| TC834562 | 1/2 | 13UNC | 25.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | - | 10.75 | In stock | $56.30 | ||
| TC834602 | 9/16 | 12UNC | 26.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | - | 12.25 | 5 days | $65.60 | ||
| TC834642 | 5/8 | 11UNC | 27.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | - | 13.5 | 5 days | $85.60 | ||
| TC834702 | 3/4 | 10UNC | 30.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | - | 16.5 | 5 days | $133.20 | ||
| TC834742 | 7/8 | 9UNC | 32.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | - | 19.5 | 5 days | $165.20 | ||
| TC834782 | 1 | 8UNC | 36.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | - | 22.25 | Low stock | $230.40 |
Add (TC834) HSS-E (M35) UNC Gun Point Combo Tap for Multi Purpose to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TC834 is a bright HSS-E UNC spiral point combo tap with patented special geometry. It produces Unified Coarse threads for multi-purpose machine tapping in suitable steels, cast irons, aluminium and copper alloys. The special tap geometry supports correct thread profiles and long tool life. This TC834 family has a 60° thread angle, Form B profile and 2B thread class. The available UNC range spans #4-40 through to 1-8, covering fine small threads through larger coarse sizes. DIN 371 applies from #4 to 3/8, while DIN 376 covers 7/16 to 1 inch. Each listed Bright TC834 variant uses three flutes and has its specified tapping drill diameter.
- Bright HSS-E UNC spiral point combo tap
- Patented special tap geometry for correct thread profiles
- Designed for multi-purpose machine tapping
- 60° Form B profile with 2B thread class
- Three-flute design throughout the listed range
- UNC sizes from #4-40 to 1-8
