(TC814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose

Bright HSS-E Metric Combo Tap

(TC814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose
$36.30 INC GST $33.00 EX GST
SKU
TC814136
Work materials
PMKN

Key features

  • Bright HSS-E combo tap for ISO metric coarse threads
  • Special geometry supports correct thread profiles and long tool life
  • B thread form with 6H tolerance and 60° thread angle
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Multipurpose thread cutting

Special tap geometry is designed for multipurpose use in machine tapping applications.

Defined metric thread standard

B form, 6H tolerance and 60° thread angle support ISO metric coarse threading.

Broad practical size range

Metric coarse sizes span M2 to M30 for common threading requirements.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TC814136M20.48.045.013.02.82.15.031.6 1-2 Weeks $33.00
TC814156M2.20.458.045.013.02.82.15.031.75 1-2 Weeks $36.90
TC814196M2.30.48.045.013.02.82.15.031.9 1-2 Weeks $41.30
TC814176M2.50.459.050.015.02.82.15.032.05 1-2 Weeks $27.60
TC814496M2.60.49.050.015.02.82.15.032.1 1-2 Weeks $26.10
TC814206M30.511.056.018.03.52.76.032.5 In stock $28.00
TC814226M3.50.612.056.020.04.03.06.032.9 1-2 Weeks $32.30
TC814246M40.713.063.021.04.53.46.033.3 In stock $28.00
TC814268M4.50.7514.070.025.06.04.98.033.7 1-2 Weeks $33.00
TC814286M50.815.070.025.06.04.98.034.2 In stock $30.00
TC814316M61.017.080.030.06.04.98.035.0 In stock $30.00
TC814346M71.017.080.030.07.05.58.036.0 1-2 Weeks $26.30
TC814366M81.2520.090.035.08.06.29.036.8 In stock $34.90
TC814396M91.2520.090.035.09.07.010.037.8 1-2 Weeks $35.00
TC814426M101.522.0100.039.010.08.011.038.5 In stock $48.10
TC814466M111.522.0100.040.08.06.29.039.5 1-2 Weeks $53.40
TC814506M121.7524.0110.044.09.07.010.0310.2 Restocking $60.80
TC814546M142.026.0110.044.011.09.012.0312.0 Restocking $89.30
TC814606M162.027.0110.044.012.09.012.0314.0 In stock $101.20
TC814656M182.530.0125.050.014.011.014.0415.5 1-2 Weeks $136.00
TC814706M202.532.0140.054.016.012.015.0417.5 In stock $161.80
TC814746M222.532.0140.054.018.014.517.0419.5 1-2 Weeks $143.80
TC814786M243.034.0160.060.018.014.517.0421.0 Low stock $219.60
TC814866M273.036.0160.060.020.016.019.0424.0 1-2 Weeks $242.20
TC814946M303.540.0180.070.022.018.021.0426.5 1-2 Weeks $357.40

Add (TC814) HSS-E (M35) Metric Gun Point Combo Tap for Multi Purpose to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

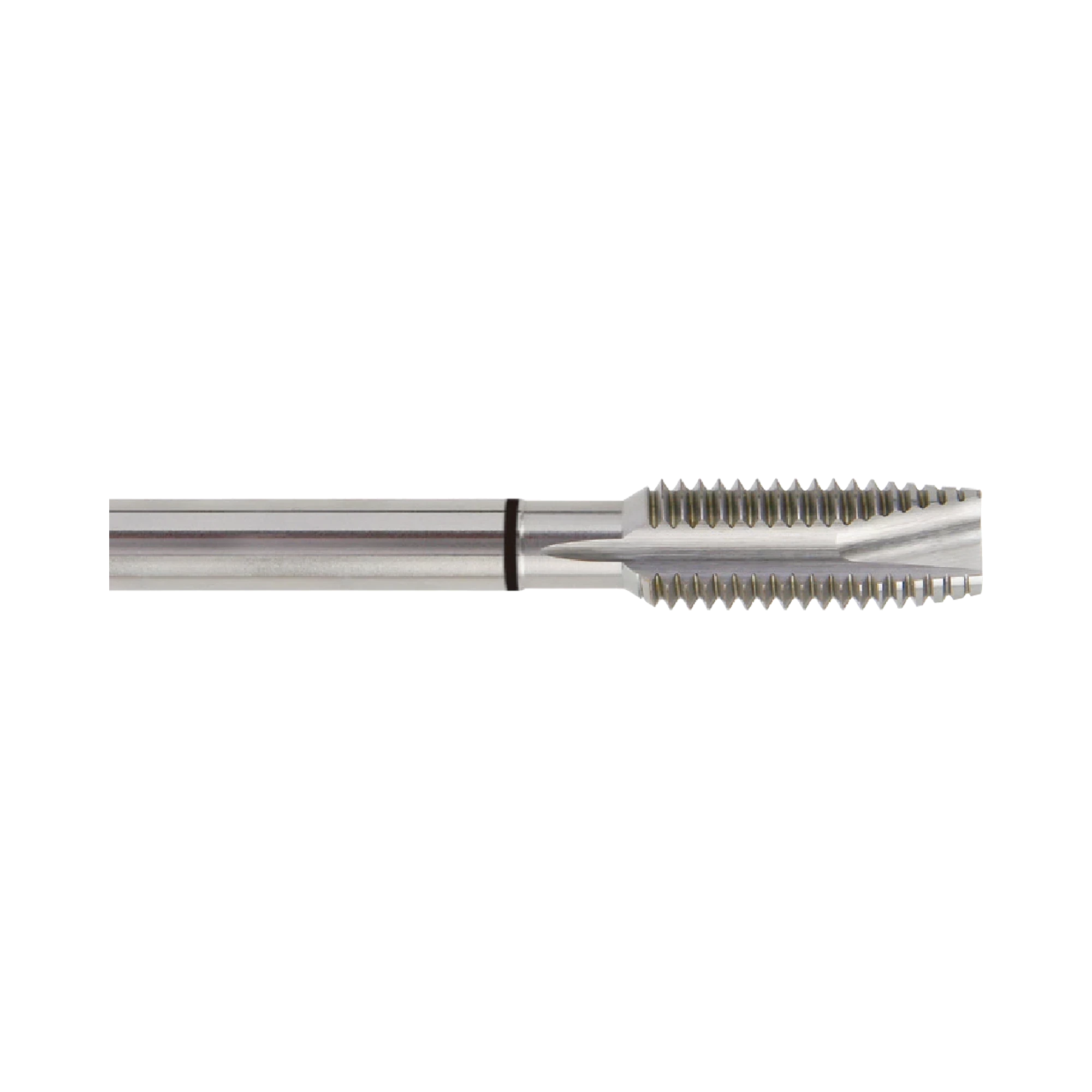

YG-1 TC814 is a bright HSS-E metric combo tap engineered for multipurpose ISO metric coarse thread cutting. Special tap geometry supports correct thread profiles and long tool life in machine tapping applications. The TC814 Bright series uses a B thread form, 6H tolerance and 60° thread angle. Selected variants cover M2 to M30 coarse threads, with pitches from 0.4 to 3.5 mm. Sizes M2 to M10 follow DIN 371, while M11 to M30 follow DIN 376. Three flutes are specified through M16, with four-flute constructions from M18 to M30. Choose this bright-finish combo tap for a practical general-purpose threading solution.

  • Bright HSS-E combo tap for ISO metric coarse threads
  • Special geometry supports correct thread profiles and long tool life
  • B thread form with 6H tolerance and 60° thread angle
  • M2 to M30 size range with 0.4 to 3.5 mm pitches
  • DIN 371 from M2 to M10 and DIN 376 from M11 to M30
  • Three flutes through M16 and four flutes from M18 to M30
Product Data

No specifications available.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814946 M30 3.5 40 180 70 22 18 21 4 TC814946 M30 3.5 40 180 70 22 18 21 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

10 grades
Non-alloy steel
ExcellentVDI 2–5
GoodVDI 1
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
GoodVDI 10

Cast iron

4 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

4 grades
Cast aluminium
ExcellentVDI 23
Copper, bronze and brass
ExcellentVDI 26–28
VDI grade reference21 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
23NCast aluminiumExcellent75-
26NCopper, bronze and brassExcellent110-
27NCopper, bronze and brassExcellent90-
28NCopper, bronze and brassExcellent100-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814136 M2 0.4 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814206 M3 0.5 11 56 18 3.5 2.7 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814226 M3.5 0.6 12 56 20 4 3 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814246 M4 0.7 13 63 21 4.5 3.4 6 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814266 M4.5 0.75 14 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814286 M5 0.8 15 70 25 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814316 M6 1 17 80 30 6 4.9 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814346 M7 1 17 80 30 7 5.5 8 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814366 M8 1.25 20 90 35 8 6.2 9 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814396 M9 1.25 20 90 35 9 7 10 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814426 M10 1.5 22 100 39 10 8 11 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814466 M11 1.5 22 100 40 8 6.2 9 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814506 M12 1.75 24 110 44 9 7 10 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814546 M14 2 26 110 44 11 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814606 M16 2 27 110 44 12 9 12 3 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814656 M18 2.5 30 125 50 14 11 14 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814706 M20 2.5 32 140 54 16 12 15 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814746 M22 2.5 32 140 54 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814786 M24 3 34 160 60 18 14.5 17 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814866 M27 3 36 160 60 20 16 19 4 TC814946 M30 3.5 40 180 70 22 18 21 4 TC814946 M30 3.5 40 180 70 22 18 21 4
