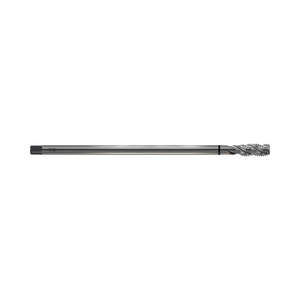

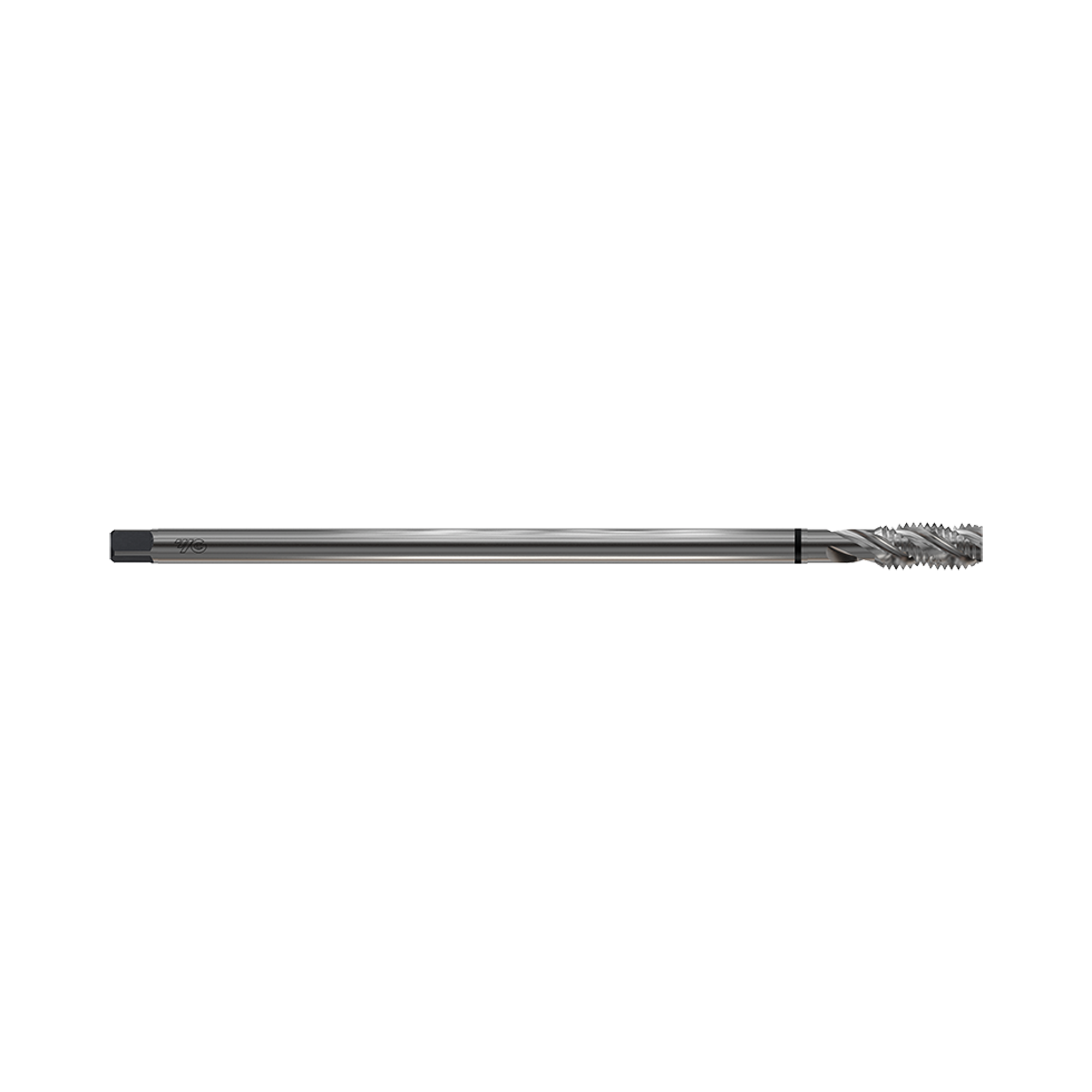

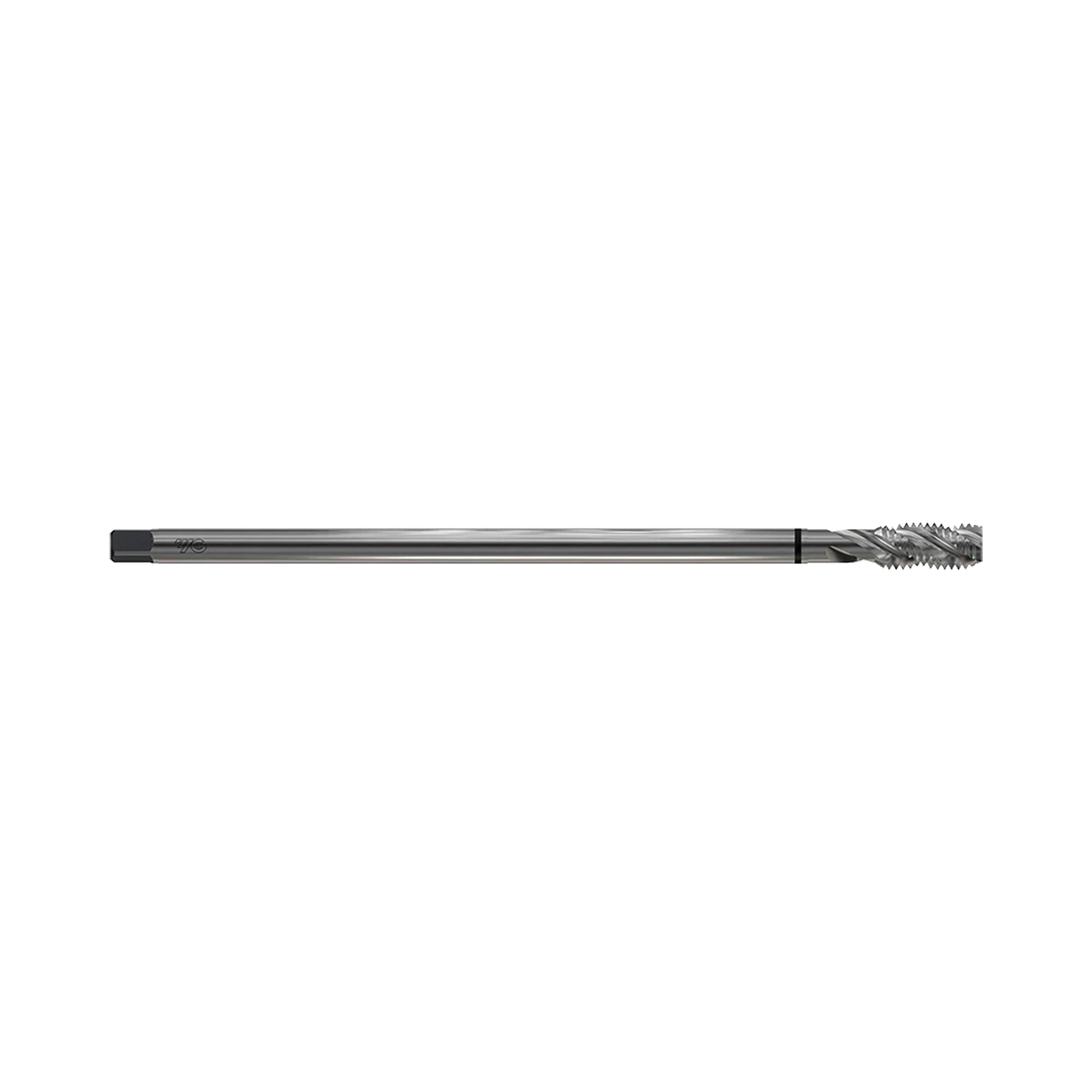

(TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo Tap for Multi Purpose
Long-shank HSS-E combo tap for ISO metric coarse threadsCode: TC633206
-
Key Features
- Patented special tap geometry for correct thread profiles and extended tool life
- R40 spiral flutes for chip evacuation during blind-hole tapping
- Bright finish with ISO metric coarse threads to DIN 13
Made in South Korea
Correct Thread Profiles
Patented special tap geometry supports accurate ISO metric coarse internal threads.
Blind-Hole Chip Evacuation
R40 spiral flutes provide flute space for effective chip evacuation.
Long-Shank Reach
The range provides 100 to 280 mm overall lengths for extended-reach applications.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC633206 | M3 | 0.5 | 11.0 | 100.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | 5 days | $48.80 | ||
| TC633246 | M4 | 0.7 | 13.0 | 125.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 5 days | $48.80 | ||
| TC633286 | M5 | 0.8 | 15.0 | 140.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | 5 days | $50.80 | ||
| TC633316 | M6 | 1 | 17.0 | 160.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | In stock | $52.60 | ||
| TC633366 | M8 | 1.25 | 20.0 | 180.0 | 35.0 | 6.0 | 4.9 | 8.0 | 3 | 6.8 | Low stock | $81.60 | ||
| TC633426 | M10 | 1.5 | 22.0 | 200.0 | 39.0 | 7.0 | 5.5 | 8.0 | 3 | 8.5 | Low stock | $82.60 | ||
| TC633506 | M12 | 1.75 | 24.0 | 220.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | Low stock | $136.40 | ||
| TC633546 | M14 | 2 | 26.0 | 220.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 5 days | $161.00 | ||
| TC633606 | M16 | 2 | 27.0 | 220.0 | 44.0 | 12.0 | 12.0 | 12.0 | 3 | 14.0 | Low stock | $203.10 | ||
| TC633706 | M20 | 2.5 | 32.0 | 280.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | Low stock | $278.10 |
Add (TC633) HSS-E (M35) Metric Spiral Flute Long Shank Combo Tap for Multi Purpose to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TC633 is an HSS-E metric spiral flute long shank combo tap with 2.5×D capacity. Special patented tap geometry supports multi-purpose threading, correct thread profiles and extended tool life. R40 spiral flutes provide chip evacuation for blind-hole tapping in supported engineering materials. Bright-finish tools produce ISO metric coarse threads to DIN 13 with a 6H tolerance. The long-shank configuration extends overall lengths from 100 to 280 mm across M3 to M20. The range covers M3 × 0.5 through M20 × 2.5 metric coarse threads. Suitable materials include steel, stainless steel, cast iron, aluminium and copper alloys. It features three flutes through M16, while the M20 size has four flutes.
- Patented special tap geometry for correct thread profiles and extended tool life
- R40 spiral flutes for chip evacuation during blind-hole tapping
- Bright finish with ISO metric coarse threads to DIN 13
- 2.5×D threading capacity with a long-shank configuration
- M3 × 0.5 to M20 × 2.5 metric coarse thread range
- Recommended for steel stainless steel cast iron aluminium and copper alloys
