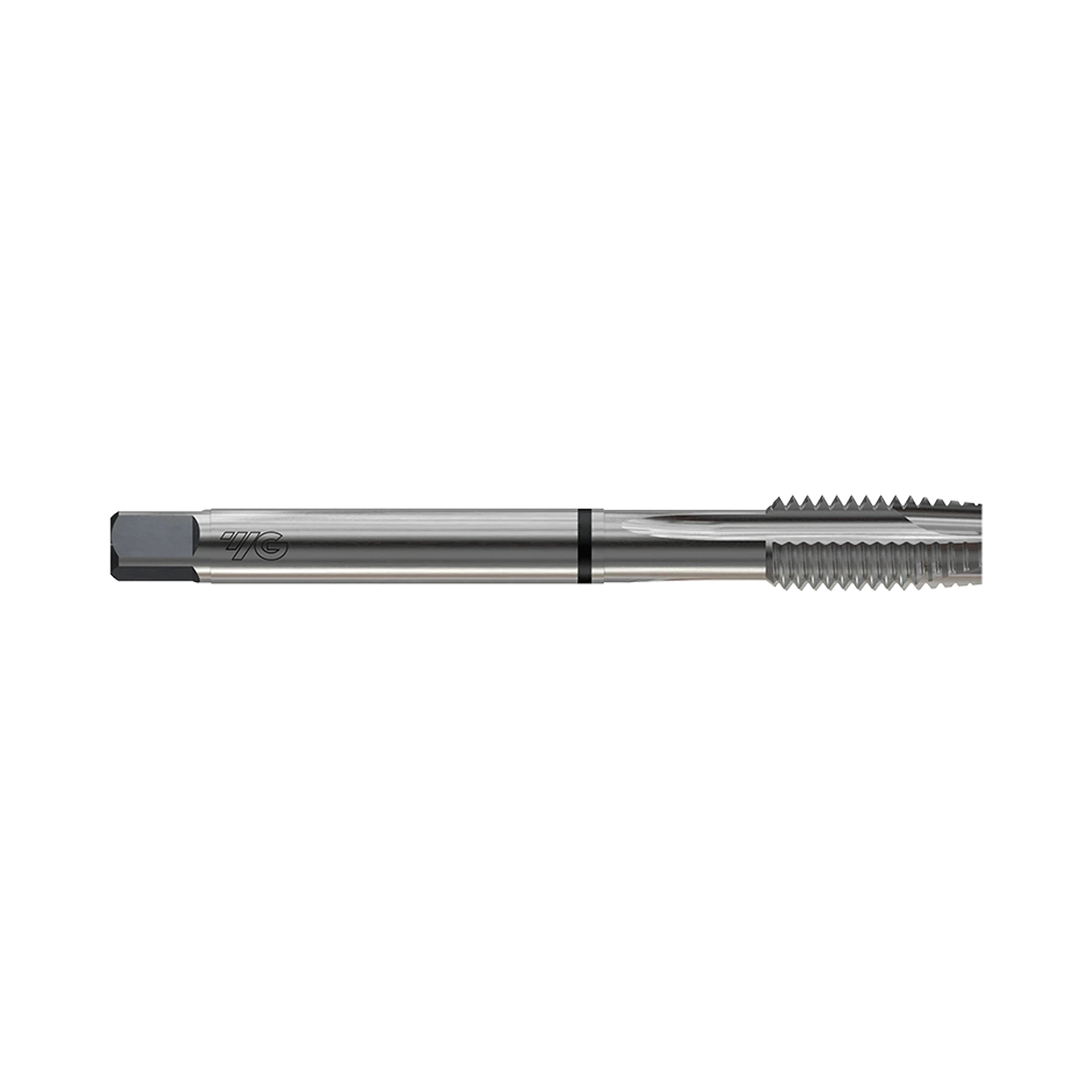

DIN374 COMBO Spiral Point Bright (TC854)

$41.25INC GST $37.50 EX GST
Unit price per

DIN374 COMBO Spiral Point Bright (TC854)

$41.25INC GST $37.50 EX GST Price available on request

Unit price per

Code: TC854256

Work Material

P M K N

Size

Pitch (mm)

Quantity

Loading stock…

Buy Local

Minimum order: $200.00

$200.00 to go

Spend $200.00 or more to enable checkout.

Made in South Korea

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN374 COMBO Spiral Point Bright (TC854) to comparison

View Comparison

Overview
Specifications
Operation
Work Material
Reviews

Product Description

For using multi-purpose and correct thread profiles & long tool life due to special tap geometry.
YG-1 company has a patent.

Product Data

Workpiece Material	P M K N
Operation	Blind Drilling
Surface Treatment	Bright
Thread Angle	60
Thread Class	6H
Thread Form	B
Thread Shape	MF
Tool Material	HSS-E
Tool Standard	DIN 374

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC854256 M4 0.5 10 61 21 2.8 2.1 5 3 TC854256 M4 0.5 10 61 21 2.8 2.1 5 3 TC854296 M5 0.5 11 68 25 3.5 2.7 6 3 TC854296 M5 0.5 11 68 25 3.5 2.7 6 3 TC854326 M6 0.75 13 78 30 4.5 3.4 6 3 TC854326 M6 0.75 13 78 30 4.5 3.4 6 3 TC854336 M6 0.5 13 78 30 4.5 3.4 6 3 TC854336 M6 0.5 13 78 30 4.5 3.4 6 3 TC854356 M7 0.75 14 78 30 5.5 4.3 7 3 TC854356 M7 0.75 14 78 30 5.5 4.3 7 3 TC854376 M8 1 17 90 36 6 4.9 8 3 TC854376 M8 1 17 90 36 6 4.9 8 3 TC854386 M8 0.75 14 80 36 6 4.9 8 3 TC854386 M8 0.75 14 80 36 6 4.9 8 3 TC854436 M10 1.25 22 100 40 7 5.5 8 3 TC854436 M10 1.25 22 100 40 7 5.5 8 3 TC854446 M10 1 18 90 40 7 5.5 8 3 TC854446 M10 1 18 90 40 7 5.5 8 3 TC854456 M10 0.75 18 90 40 7 5.5 8 3 TC854456 M10 0.75 18 90 40 7 5.5 8 3 TC854516 M12 1.5 22 100 40 9 7 10 3 TC854516 M12 1.5 22 100 40 9 7 10 3 TC854526 M12 1.25 22 100 40 9 7 10 3 TC854526 M12 1.25 22 100 40 9 7 10 3 TC854536 M12 1 18 100 40 9 7 10 3 TC854536 M12 1 18 100 40 9 7 10 3 TC854556 M14 1.5 22 100 40 11 9 12 3 TC854556 M14 1.5 22 100 40 11 9 12 3 TC854566 M14 1.25 22 100 40 11 9 12 3 TC854566 M14 1.25 22 100 40 11 9 12 3 TC854576 M14 1 22 100 40 11 9 12 3 TC854576 M14 1 22 100 40 11 9 12 3 TC854616 M16 1.5 22 100 40 12 9 12 3 TC854616 M16 1.5 22 100 40 12 9 12 3 TC854626 M16 1 18 100 40 12 9 12 3 TC854626 M16 1 18 100 40 12 9 12 3 TC854676 M18 1.5 25 110 44 14 11 14 4 TC854676 M18 1.5 25 110 44 14 11 14 4 TC854686 M18 1 20 110 44 14 11 14 4 TC854686 M18 1 20 110 44 14 11 14 4 TC854726 M20 1.5 25 125 50 16 12 15 4 TC854726 M20 1.5 25 125 50 16 12 15 4 TC854736 M20 1 20 125 50 16 12 15 4 TC854736 M20 1 20 125 50 16 12 15 4 TC854766 M22 1.5 25 125 50 18 14.5 17 4 TC854766 M22 1.5 25 125 50 18 14.5 17 4 TC854776 M22 1 20 125 50 18 14.5 17 4 TC854776 M22 1 20 125 50 18 14.5 17 4 TC854796 M24 2 27 140 54 18 14.5 17 4 TC854796 M24 2 27 140 54 18 14.5 17 4 TC854806 M24 1.5 27 140 54 18 14.5 17 4 TC854806 M24 1.5 27 140 54 18 14.5 17 4 TC854856 M26 1.5 28 140 54 18 14.5 17 4 TC854856 M26 1.5 28 140 54 18 14.5 17 4 TC854876 M27 2 28 140 54 20 16 19 4 TC854876 M27 2 28 140 54 20 16 19 4 TC854886 M27 1.5 28 140 54 20 16 19 4 TC854886 M27 1.5 28 140 54 20 16 19 4 TC854916 M28 1.5 28 140 54 20 16 19 4 TC854916 M28 1.5 28 140 54 20 16 19 4 TC854966 M30 2 30 150 57 22 18 21 4 TC854966 M30 2 30 150 57 22 18 21 4 TC854976 M30 1.5 30 150 57 22 18 21 4 TC854976 M30 1.5 30 150 57 22 18 21 4

Blind Drilling

Good Great Excellent

N Plastic

Great

Good Great Excellent
