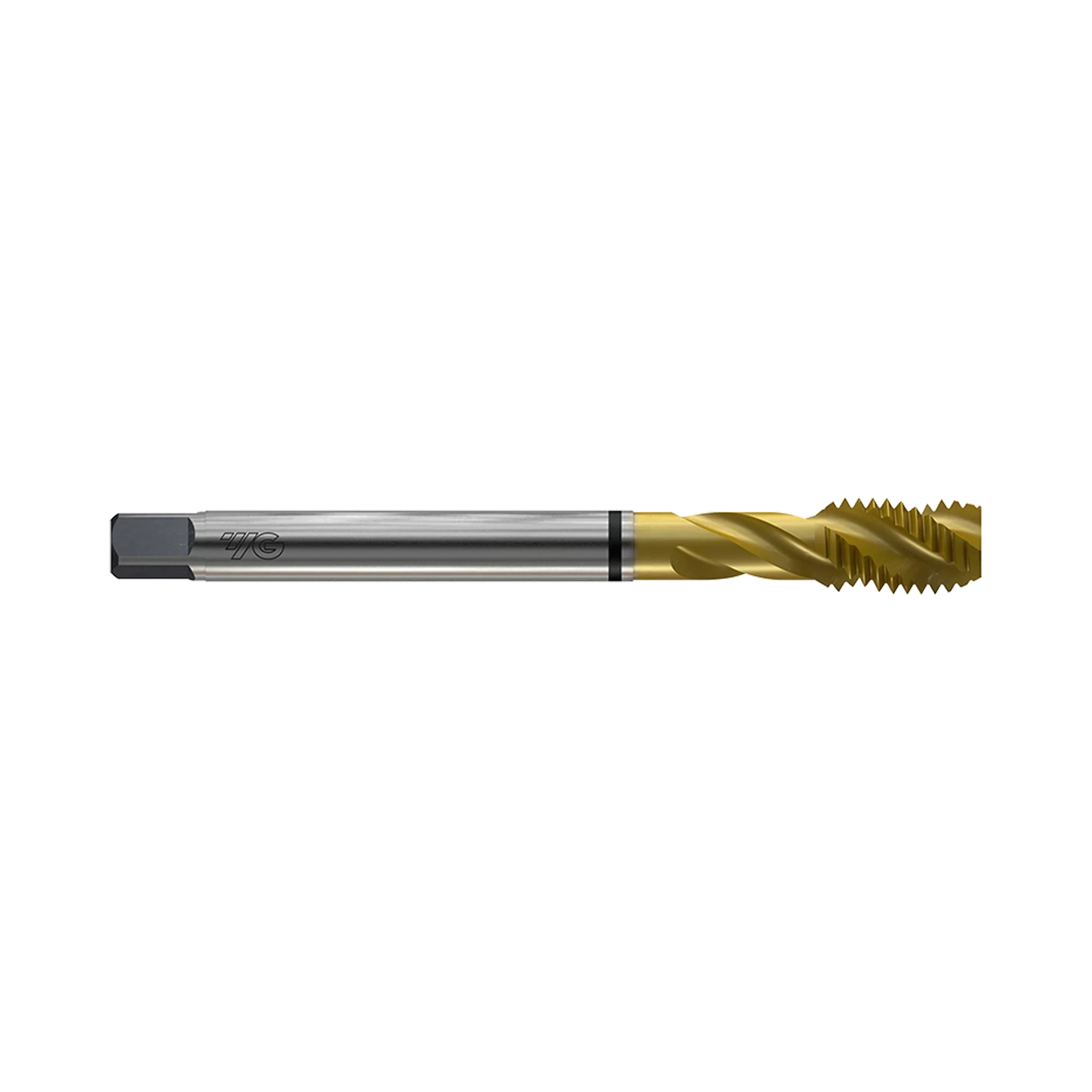

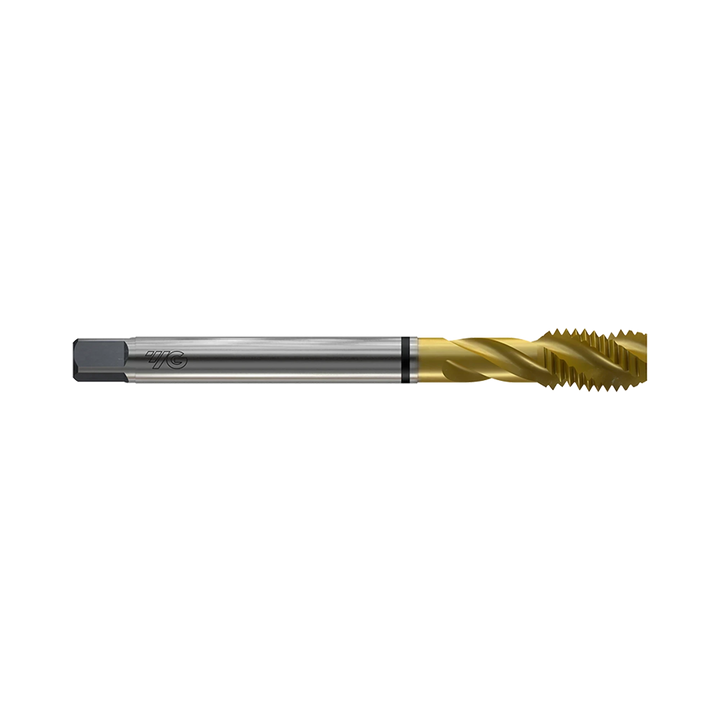

(TD864) HSS-E (M35) UNF Spiral Flute Combo Tap for Multi Purpose TiN Coated)
TiN-coated HSS-E UNF combo tap for blind holes
- SKU
- TD864382
Key features
- TiN-coated HSS-E UNF spiral flute combo tap
- For blind holes up to 2.5×D
- Class 2B Unified Fine threads with 60° thread form
Made in South Korea
Blind-hole threading
Spiral flute configuration for blind holes up to 2.5×D
Unified Fine coverage
Class 2B UNF threads from #5-44 through 1-12
Multi-purpose geometry
Special tap geometry supports correct thread profiles and extended tool life
| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD864382 | #12 | 28UNF | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 4.7 | 1-2 Weeks | $67.00 | ||
| TD864342 | #10 | 32UNF | 10.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.1 | In stock | $68.00 | ||
| TD864302 | #8 | 36UNF | 8.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.5 | 1-2 Weeks | $67.00 | ||
| TD864262 | #6 | 40.0 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | No stock | $66.40 | ||
| TD864222 | #5 | 44UNF | 7.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.7 | 1-2 Weeks | $66.40 | ||
| TD864182 | #4 | 48.0 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.4 | No stock | $81.50 | ||
| TD864422 | 1/4 | 28UNF | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 5.5 | 1-2 Weeks | $67.00 | ||
| TD864462 | 5/16 | 24UNF | 10.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.9 | In stock | $75.20 | ||
| TD864502 | 3/8 | 24UNF | 10.0 | 100.0 | 39.0 | 9.0 | 7.0 | 10.0 | 3 | 8.5 | In stock | $89.60 | ||
| TD864542 | 7/16 | 20UNF | 13.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.9 | 1-2 Weeks | $108.20 | ||
| TD864582 | 1/2 | 20UNF | 13.0 | 100.0 | 40.0 | 9.0 | 7.0 | 10.0 | 3 | 11.5 | 1-2 Weeks | $109.30 | ||
| TD864622 | 9/16 | 18UNF | 15.0 | 100.0 | 40.0 | 11.0 | 9.0 | 12.0 | 3 | 12.9 | 1-2 Weeks | $122.20 | ||
| TD864662 | 5/8 | 18UNF | 15.0 | 100.0 | 40.0 | 12.0 | 9.0 | 12.0 | 3 | 14.5 | 1-2 Weeks | $152.40 | ||
| TD864722 | 3/4 | 16UNF | 17.0 | 110.0 | 44.0 | 14.0 | 11.0 | 14.0 | 4 | 17.5 | 1-2 Weeks | $219.90 | ||
| TD864762 | 7/8 | 14.0 | 17.0 | 125.0 | 50.0 | 18.0 | 14.5 | 17.0 | 4 | 20.5 | No stock | $258.30 | ||
| TD864802 | 1 | 12UNF | 20.0 | 140.0 | 54.0 | 20.0 | 16.0 | 19.0 | 4 | 23.25 | 1-2 Weeks | $330.20 |
Add (TD864) HSS-E (M35) UNF Spiral Flute Combo Tap for Multi Purpose TiN Coated) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews
YG-1 TD864 is a TiN-coated HSS-E UNF spiral flute combo tap for blind holes. It produces Class 2B Unified Fine threads for multi-purpose machine tapping applications. TiN surface treatment complements the HSS-E tool material for general multi-purpose threading. Special tap geometry is designed for correct thread profiles and extended tool life. Available sizes extend from #5-44 UNF to 1-12 UNF, covering compact through larger fine-thread requirements. The series uses DIN 371 dimensions from #5 through 3/8, and DIN 374 from 7/16 through 1. Each tap has a 60° thread form and R40 spiral flute geometry. Blind-hole use is specified to a maximum depth of 2.5×D.
- TiN-coated HSS-E UNF spiral flute combo tap
- For blind holes up to 2.5×D
- Class 2B Unified Fine threads with 60° thread form
- R40 spiral flute geometry
- DIN 371 sizes #5 through 3/8 and DIN 374 sizes 7/16 through 1
- UNF size range from #5-44 to 1-12
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
10 gradesCast iron
4 gradesStainless steel
3 gradesNon-ferrous materials
4 gradesVDI grade reference21 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Good | 200 | 15 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 23 | NCast aluminium | Excellent | 75 | - |
| 26 | NCopper, bronze and brass | Excellent | 110 | - |
| 27 | NCopper, bronze and brass | Excellent | 90 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
