(TC864) HSS-E (M35) UNF Spiral Flute Combo Tap for Multi Purpose

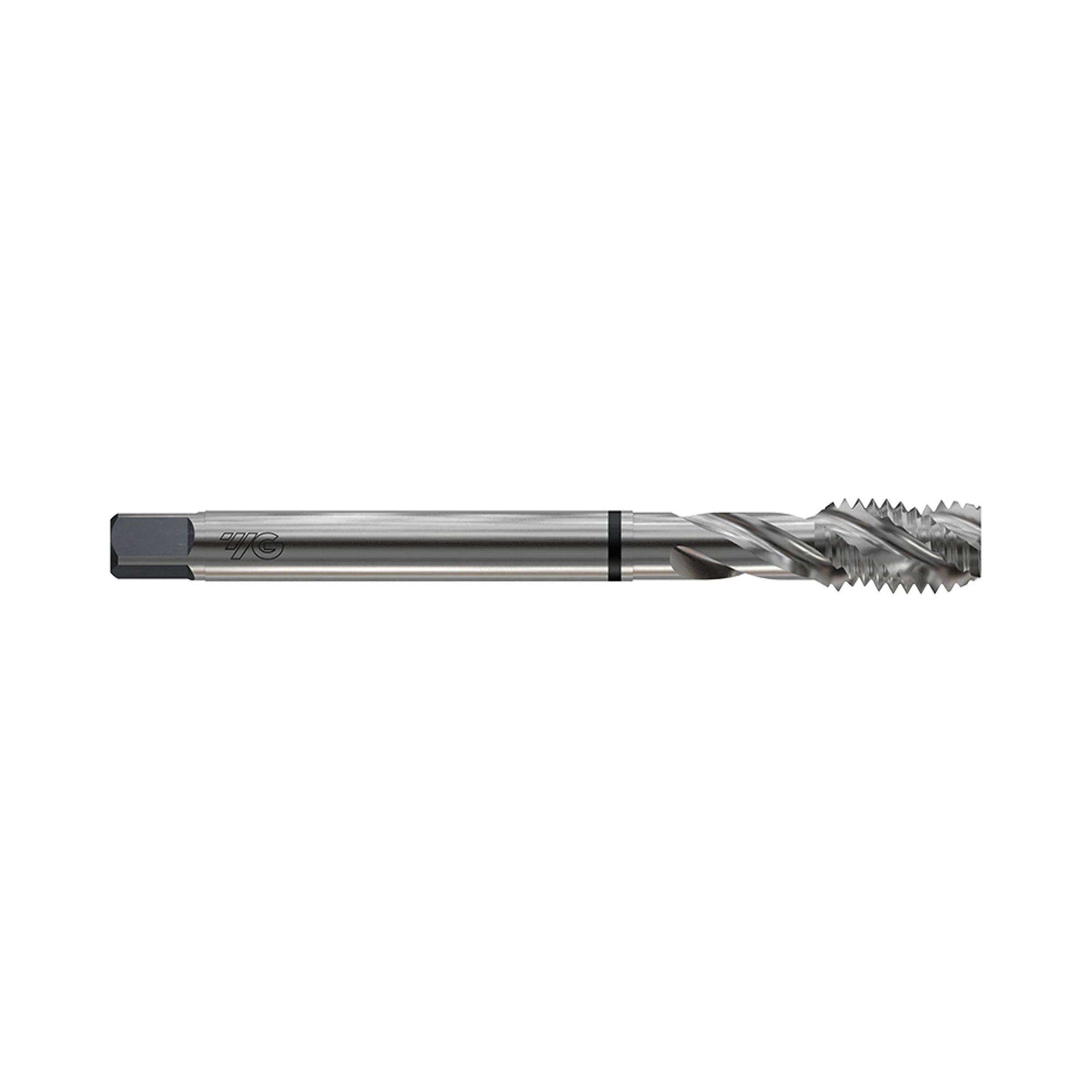

Bright HSS-E UNF spiral flute combo tap
- SKU
- TC864382
Key features
- Bright HSS-E spiral flute combo tap for UNF Unified Fine Threads
- Patented special geometry supports correct thread profiles and extended tool life
- R40 spiral flutes for blind-hole tapping up to 2.5×D
Made in South Korea
Controlled blind-hole tapping
R40 spiral flutes are specified for blind holes up to a maximum 2.5×D depth.
Accurate UNF thread form
The 60 degree, 2B UNF thread specification supports reliable Unified Fine Thread production.
Extended tool life
Patented special tap geometry is designed to maintain correct thread profiles and long tool life.
| SKU | Size | TPI | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC864382 | #12 | 28UNF | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 4.7 | 1-2 Weeks | $52.00 | ||
| TC864342 | #10 | 32UNF | 10.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.1 | 1-2 Weeks | $54.80 | ||
| TC864302 | #8 | 36UNF | 8.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.5 | 1-2 Weeks | $52.00 | ||
| TC864262 | #6 | 40UNF | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 3.0 | 1-2 Weeks | $52.00 | ||
| TC864222 | #5 | 44UNF | 7.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.7 | 1-2 Weeks | $52.00 | ||
| TC864182 | #4 | 48UNF | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.4 | 1-2 Weeks | $65.10 | ||
| TC864422 | 1/4 | 28UNF | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 5.5 | Low stock | $61.10 | ||
| TC864462 | 5/16 | 24UNF | 10.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.9 | In stock | $61.70 | ||
| TC864502 | 3/8 | 24UNF | 10.0 | 100.0 | 39.0 | 9.0 | 7.0 | 10.0 | 3 | 8.5 | In stock | $70.50 | ||
| TC864542 | 7/16 | 20UNF | 13.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.9 | 1-2 Weeks | $85.10 | ||
| TC864582 | 1/2 | 20UNF | 13.0 | 100.0 | 40.0 | 9.0 | 7.0 | 10.0 | 3 | 11.5 | Low stock | $86.00 | ||
| TC864622 | 9/16 | 18UNF | 15.0 | 100.0 | 40.0 | 11.0 | 9.0 | 12.0 | 3 | 12.9 | Low stock | $96.10 | ||
| TC864662 | 5/8 | 18UNF | 15.0 | 100.0 | 40.0 | 12.0 | 9.0 | 12.0 | 3 | 14.5 | In stock | $119.80 | ||
| TC864722 | 3/4 | 16UNF | 17.0 | 110.0 | 44.0 | 14.0 | 11.0 | 14.0 | 4 | 17.5 | Low stock | $172.50 | ||
| TC864762 | 7/8 | 14UNF | 17.0 | 125.0 | 50.0 | 18.0 | 14.5 | 17.0 | 4 | 20.5 | Low stock | $203.10 | ||
| TC864802 | 1 | 12UNF | 20.0 | 140.0 | 54.0 | 20.0 | 16.0 | 19.0 | 4 | 23.25 | 1-2 Weeks | $246.40 |
Add (TC864) HSS-E (M35) UNF Spiral Flute Combo Tap for Multi Purpose to comparison
View Comparison- Overview
- Specifications
- Work Material
- Reviews
YG-1 TC864 is a bright HSS-E UNF spiral flute combo tap with patented special geometry. It produces Unified Fine Threads in blind holes for multi-purpose machining applications. R40 spiral flutes support chip evacuation when tapping blind holes to a maximum 2.5×D depth. Thread form is 60 degrees with a 2B thread class and DIN C chamfer. Bright TC864 variants cover #4-48 UNF through 1-12 UNF sizes. DIN 371 applies through 3/8, while DIN 374 covers 7/16 through 1 inch. Each tap has a square drive and three or four flutes according to size. The geometry is designed for correct thread profiles and extended tool life.
- Bright HSS-E spiral flute combo tap for UNF Unified Fine Threads
- Patented special geometry supports correct thread profiles and extended tool life
- R40 spiral flutes for blind-hole tapping up to 2.5×D
- 2B thread class with 60 degree thread form and DIN C chamfer
- DIN 371 sizes from #4-48 UNF through 3/8-24 UNF
- DIN 374 sizes from 7/16-20 UNF through 1-12 UNF
No specifications available.
Work materials
VDI 3323 recommendations for this tool.
Steel
10 gradesCast iron
4 gradesStainless steel
3 gradesNon-ferrous materials
4 gradesVDI grade reference21 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Good | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Good | 200 | 15 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 23 | NCast aluminium | Excellent | 75 | - |
| 26 | NCopper, bronze and brass | Excellent | 110 | - |
| 27 | NCopper, bronze and brass | Excellent | 90 | - |
| 28 | NCopper, bronze and brass | Excellent | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
